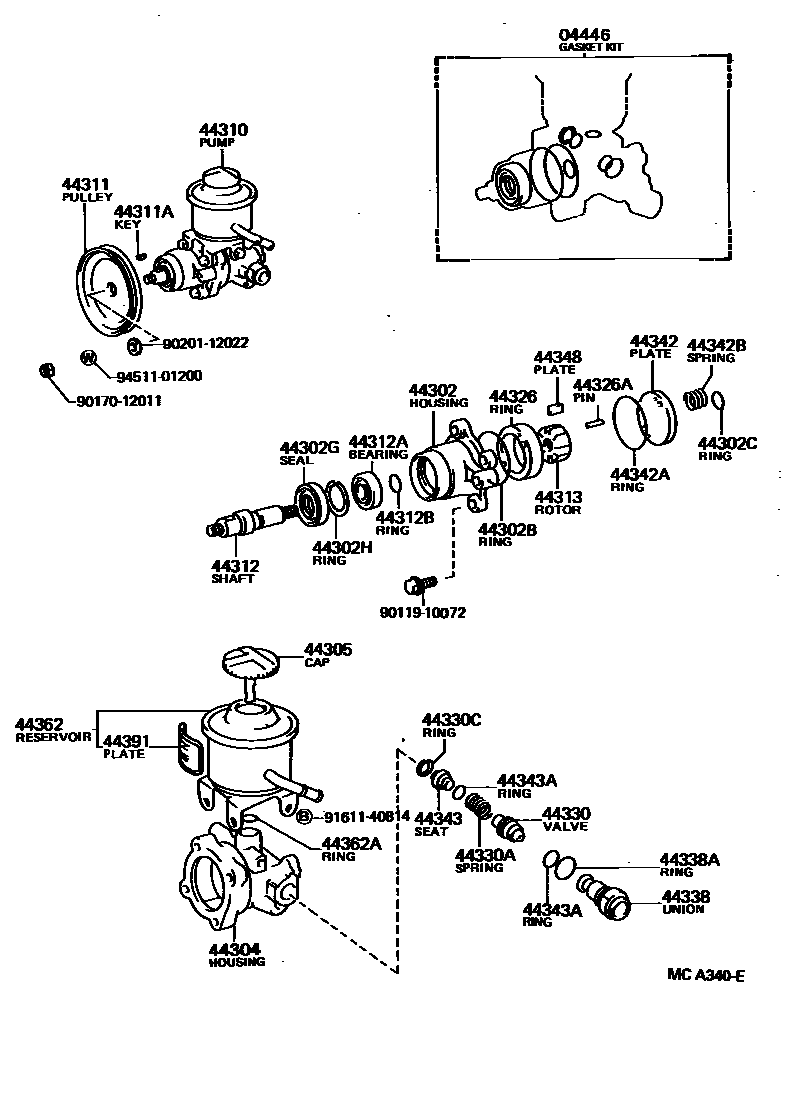

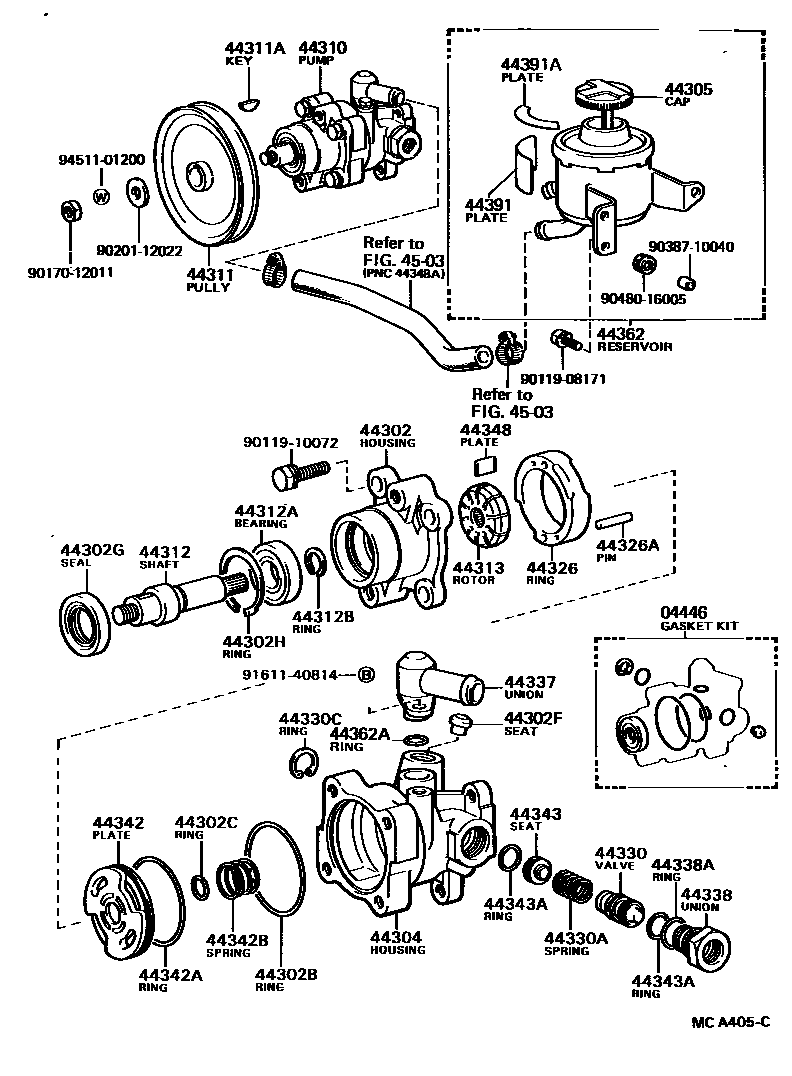

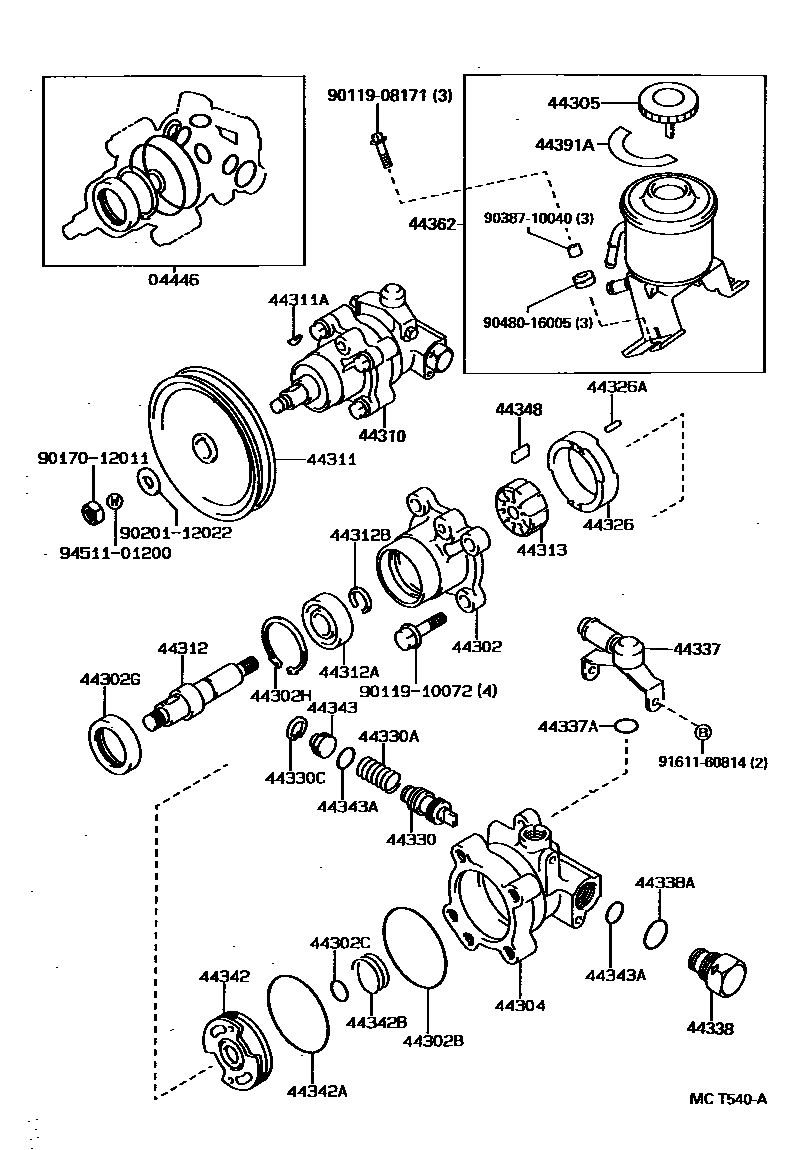

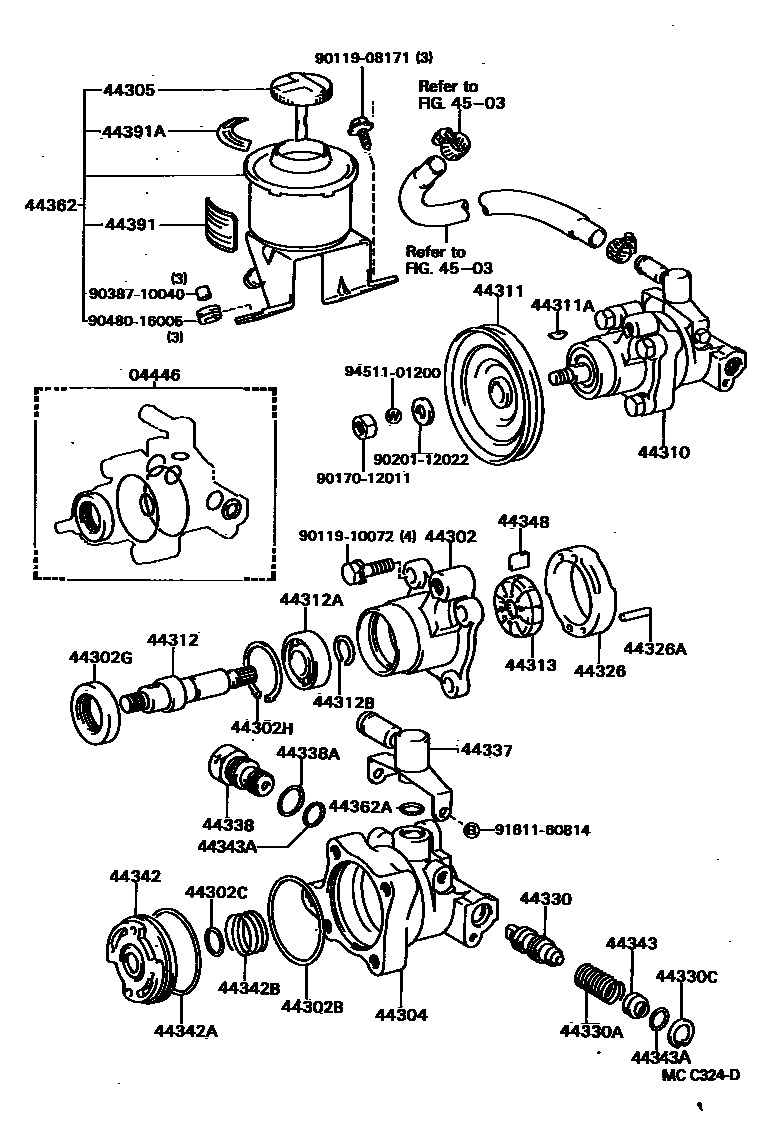

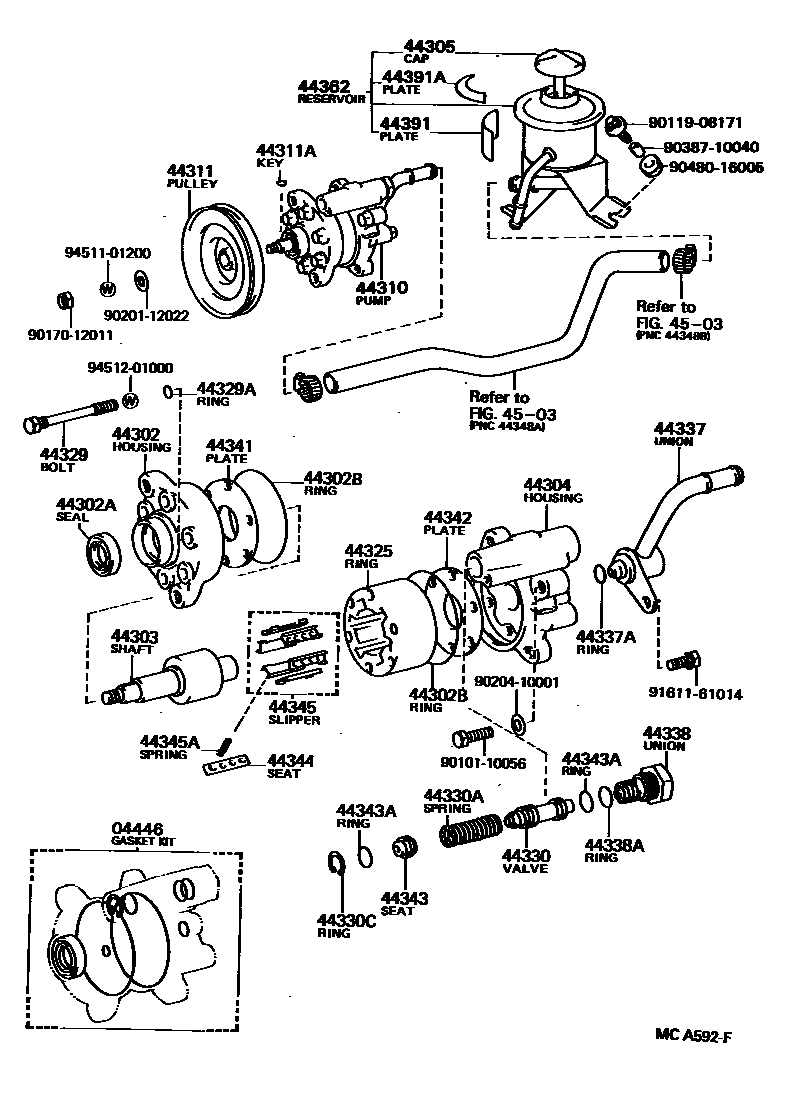

Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502
Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 6 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-30030 · 04446-35010 · 04446-35030 |
| 44302 | Front vane pump housing sub-assembly | 44302-12010 · 44302-14010 · 44302-22020 · 44302-30020 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90311-21002 |
| 44302B | No. 1 O-ring (for vane pump housing) | 90301-60001 · 90301-69170 |
| 44302C | No. 2 O-ring (for vane pump housing) | 96711-19016 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-24001 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90521-44002 |
| 44303 | Shaft sub-assembly with rotor | 44303-22011 · 44303-22021 |
| 44304 | Vane pump rear housing sub-assembly | 44304-27010 · 44304-27011 · 44304-28011 · 44304-28012 · 44304-28020 · 44304-28021 · 44304-30040 · 44304-30051 · 44304-35021 · 44304-35031 · 44304-35040 · 44304-35041 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-30020 |
| 44310 | Vane pump assembly | 44320-35041 · 44320-35050 · 44320-35060 · 44320-35061 · 44320-35090 · 44320-35091 · 44320-35101 · 44320-35130 · 44320-35140 · 44320-35160 · 44320-35170 · 44320-35180 · 44320-35190 · 44320-35200 · 44320-35231 |
| 44311 | vane pump pulley | 44311-12010 · 44311-20010 · 44311-22070 · 44311-30040 · 44311-35010 |
| 44311A | Vane pump pulley key | 90280-05008 |
| 44312 | vane pump shaft | 44312-12010 |
| 44312A | Bearings (for vane pump shafts) | 90363-17004 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-15001 |
| 44313 | vane pump rotor | 44313-12010 · 44313-12020 · 44313-12030 · 44313-12040 · 44313-12050 · 44313-22040 · 44313-22050 · 44313-22060 · 44313-22070 · 44313-22080 |
| 44325 | Retaining ring (for vane pumps) | 44325-30030 · 44325-30040 |
| 44326 | Cam ring (for vane pumps) | 44325-12010 · 44325-12020 · 44325-12030 · 44325-12040 · 44325-12050 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-05008 |
| 44329 | Vane pump front and rear housing fixing bolts | 44329-30010 |
| 44329A | O-ring (for vane pump housing fixing bolts) | 96711-19007 |
| 44330 | Flow control valve assembly | 44330-12130 · 44330-12131 · 44330-12140 · 44330-12141 · 44330-12150 · 44330-12151 · 44330-12160 · 44330-12161 · 44330-12170 · 44330-12171 · 44330-12180 · 44330-12181 · 44330-32070 · 44330-32080 · 44330-32090 · 44330-32100 · 44330-32110 · 44330-32120 · 44330-35010 · 44330-35020 · 44330-35030 · 44330-35040 · 44330-35050 · 44330-35060 · 44330-35070 · 44330-35080 · 44330-35090 · 44330-35100 · 44330-35110 · 44330-35120 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-12447 |
| 44330C | Snap ring (for flow control valve) | 96151-01700 |
| 44337 | Power steering suction port connector | 44337-30010 · 44337-35010 · 44337-35020 · 90404-16016 |
| 44337A | O-ring (for power steering oil suction port) | 96711-19013 |
| 44338 | Pressure port connector | 44308-14040 · 44308-14041 · 44308-35020 · 44308-35060 · 44308-60010 |
| 44338A | O-ring (for pressure port connector) | 90301-22001 |
| 44341 | Vane pump front cover | 44341-30020 |
| 44342 | Vane pump rear end cover | 44341-12010 · 44341-30020 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-53002 |
| 44342B | Compression spring (for vane pump rear end cover) | 90501-23014 |
| 44343 | Flow control spring seat | 44343-12010 · 44343-12040 |
| 44343A | O-ring (for flow control spring seat) | 96711-19014 |
| 44344 | Spring seat (for vane pumps) | 44344-30010 |
| 44345 | vane pump guide plate | 44307-22010 · 44307-22020 |
| 44345A | Compression spring (for vane pump guide plate) | 90501-06445 |
| 44348 | vane pump disc | 44345-12010 · 44345-12020 · 44345-12030 · 44345-12040 · 44345-12050 |
| 44362 | Oil storage tank (for vane pump) | 44306-30110 · 44306-30200 · 44306-35040 · 44306-35090 · 44306-35140 · 44360-35030 · 44360-35041 · 44360-35070 |
| 44362A | O-ring (for vane pump oil storage tank) | 96711-19013 |
| 44391 | Power steering oil tank warning nameplate | 44391-12010 · 44391-14010 · 44391-30020 |
| 44391A | Oil storage tank warning nameplate | 44391-20010 · 44392-35010 |
