Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

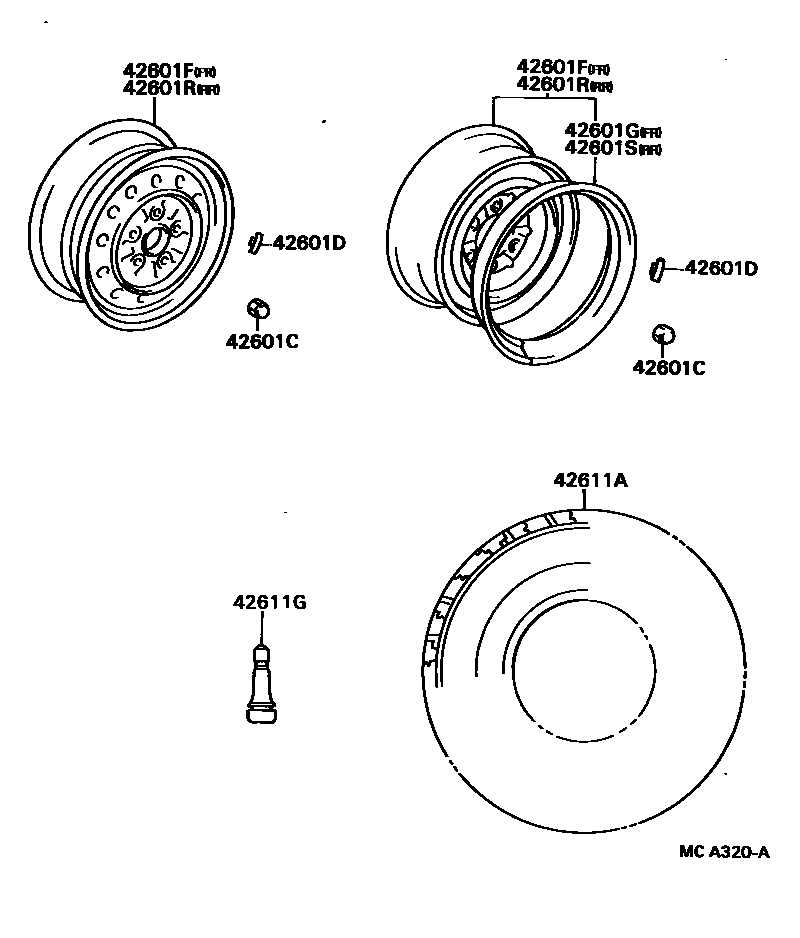

| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01027 · 90942-01047 · 90942-01048 · 90942-01059 · 90942-01061 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03045 · 90942-03047 · 90942-03049 · 90942-03050 · 90942-03051 · 90942-03052 · 90942-03053 · 90942-03064 · 90942-03079 · 90942-03080 · 90942-03081 · 90942-03082 · 90942-03083 · 90942-03084 · 90942-03085 · 90942-03086 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03106 · 90942-03107 · 90942-03108 · 90942-03109 |
| 42601F | Spoke wheels (for front tires) | 42601-26180 · 42601-26250 · 42601-35142 · 42601-35162 · 42601-35250 · 42601-35260 · 42601-35330 · 42601-35400 · 42601-35430 · 42601-35440 · 42601-60170 · 42601-60180 · 42610-35030 · 42610-60021 · 42610-60030 |
| 42601G | Web-type wheel retaining rings (for front tires) | 42613-35010 · 42613-36020 |
| 42601R | Spoke wheels (for rear tires) | 42601-26180 · 42601-26250 · 42601-35142 · 42601-35162 · 42601-35250 · 42601-35260 · 42601-35330 · 42601-35400 · 42601-35430 · 42601-35440 · 42601-60170 · 42601-60180 · 42610-35030 · 42610-60021 · 42610-60030 |
| 42601S | Spoke wheel retaining ring (for rear tire) | 42613-35010 · 42613-36020 |

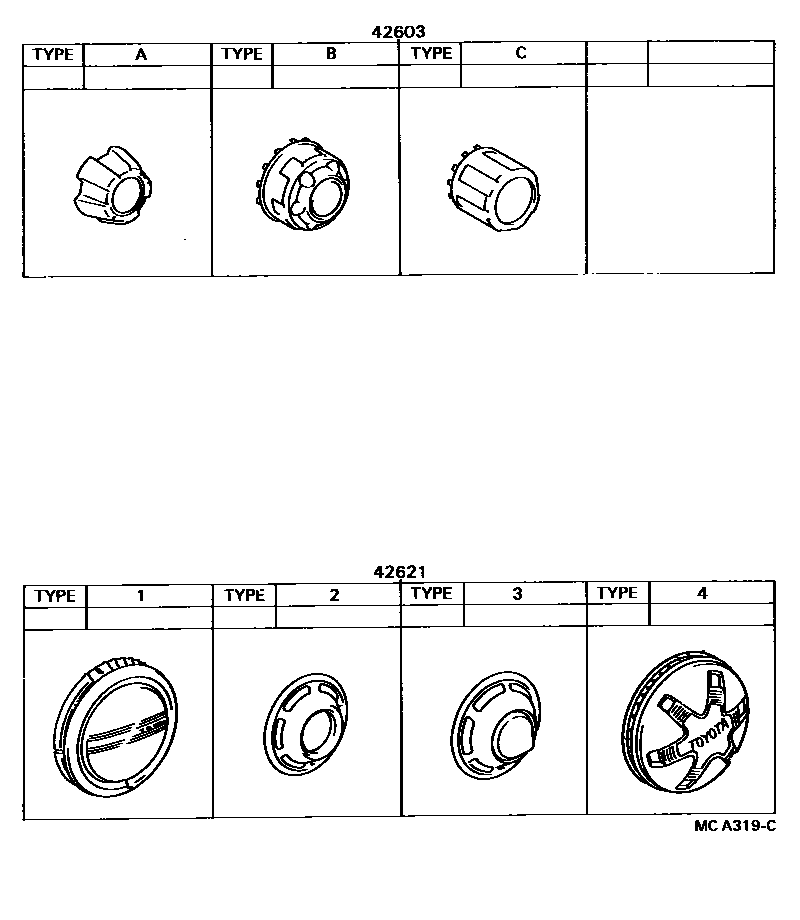

| 42603 | Wheel hub decorative parts sub-assembly | 42603-35061 · 42603-35071 · 42603-35080 · 42603-35090 · 42603-35110 · 42603-35120 · 42603-35130 · 42603-35160 · 42603-35161 · 42603-35170 · 42603-35171 · 42603-35180 · 42603-35181 · 42603-35200 · 42603-35201 · 42603-35210 · 42603-35211 |
| 42611A | Tubeless tire assembly or tubeless tire | 42605-26110 · 42605-35010 · 42605-35030 · 42605-35040 · 42605-35080 · 42605-35081 · 42605-35100 · 42605-35150 · 42605-35180 · 42605-35190 · 42605-35200 · 42605-60470 · 42605-60560 · 42605-60561 · 42605-60562 · 42605-60610 · 42605-60611 · 42605-60612 · 42605-60630 · 42605-60631 · 42652-35150 · 98061-60143 · 98061-65144 · 98061-70153 · 98661-70154 · 98665-70154 · 98665-70164 |
| 42611G | Valve (for tubeless tires) | 90942-05004 |
| 42621 | wheel cover | 42621-35150 · 42621-35170 · 42621-35171 · 42621-35190 · 42621-60010 · 42621-60020 |
