Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

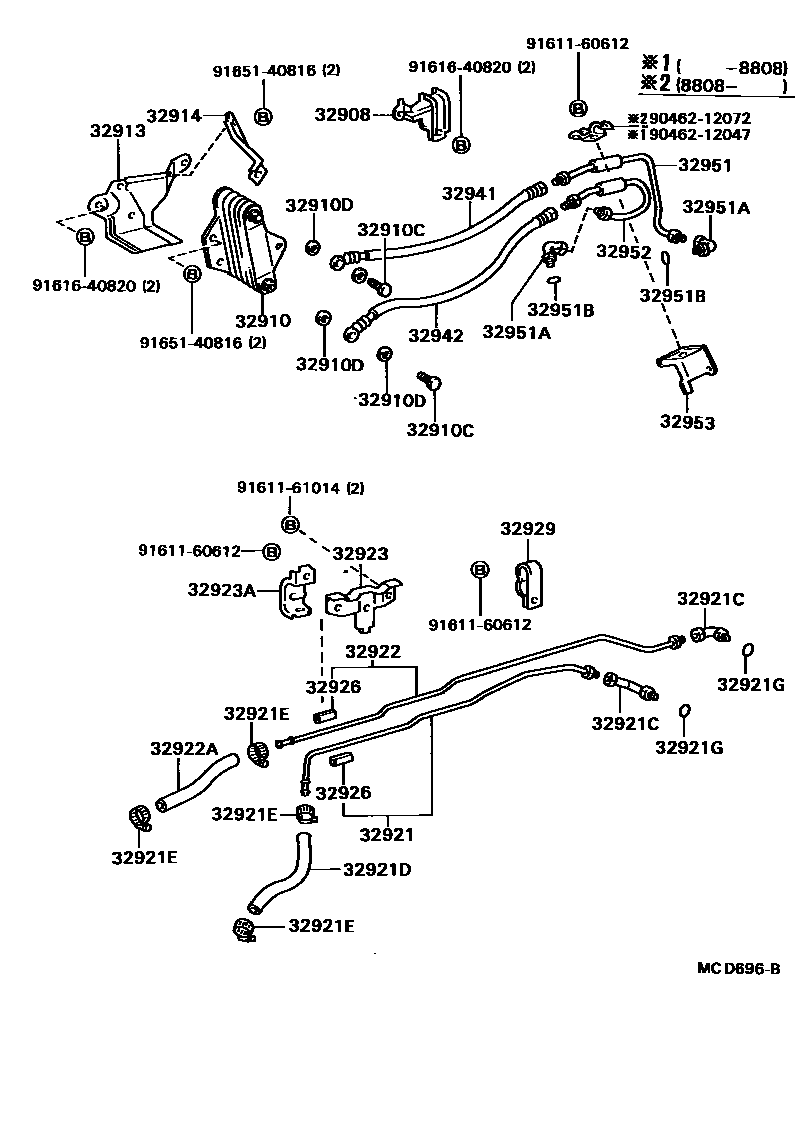

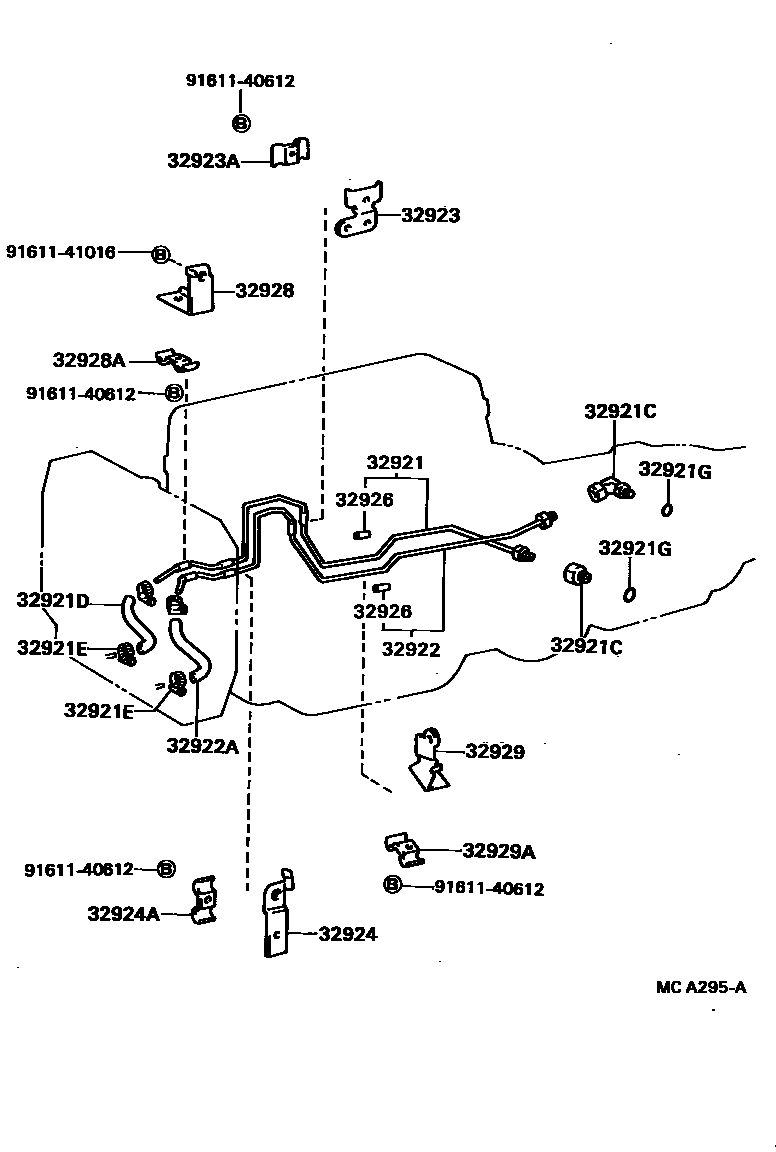

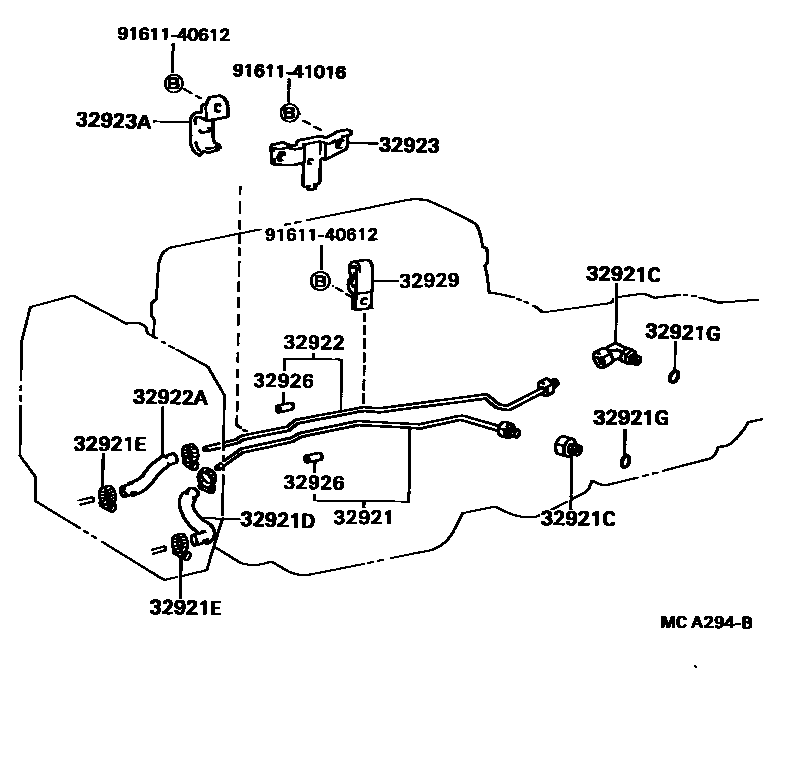

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32908 | Transmission oil cooler hose clamp sub-assembly | 32908-35010 |
| 32910 | Oil cooler assembly | 32910-35010 |
| 32910C | Connector bolt (for oil cooler) | 90401-14003 |
| 32910D | Gasket (for transmission oil cooler) | 90430-14235 |
| 32913 | Transmission oil cooler bracket | 32913-35010 |
| 32914 | Transmission oil cooler stay | 32914-35010 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35060 · 32921-35070 · 32921-35110 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 · 90407-14003 · 90407-16008 · 90407-16012 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-14076 · 90445-14078 · 90445-15012 · 90445-16027 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-14085 · 90460-18002 · 90467-13039 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35070 · 32922-35080 · 32922-35130 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-14052 · 90445-14101 · 90445-15021 · 90445-16026 |
| 32923 | Automatic transmission oil cooler pipe clamp | 32923-28020 · 32923-28030 · 32923-30090 · 32923-35020 · 32923-35030 |
| 32923A | Automatic transmission oil cooler pipe clamp | 32924-28010 · 32924-35020 · 90462-12085 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32924-30090 |
| 32924A | Clamp (for No. 2 transmission oil cooler tube) | 90462-12085 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 · 32926-30020 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-35020 |
| 32928A | Clamp (for flexible hose clamp) | 90462-12085 |
| 32929 | No. 2 Flexible Hose Clamp | 32929-35010 · 90461-08070 · 90461-08628 |
| 32929A | Clamp (for flexible hose clamp) | 90462-12085 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-35010 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32942-35020 |
| 32951 | Transfer case oil cooler oil inlet pipe | 32951-35010 |
| 32951A | Bend pipe (for transfer case oil cooler pipe) | 90407-16010 |
| 32951B | O-ring (for transfer case oil cooler pipe) | 90301-10189 |
| 32952 | Transfer case oil cooler oil outlet pipe | 32952-35010 |
| 32953 | Transfer case oil cooler clip | 32953-35010 |
