Toyota HILUX 废气再循环系统 — Figure 2501

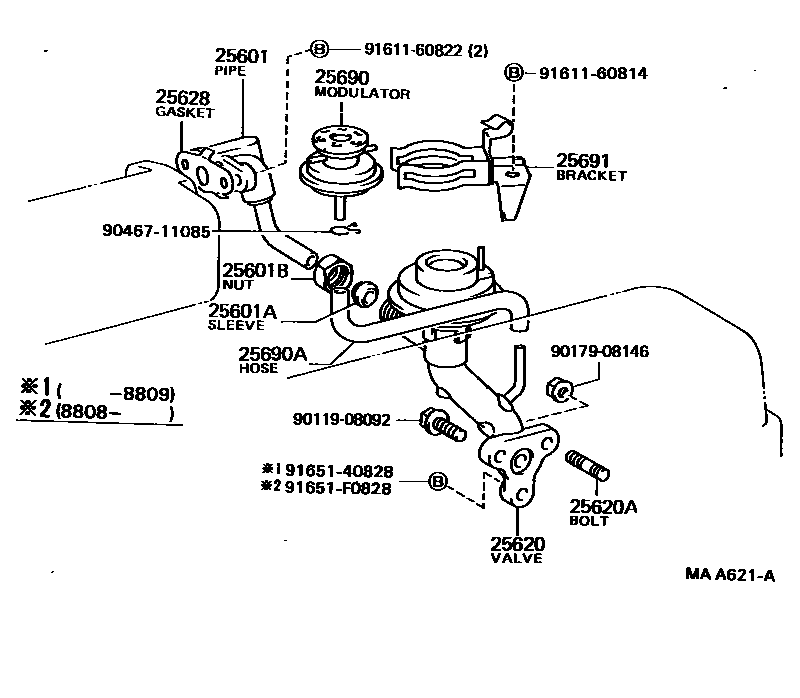

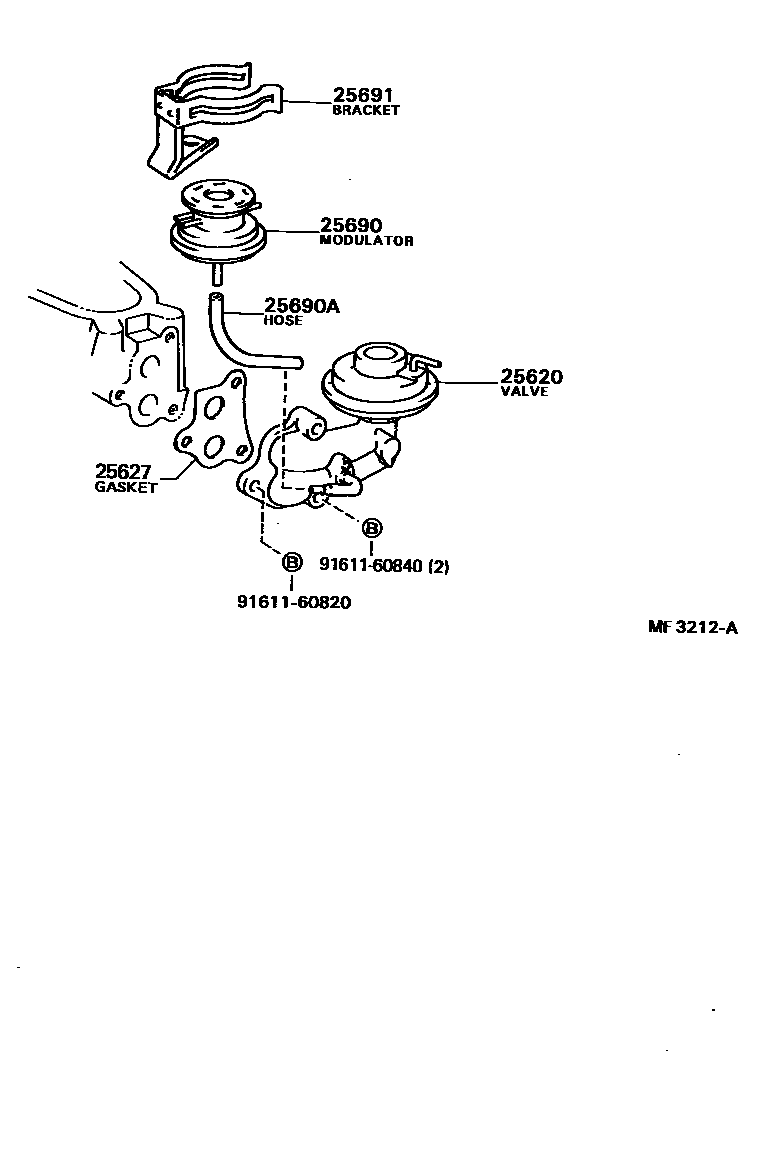

Toyota HILUX EPC diagram 2501, 废气再循环系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-35010 · 25601-35050 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-16044 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-22081 |
| 25620 | EGR valve assembly | 25620-35130 · 25620-71070 · 25620-71071 · 25620-71080 · 25620-71081 · 25620-73050 · 25620-73060 · 25620-73080 · 25620-73090 · 25620-73100 |
| 25620A | Stud bolts (for EGR valve) | 90116-08207 |
| 25627 | EGR valve gasket | 25627-71010 |
| 25628 | EGR air intake gasket | 25628-35010 · 25628-35020 |
| 25690 | EGR vacuum regulator assembly | 25870-35100 · 25870-35130 · 25870-71010 · 25870-71011 · 25870-71040 · 25870-71041 |
| 25690A | Hoses (for EGR vacuum regulator) | 25695-35010 · 25695-35020 · 90445-11065 · 90445-11080 |
| 25691 | EGR vacuum regulator bracket | 25691-35021 · 25691-35030 · 25691-71020 · 25691-73020 |
