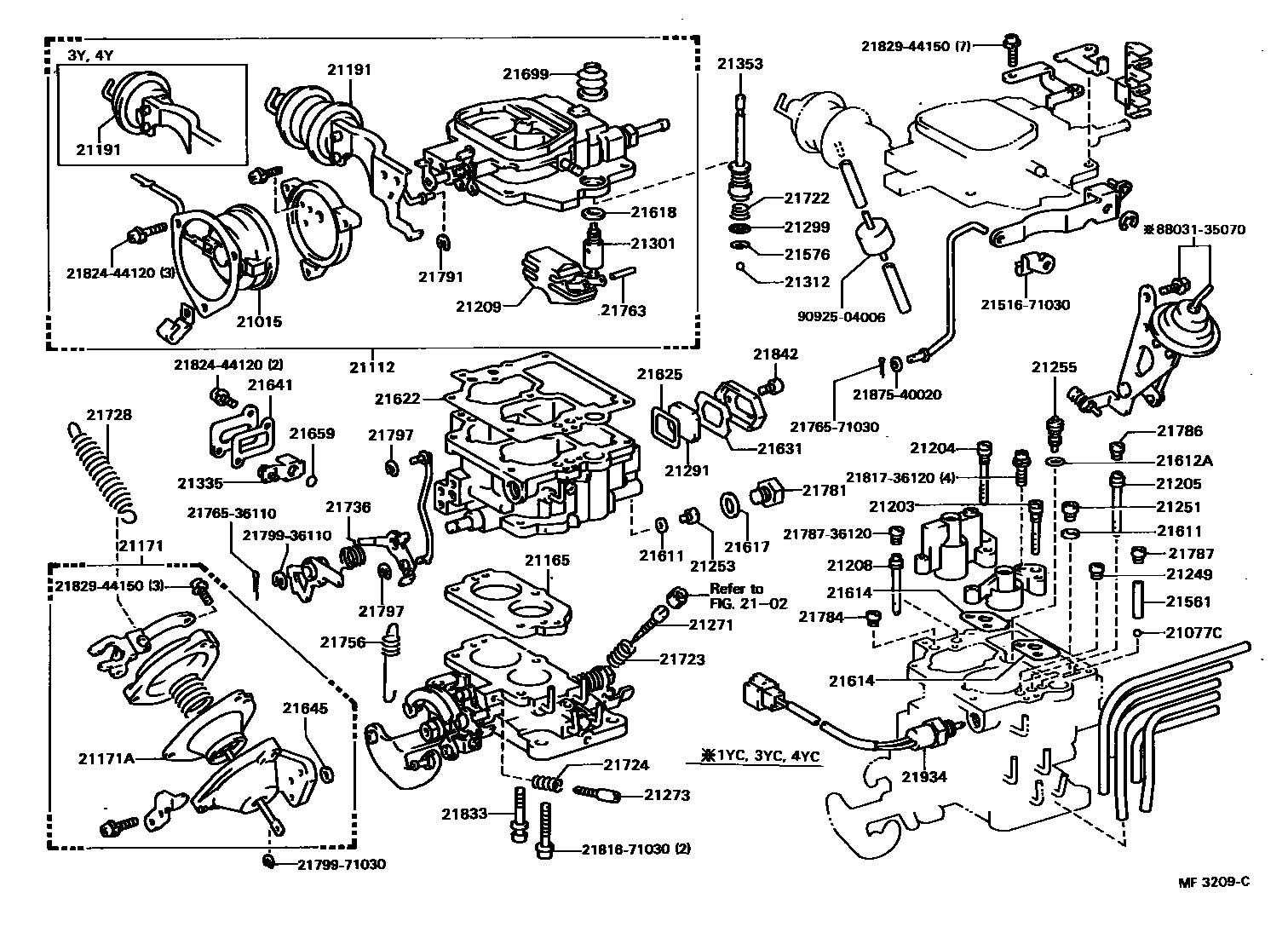

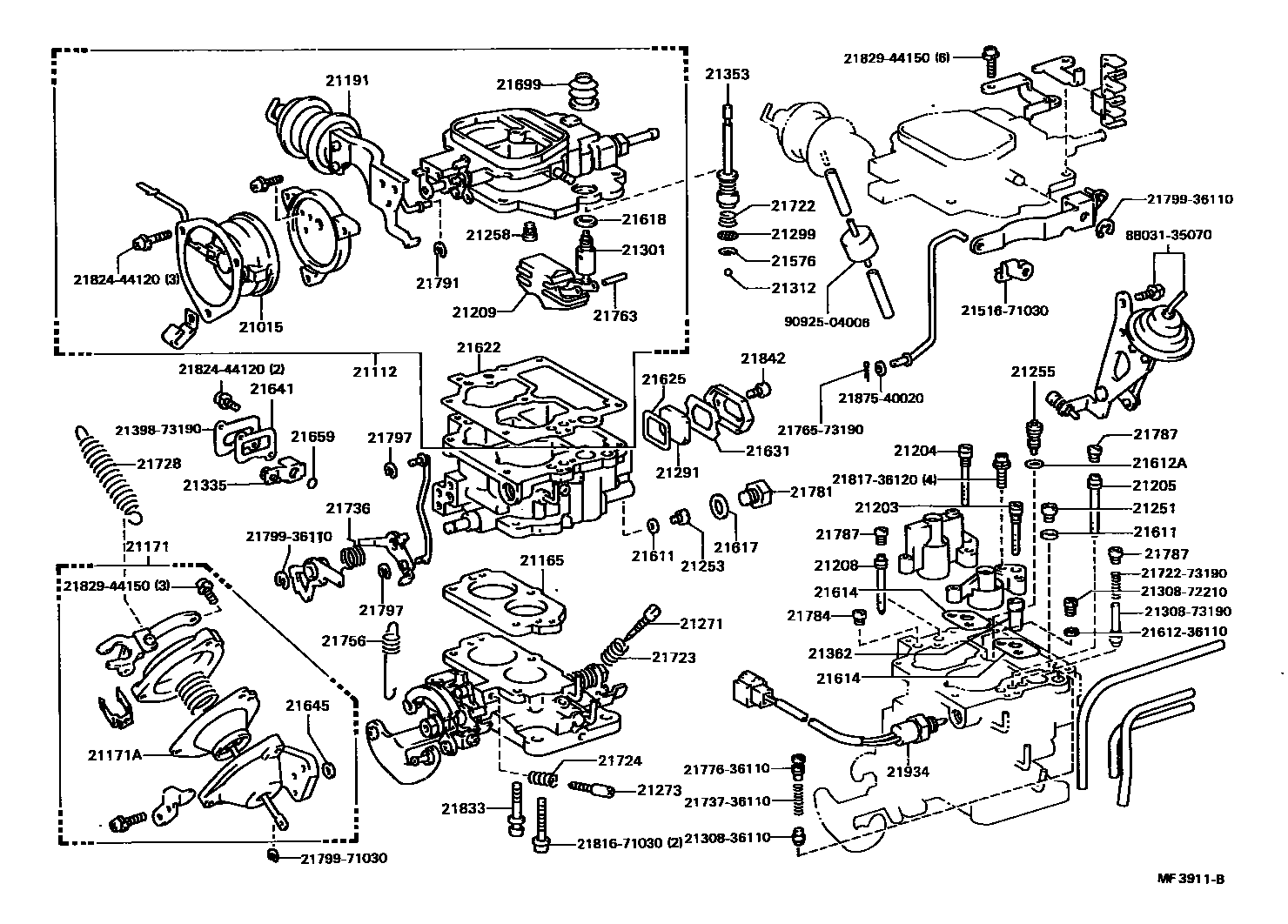

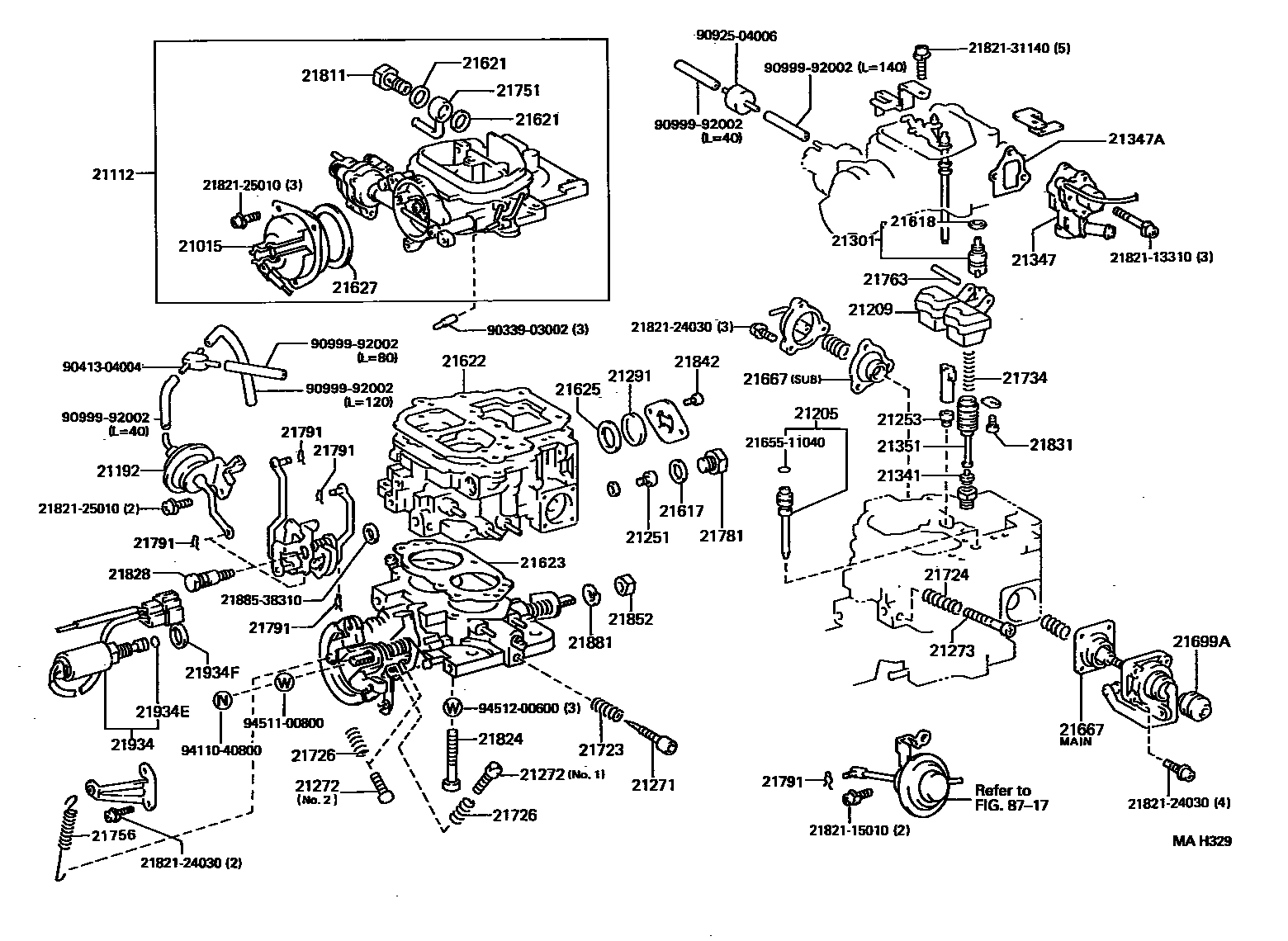

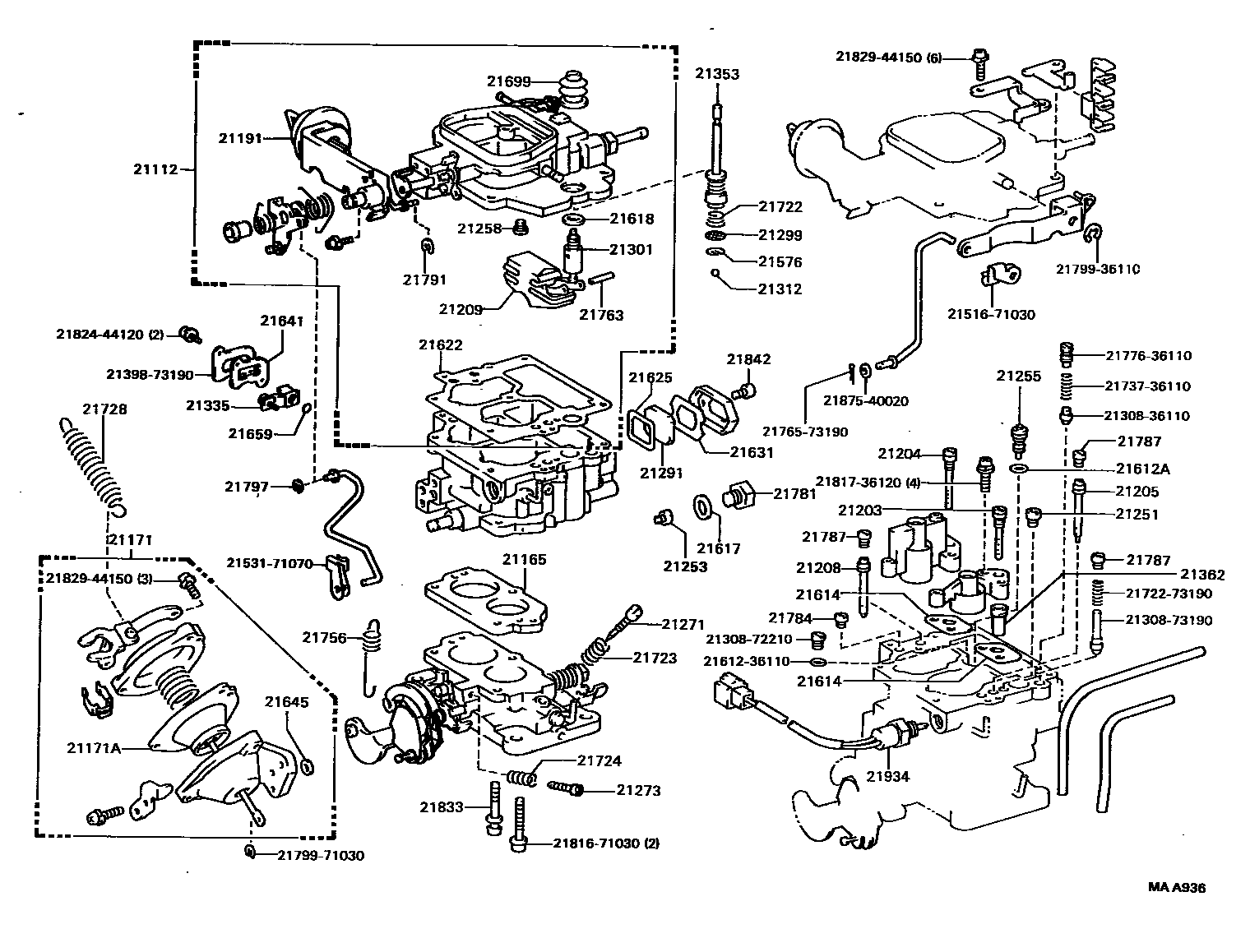

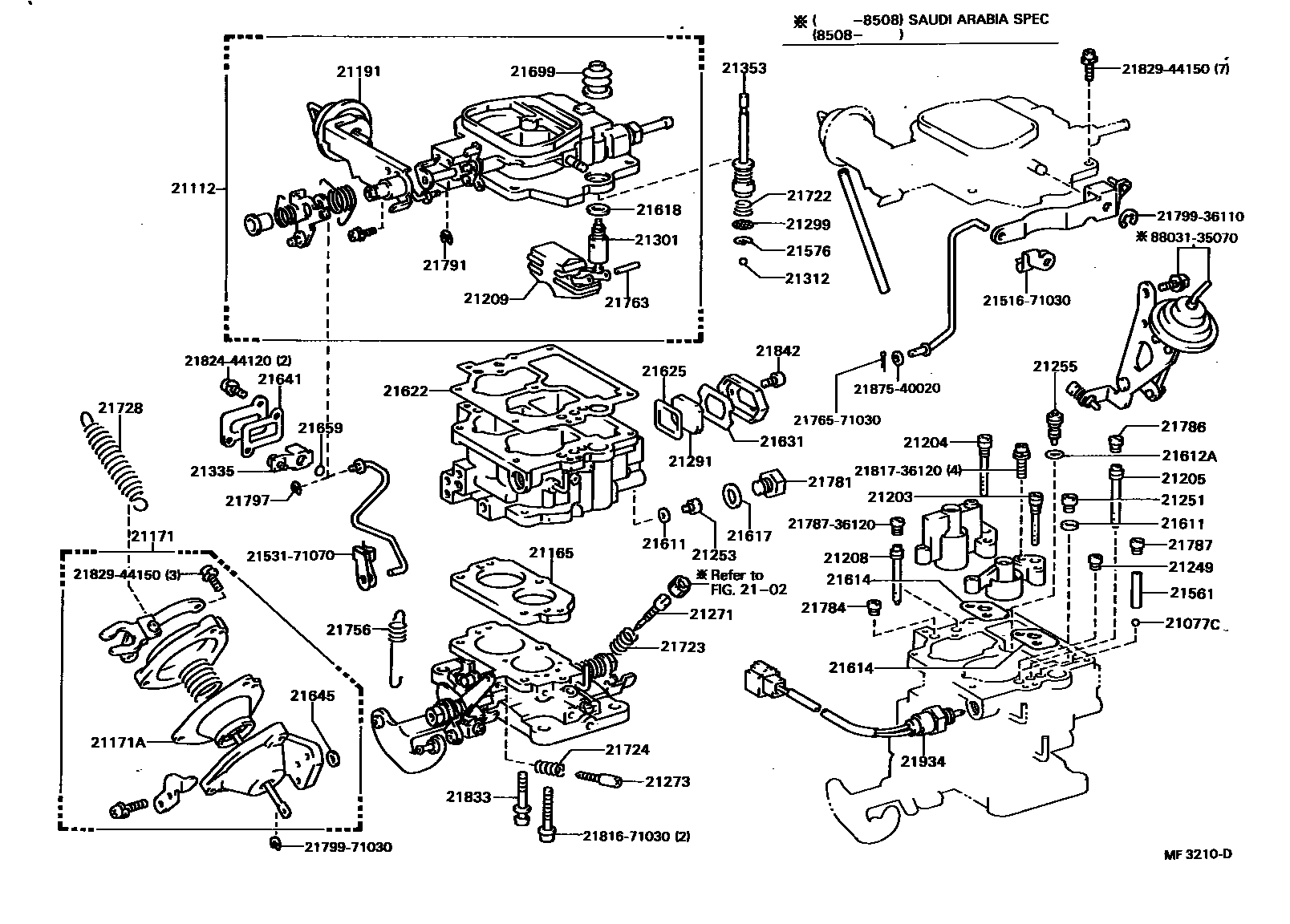

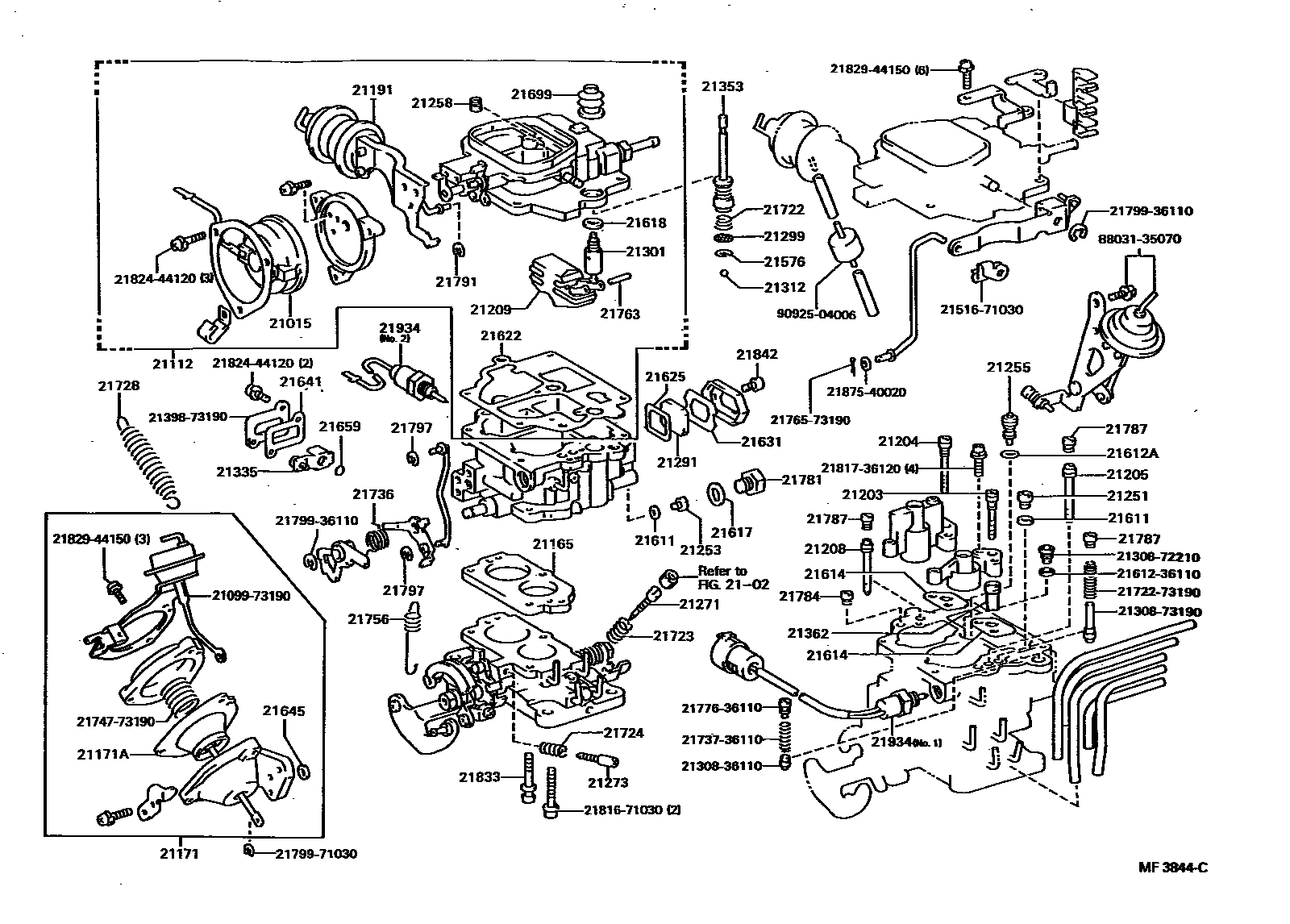

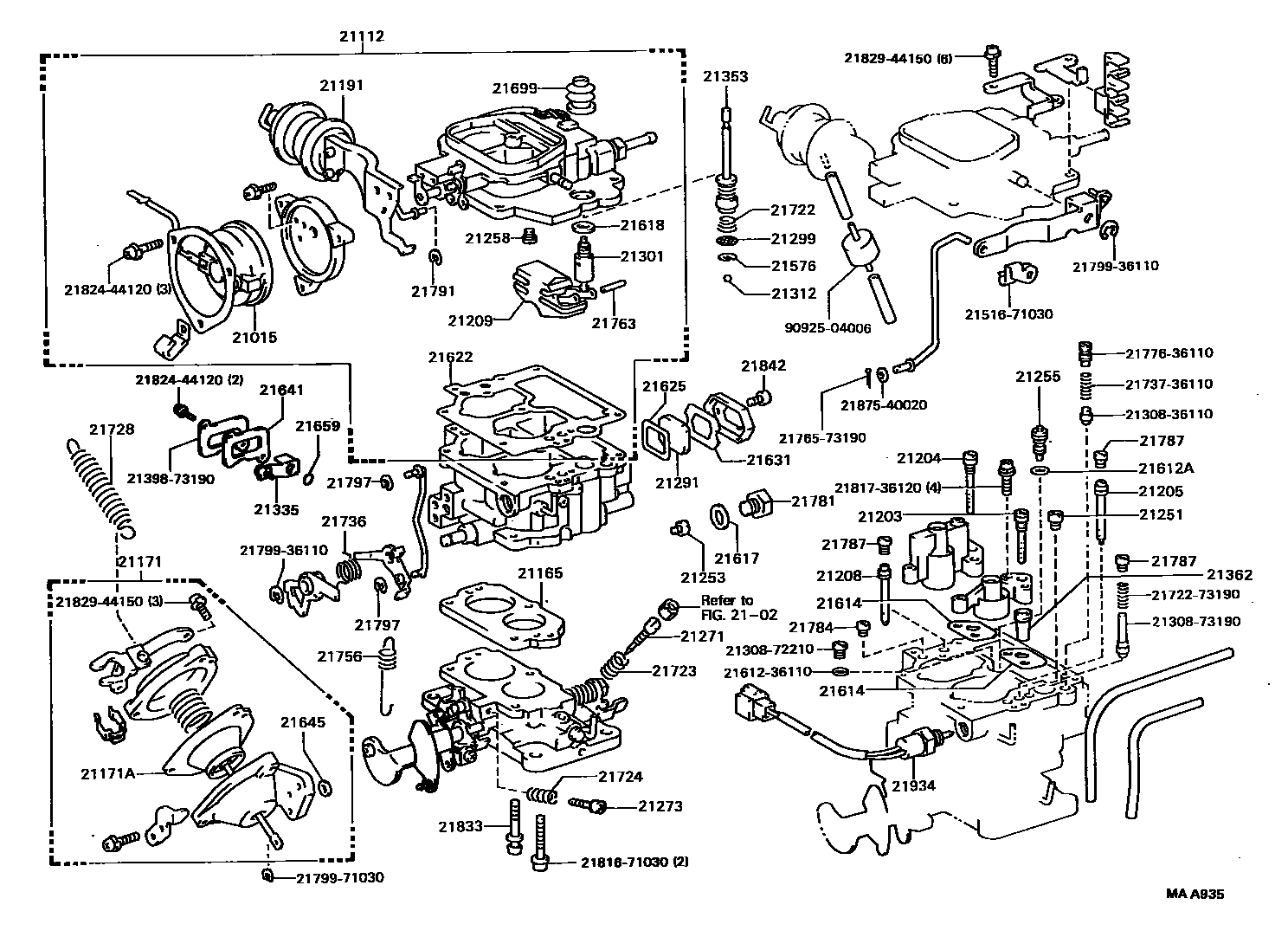

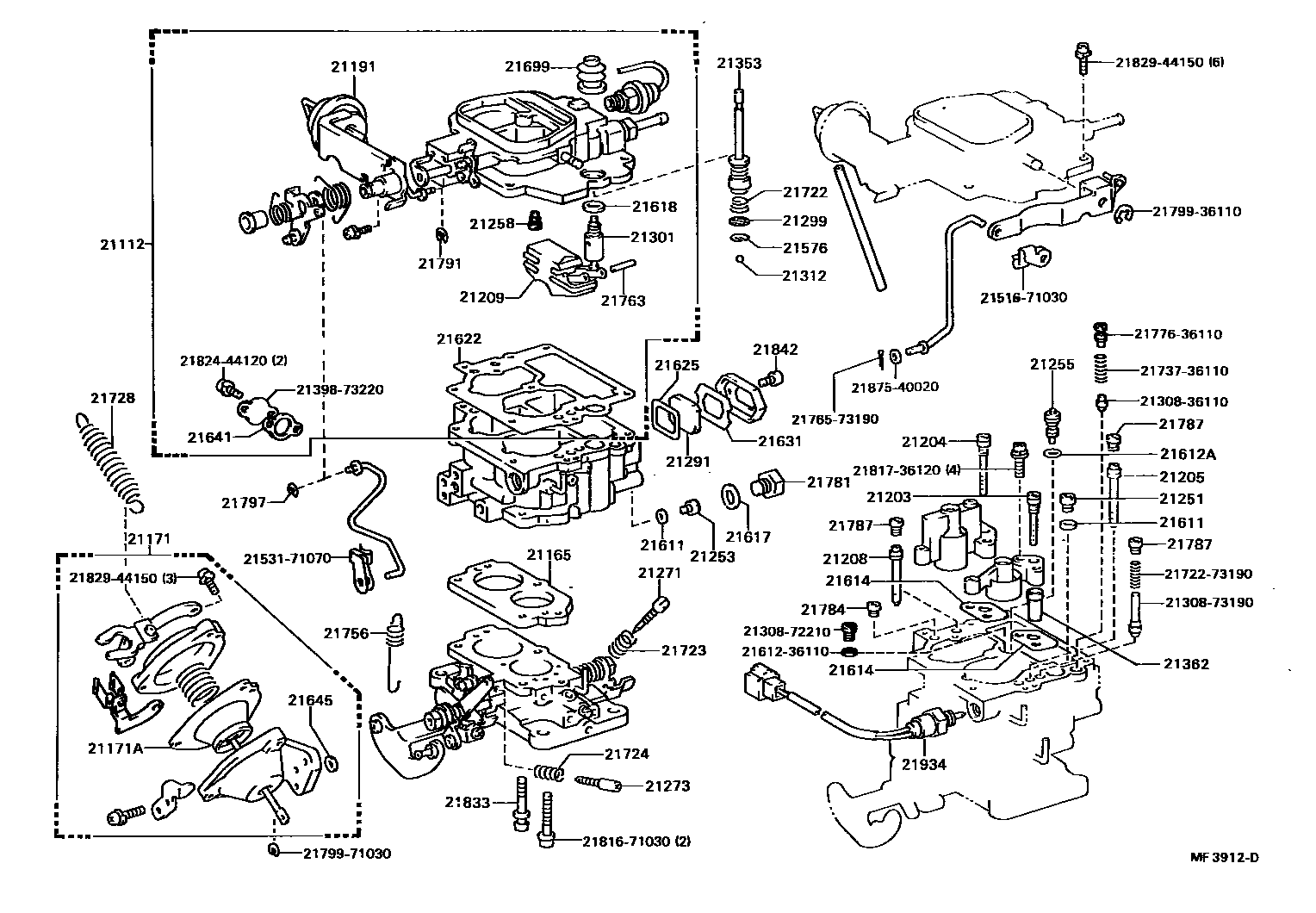

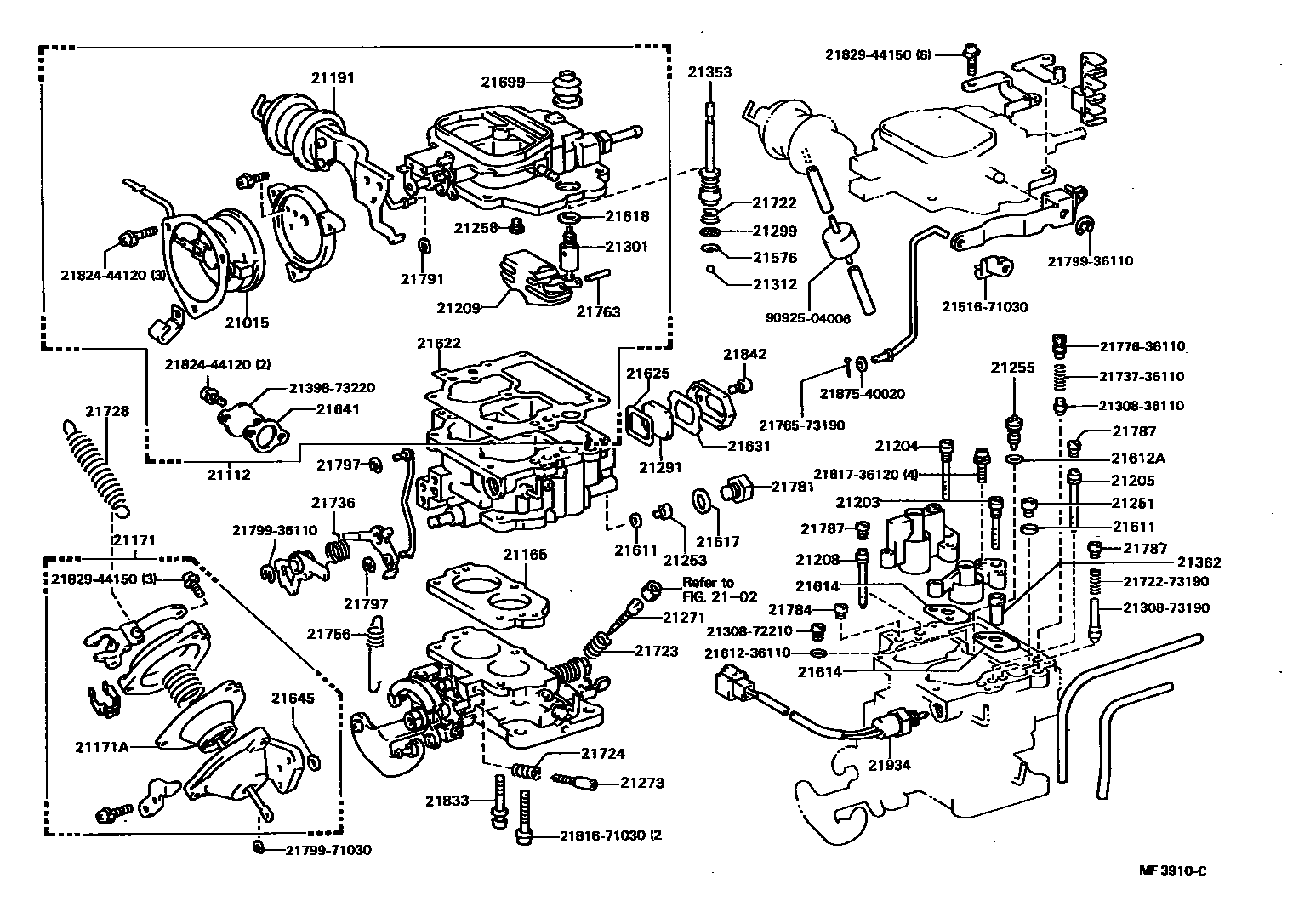

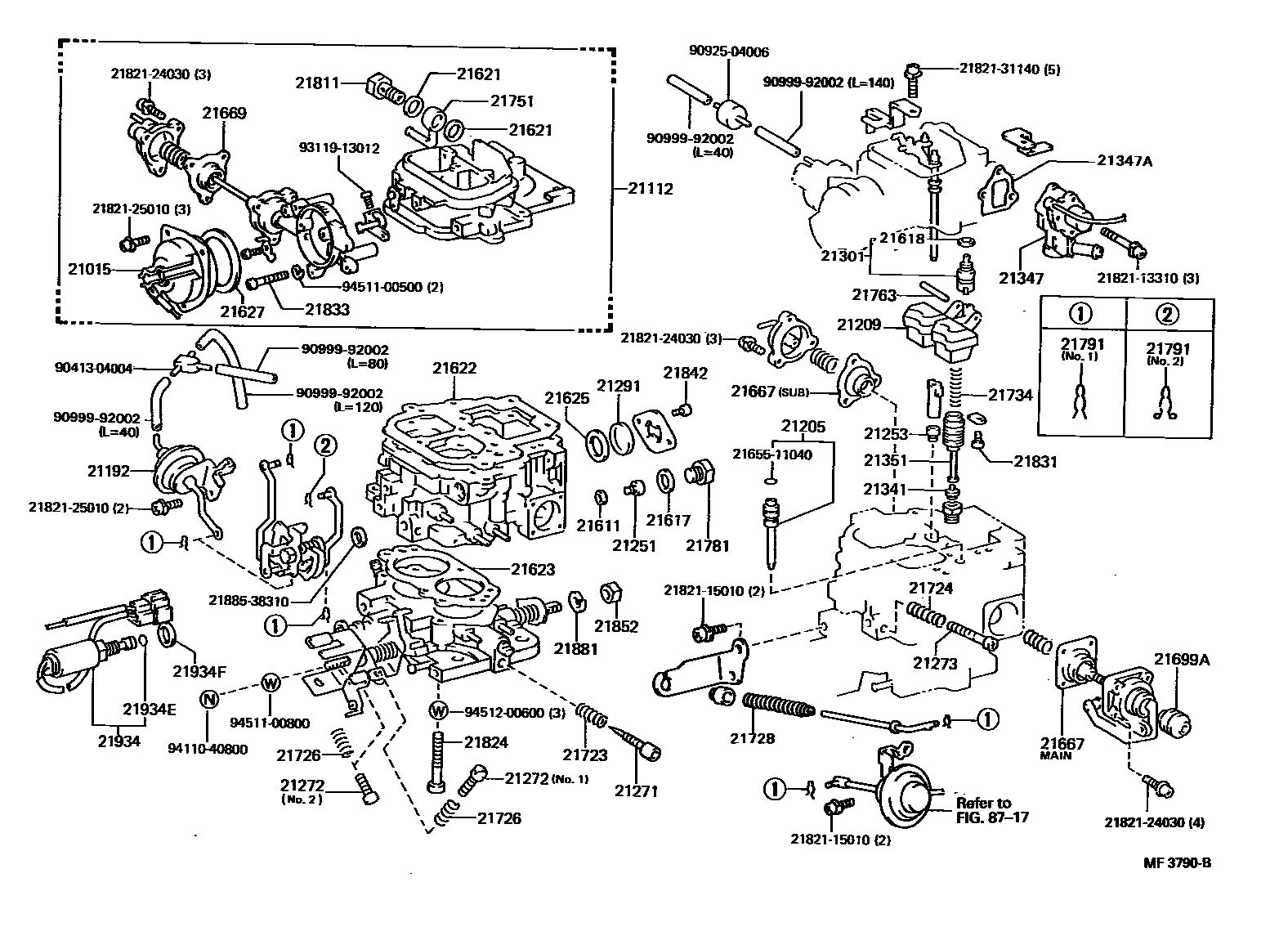

Toyota HILUX 化油器 — Figure 2103
Toyota HILUX EPC diagram 2103, 化油器, with 10 images and 79 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-35420 · 21015-35540 · 21141-71030 · 21141-71060 · 21141-71090 · 21141-73140 · 21141-73190 · 21142-71090 |
| 21077C | Steel ball (for auxiliary accelerator pump) | 21312-40020 |
| 21112 | Air intake bell mouth | 21012-71030 · 21012-71050 · 21012-71060 · 21012-71070 · 21012-71071 · 21012-71080 · 21012-71090 · 21012-71140 · 21012-72210 · 21012-72280 · 21012-72330 · 21012-72331 · 21012-72390 · 21012-73140 · 21012-73150 · 21012-73190 · 21012-73200 · 21012-73210 · 21012-73220 · 21012-73350 · 21012-73351 · 21012-73352 · 21012-73360 · 21112-35420 · 21112-35590 |
| 21165 | Vibration isolation pad | 21106-71030 · 21106-71140 · 21106-72250 · 21106-73150 · 21106-73220 · 21106-73340 |
| 21171 | diaphragm chamber | 21171-71030 · 21171-72210 · 21171-72390 · 21171-73140 · 21171-73150 · 21171-73190 · 21171-73210 |
| 21171A | Diaphragm (for diaphragm chamber) | 21173-71030 |
| 21191 | opener | 21039-71030 · 21039-71050 · 21039-71070 · 21039-72280 · 21039-73110 · 21039-73190 |
| 21192 | breaker | 21192-35350 |
| 21203 | First main bleed device sub-assembly | 21203-71030 · 21203-72210 · 21203-72340 · 21203-73150 · 21203-73190 |
| 21204 | Second main bleed device sub-assembly | 21204-71030 · 21204-72390 · 21204-73110 · 21204-73190 |
| 21205 | Idle speed measuring hole assembly | 21205-34400 · 21205-35360 · 21205-35361 · 21205-71030 · 21205-72210 · 21205-73110 · 21205-73220 · 21205-73270 |
| 21208 | Stepped fuel volume hole sub-assembly | 21205-72330 · 21205-73190 · 21205-73400 · 21208-44310 · 21208-73140 |
| 21209 | Float sub-assembly | 21209-37041 · 21209-71030 · 21209-73110 |
| 21249 | No. 2 air release hole | 21249-71030 |
| 21251 | first main measuring hole | 21244-36120 · 21244-71050 · 21244-73140 · 21244-73150 · 21244-73260 · 21244-73270 · 21251-72210 · 90999-41113 · 90999-41114 |
| 21253 | Deputy main measuring hole | 21253-37040 · 21253-71030 · 21253-73110 · 21253-73140 · 21253-73150 · 21253-73290 · 21254-73140 |
| 21255 | Power measuring hole | 21302-71030 · 21302-72210 · 21302-73140 · 21302-73150 · 21302-73190 |
| 21258 | Idle speed measuring hole | 21249-72210 · 21249-73200 · 21249-73220 |
| 21271 | Idle speed adjustment screw | 21207-34420 · 21271-37080 · 21271-63070 · 21271-71030 · 21271-72280 · 21271-73290 |
| 21272 | First gear idle speed adjustment screw | 21273-26370 · 21844-33010 |
| 21273 | Throttle adjustment screw | 21272-71030 · 21272-72250 · 21273-71010 |
| 21291 | oil level gauge glass | 21291-34320 · 21291-36120 |
| 21299 | pump filter strainer | 21299-31030 |
| 21301 | Needle valve sub-assembly | 21301-35010 · 21301-71030 |
| 21312 | steel ball | 21312-40020 |
| 21335 | thermostat valve | 21038-71030 |
| 21341 | enrichment valve | 21304-61060 |
| 21347 | Solenoid valve | 21347-35420 · 21347-35590 |
| 21347A | Gasket (for solenoid valve) | 21641-35010 |
| 21351 | enrichment piston | 21351-37040 · 21351-73390 |
| 21353 | pump plunger | 21305-71030 · 21305-72390 |
| 21362 | First gear main slot sleeve | 21362-71030 |
| 21561 | Pump drain counterweight | 21561-71030 |
| 21576 | Pump filter clip | 21576-31030 |
| 21611 | Main gage hole gasket | 21611-22010 · 21611-40021 |
| 21612A | Power gauge hole gasket | 21612-31100 |
| 21614 | Venturi gasket | 21614-71030 · 21614-72250 · 21614-72331 |
| 21617 | Main oil gallery plug gasket | 21617-30010 · 21633-44150 |
| 21618 | Needle seat gasket | 21618-14010 · 21637-71030 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-35540 · 21622-63010 · 21622-71030 · 21622-72250 · 21622-73190 · 21622-73220 |
| 21623 | Body hem pads | 21623-35290 · 21623-35510 |
| 21625 | oil level gauge gasket | 21625-36120 · 21655-60200 |
| 21627 | Coil housing gasket | 21627-28150 |
| 21631 | main duct gasket | 21631-36120 |
| 21641 | Gasket (for thermostat valve cover) | 21626-71030 · 21626-73190 · 21626-73220 |
| 21645 | Diaphragm cover gasket | 21638-71030 |
| 21659 | O-ring (for thermostat valve) | 21655-31100 |
| 21667 | Diaphragm | 21667-35291 · 21667-35510 · 21667-72080 · 21675-35510 |
| 21669 | Diaphragm | 21669-37040 |
| 21699 | Dust boot (for pump plunger) | 21656-71030 |
| 21699A | Dust boot (for accelerator pump) | 21699-37040 |
| 21722 | Pump damping spring | 21735-71030 |
| 21723 | Idle speed adjustment spring | 21723-30030 · 21723-37040 |
| 21724 | Throttle valve adjustment spring | 21723-38330 · 21723-71030 |
| 21726 | First gear idle speed adjustment spring | 21726-38310 |
| 21728 | Throttle return spring | 21728-71030 · 21728-73190 · 21864-31400 |
| 21734 | Thickening piston spring | 21734-71010 |
| 21736 | First gear idle cam spring | 21748-36110 |
| 21751 | Oil pipe joint | 21894-37040 |
| 21756 | Return spring (for throttle shaft) | 21727-71030 · 21727-73110 · 21727-73190 · 21869-35520 |
| 21763 | floating lever pin | 21763-34320 · 21763-73390 · 21768-71030 · 21768-73110 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21776-44310 · 21776-72390 · 21781-15230 · 21781-16510 |
| 21784 | Idle oil passage plug | 21249-71030 · 21249-72390 · 21249-73190 · 21249-73220 · 21787-36120 |
| 21786 | Pump oil passage plug | 21787-36120 |
| 21787 | Acceleration nozzle plug | 21776-71030 · 21776-73190 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21791-13011 · 21791-60010 · 21797-44050 |
| 21797 | No. 4 snap ring (for carburetor connecting rod) | 21797-44050 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21824 | Set screw (for first idle cam lifter assembly) | 93110-16035 |
| 21828 | First gear idle speed fixing screw | 21828-35210 |
| 21831 | Enrichment piston limit screw | 21821-15060 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21804-71030 · 21804-73150 · 21833-33010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21832-36120 · 21842-33010 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-35421 · 21062-35422 · 21391-71030 · 21391-71070 · 21391-71071 · 21391-72280 · 21391-73150 · 21391-73190 · 21392-73190 · 21392-73220 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21617-10010 |
