Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

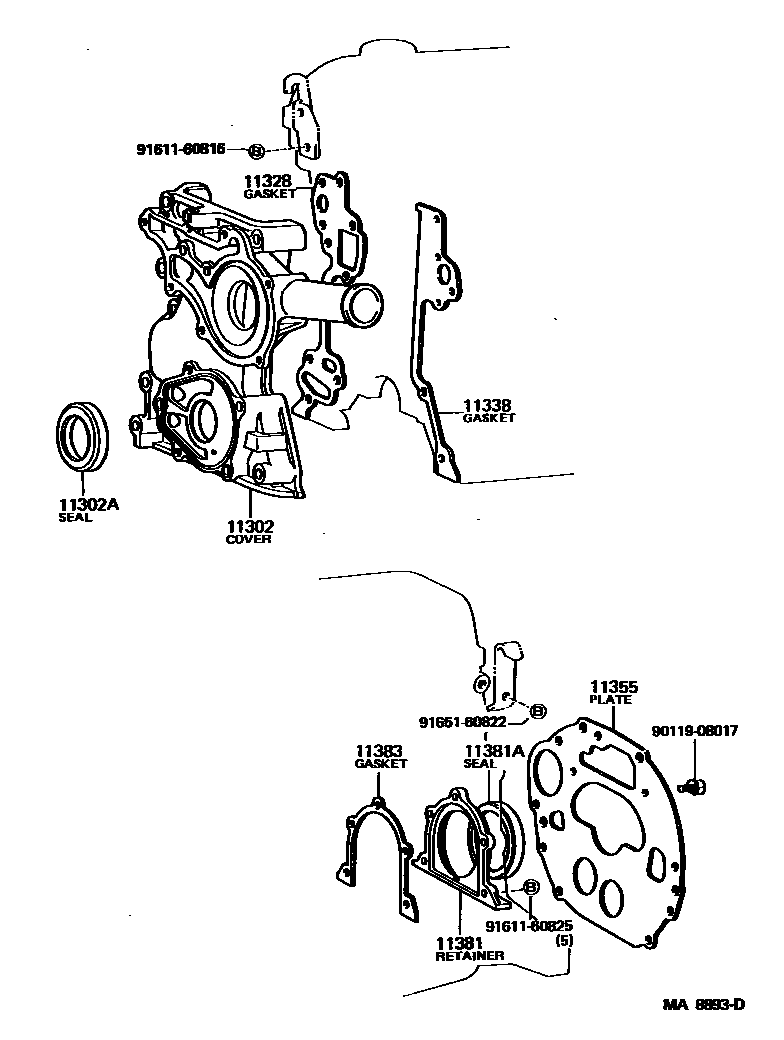

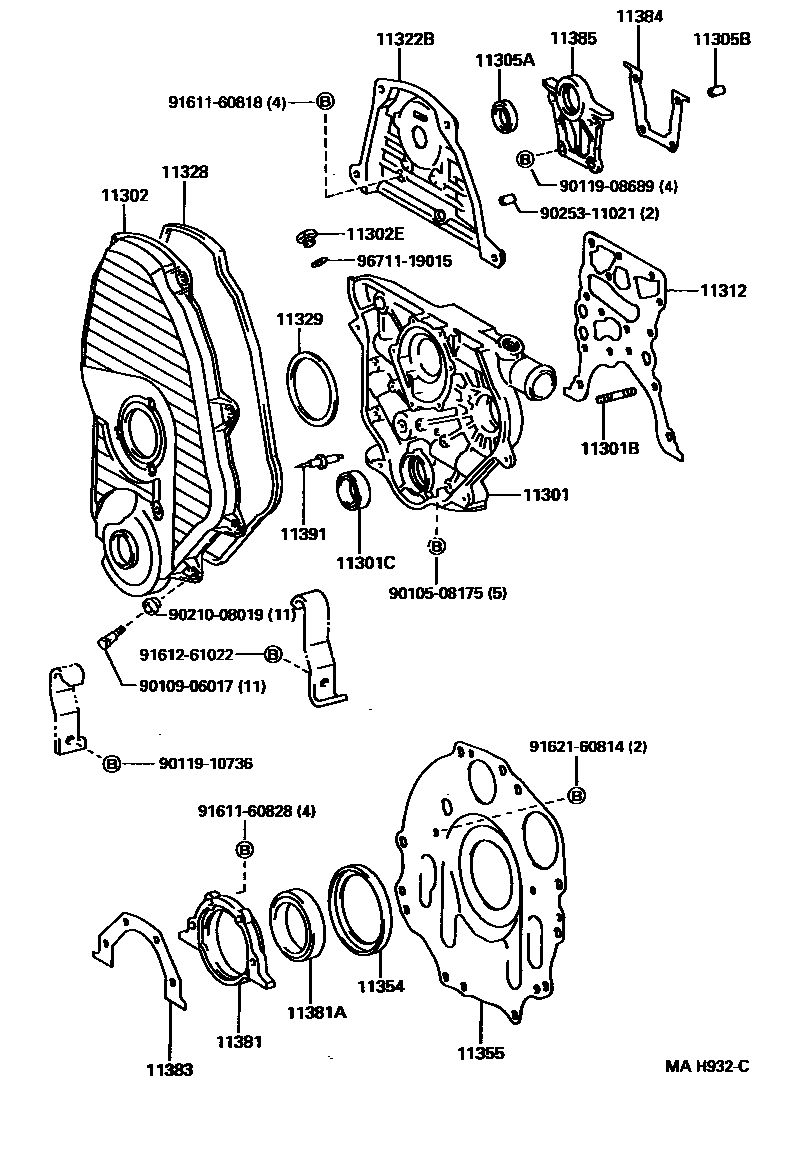

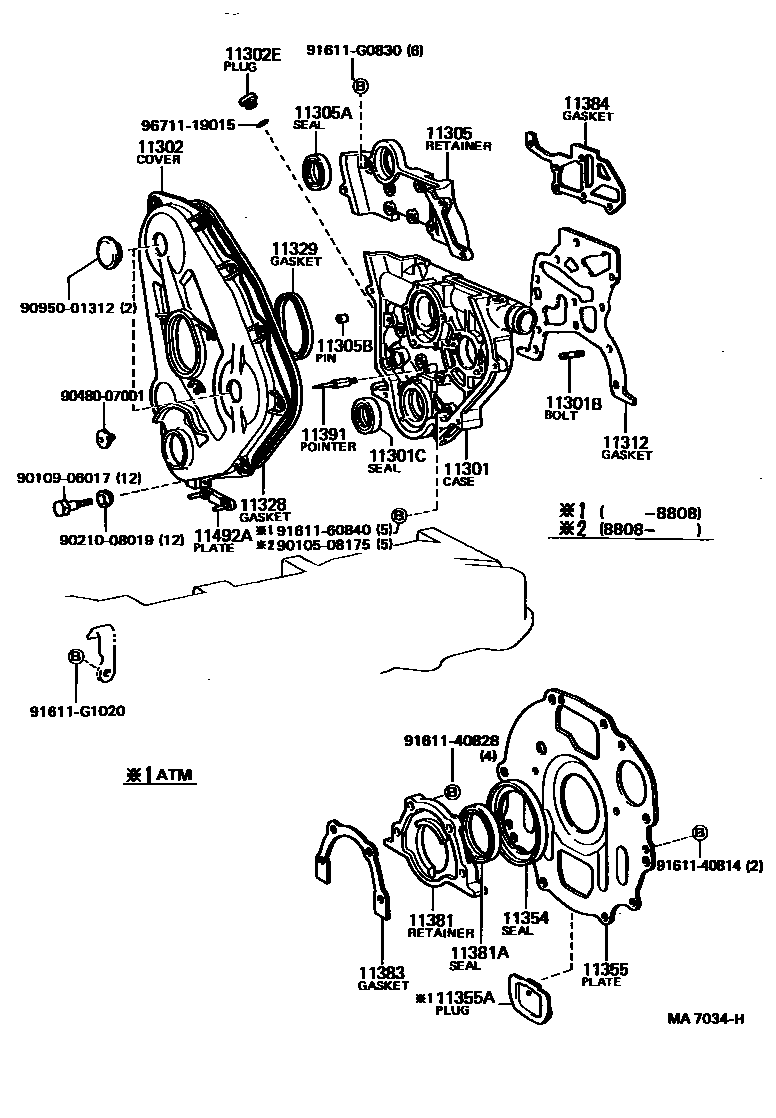

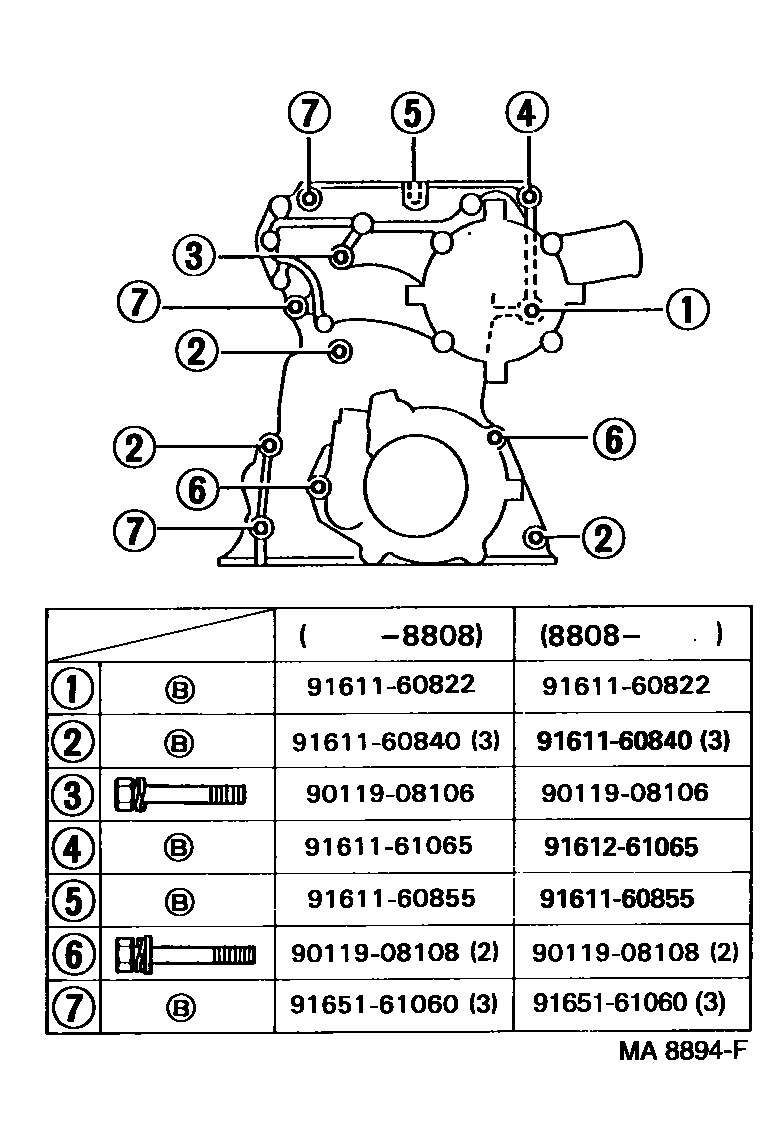

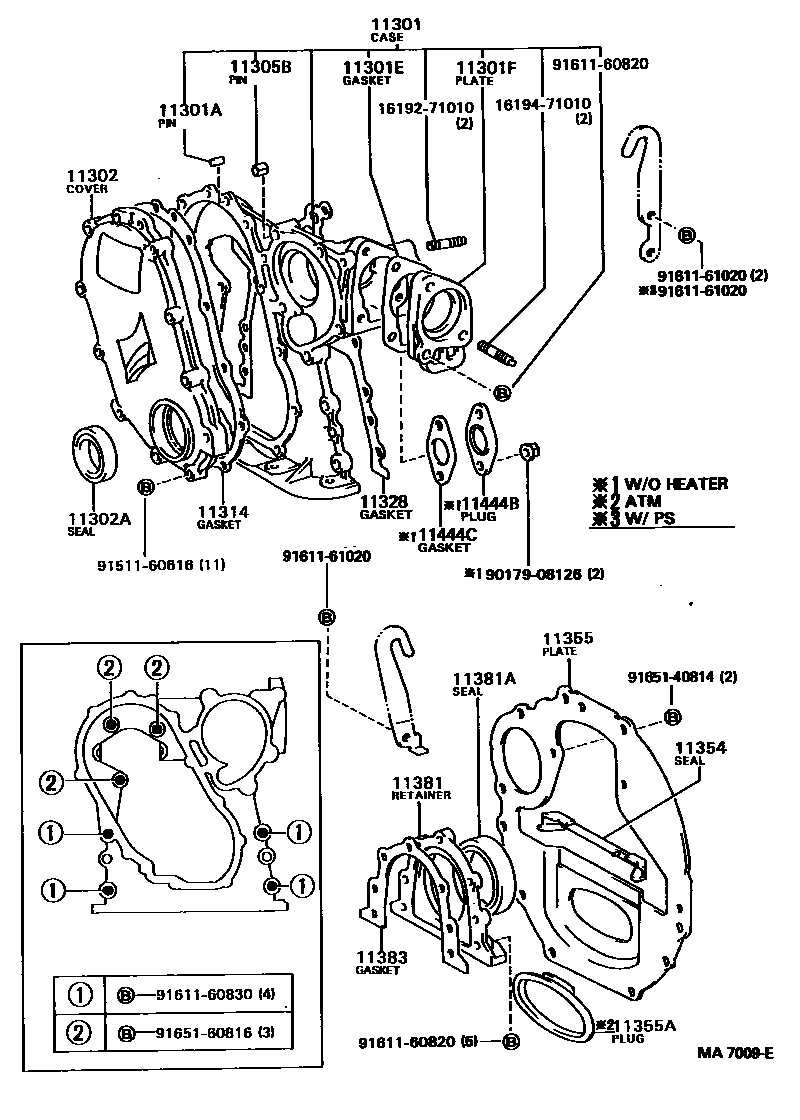

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-71010 · 11311-54022 · 11311-54052 |
| 11301A | Direct sales (for timing gearbox) | 90250-06001 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42003 · 90311-42012 · 90311-42026 · 90311-42030 · 90311-42031 |
| 11301E | thermostat duct gasket | 16119-71010 |
| 11301F | water pump thermostat guide plate | 16128-71010 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-35010 · 11321-54014 · 11321-54020 · 11321-71010 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-42007 · 90311-42019 · 90311-45006 · 90311-45014 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 |
| 11305 | No. 2 oil seal seat ring | 11382-54010 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32017 · 90311-32019 · 90311-42003 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 16159-71010 · 90253-11001 · 90253-11021 |
| 11312 | front panel gasket | 11312-54013 · 11312-54021 · 11312-54030 |
| 11314 | No. 2 timing chain cover gasket | 11329-71010 · 11329-71011 |
| 11322B | No. 2 timing belt cover | 11322-54020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-35020 · 11328-35030 · 11328-54010 · 11328-54021 · 11328-71010 · 11328-71011 · 11328-71012 |
| 11329 | Timing gear rear cover gasket | 11329-54011 · 11329-54021 |
| 11338 | No. 2 timing chain cover gasket | 11329-35020 · 11329-35030 |
| 11354 | Flywheel housing dust seal | 11354-54010 · 11354-71010 |
| 11355 | rear end plate | 11355-35010 · 11355-54030 · 11355-54040 · 11355-54070 · 11355-71010 · 11355-71020 · 11355-71021 |
| 11355A | Hole plug (for rear end plate) | 90950-01160 · 90950-01263 · 90950-01307 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-38010 · 11381-54010 · 11381-54020 · 11381-71010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-80003 · 90311-80004 · 90311-80010 · 90311-85001 · 90311-85003 · 90311-85004 · 90311-85007 · 90311-85008 |
| 11383 | Engine rear oil seal seat gasket | 11383-25010 · 11383-35010 · 11383-35020 · 11383-54010 · 11383-54020 · 11383-54030 · 11383-71010 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54010 · 11384-54011 · 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-54020 |
| 11391 | Timing pointer | 11391-54010 · 11391-54020 |
| 11444B | Hole plug (for water inlet housing) | 11444-71010 |
| 11444C | Heater tube gasket | 17175-72010 · 17175-72011 |
| 11492A | coolant sealing plate | 11492-54010 |
