Toyota HILUX 后视镜 — Figure 8701
Toyota HILUX EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

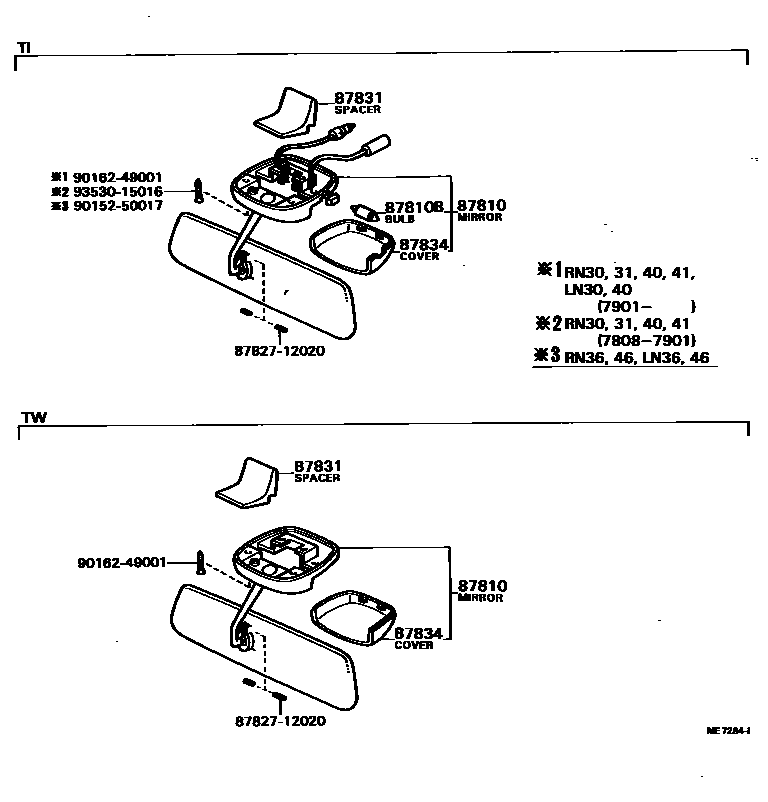

| 87810B | Interior rearview mirror light bulb | 99132-13050 |
| 87831 | Spacer (for interior rearview mirror) | 87831-95010 |
| 87834 | Interior rearview mirror stay fixing cover | 87814-12020 |

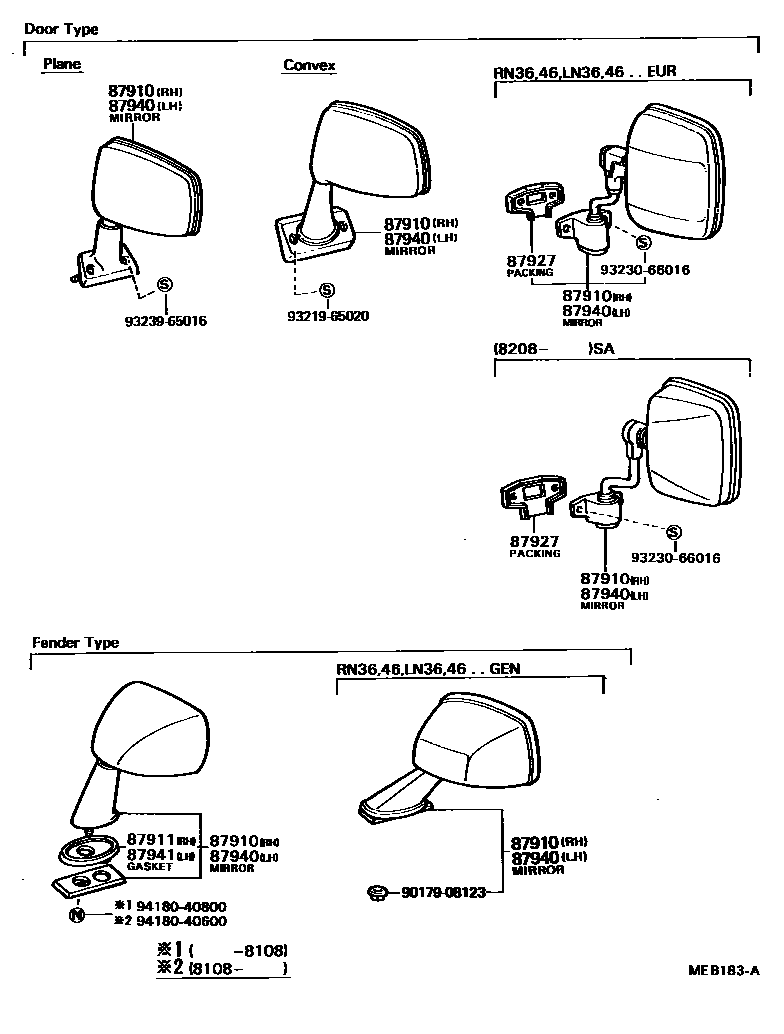

| 87910 | Right exterior rearview mirror assembly | 87910-39165 · 87910-39315 · 87910-89108 · 87910-89109 · 87910-89111 · 87910-89112 · 87910-89113 · 87910-95113 · 87910-95115 · 87910-95116 |
| 87911 | Right exterior mirror pad | 87911-89104 |
| 87927 | Exterior rearview mirror stay seal | 87926-95110 · 87926-95111 |
| 87940 | Left exterior rearview mirror assembly | 87910-95113 · 87910-95115 · 87940-39125 · 87940-39265 · 87940-89111 · 87940-89112 · 87940-89114 · 87940-89115 · 87940-89116 · 87940-95112 |
| 87941 | Left exterior mirror pad | 87941-89102 |
