Toyota HILUX 扬声器 — Figure 8602

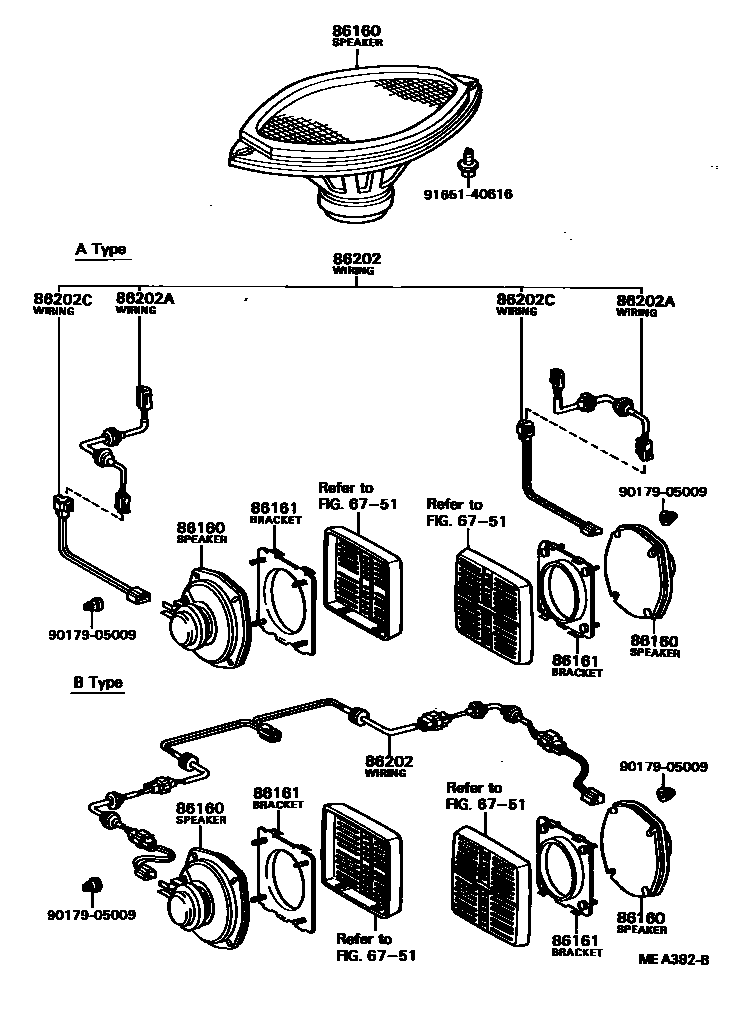

Toyota HILUX EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-89104 · 86160-89106 · 86160-95A01 |
| 86161 | Front speaker bracket No. 1 | 86219-89102 |
| 86202 | No. 1 speaker harness | 86202-89102 · 86202-89103 |
| 86202A | No. 2 speaker harness | 86202-89106 |
| 86202C | No. 3 speaker harness | 86202-89107 |
