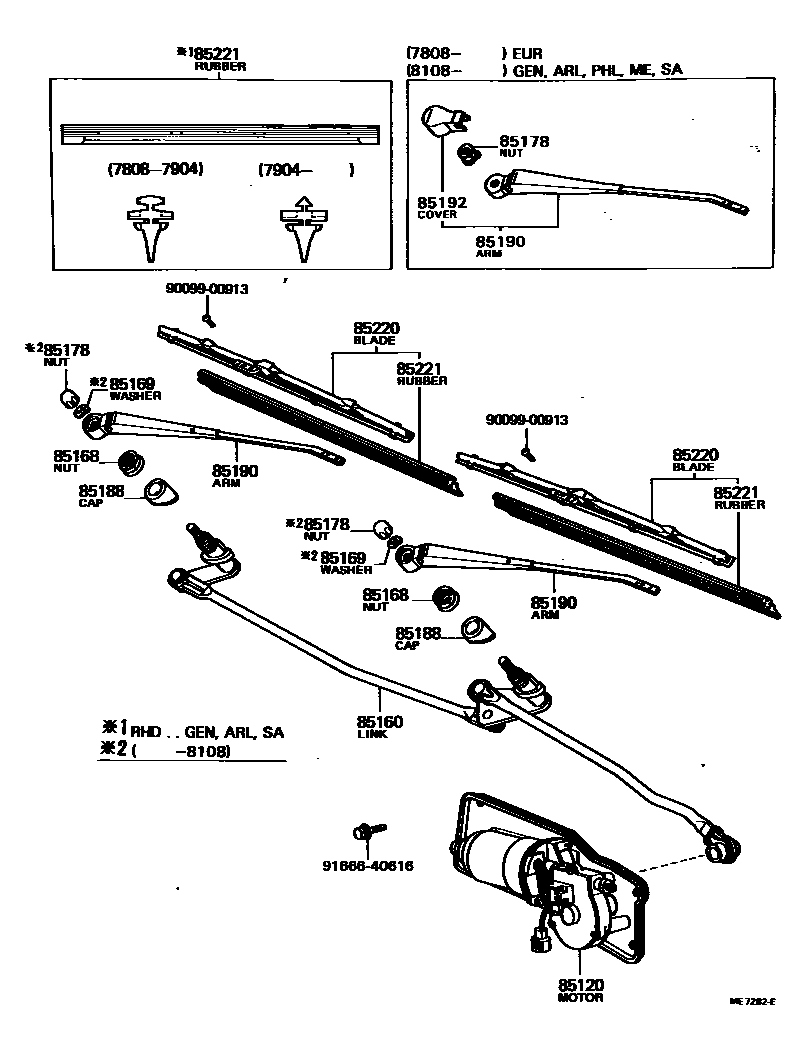

Toyota HILUX 挡风玻璃刮水器 — Figure 8501
Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120 | Windshield wiper motor and bracket assembly | 85120-89115 · 85120-89116 · 85120-89117 · 85120-89118 |
| 85160 | Windshield wiper connecting rod assembly | 85160-89118 · 85160-89119 |
| 85168 | Windshield wiper linkage pivot nut | 85186-12170 · 85186-12171 |
| 85169 | No. 1 windshield wiper link pivot washer | 90206-08002 |
| 85178 | Nut (for securing front wiper arm) | 90176-08019 · 90179-08015 · 90179-08026 |
| 85188 | No. 1 windshield wiper pivot cover | 85179-89102 |
| 85190 | Windshield wiper arm assembly | 85190-89117 · 85190-89118 · 85190-89119 · 85190-89120 · 85190-89122 · 85190-89123 |
| 85192 | windshield wiper arm cover | 85192-12010 |
| 85220 | Windshield wiper blade assembly | 85220-22081 · 85220-22101 · 85220-89104 · 85220-89105 · 85220-89107 |
| 85221 | Windshield wiper blade | 85221-12070 · 85221-22010 · 85221-30071 · 85221-89101 · 85221-89102 |
