Toyota HILUX 前转向灯 — Figure 8103

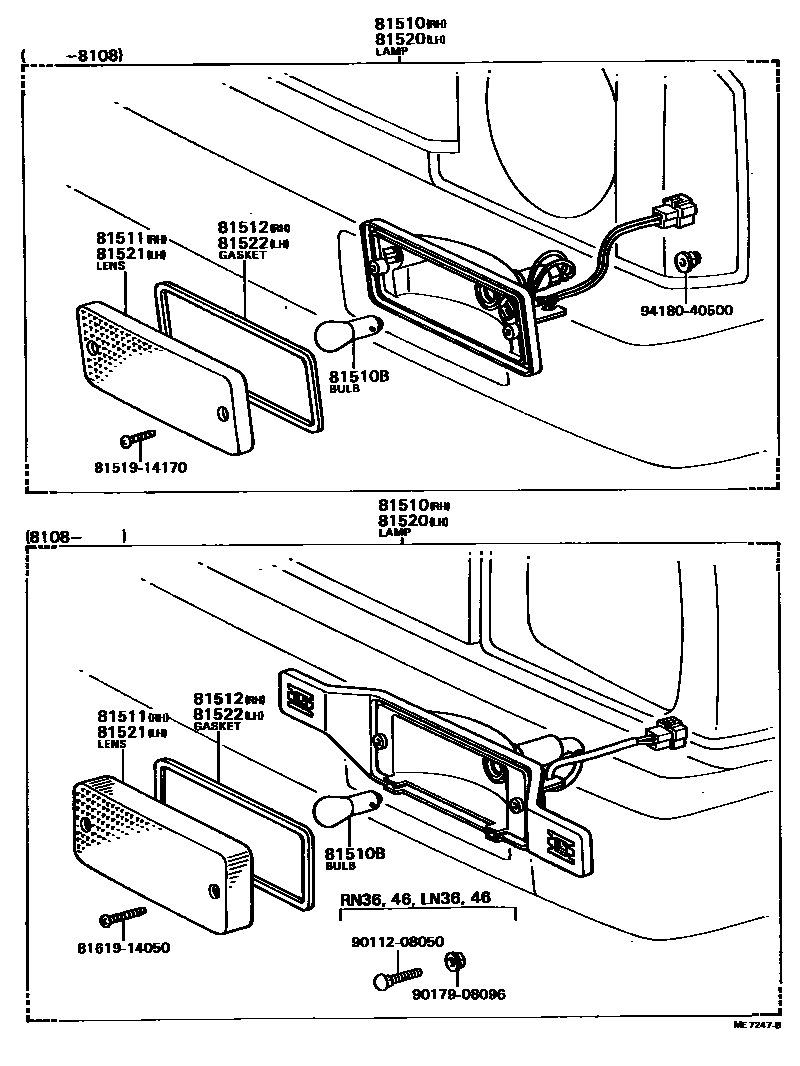

Toyota HILUX EPC diagram 8103, 前转向灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-39315 · 81510-39335 · 81510-39405 · 81510-39415 · 81510-89122 · 81510-89124 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 · 99132-11230 |
| 81511 | Right front turn signal lamp cover | 81511-12280 · 81511-89118 |
| 81512 | Right front turn signal lamp housing gasket | 81512-14140 · 81512-14150 |
| 81520 | Left front turn signal lamp assembly | 81520-39315 · 81520-39335 · 81520-39405 · 81520-39415 · 81520-89122 · 81520-89124 |
| 81521 | Left front turn signal lamp cover | 81521-12260 · 81521-89118 |
| 81522 | Left front turn signal lamp housing gasket | 81512-14140 · 81512-14150 |
