Toyota HILUX Headlamp — Figure 8101

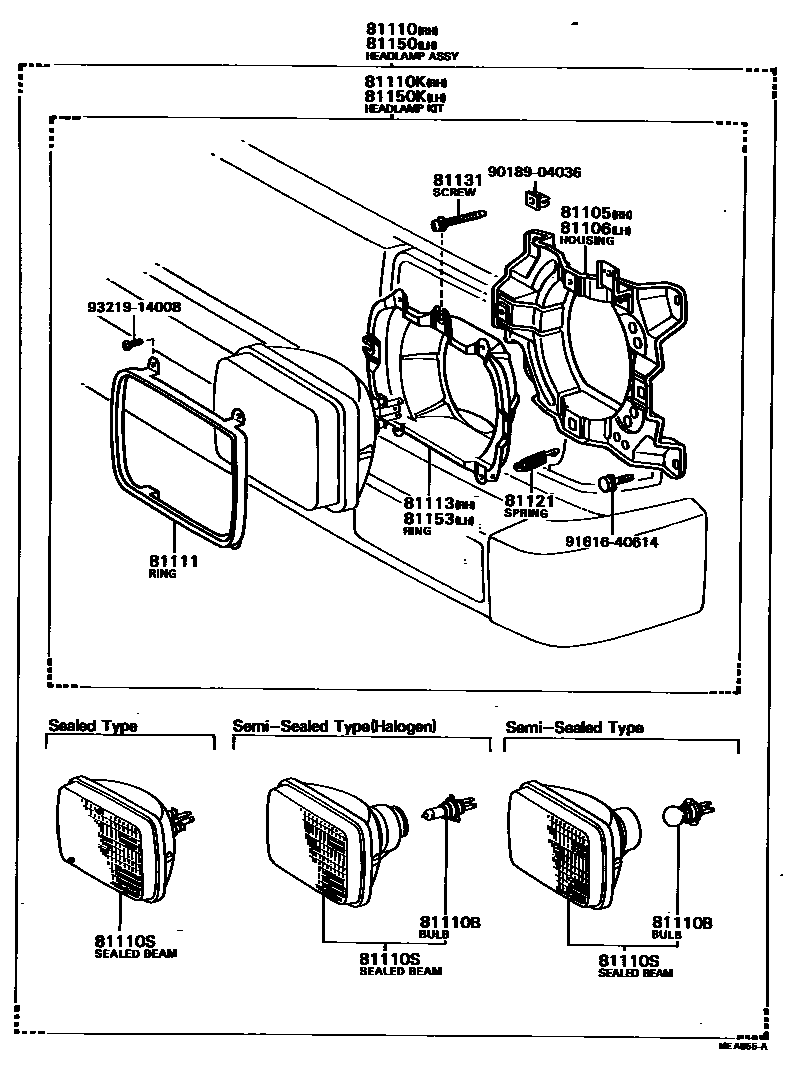

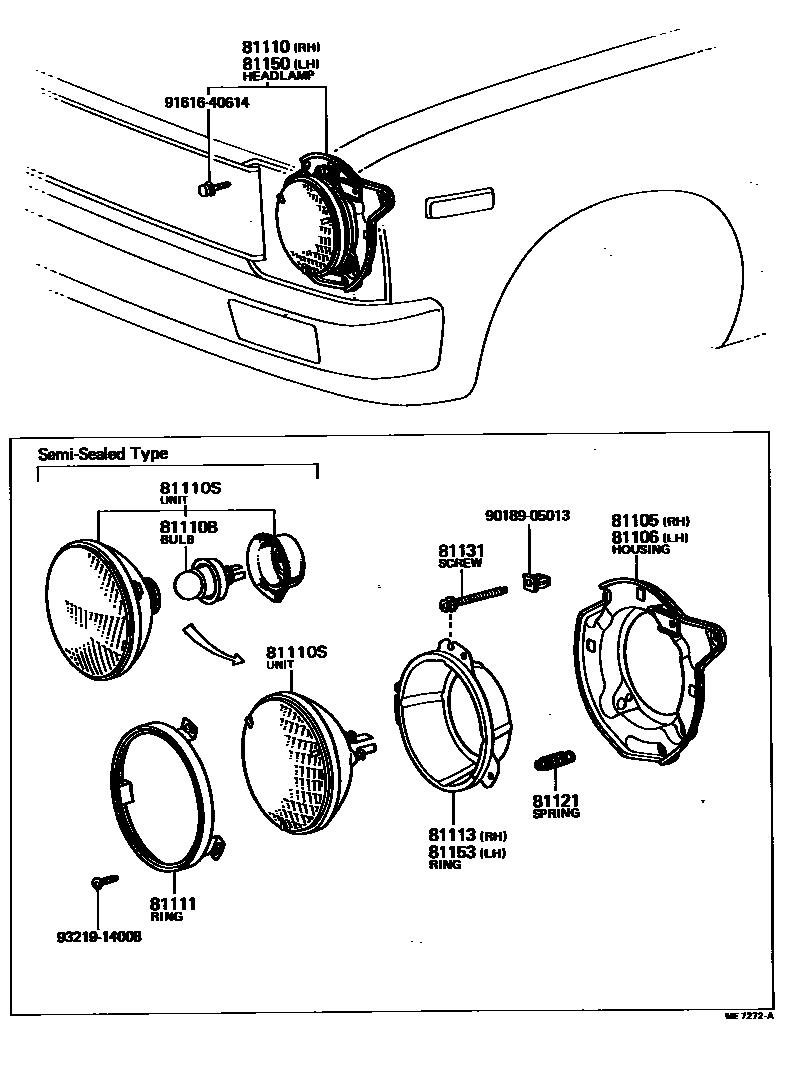

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-89117 · 81105-89125 |
| 81106 | Left headlight housing sub-assembly | 81106-89117 · 81106-89125 |
| 81110 | Right headlight assembly | 81110-39465 · 81110-39475 · 81110-39485 · 81110-39495 · 81110-39505 · 81110-39625 · 81110-39635 · 81110-39725 · 81110-39735 · 81110-39745 · 81110-39755 · 81110-39765 · 81110-39775 · 81110-39785 · 81110-39795 · 81110-39805 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13014 · 90981-13015 · 90981-13016 |
| 81110K | Right headlight assembly (without closed headlight) | 04817-35010 |
| 81110S | No. 1 enclosed lamp assembly | 90981-01017 · 90981-01018 · 90981-01022 · 90981-01023 · 90981-01028 · 90981-01029 · 90981-01042 · 90981-04001 · 90981-04004 · 90981-04005 · 90981-04006 · 90981-04008 · 90981-04009 · 90981-04011 · 90981-04015 · 90981-04016 |
| 81111 | Closed headlight retaining ring | 81111-16020 · 81111-89117 |
| 81113 | Right No. 1 closed lamp seat | 81113-89125 · 81153-95188 |
| 81121 | headlight spring | 81121-16020 · 81121-62010 |
| 81131 | Headlight adjustment screw | 81131-10031 · 81131-20360 |
| 81150 | Left headlight assembly | 81150-39465 · 81150-39475 · 81150-39485 · 81150-39495 · 81150-39505 · 81150-39625 · 81150-39635 · 81150-39725 · 81150-39735 · 81150-39745 · 81150-39755 · 81150-39765 · 81150-39775 · 81150-39785 · 81150-39795 · 81150-39805 |
| 81150K | Left headlight assembly (without closed headlight) | 04818-35010 |
| 81153 | No. 1 closed lamp seat on the left | 81153-89117 · 81153-89125 |
