Toyota HILUX 燃油箱和燃油管 — Figure 7751

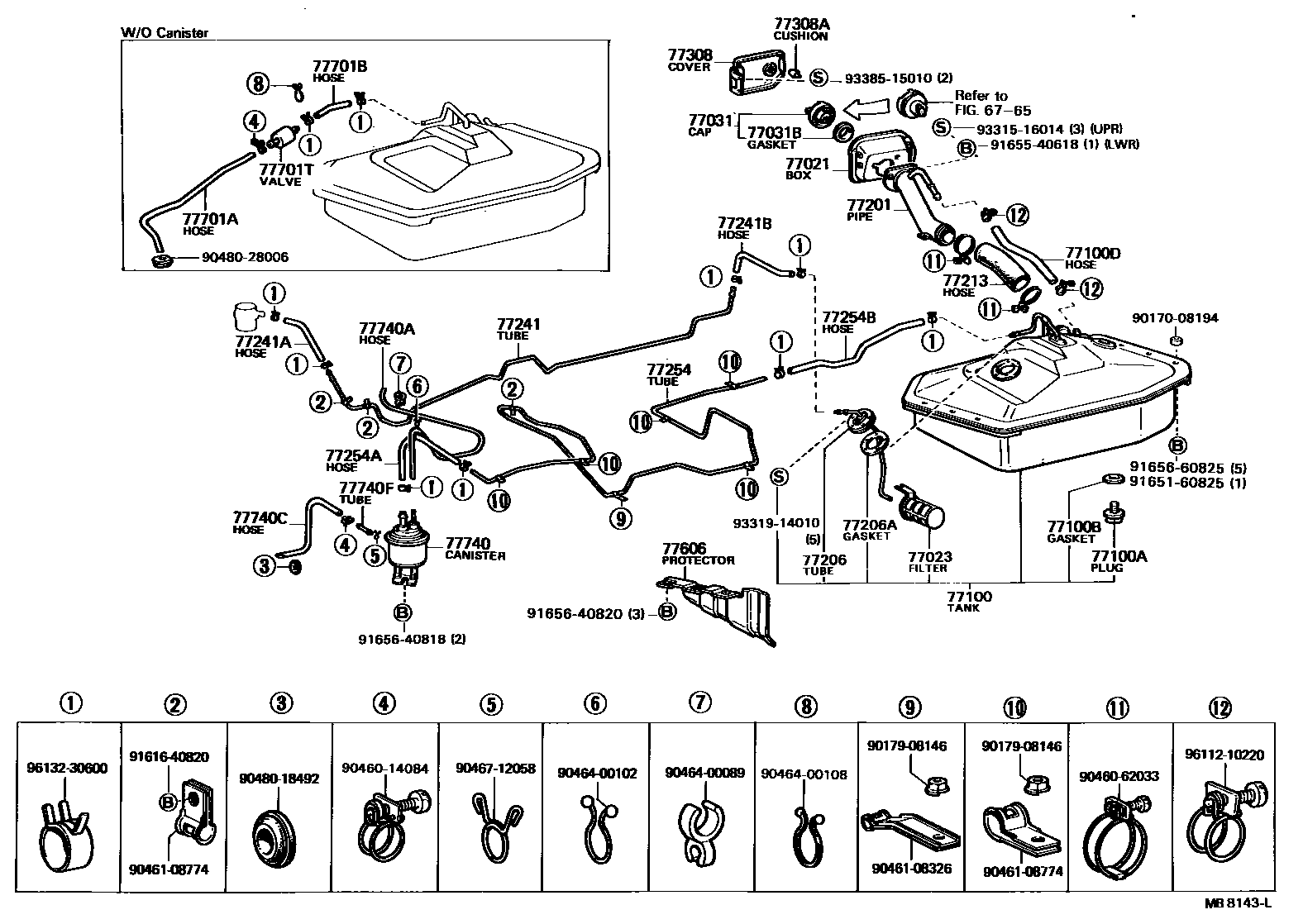

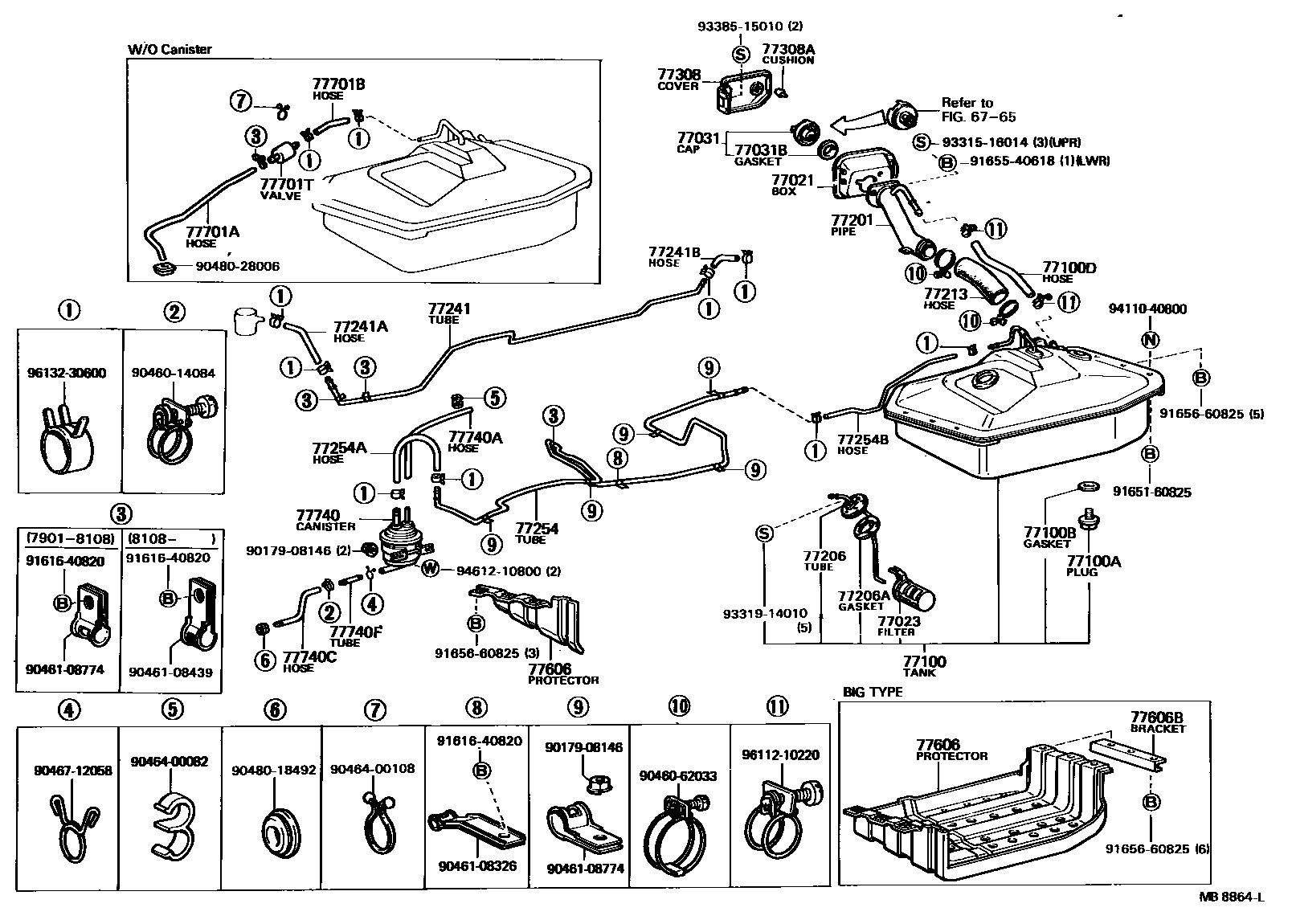

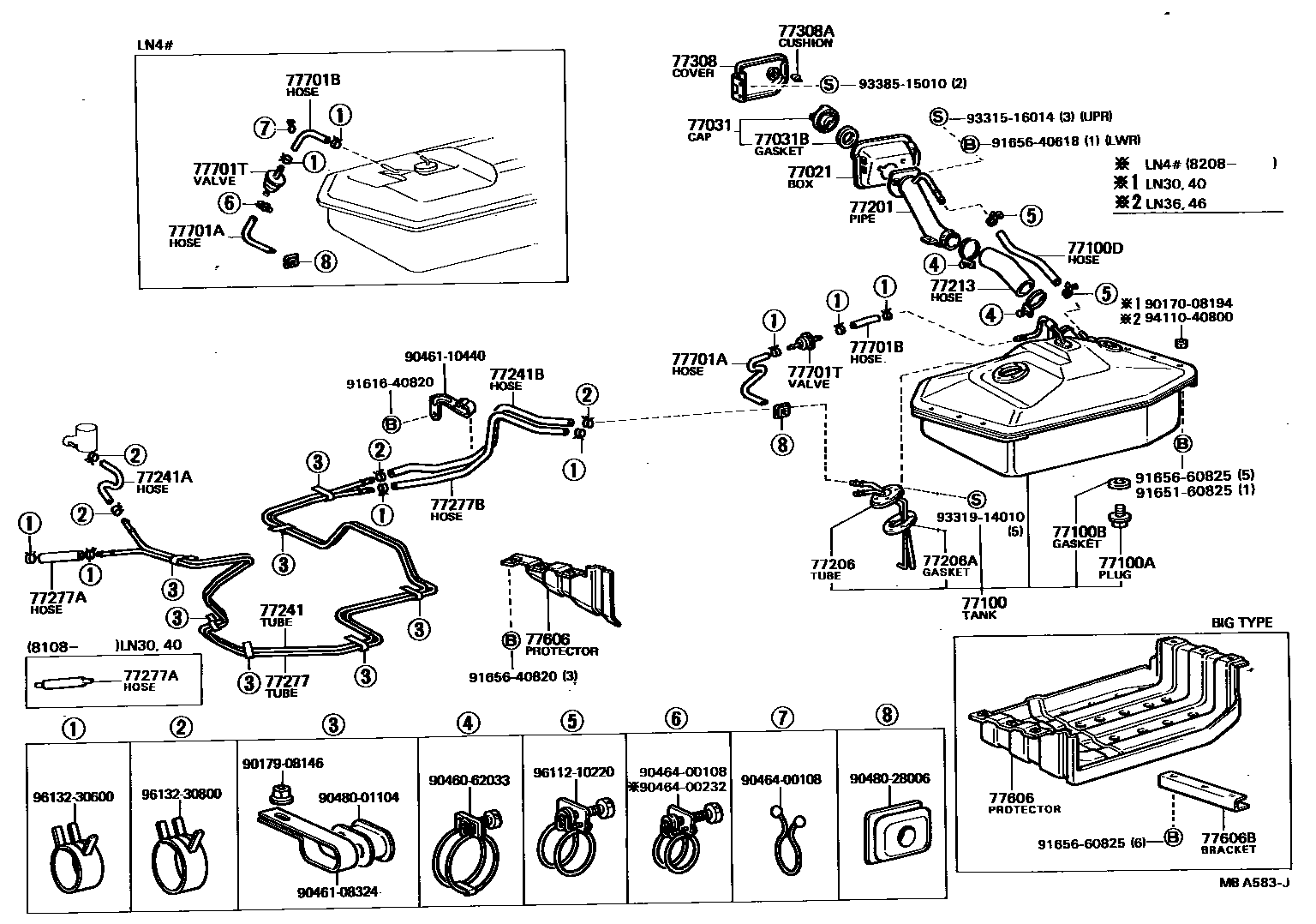

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77021 | Fuel tank inlet box assembly | 65507-89108 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-12050 · 77023-22040 |
| 77031 | Fuel tank cap assembly | 77310-12090 · 77310-12100 · 77310-14070 · 77310-35060 · 77310-35061 |
| 77031B | Gasket (for fuel tank cap) | 77316-12050 |
| 77100 | fuel tank assembly | 77100-35080 · 77100-35090 · 77100-35120 · 77100-35140 · 77100-35150 · 77100-35151 · 77100-35160 · 77100-35161 · 77100-35170 · 77100-35171 · 77100-35190 · 77100-35191 · 77100-35200 · 77100-35201 |
| 77100A | Screw plug (for fuel tank) | 90105-12018 |
| 77100B | Gasket (for fuel tank) | 90430-12245 |
| 77100D | No. 1 fuel hose (for fuel tank) | 90445-21883 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35100 · 77201-35101 · 77201-35140 · 77201-35141 |
| 77206 | Fuel tank suction pipe sub-assembly | 77203-35071 · 77203-35081 · 77203-35091 · 77203-35150 · 77203-35160 · 77203-35170 · 77203-35180 |
| 77206A | Gasket (for fuel tank suction pipe) | 83361-20030 |
| 77213 | Fuel tank auxiliary fuel inlet hose | 77213-35030 · 77213-35070 |
| 77241 | No. 1 main fuel pipe | 77251-35060 · 77251-35070 · 77251-35081 · 77251-35101 · 77251-35110 · 77251-35111 · 77251-35112 · 77251-35120 · 77251-35121 · 77251-35130 · 77251-35131 · 77251-35141 · 77251-35142 · 77251-35152 · 77251-35160 · 77251-35161 · 77251-35170 · 77251-35171 · 77251-35180 · 77251-35181 · 77251-35200 · 77251-35210 |
| 77241A | No. 1 fuel hose (for No. 1 main fuel line) | 95332-06030 · 95332-06032 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 95332-06030 · 95332-08060 |
| 77254 | No. 1 fuel evaporation exhaust pipe | 77261-35010 · 77261-35011 · 77261-35030 · 77261-35031 · 77261-35070 |
| 77254A | No. 1 fuel hose (for No. 1 drain pipe) | 95332-06018 · 95332-06028 |
| 77254B | No. 2 fuel hose (for No. 1 drain pipe) | 95332-06055 · 95332-06060 |
| 77277 | No. 1 fuel return pipe | 77255-35050 · 77255-35051 · 77255-35070 · 77255-35071 · 77255-35110 · 77255-35120 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90445-12086 · 90447-12023 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 90445-12081 · 90445-12083 |
| 77308 | Fuel inlet cap sub-assembly | 77305-89101 |
| 77308A | Cushion (for fuel inlet cap) | 90541-05080 · 90541-08003 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77161-35010 · 77161-35020 · 77161-35030 · 77161-35040 |
| 77606B | Fuel tank protective shell side fixing bracket | 77162-35010 |
| 77701A | No. 1 fuel hose (for breather valve) | 77754-35110 · 90446-12006 · 90446-12007 · 90446-12015 |
| 77701B | No. 2 fuel hose (for breather valve) | 95332-06007 · 95332-06010 · 95332-06015 |
| 77701T | Check valve (for main fuel tank) | 90917-10054 |
| 77740 | Carbon canister assembly | 77740-14230 · 77740-35025 |
| 77740A | No. 1 fuel hose (for canister) | 95411-19960 |
| 77740C | No. 3 fuel hose (for charcoal canister) | 77754-35060 · 77754-35080 |
| 77740F | No. 1 fuel pipe (for charcoal canister) | 77246-35010 |
