Toyota HILUX battery holder — Figure 7454

Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 3 PNC and OE references.

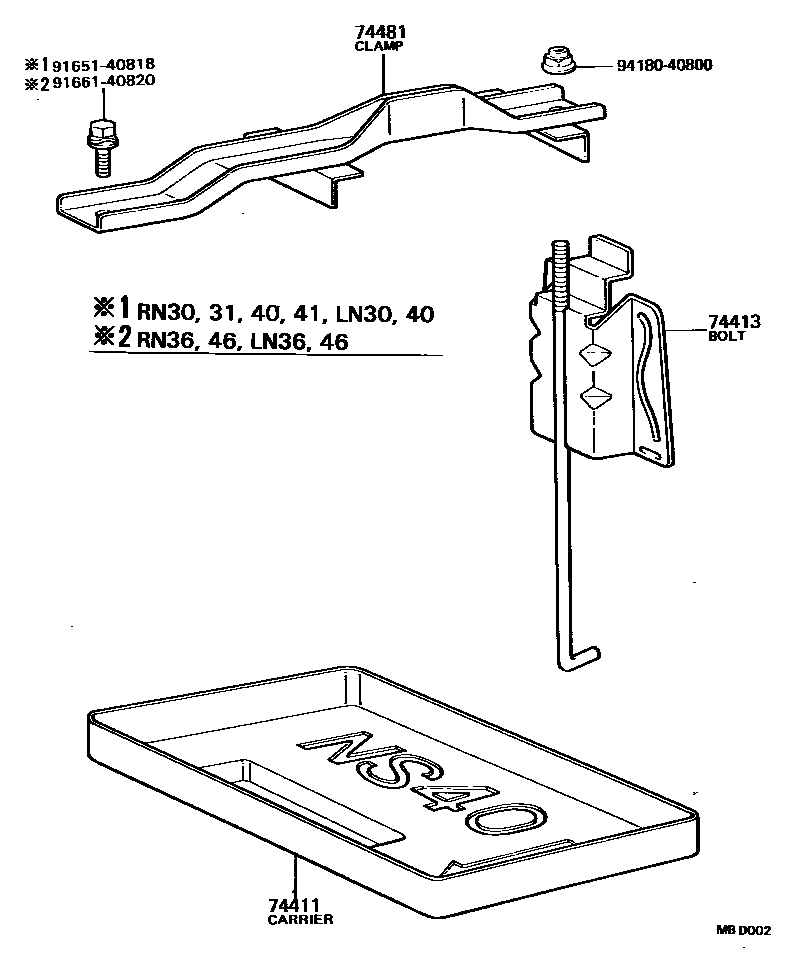

Toyota HILUX battery holder EPC diagram — MBD002
battery holder — MBD002 (197808 – 999999)

PNC and OE references

PNCPart nameOE numbers
74411battery holder74431-89102 · 74431-89103 · 74431-89104 · 74431-89105
74413Battery clamp bolt74407-89105 · 74451-89103
74481Battery fixing clip74404-89104 · 74404-89105 · 74404-89106 · 74404-89107 · 74404-89108 · 74404-95110 · 74404-95111 · 74404-95112 · 74404-95113
