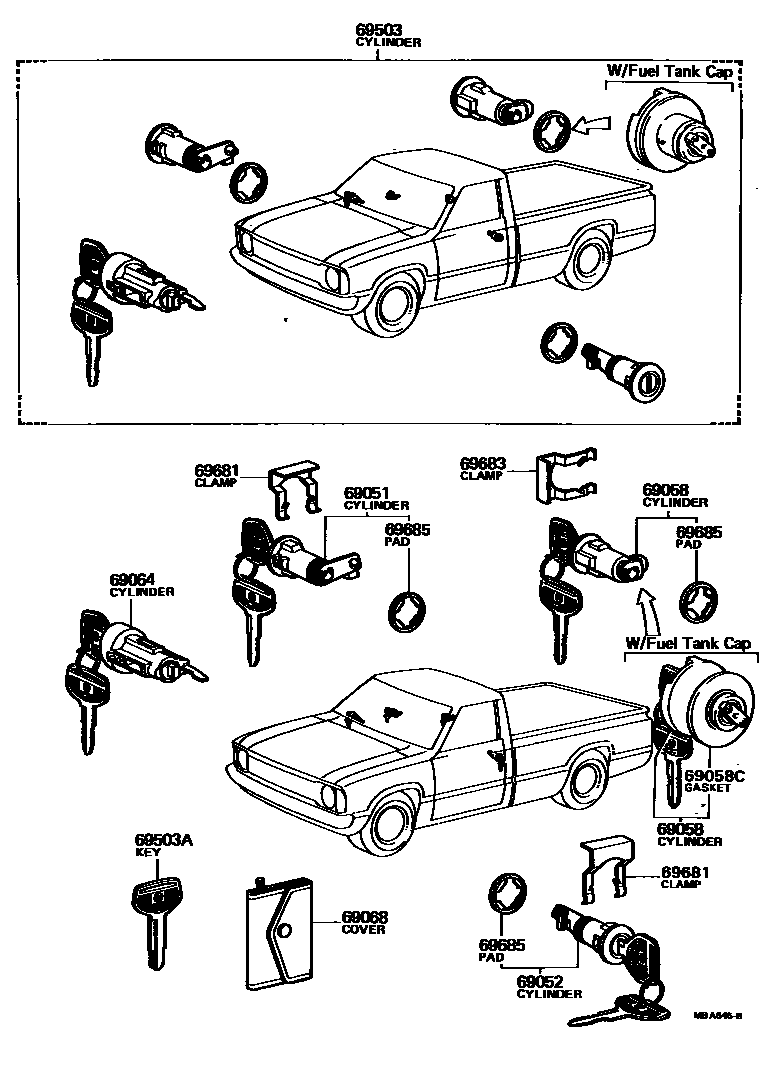

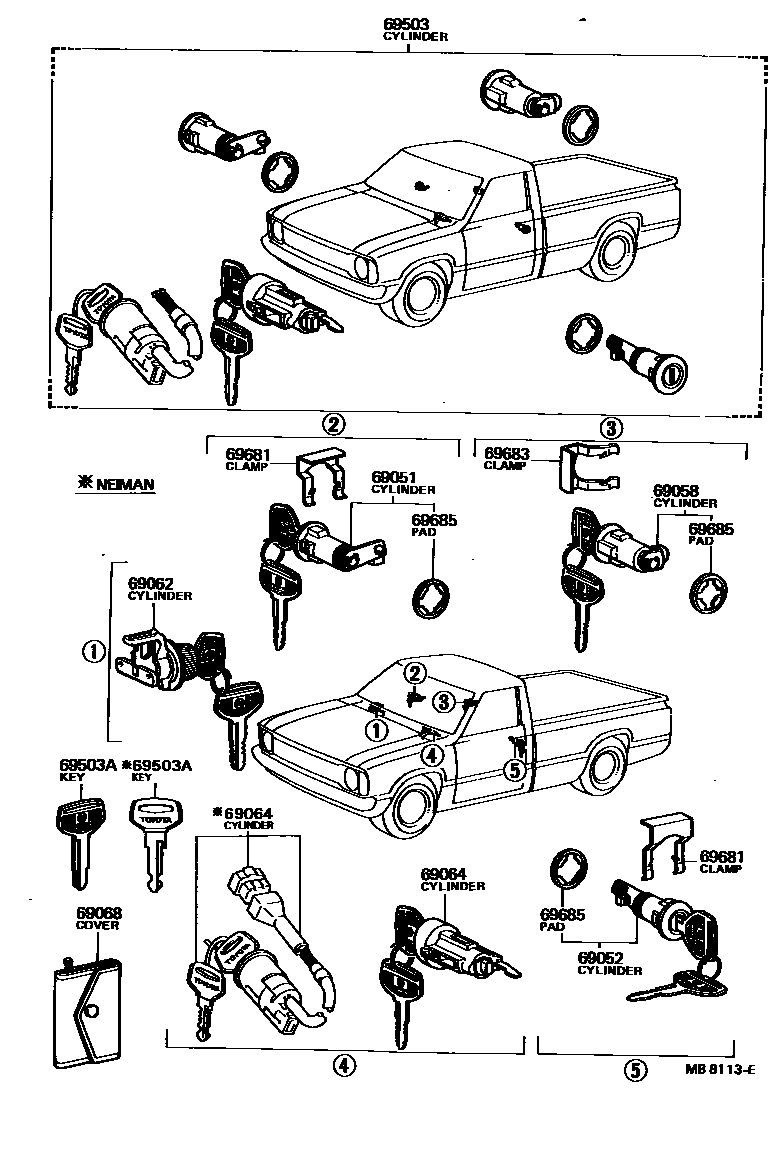

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-89106 · 69051-89107 · 69051-89108 |
| 69052 | Left door lock cylinder and key assembly | 69052-89106 · 69052-89107 · 69052-89108 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-89101 · 69058-89102 · 69058-89104 · 69058-95400 |
| 69058C | Fuel filler cap lock cylinder gasket | 77316-12031 |
| 69062 | Glove box lock cylinder and key assembly | 69056-89101 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-12011 · 69057-14010 · 69057-19015 · 69057-89101 · 69057-89103 · 69057-89106 |
| 69068 | Key cover sub-assembly | 84041-89102 |
| 69503 | Door lock cylinder components | 69005-89105 · 69005-89106 · 69005-89107 · 69005-89108 · 69005-89111 · 69005-89112 · 69005-89114 · 69005-89115 · 69005-89116 · 69005-89117 · 69005-89119 · 69005-89122 · 69005-89123 · 69005-89126 · 69005-89129 · 69005-89130 · 69005-89131 · 69005-89132 · 69005-95112 |
| 69503A | external tooth key | 69515-12050 · 90999-00057 · 90999-00066 |
| 69681 | Door lock cylinder and sleeve clip | 69681-20010 · 69681-20040 · 69681-89102 |
| 69683 | Fuel filler cap lock core clip | 69681-20010 · 69681-20040 · 69681-89102 |
| 69685 | Lock cylinder liner | 69513-12020 · 69685-12010 · 69685-95400 |
