Toyota HILUX 中央扶手箱和支架 — Figure 5855

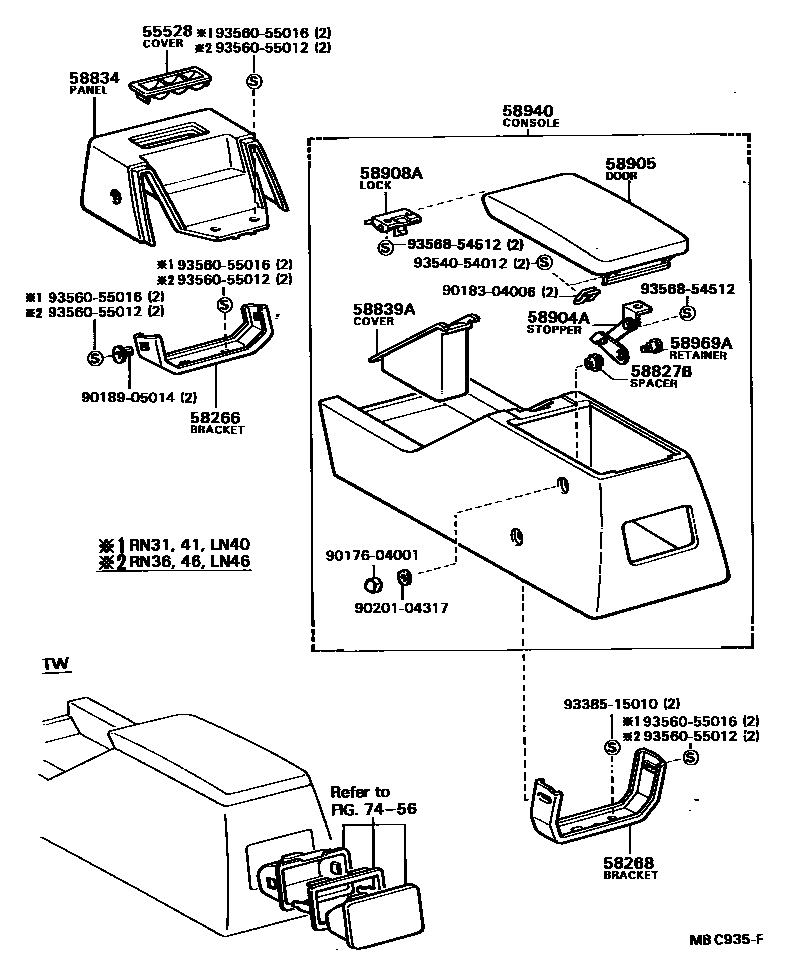

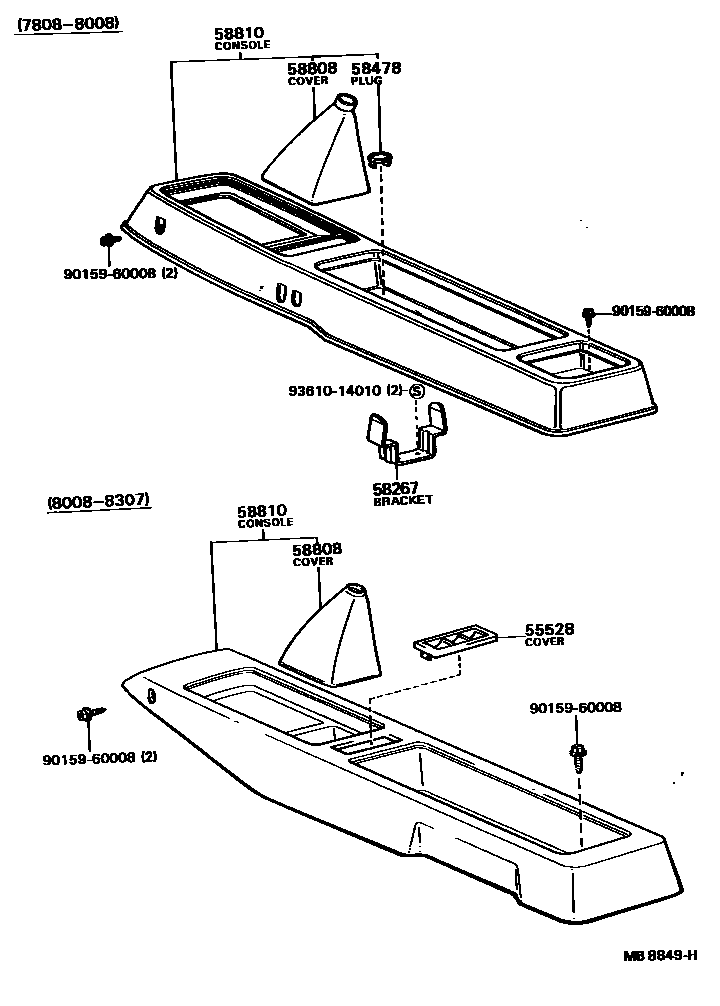

Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58266 | Armrest box front bracket | 58995-89101 · 58995-95110 |
| 58267 | Armrest box center bracket | 58996-89101 |
| 58268 | Armrest box rear bracket | 58996-95111 |
| 58808 | Shift hole cover sub-assembly | 58808-89101 · 58808-89102 |
| 58827B | Armrest box lid stopper spacer | 58827-20021 |
| 58828A | Armrest box lower bracket | 58828-95110 |
| 58835 | Armrest box upper panel | 58821-95110 · 58821-95111 |
| 58835B | Harness protection device | 82817-20110 · 82817-95110 |
| 58851 | Console upper right bracket | 58991-95110 |
| 58852 | Console upper left bracket | 58992-95110 |
| 58904A | Armrest box lid stopper sub-assembly | 58904-22020 |
| 58908A | Armrest box lid lock assembly | 58908-12010 |
| 58969A | Armrest box lid stopper fixing | 58969-20010 |
| 58985 | Armrest box fixing bracket | 58985-95110 |
