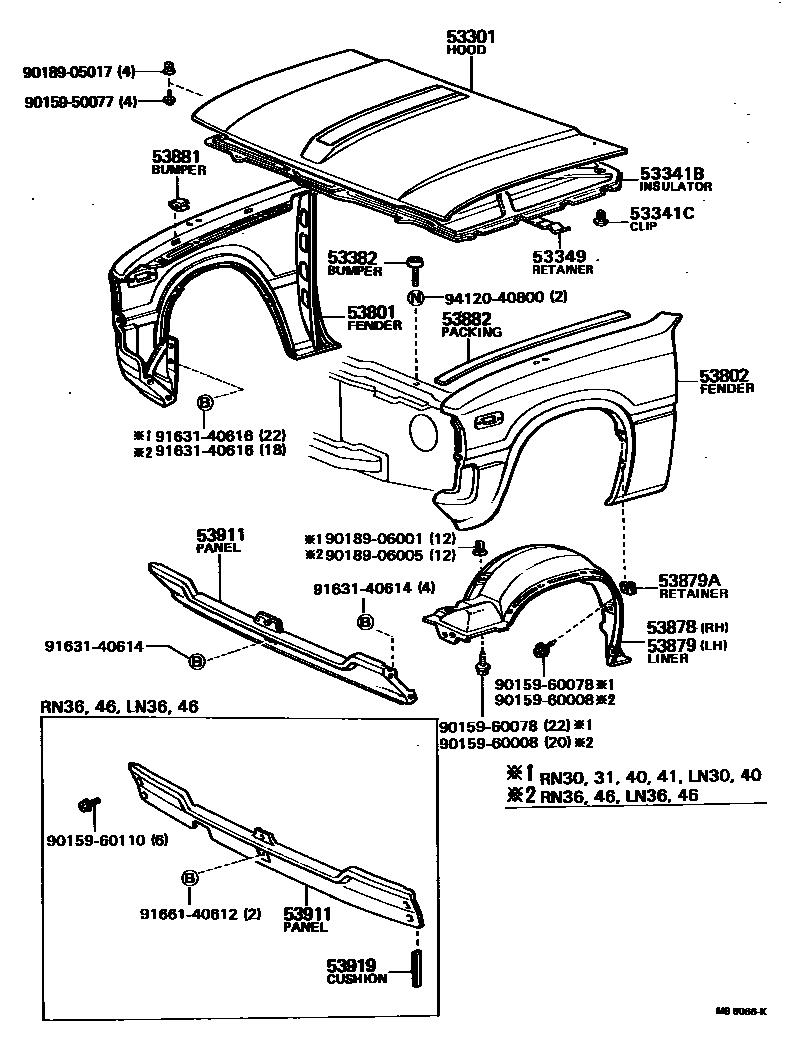

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-89115 · 53301-95110 · 53301-95111 |
| 53341B | engine cover gasket | 53341-89101 |
| 53341C | Clip (for engine cover gasket) | 90467-09004 |
| 53349 | Engine cover muffler fixing parts | 53349-89101 |
| 53382 | Engine cover front buffer block | 53382-20011 |
| 53786 | right front fender | 76621-39015 · 76621-39016 |
| 53787 | left front fender | 76622-39015 · 76622-39016 |
| 53801 | Right front fender sub-assembly | 53801-89140 · 53801-89145 · 53801-89148 · 53801-89149 · 53801-89152 · 53801-89160 · 53801-95110 · 53801-95111 · 53801-95113 · 53801-95114 · 53801-95137 |
| 53802 | Left front fender sub-assembly | 53802-89135 · 53802-89139 · 53802-89141 · 53802-89142 · 53802-89145 · 53802-89151 · 53802-95112 · 53802-95113 · 53802-95114 · 53802-95115 · 53802-95136 |
| 53878 | Right front fender lining | 53875-89102 · 53875-95110 · 53875-95112 |
| 53879 | Left front fender lining | 53876-89102 · 53876-95110 · 53876-95112 |
| 53879A | Front fender lining fixing parts | 53879-22010 |
| 53881 | fender to engine cover buffer block | 53384-89101 |
| 53882 | Front fender main seal | 53882-89103 |
| 53911 | front fender | 53161-95110 · 53161-95112 · 53911-89103 · 53911-89104 · 53911-89105 |
| 53919 | Baffle cushion | 53919-95110 |
| 55956A | Side defroster No. 1 nozzle air duct | 55971-89101 |
| 55956B | Side defroster No. 2 nozzle air duct | 55961-89101 |
| 57161 | front cross member | 57104-89101 · 57104-95110 |
