Toyota HILUX 车架 — Figure 5151

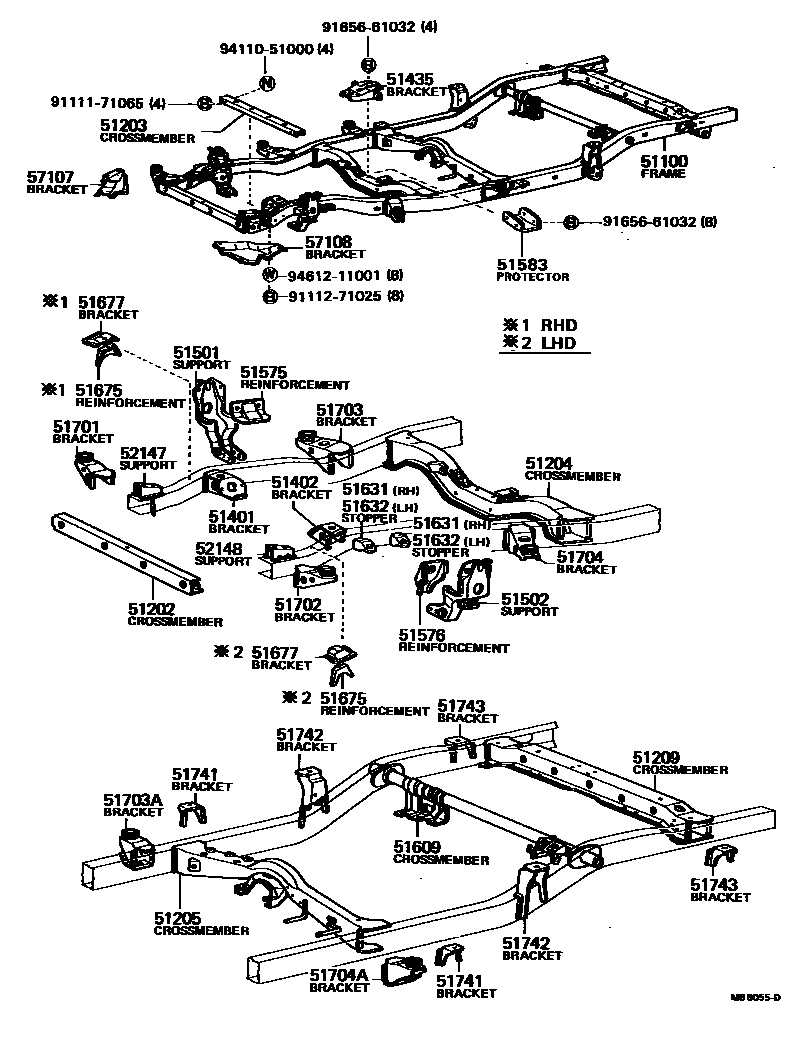

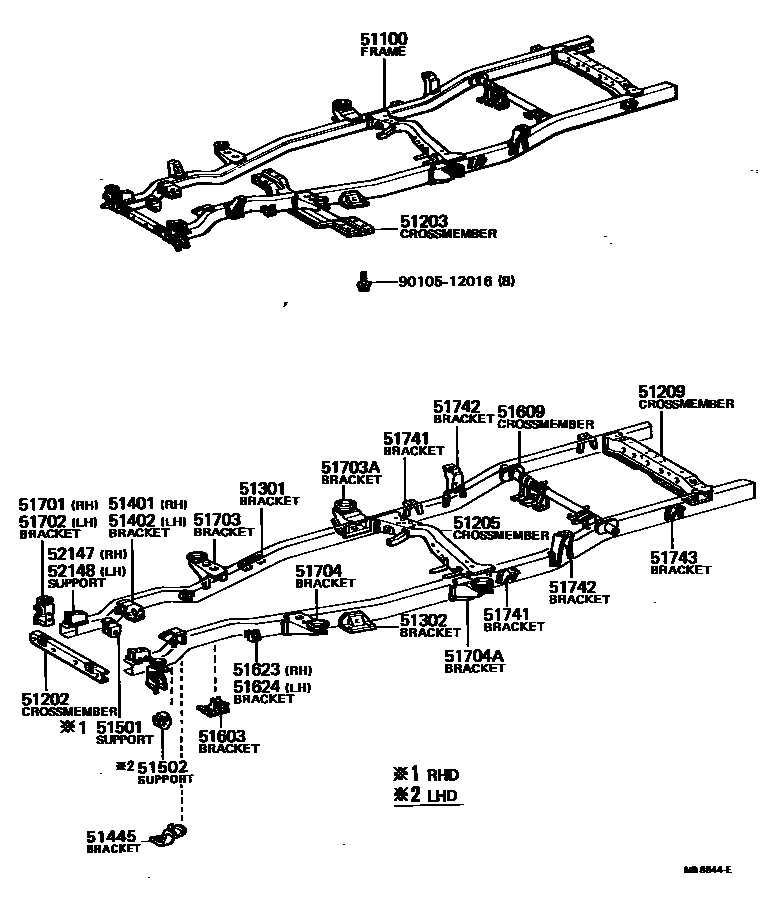

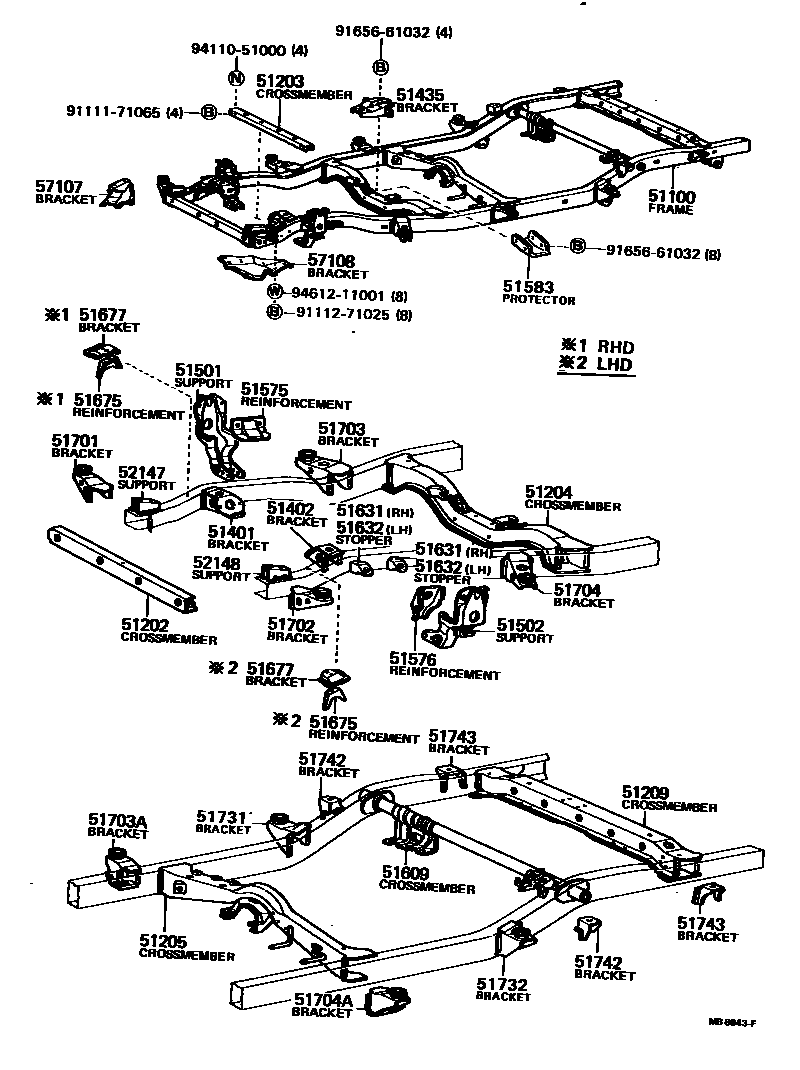

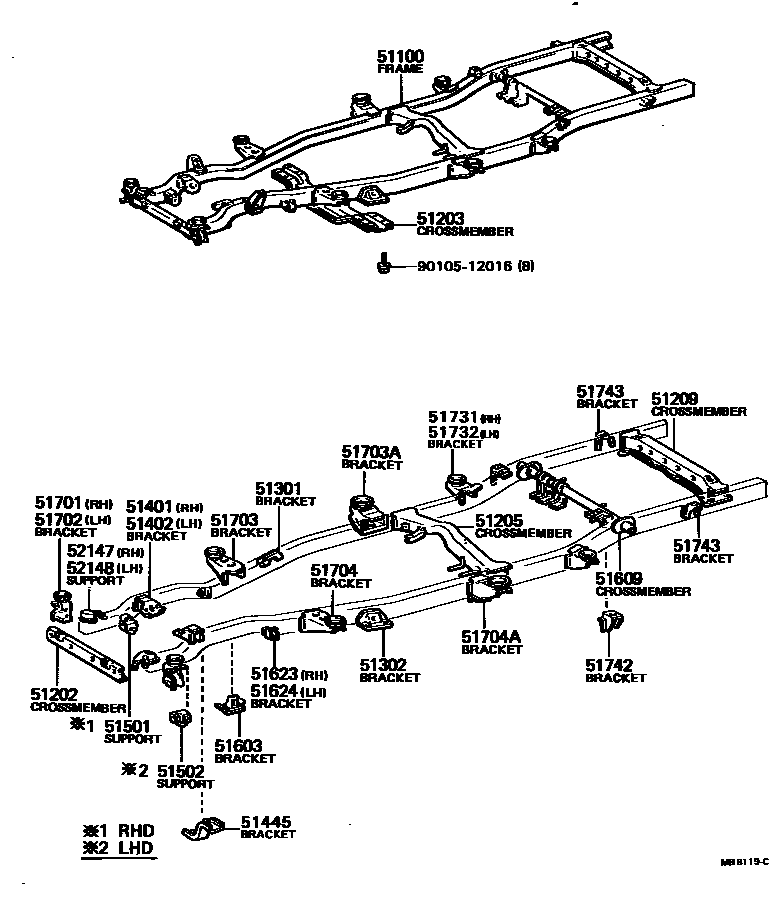

Toyota HILUX EPC diagram 5151, 车架, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51100 | Frame assembly | 51001-35660 · 51001-35670 · 51001-35671 · 51001-35680 · 51001-35681 · 51001-35690 · 51001-35691 · 51001-35700 · 51001-35701 · 51001-35710 · 51001-35730 · 51001-35731 · 51001-35740 · 51001-35741 · 51001-35750 · 51001-35751 · 51001-35760 · 51001-35761 · 51001-35780 · 51001-35800 · 51001-35801 · 51001-35820 · 51001-35821 · 51001-35830 · 51001-35831 · 51001-35850 · 51001-35851 · 51001-3D010 · 51001-3D011 · 51001-3D012 · 51001-3D030 · 51001-3D031 · 51001-3D032 · 51001-3D050 · 51001-3D051 · 51001-3D052 · 51001-3D070 · 51001-3D071 · 51001-3D072 · 51001-3D140 · 51001-3D141 · 51001-3D150 · 51001-3D151 · 51001-3D160 · 51001-3D161 · 51001-3D170 · 51001-3D171 · 51001-3D190 · 51001-3D200 · 51001-3D201 · 51001-3D210 · 51001-3D211 · 51001-3D220 · 51001-3D221 · 51001-3D230 · 51001-3D240 · 51001-3D250 · 51001-3D251 · 51001-3D260 · 51001-3D261 · 51001-3D270 · 51001-3D271 · 51001-3D280 · 51001-3D281 · 51001-3D301 · 51001-3D311 · 51001-3D320 · 51001-3D321 · 51001-3D330 · 51001-3D331 · 51001-3D340 · 51001-3D341 · 51001-3D350 · 51001-3D351 · 51001-3D360 · 51001-3D361 · 51001-3D370 · 51001-3D371 · 51001-3D380 · 51001-3D381 · 51001-3D440 · 51001-3D450 · 51001-3D460 · 51001-3D470 · 51001-3D490 · 51001-3D510 · 51001-3D521 · 51001-3D531 · 51001-3D540 · 51001-3D550 · 51002-35010 · 51002-35020 · 51002-35030 · 51002-35040 · 51002-35050 · 51002-35060 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-35070 · 51201-35080 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-35110 · 51202-35130 · 51202-35131 · 51202-35151 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-35150 · 51203-35160 · 51203-35190 · 51203-35210 · 51203-35220 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-35130 · 51204-35140 · 51204-35150 · 51204-35151 · 51204-35152 · 51204-35160 · 51204-35161 · 51204-35162 · 51204-35180 · 51204-35200 |
| 51209 | Frame No. 8 beam sub-assembly | 51209-35080 |
| 51301 | Frame No. 2 crossbeam right side bracket | 51321-35030 |
| 51302 | Frame No. 2 cross member left bracket | 51322-35010 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-35120 · 51401-35140 · 51401-35150 · 51401-35160 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-35120 · 51402-35140 · 51402-35150 · 51402-35160 |
| 51435 | Engine rear mounting bracket | 51431-35020 · 51431-35030 |
| 51445 | Engine underhood bracket | 51445-35030 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-35010 · 51505-35030 · 51505-35031 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-35010 · 51505-35040 · 51505-35041 · 51505-35042 |
| 51575 | No. 1 suspension arm bracket reinforcement | 51573-35010 |
| 51576 | No. 2 suspension arm bracket reinforcement | 51575-35020 |
| 51583 | Fixed arm guard | 51583-35010 |
| 51603 | Front suspension elastic bracket sub-assembly | 51603-35010 |
| 51609 | Rear shock absorber support beam sub-assembly | 51205-35080 · 51205-35090 · 51205-35100 |
| 51623 | Right front spring-loaded stop bracket | 51623-35010 |
| 51624 | Left front spring-loaded stop bracket | 51624-35010 |
| 51631 | Right front suspension rebound limiter | 51631-35020 · 51632-35020 |
| 51632 | Left front suspension rebound limiter | 51631-35020 · 51632-35020 |
| 51675 | Steering housing bracket reinforcement | 51675-35070 |
| 51677 | Steering case bracket | 51679-35010 · 51679-35020 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-35050 · 51701-35060 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-35050 · 51701-35060 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-35010 · 51703-35020 · 51703-35021 |
| 51703A | Cab rear suspension right bracket sub-assembly | 51705-35040 · 51705-35050 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51703-35010 · 51704-35040 · 51704-35041 |
| 51704A | Cab rear suspension left bracket sub-assembly | 51705-35040 · 51705-35050 |
| 51731 | Cab rear suspension right bracket | 51707-35020 |
| 51732 | Cab rear suspension left bracket | 51708-35020 |
| 51741 | Rear body No. 1 mounting bracket | 51741-35050 |
| 51742 | Body No. 2 mounting bracket | 51742-35040 · 51742-35060 · 51743-35060 · 51743-35070 |
| 51743 | Body No. 3 mounting bracket | 51741-35050 |
| 52147 | Front bumper right side bracket | 52147-35010 · 52147-35020 |
| 52148 | Front bumper left bracket | 52148-35010 · 52148-35020 |
| 57107 | Right support rod bracket sub-assembly | 57107-35020 |
| 57108 | Left support rod bracket sub-assembly | 57108-35020 |
