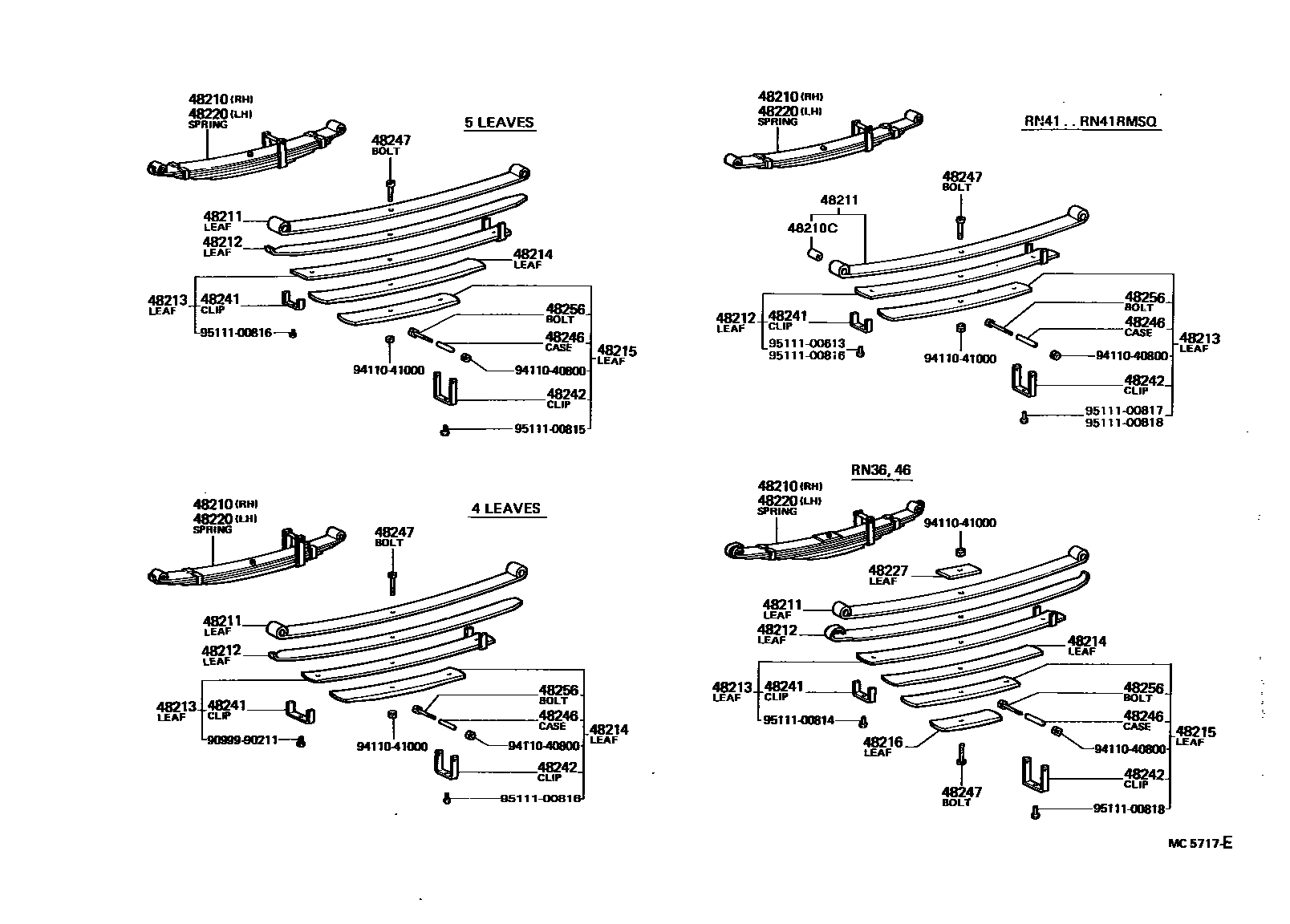

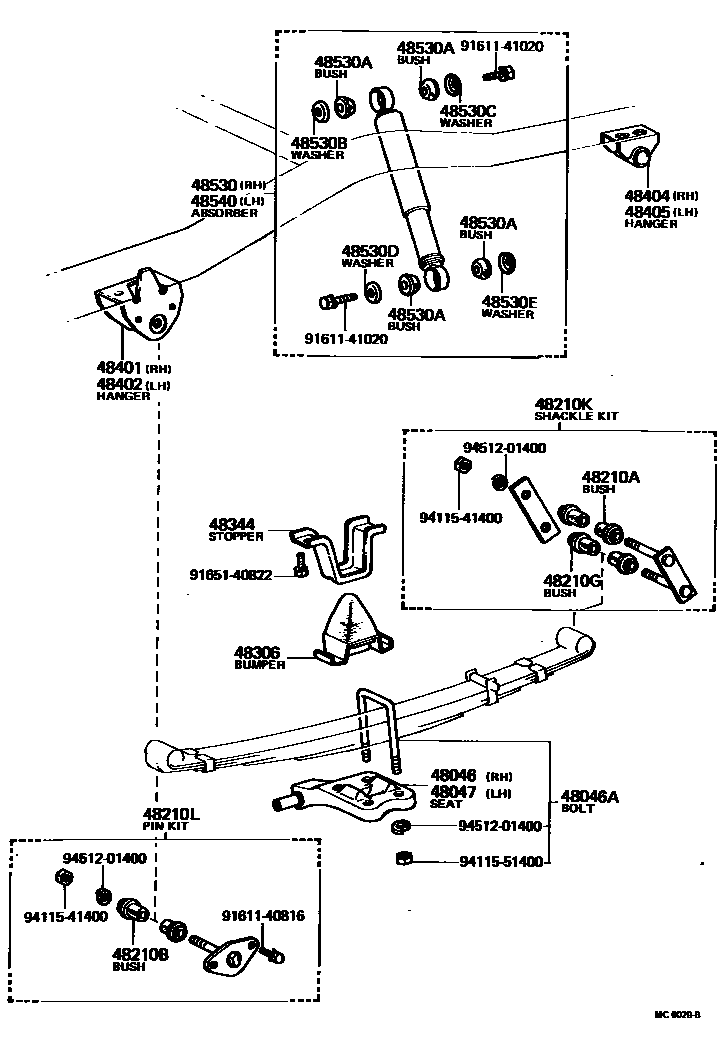

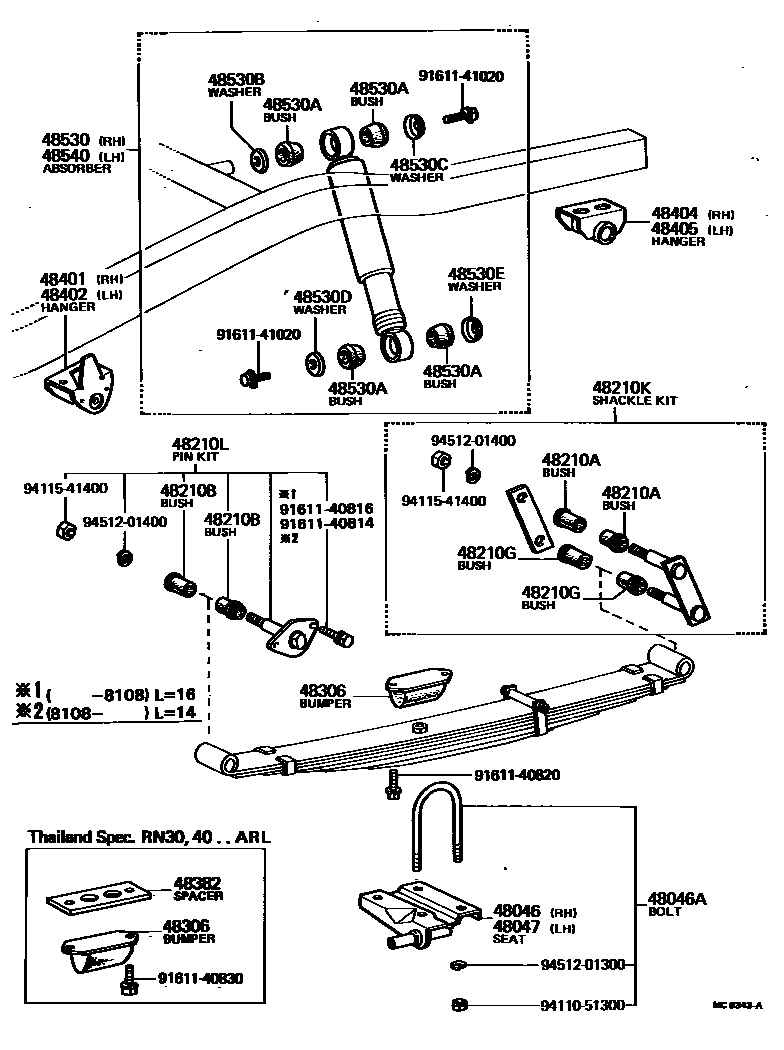

Toyota HILUX Rear Spring & Shock Absorber — Figure 4804
Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48046 | Right spring U-bolt base sub-assembly | 48046-35040 · 48046-35050 |
| 48046A | U-bolt (for rear spring) | 90118-13091 · 90118-13133 · 90118-13152 · 90118-14174 |
| 48047 | Left spring U-bolt base sub-assembly | 48047-35040 · 48047-35050 |
| 48210 | Right rear spring assembly | 48210-35120 · 48210-35130 · 48210-35150 · 48210-35170 · 48210-35230 · 48210-35240 |
| 48210A | Upper bushing (for rear spring lug) | 90385-18046 |
| 48210B | Bushing (for rear spring pin) | 90385-18001 · 90385-18046 |
| 48210C | Bushing (for rear leaf spring) | 90389-14004 |
| 48210G | Lower bushing (for rear spring lug) | 90385-18046 |
| 48210K | Rear spring lifting lug assembly | 04483-26010 |
| 48210L | Rear spring pin assembly | 04484-27010 · 04484-27020 · 04484-35050 |
| 48211 | No. 1 rear leaf spring | 48201-35212 · 48211-35120 · 48211-35130 · 48211-35150 · 48211-35170 · 48211-35230 |
| 48212 | No. 2 rear leaf spring | 48202-35130 · 48202-35240 · 48212-35120 · 48212-35150 · 48212-35170 · 48212-35230 |
| 48213 | No. 3 rear leaf spring | 48202-35120 · 48202-35150 · 48202-35170 · 48202-35230 · 48203-35130 · 48203-35212 |
| 48214 | No. 4 rear leaf spring | 48203-35150 · 48214-35120 · 48214-35170 · 48214-35230 |
| 48215 | No. 5 rear leaf spring | 48203-35120 · 48203-35170 · 48203-35230 |
| 48216 | No. 6 rear leaf spring | 48216-35170 |
| 48220 | Left rear spring assembly | 48210-35120 · 48210-35130 · 48210-35150 · 48210-35170 · 48210-35230 · 48210-35240 |
| 48227 | Rear tension spring leaf | 48221-35170 |
| 48241 | No. 1 rear spring clip | 48241-35041 · 48241-35080 · 48241-35120 · 48241-35141 · 48241-35170 · 48242-35240 · 48243-35120 |
| 48242 | No. 2 rear spring clip | 48241-35130 · 48241-35240 · 48242-35120 · 48242-35170 · 48243-35240 · 48244-35120 |
| 48246 | rear spring clamp bolt housing | 48246-26020 · 48246-35040 |
| 48247 | rear spring center bolt | 48247-35070 · 48247-35110 · 48247-35150 · 48247-35170 |
| 48256 | Hex bolt (for rear spring clamp assembly) | 48256-35040 · 48256-35170 |
| 48306 | Rear spring buffer block sub-assembly | 48306-35040 · 48341-35020 |
| 48344 | Rear buffer block | 48344-35010 · 48354-35010 |
| 48382 | Buffer block spacer | 48382-35020 |
| 48401 | Rear spring right front bracket sub-assembly | 48414-35050 |
| 48402 | Rear spring left front bracket sub-assembly | 48414-35050 |
| 48404 | Rear spring right rear bracket sub-assembly | 48416-35050 |
| 48405 | Rear spring left rear bracket sub-assembly | 48416-35050 |
| 48530 | Right rear shock absorber assembly | 48531-39325 · 48531-39335 · 48531-39336 · 48531-39375 · 48531-39475 |
| 48530A | Bushing (for rear shock absorber) | 90385-16007 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-03012 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 |
| 48540 | Left rear shock absorber assembly | 48531-39325 · 48531-39335 · 48531-39336 · 48531-39345 · 48531-39375 · 48531-39475 |
