Toyota HILUX Brake Pedal & Bracket — Figure 4701

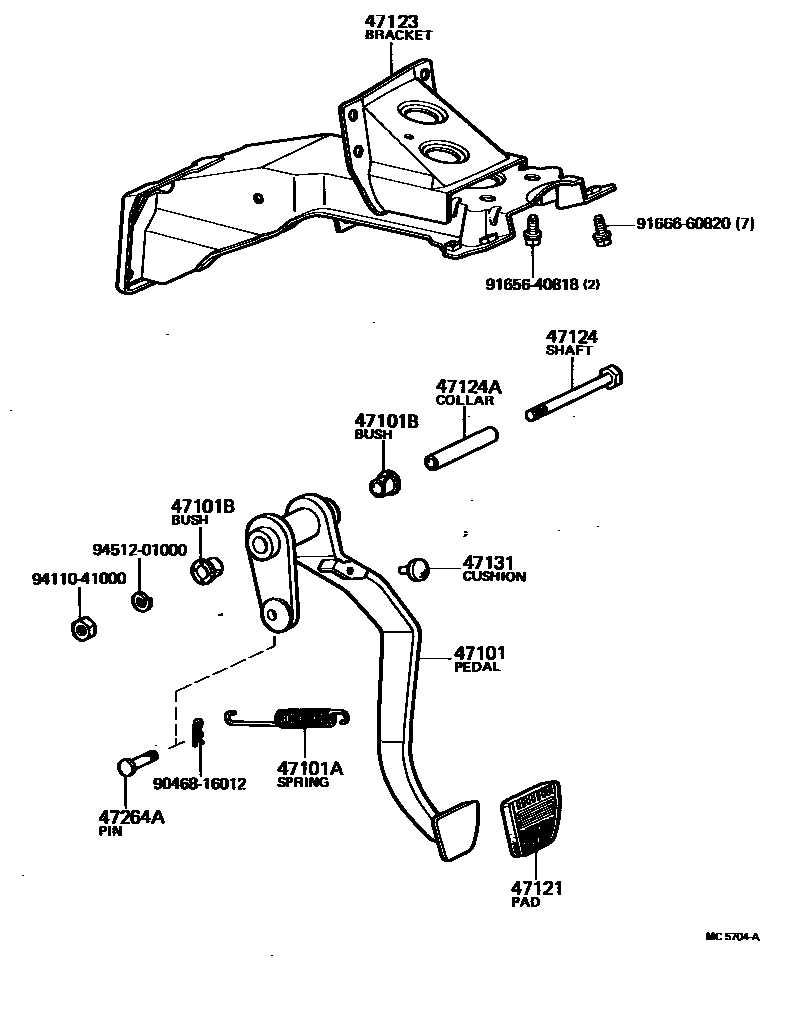

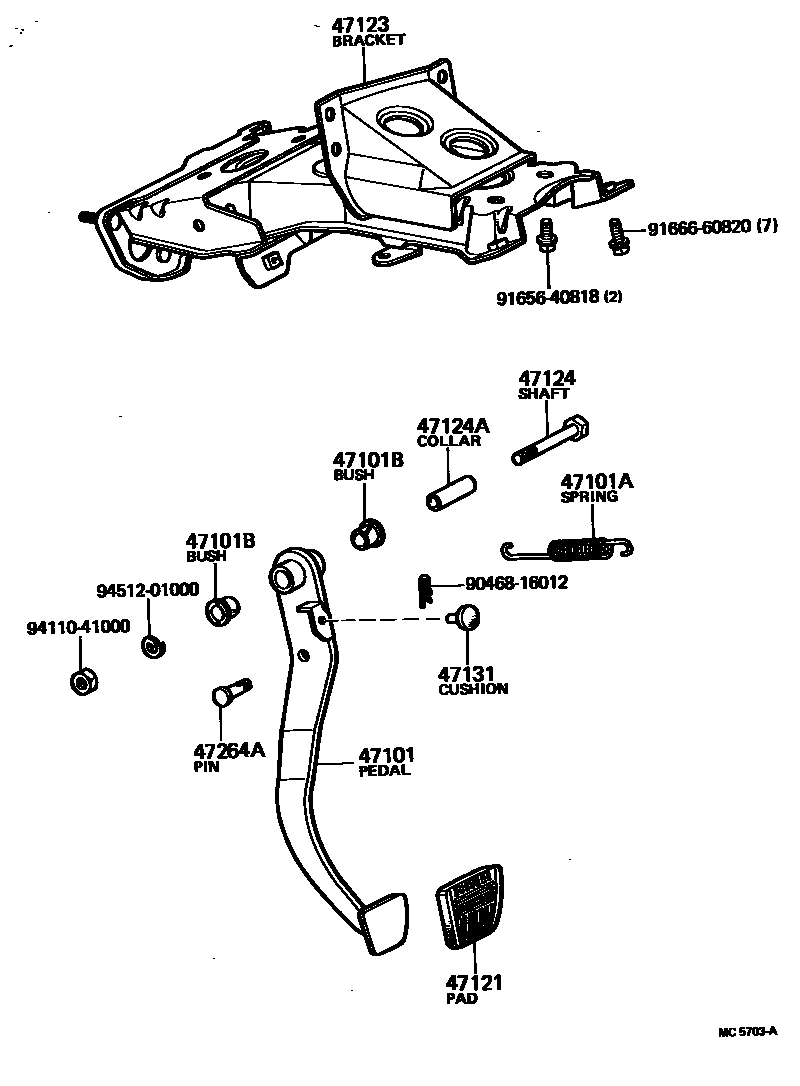

Toyota HILUX EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-35150 · 47101-35160 · 47101-35180 |
| 47101A | Spring (for brake pedal return) | 90506-14021 |
| 47101B | Bushing (for brake pedal) | 90386-13007 |
| 47121 | brake pedal pad | 31321-14010 |
| 47123 | brake pedal bracket | 55106-89111 · 55106-89112 · 55106-89113 · 55106-89114 · 55106-89115 · 55106-89116 · 55106-89117 |
| 47124 | brake pedal shaft | 90101-10480 · 91121-51060 |
| 47124A | Collar (for brake pedal shaft) | 47144-35020 · 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06008 |
| 47264A | Pin (for push rod) | 90249-10048 |
