Toyota HILUX Steering Wheel — Figure 4504

Toyota HILUX EPC diagram 4504, Steering Wheel, with 4 images and 13 PNC and OE references.

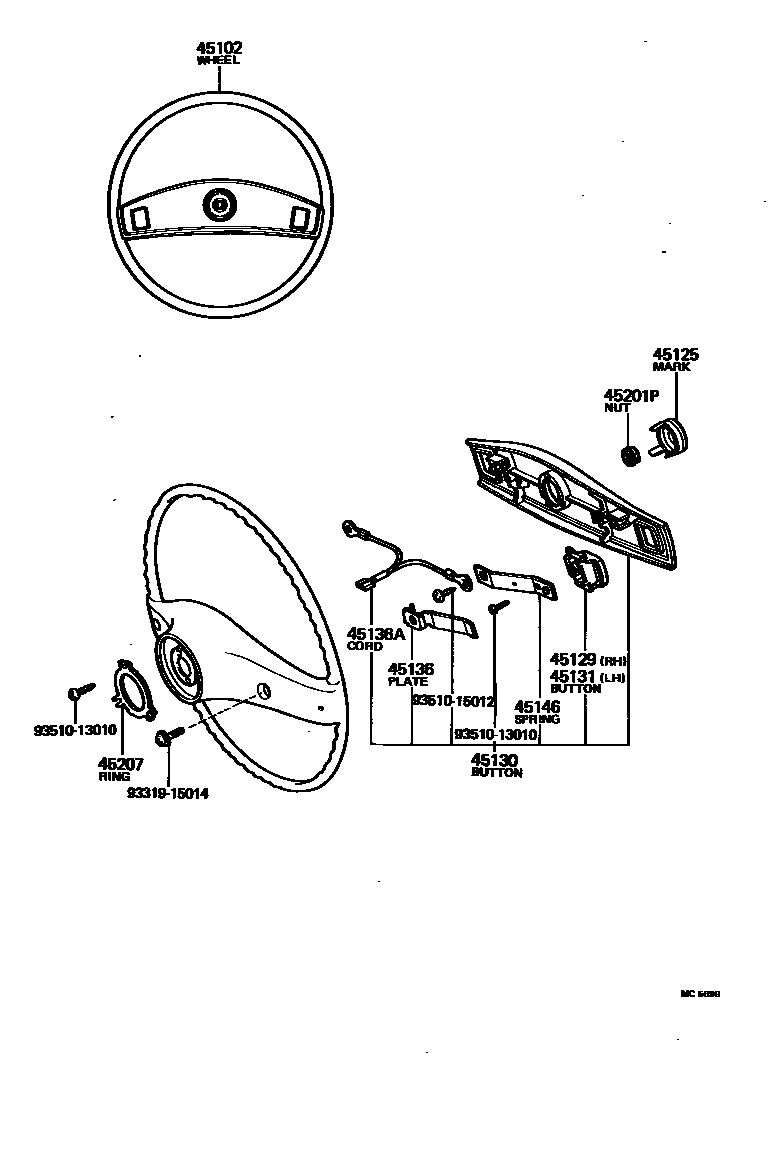

Toyota HILUX Steering Wheel EPC diagram — MC5699
Steering Wheel — MC5699 (197808 – 198108)

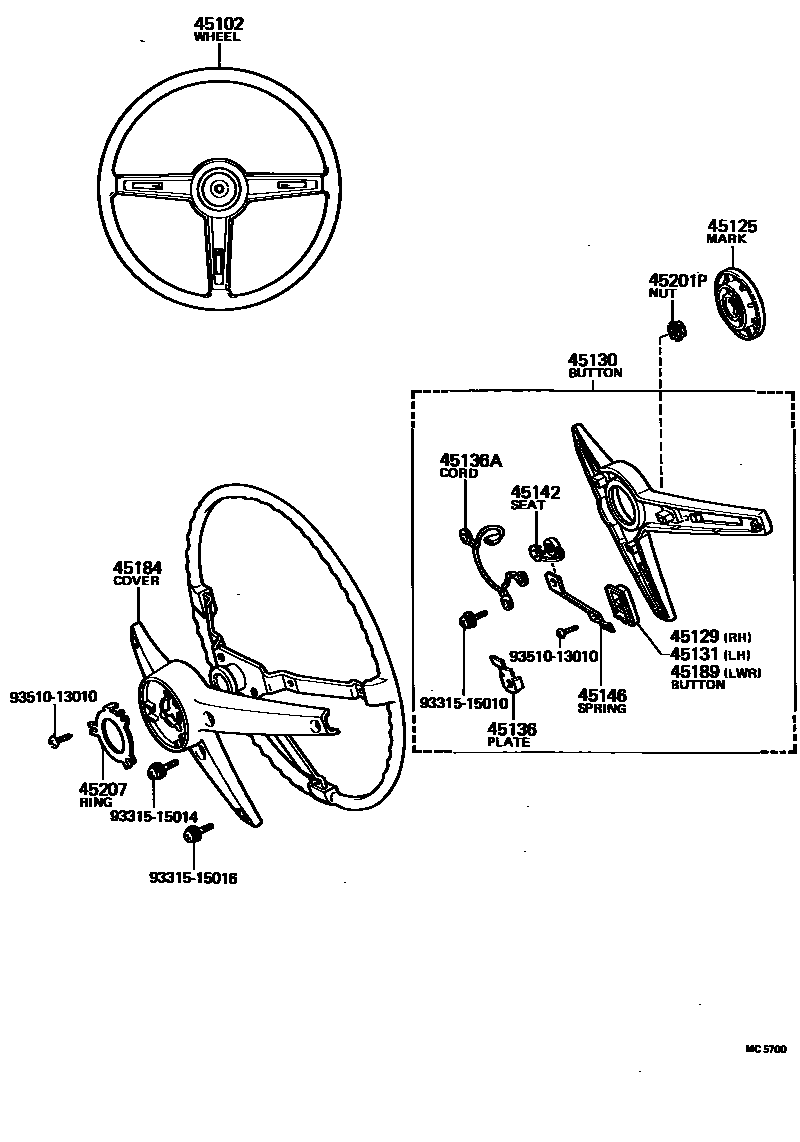

Toyota HILUX Steering Wheel EPC diagram — MC5700
Steering Wheel — MC5700 (197808 – 999999)

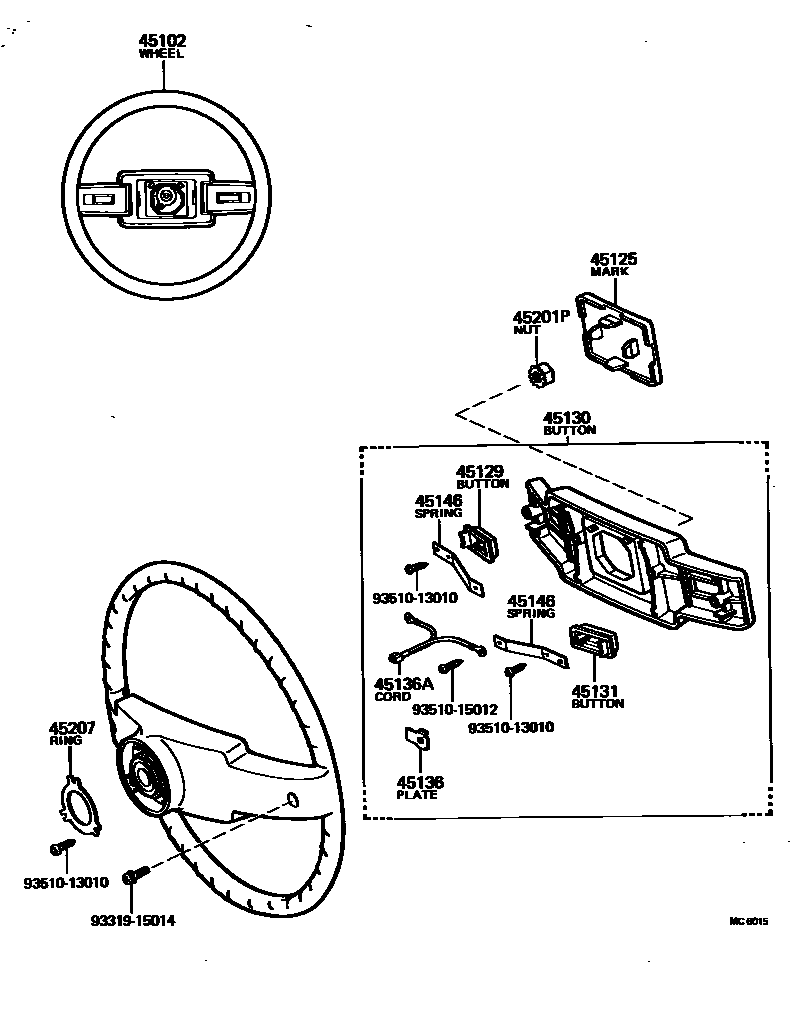

Toyota HILUX Steering Wheel EPC diagram — MC6015
Steering Wheel — MC6015 (197901 – 198307)

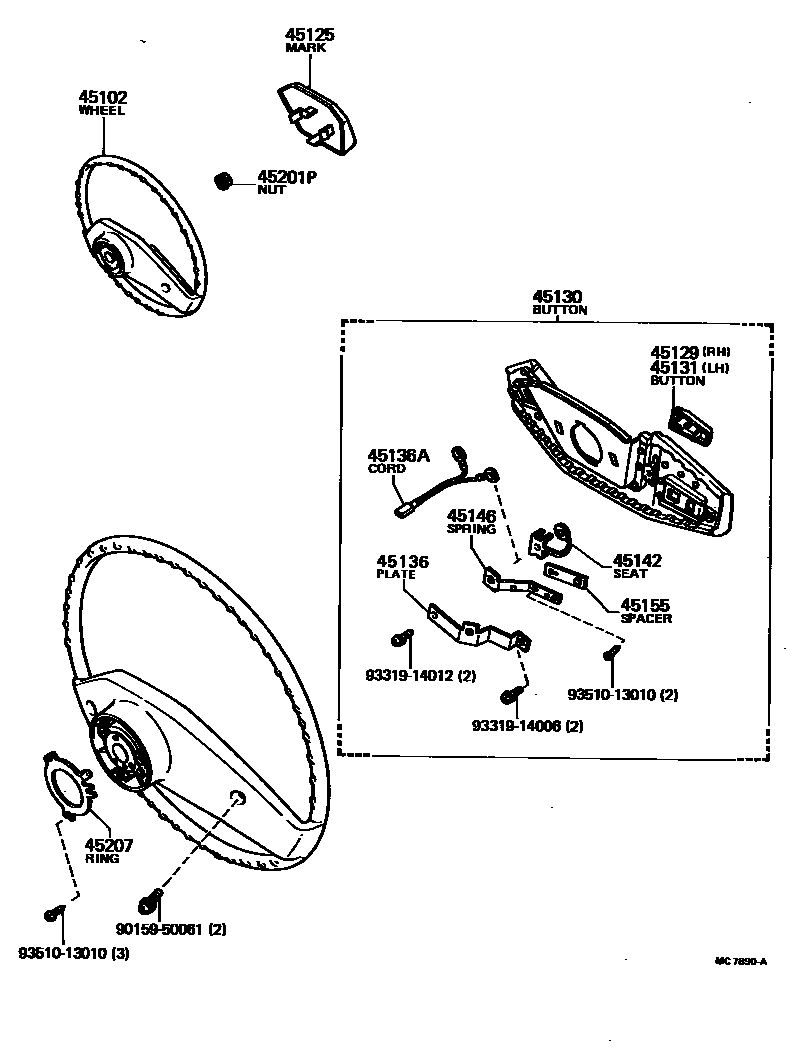

Toyota HILUX Steering Wheel EPC diagram — MC7890A
Steering Wheel — MC7890A (198108 – 999999)

PNC and OE references

PNCPart nameOE numbers
45102Steering wheel sub-assembly45100-35170
45125Steering wheel trim cover markings45125-35030 · 45125-35050
45129Speaker button No. 245129-35020 · 45131-14050 · 45131-35091 · 45131-35100 · 45131-35110
45130Speaker button assembly45130-35130
45131Speaker button No. 145129-35030 · 45131-14050 · 45131-35080 · 45131-35091 · 45131-35100
45136horn button contact piece45136-14040 · 45136-26020 · 45136-35030 · 45136-35040 · 45137-35030 · 45137-35040
45136AWire (for speaker contact ring)90945-02006 · 90945-02040 · 90945-02041 · 90945-02046
45142No. 1 horn button contact seat45142-14030 · 45142-20030
45146Horn button contact spring45146-14040 · 45146-35040 · 45146-35050 · 45146-35060
45155Horn button contact piece spacer45155-20010
45189Speaker button No. 345131-14050
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-20030
