Toyota HILUX 前桥壳和差速器 — Figure 4301

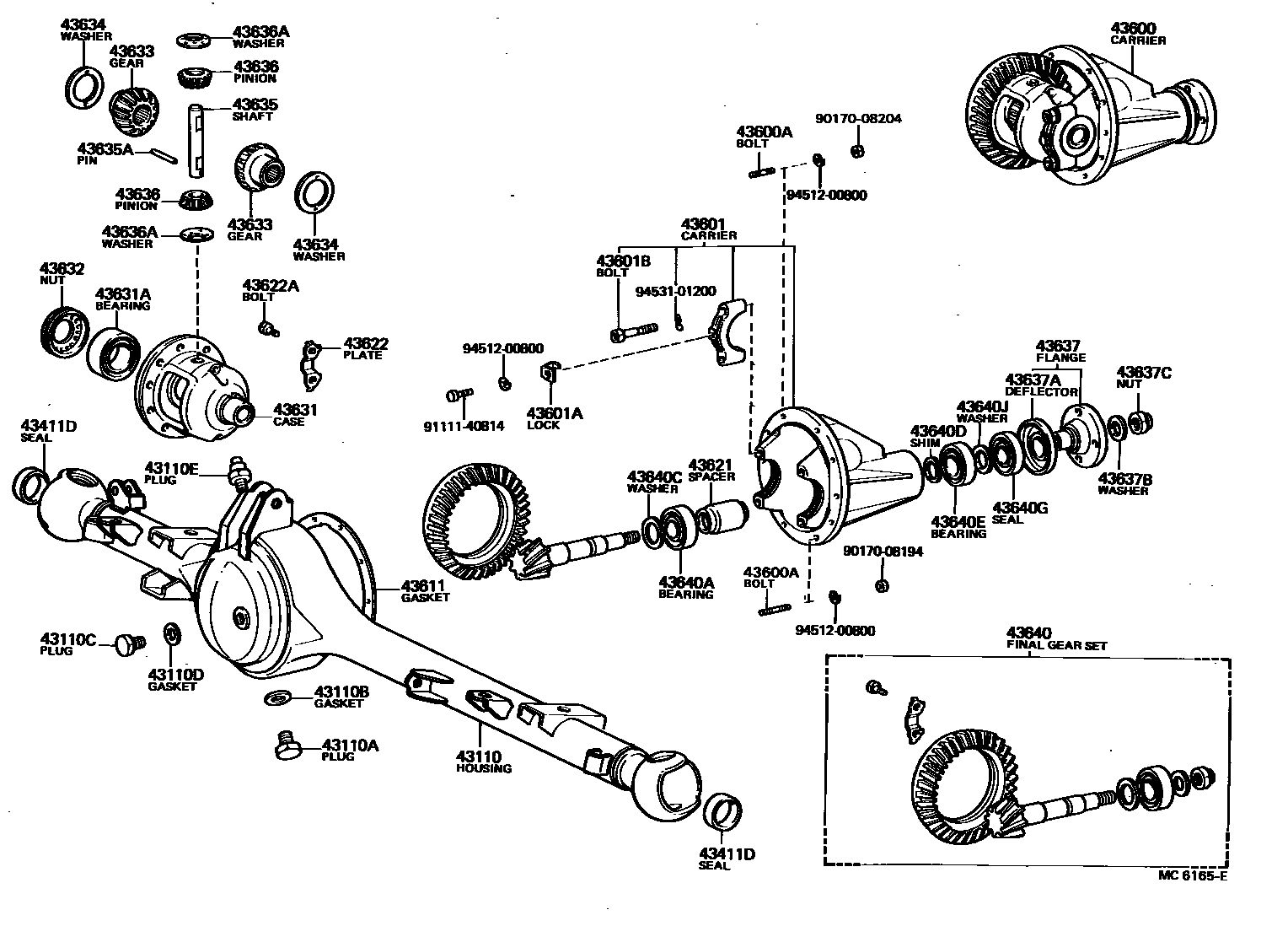

Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 1 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43110 | Front axle housing assembly | 43110-35010 · 43110-35011 · 43110-35012 · 43110-35020 · 43110-35021 · 43110-35022 |
| 43110A | Drain plug sub-assembly | 90341-18057 |
| 43110B | drain liner | 12157-10010 |
| 43110C | Screw plug (for front axle housing) | 90341-18049 |
| 43110D | Gasket (for front axle housing screw plug) | 12157-10010 |
| 43110E | Breather plug (for front axle housing) | 90930-03031 |
| 43411D | T-type oil seal (for front drive shaft) | 90311-33085 |
| 43600 | Front axle bracket assembly | 41110-35080 · 41110-35081 |
| 43600A | Stud bolts (used to secure the front axle differential case) | 90116-08196 · 90116-08226 · 90116-08235 |
| 43601 | Front axle bracket sub-assembly | 41101-35020 |
| 43601A | Front axle differential adjustment nut locking piece | 41316-30010 |
| 43601B | Front axle differential bearing cap bolts | 90101-12376 |
| 43611 | Front axle differential case gasket | 42181-35010 |
| 43621 | Front axle differential driving pinion bearing spacer | 41231-39010 |
| 43622 | Front axle differential ring gear fixing bolt locking plate | 41222-35020 |
| 43622A | Bolt (for front axle differential ring gear fixing plate) | 90101-11353 |
| 43631 | Front axle differential housing | 41311-35030 · 41311-40020 |
| 43631A | Front axle differential bearing | 90368-45066 |
| 43632 | Front axle differential bearing adjusting nut | 41315-35010 |
| 43633 | Front axle differential half gear | 41331-35010 |
| 43634 | Front axle differential side gear thrust washer | 41361-40021 · 41362-40021 · 41363-40021 |
| 43635 | Front axle differential planetary gear shaft | 41342-39610 |
| 43635A | Front axle differential planetary gear pin | 90250-06085 |
| 43636 | Front axle differential planetary gear | 41341-39020 |
| 43636A | Front axle differential planetary gear thrust washer | 41351-30051 |
| 43637 | Front axle drive pinion flange with dust cover | 41204-26011 · 41204-40011 |
| 43637A | Dust cover (for front axle) | 37341-30010 |
| 43637B | Flat washer (for front axle drive pinion) | 90201-20005 |
| 43637C | Castle nut (for front axle drive pinion) | 90179-20001 |
| 43640 | Front axle differential final reducer gear assembly | 41201-39415 |
| 43640A | Front axle drive pinion front bearing | 97609-32307 |
| 43640C | Front axle driving pinion thrust spacer or washer | 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 43640D | Front axle drive pinion spacer, front adjustment washer | 90564-30035 · 90564-30063 · 90564-30193 · 90564-30194 · 90564-30195 |
| 43640E | Front axle driving pinion rear bearing | 90366-30008 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-38134 |
| 43640J | Flat washer (for front axle driving pinion front bearing) | 41214-26010 · 90201-28002 |
