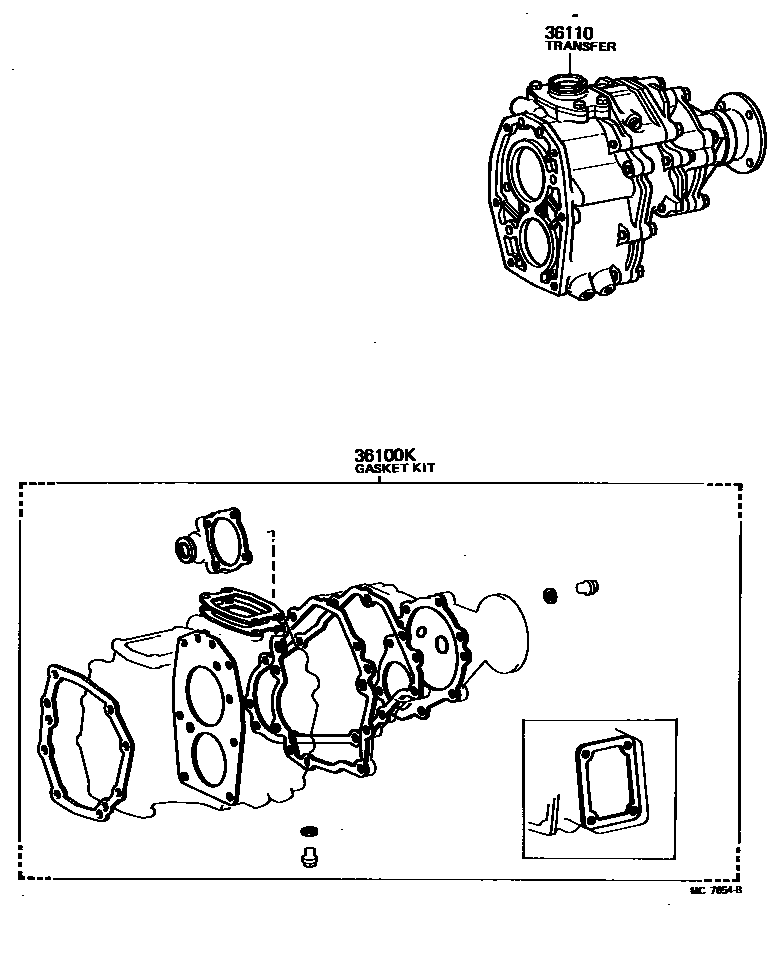

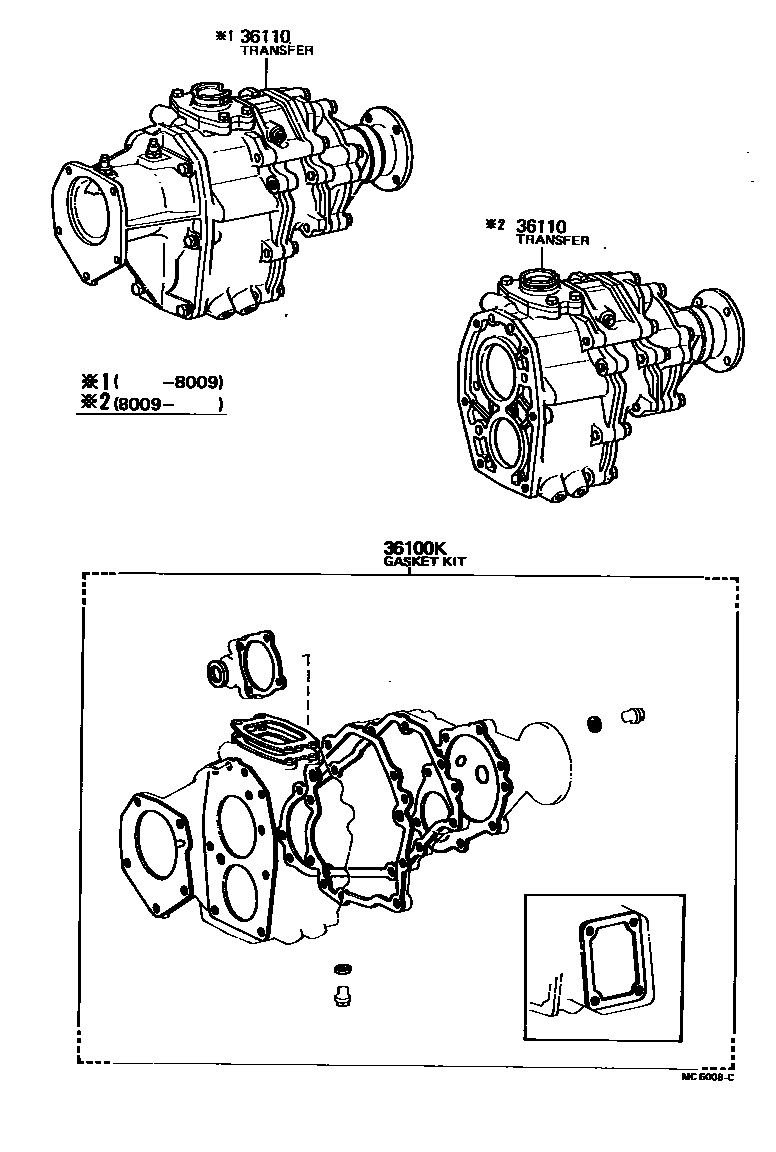

Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36100K | Transfer case overhaul gasket assembly | 04362-35010 · 04362-35011 |
| 36110 | Transfer case assembly | 36100-35010 · 36100-35011 · 36100-35012 · 36100-35020 · 36100-35021 · 36100-35022 · 36100-35082 · 36100-35090 · 36100-35091 · 36100-35100 · 36100-35101 · 36100-35151 · 36100-35161 · 36100-35170 |
