Toyota HILUX Extended shell (MTM) — Figure 3303

Toyota HILUX EPC diagram 3303, Extended shell (MTM), with 4 images and 13 PNC and OE references.

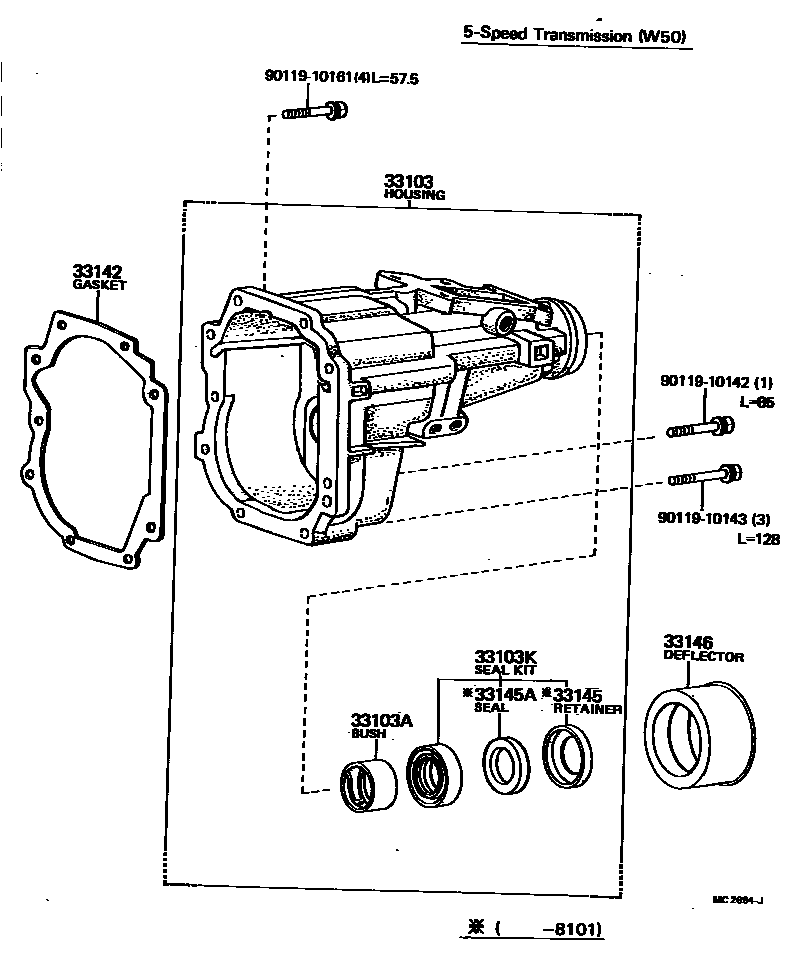

Toyota HILUX Extended shell (MTM) EPC diagram — MC2694J
Extended shell (MTM) — MC2694J (197808 – 198312)

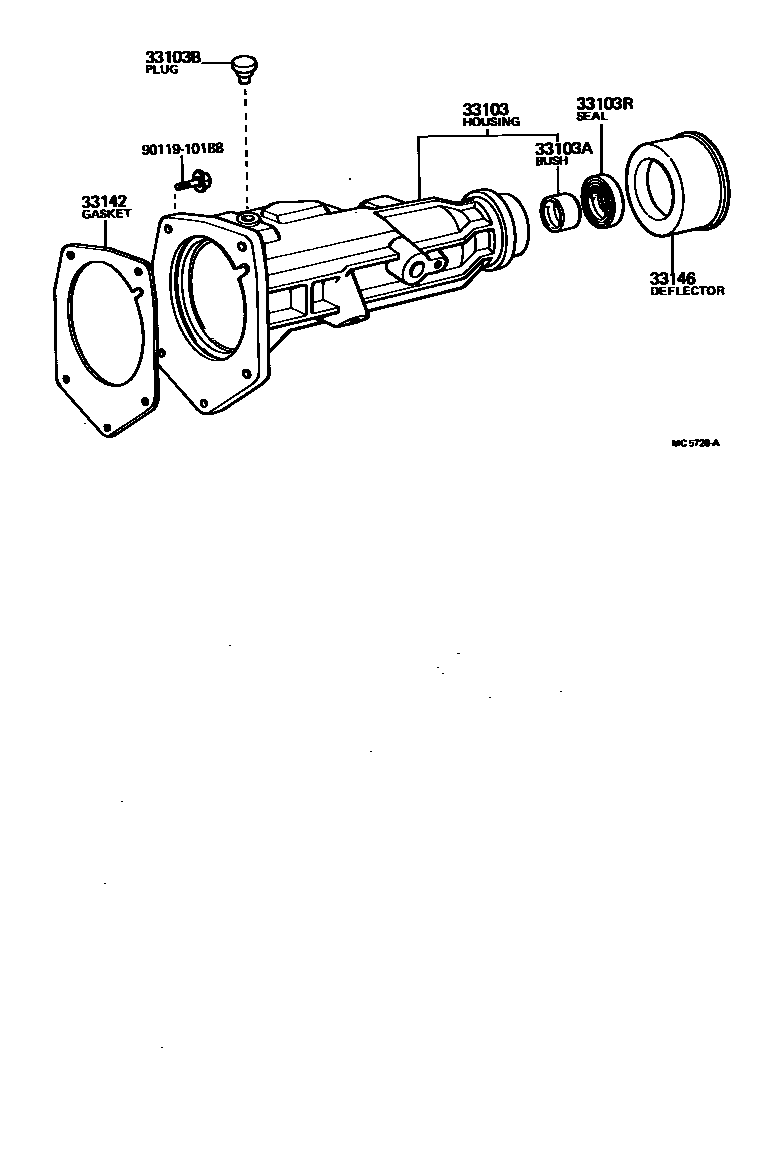

Toyota HILUX Extended shell (MTM) EPC diagram — MC5728A
Extended shell (MTM) — MC5728A (197808 – 999999)

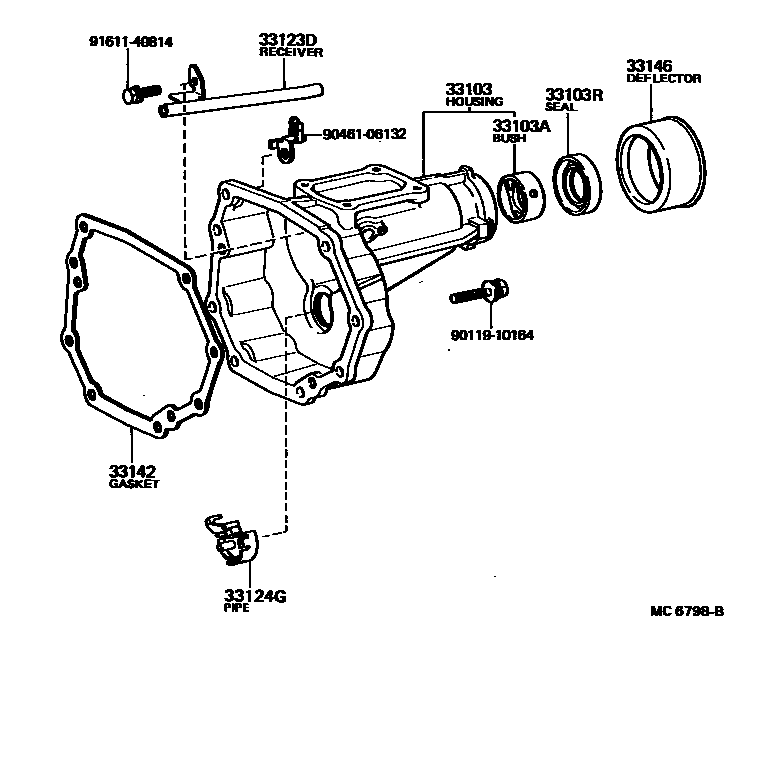

Toyota HILUX Extended shell (MTM) EPC diagram — MC6798B
Extended shell (MTM) — MC6798B (197911 – 198312)

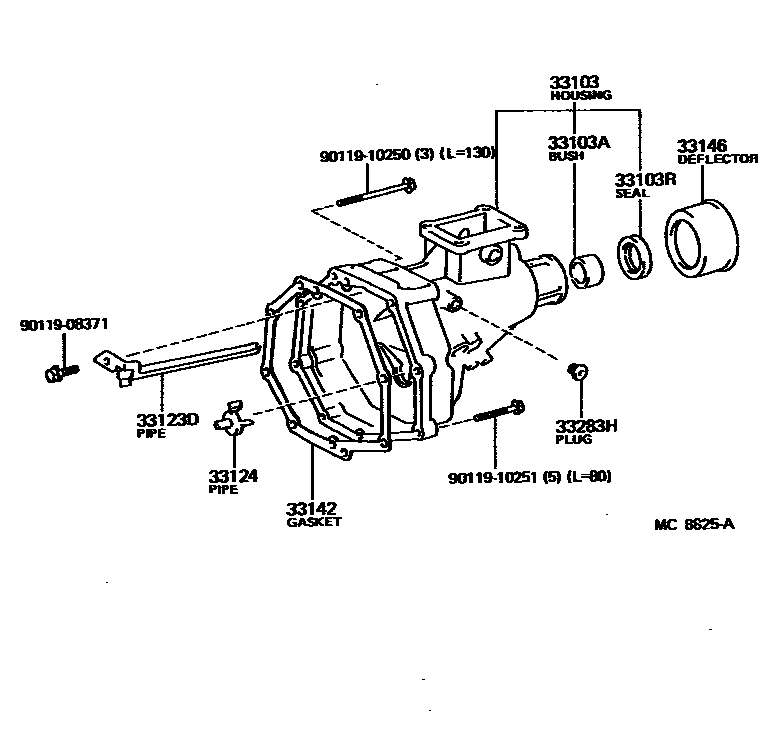

Toyota HILUX Extended shell (MTM) EPC diagram — MC8825A
Extended shell (MTM) — MC8825A (198310 – 999999)

PNC and OE references

PNCPart nameOE numbers
33103Extended shell sub-assembly (MTM)33103-20100 · 33103-20101 · 33103-35050 · 33103-35060 · 33103-35070 · 33103-35080 · 33103-35081 · 33103-35090
33103ABushing (for manual transmission extension housing)90999-72023 · 90999-73062
33103BBreather plug (for transmission extension housing)90930-03001
33103KOil seal assembly (for manual transmission extension housing)04332-30010 · 90311-38043
33103ROil seal (for manual transmission extension housing)90311-38043
33123DTransmission case cover oil collection tank (MTM)33123-35011 · 33124-35010
33124Oil collecting pipe (MTM)33124-36010
33124GNo. 2 oil collection pipe (for extension housing)33124-26010
33142Extended shell liner (MTM)33138-28020 · 33142-20020 · 33142-26010 · 33142-35030
33145Extension housing dust seal (MTM)33145-30010
33145ADust seal (for manual transmission extension housing)90303-38010
33146Extension housing dust cover (MTM)33146-30010
33283HHeaded straight thread plug90341-12008
