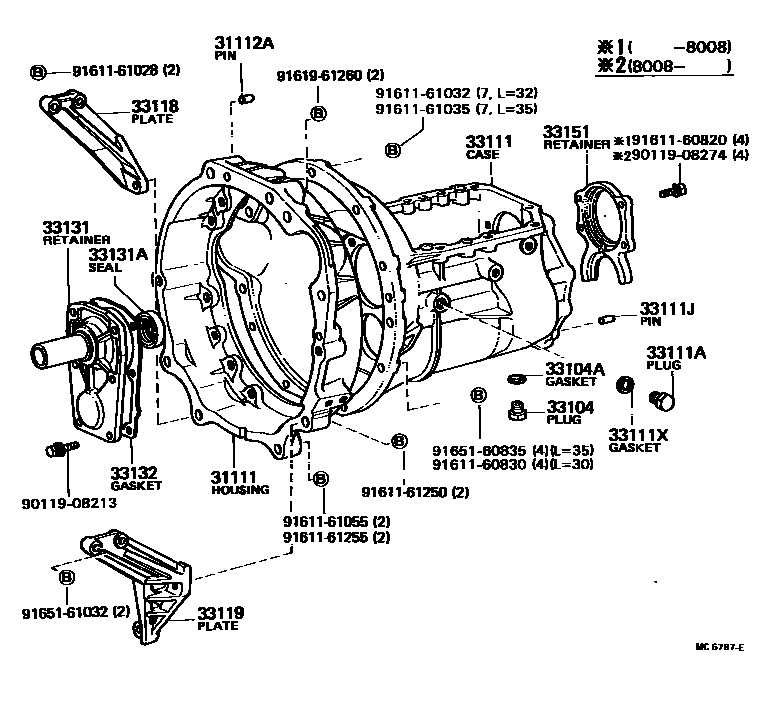

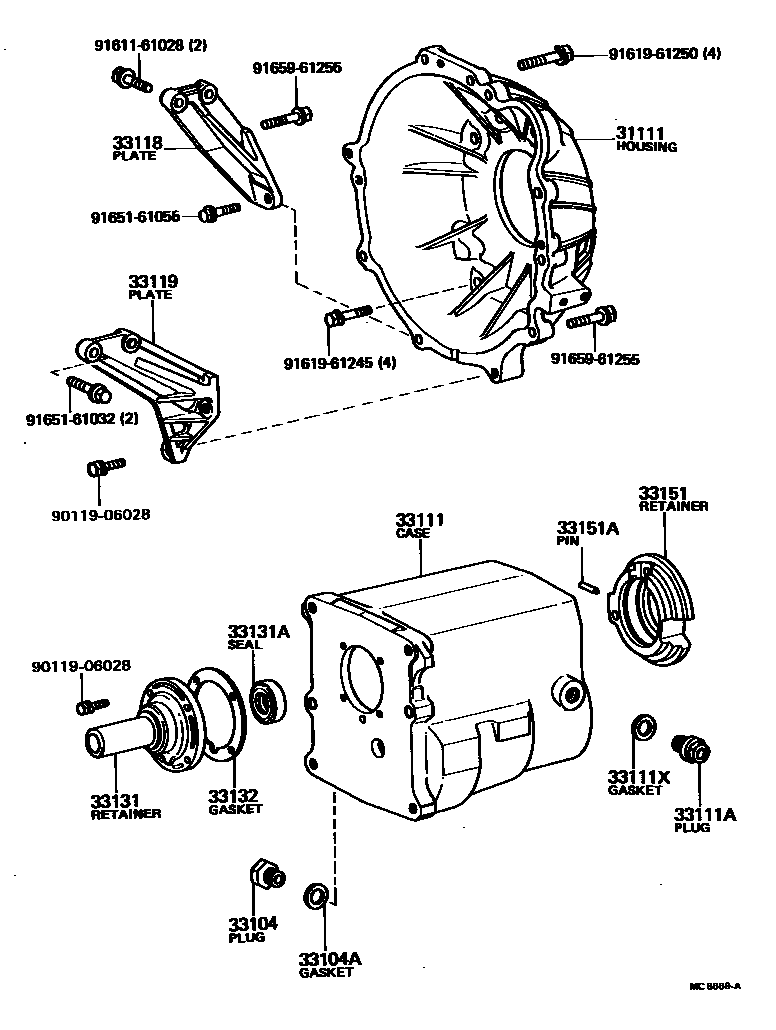

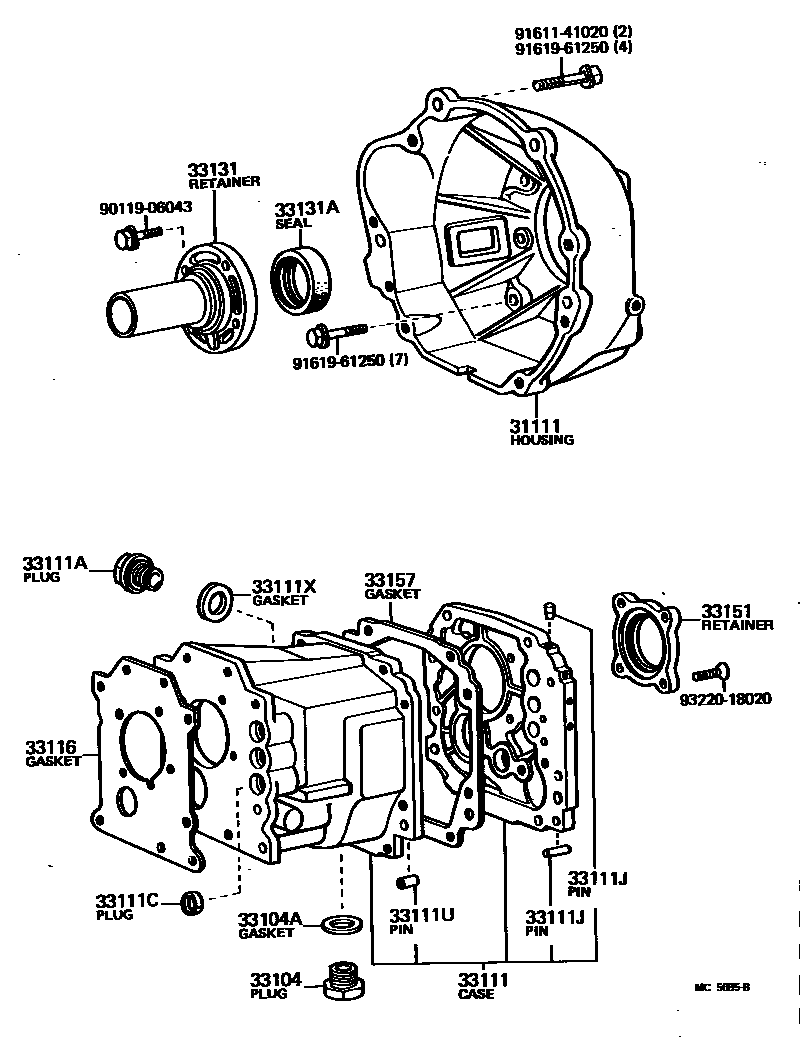

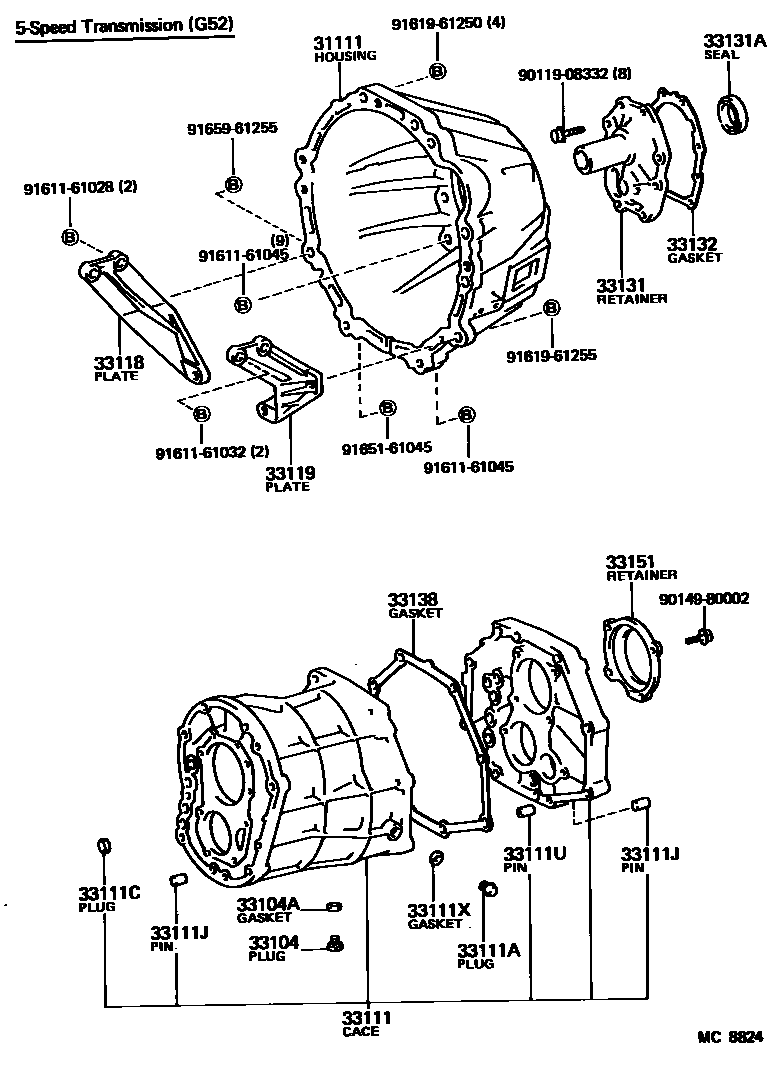

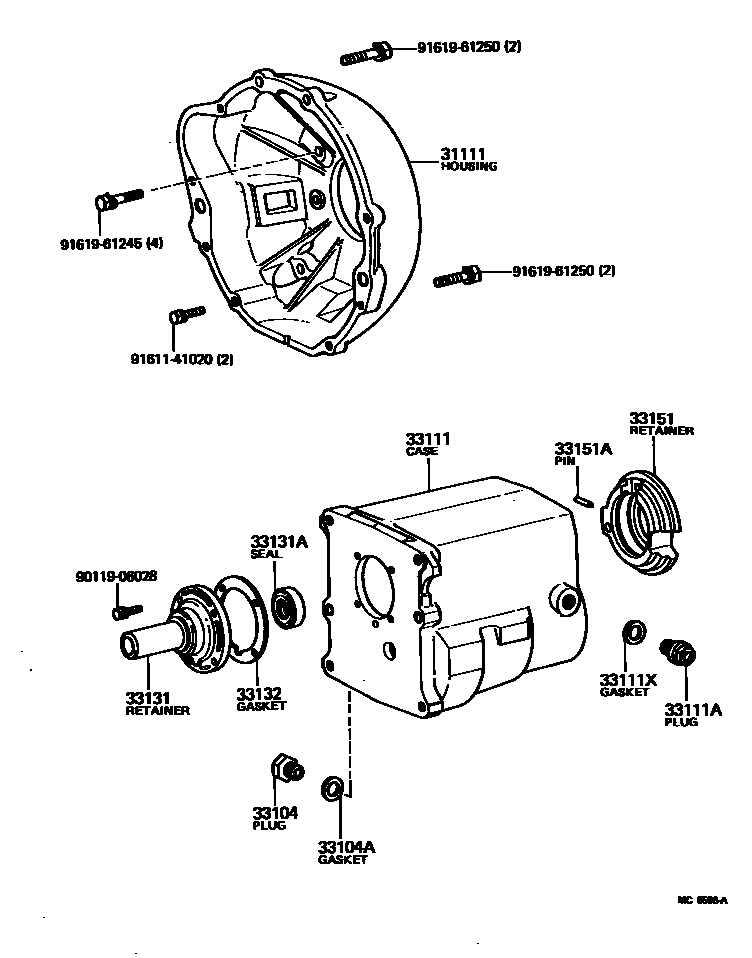

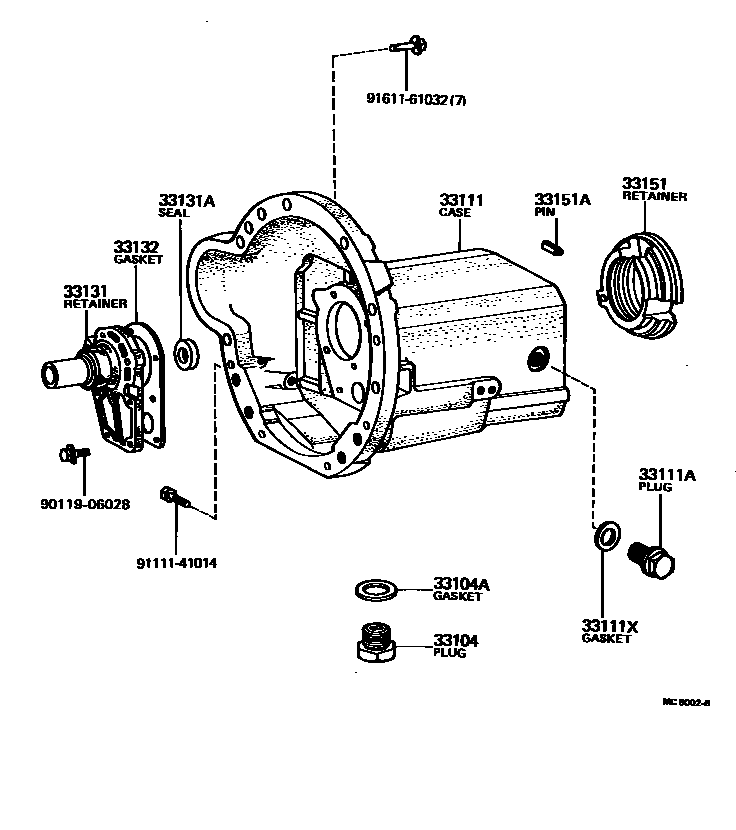

Toyota HILUX 离合器壳和变速器壳(MTM) — Figure 3302
Toyota HILUX EPC diagram 3302, 离合器壳和变速器壳(MTM), with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-20050 · 31111-20120 · 31111-22111 · 31111-30151 · 31112-25010 · 31112-35010 |
| 31112A | Clutch housing positioning pin | 90250-10052 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18057 |
| 33104A | Drain plug gasket (MTM) | 12157-10010 · 90430-18007 |
| 33111 | Manual transmission housing | 33101-20010 · 33101-20011 · 33101-20012 · 33101-35010 · 33111-26031 · 33111-26040 · 33111-35031 · 33111-35040 · 33111-35041 · 33111-35042 |
| 33111A | Manual transmission plug | 90341-18002 · 90341-18006 |
| 33111C | Screw plug (for gearbox) | 90331-14004 · 90331-20044 |
| 33111J | Direct sales (for manual transmission) | 90250-12002 · 90250-12195 · 90250-12216 · 90334-06017 |
| 33111U | Ring pin (for manual transmission) | 90253-13017 · 90253-15001 |
| 33111X | Gearbox plug gasket | 12157-10010 · 90430-18007 |
| 33116 | manual transmission gasket | 33132-20040 |
| 33118 | Right reinforcement plate (MTM) | 33118-25020 |
| 33119 | Left reinforcement plate (MTM) | 33119-25020 · 33119-30040 |
| 33131 | Front bearing retainer (MTM) | 33131-20050 · 33131-26010 · 33131-28010 · 33131-31010 · 33131-35021 · 33131-35022 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-30115 · 90311-32106 |
| 33132 | Front bearing retainer pad (MTM) | 33132-28010 · 33132-30020 · 33132-30030 · 33132-35021 · 33132-35022 |
| 33138 | Center panel gasket | 33138-28010 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33151-20010 · 33151-26010 · 33151-28010 · 33151-35010 · 33151-35011 |
| 33151A | Slotted spring pin (for output shaft rear bearing retainer) | 90254-05005 |
| 33157 | No. 2 gearbox gasket | 33142-20020 |
