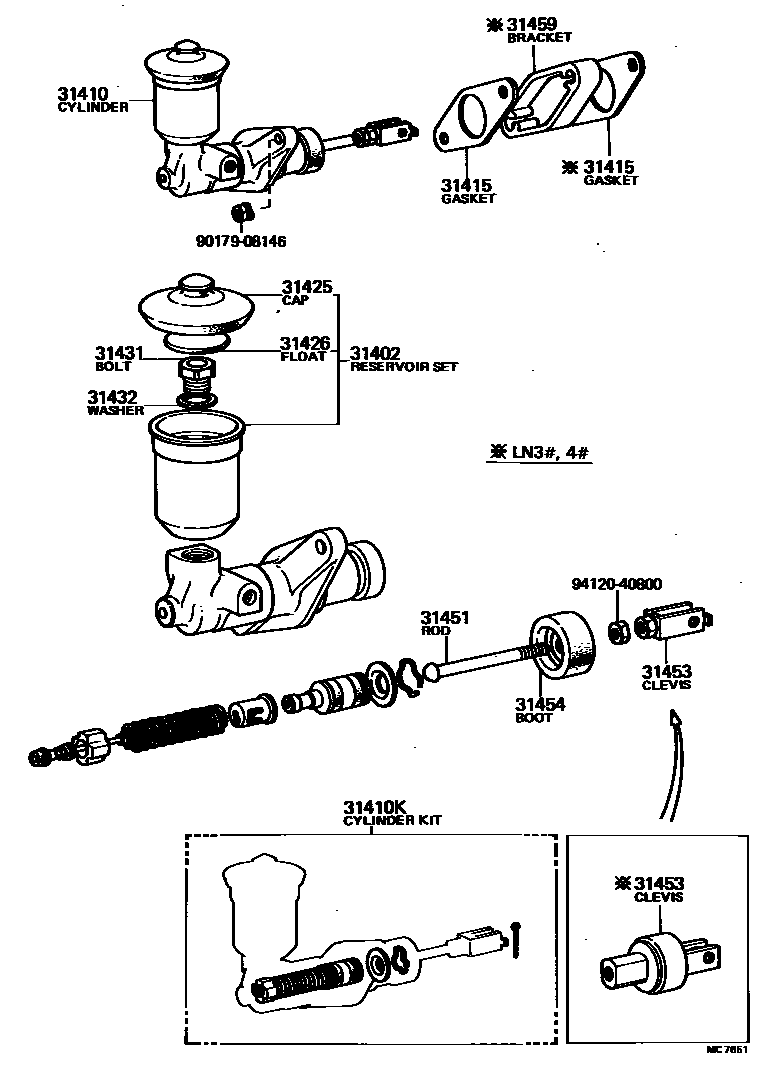

Toyota HILUX 离合器总泵 — Figure 3103
Toyota HILUX EPC diagram 3103, 离合器总泵, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31402 | Clutch master cylinder fluid reservoir sub-assembly | 31402-30030 · 47202-12010 · 47202-12050 |
| 31410 | Clutch master cylinder assembly | 31410-24011 · 31410-24012 · 31410-30110 · 31410-35090 · 31410-35110 |
| 31410K | Clutch master cylinder assembly | 04311-14010 · 04311-14011 · 04311-20050 · 04311-30080 |
| 31415 | Clutch master cylinder gasket | 31415-30030 |
| 31425 | Clutch master cylinder reservoir tank filler cap | 31440-35010 · 47230-12011 · 47230-20040 |
| 31426 | Clutch master cylinder reservoir float | 31426-30011 |
| 31431 | Clutch master cylinder reservoir fixing bolt | 47231-30010 |
| 31432 | Clutch reservoir retaining bolt washer | 47232-30010 |
| 31451 | Clutch master cylinder push rod | 31451-12010 · 31451-30060 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-30040 · 31404-30041 · 31453-22010 |
| 31454 | Clutch master cylinder dust boot | 31454-14010 · 31454-24010 |
| 31459 | Clutch master cylinder bracket | 31459-35010 |
