Toyota HILUX 燃油管和卡箍 — Figure 2101

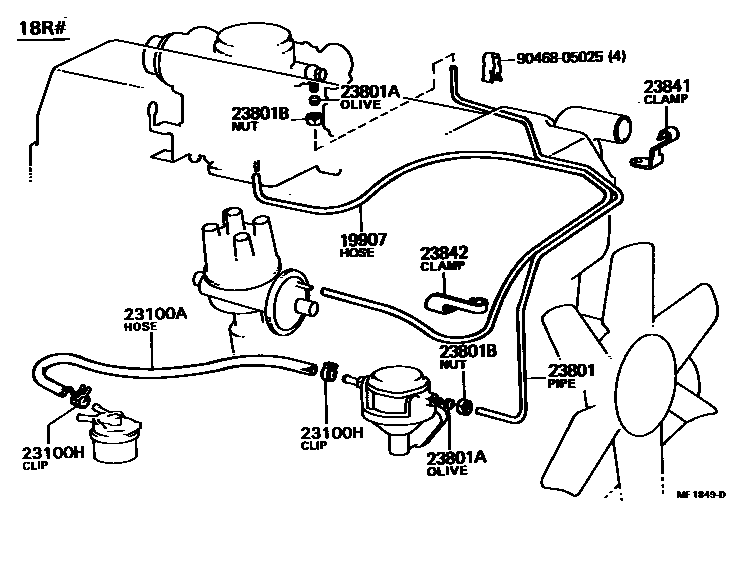

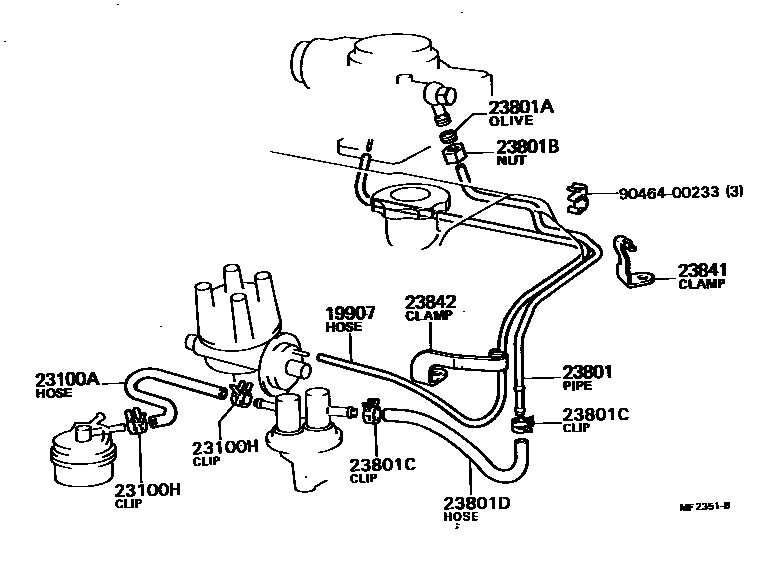

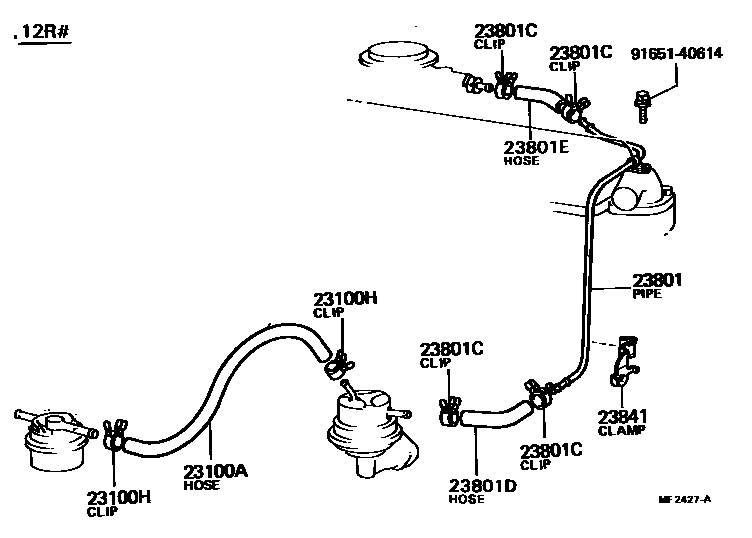

Toyota HILUX EPC diagram 2101, 燃油管和卡箍, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19907 | No. 1 vacuum hose | 95411-19995 |
| 23100A | fuel hose | 95332-06026 · 95332-06028 · 95332-06030 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23811-31061 · 23811-31070 · 23811-34031 · 23811-34041 |
| 23801A | Olive nut (for fuel pipe) | 96395-71200 · 96395-71400 |
| 23801B | Connecting nut (for fuel pipe) | 90402-13041 · 96315-11200 |
| 23801C | Clamp (for carburetor fuel hose) | 90467-12001 · 96132-30600 |
| 23801D | No. 1 fuel line hose | 95332-06010 |
| 23801E | No. 2 fuel line hose | 95332-06010 |
| 23841 | No. 1 fuel pipe (hose) clamp | 23841-31020 · 23841-34020 · 23841-34030 |
| 23842 | No. 2 fuel pipe (hose) clamp | 23842-34041 · 23842-34050 · 23842-34051 |
