Toyota HILUX Alternator — Figure 1903

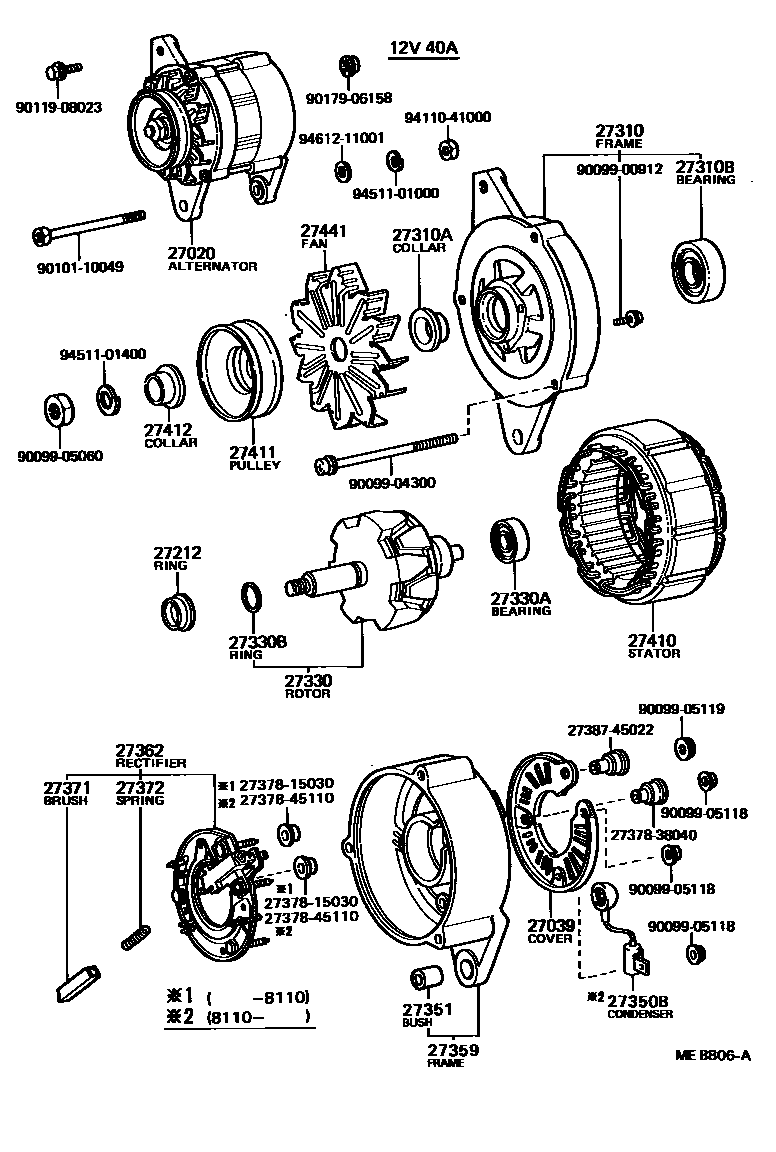

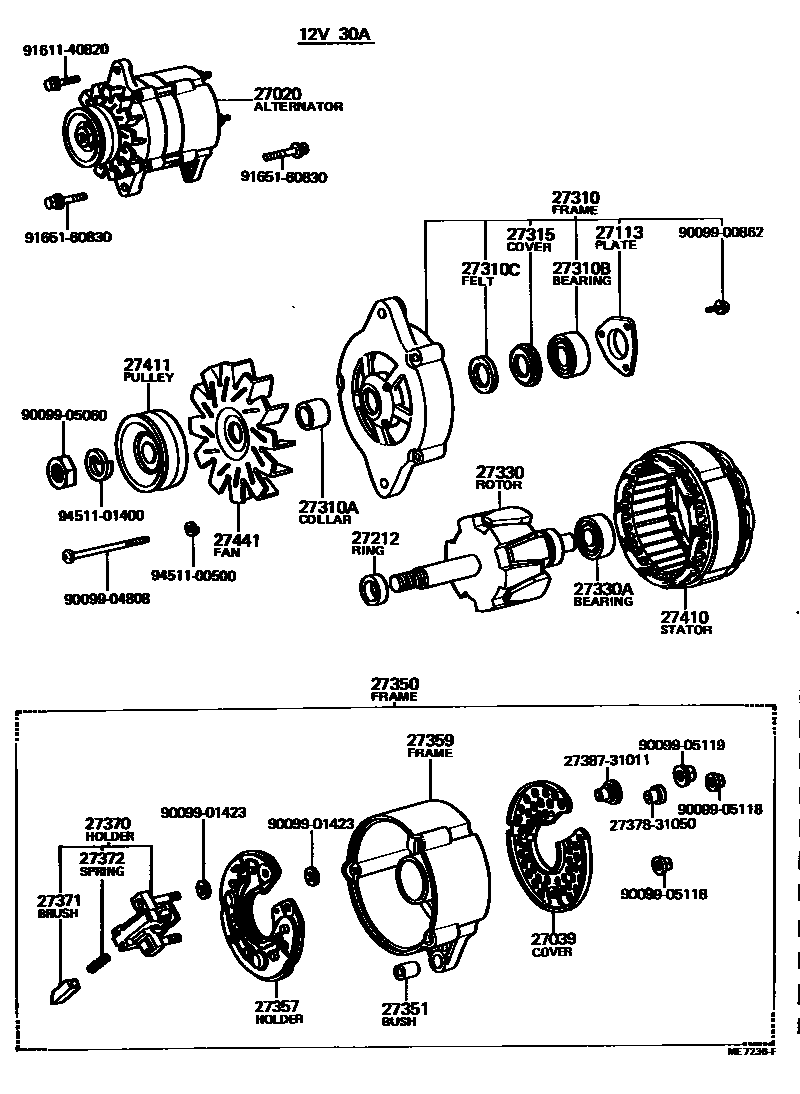

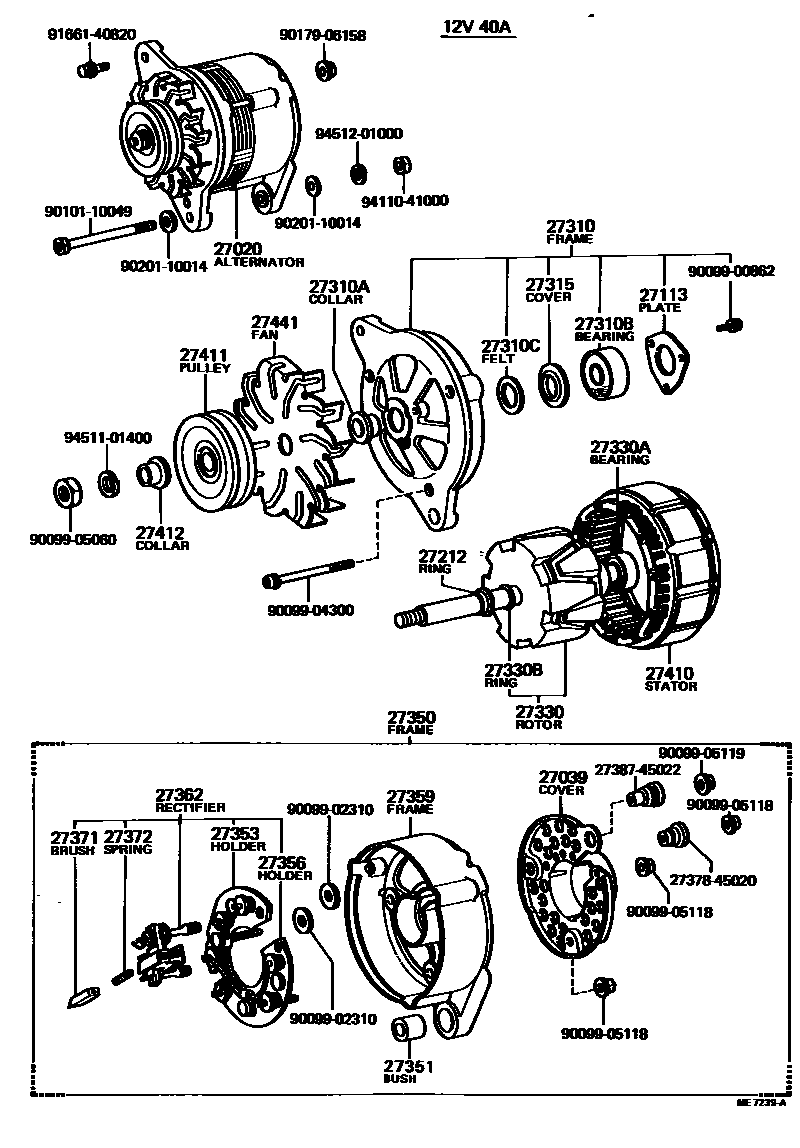

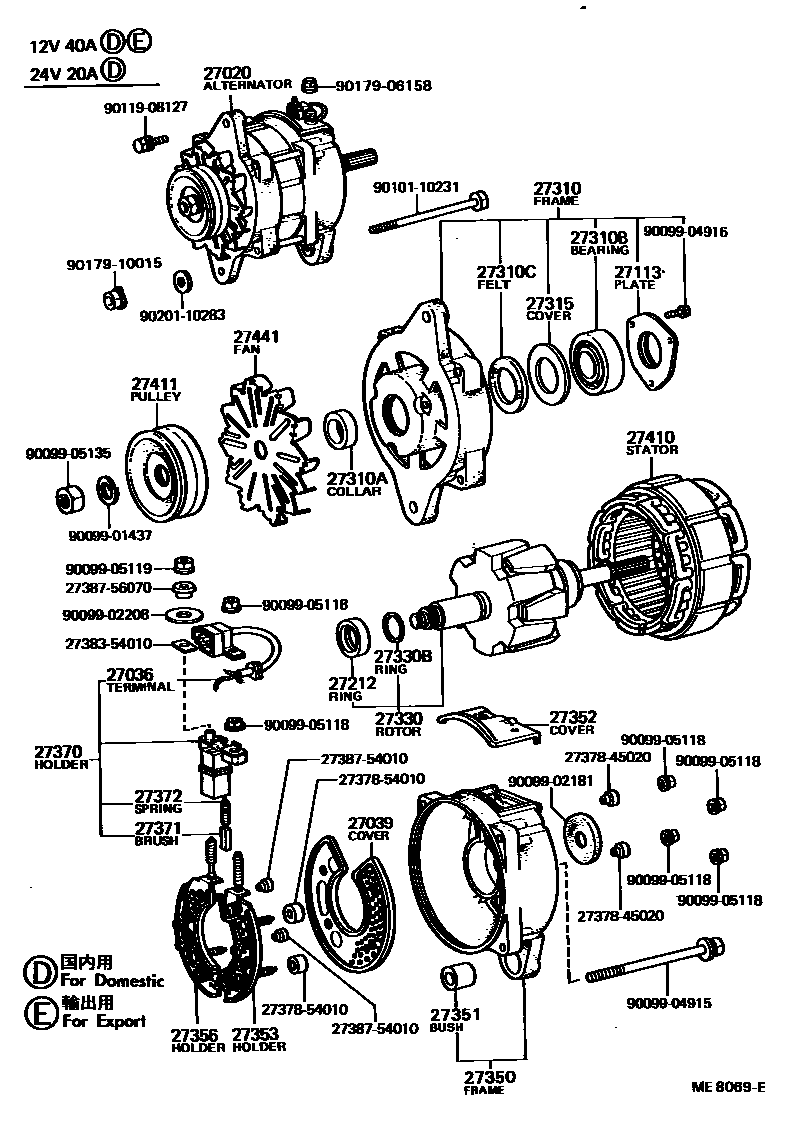

Toyota HILUX EPC diagram 1903, Alternator, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27020-18011 · 27020-31090 · 27020-36071 · 27020-54021 |
| 27036 | Generator lead terminal sub-assembly | 27036-54010 |
| 27039 | Alternator Rear End Cover | 27039-11014 · 27039-18011 · 27039-36070 · 27039-56090 |
| 27113 | Generator bearing block | 27113-10012 · 27312-31011 · 27312-56070 |
| 27212 | Spacer ring (for generator rotor) | 27212-39050 · 27412-54040 · 90099-19068 |
| 27310 | Alternator Drive End Frame Assembly | 27310-18010 · 27310-22012 · 27310-34030 · 27310-54011 · 27310-54012 |
| 27310A | Collar or nut (for generator drive end cover) | 27412-31040 · 27412-56040 · 90099-19251 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10012 · 90099-10109 · 90099-10114 · 90099-10120 · 90099-10126 |
| 27310C | Felt pad (for generator drive end cover) | 90099-02004 · 90099-02009 · 90099-02207 |
| 27315 | Generator No. 1 felt pad inner cover | 27313-31011 · 27313-39010 · 27315-56070 |
| 27330 | Alternator Rotor Assembly | 27330-22012 · 27330-26050 · 27330-54040 |
| 27330A | Bearings (for generator rotor) | 90099-10103 · 90099-10111 · 97110-06201 |
| 27330B | Snap ring (for generator rotor) | 90099-07048 · 90099-07108 |
| 27350 | Rectifier end frame assembly | 27350-31090 · 27350-36061 · 27350-54010 |
| 27350B | generator capacitor | 90099-52065 |
| 27351 | Bushing (for generator rectifier end frame) | 27351-24020 · 27351-25010 · 27351-38051 · 27351-56013 |
| 27352 | End cover brush cover | 27388-56090 |
| 27353 | Generator positive rectifier frame | 27353-26030 · 27353-54020 |
| 27356 | Generator negative rectifier frame | 27356-26030 · 27356-54020 |
| 27357 | Generator rectifier frame | 27357-11014 |
| 27359 | Generator rectifier end frame | 27359-13050 · 27359-31090 · 27359-36061 |
| 27362 | Rectifier assembly with brushes | 27362-15030 · 27362-18011 · 27362-26040 |
| 27370 | Alternator Brush Holder Assembly | 27370-31090 · 27370-54010 |
| 27371 | Generator brushes | 27371-31011 · 27371-56070 |
| 27372 | Generator brush spring | 27372-31011 · 27372-56070 |
| 27410 | Generator stator assembly | 27410-11014 · 27410-15030 · 27410-26020 · 27410-54020 |
| 27411 | Alternator Pulley | 27411-31042 · 27411-31090 · 27411-54020 · 27411-54040 |
| 27412 | Isolator collar (for generator pulley) | 27412-44030 |
| 27441 | generator fan | 27441-31090 · 27441-34030 · 27441-54040 |
