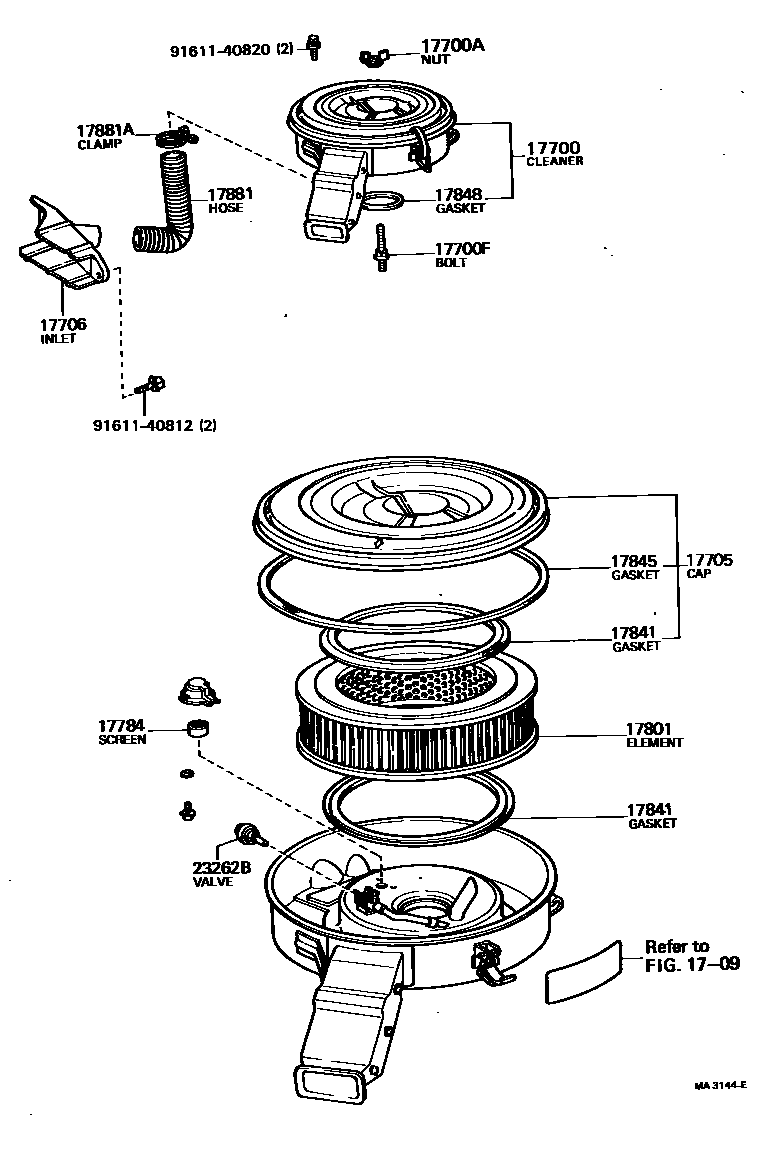

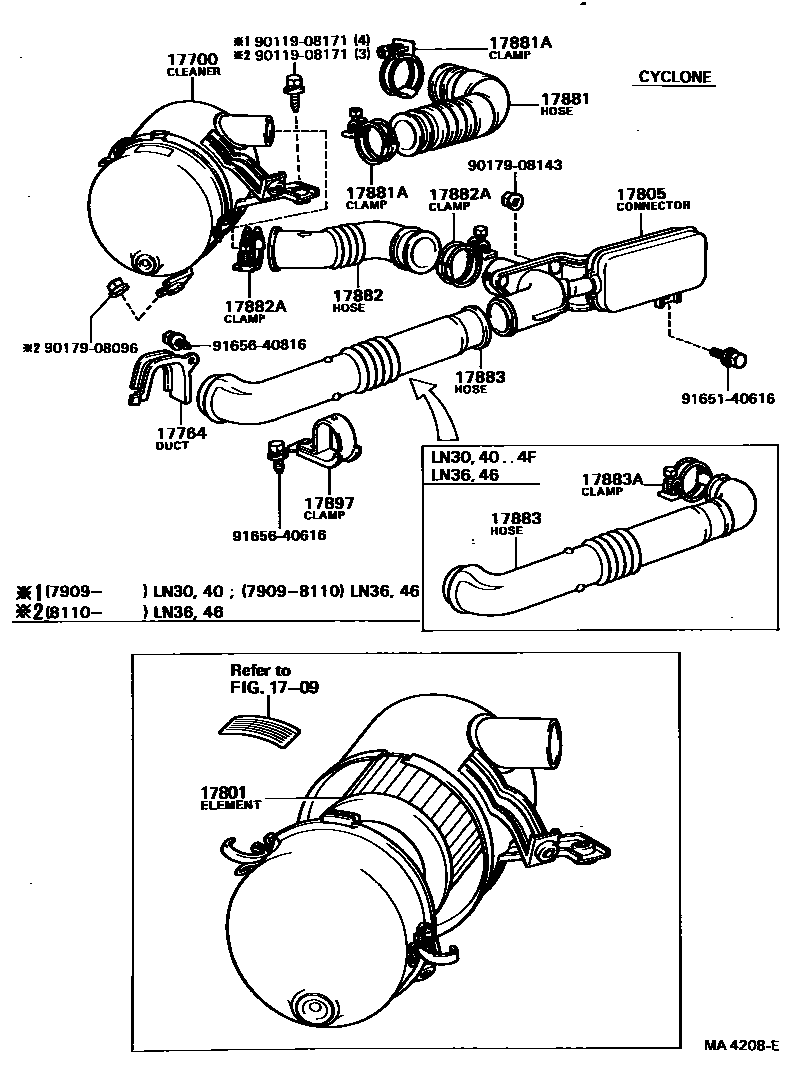

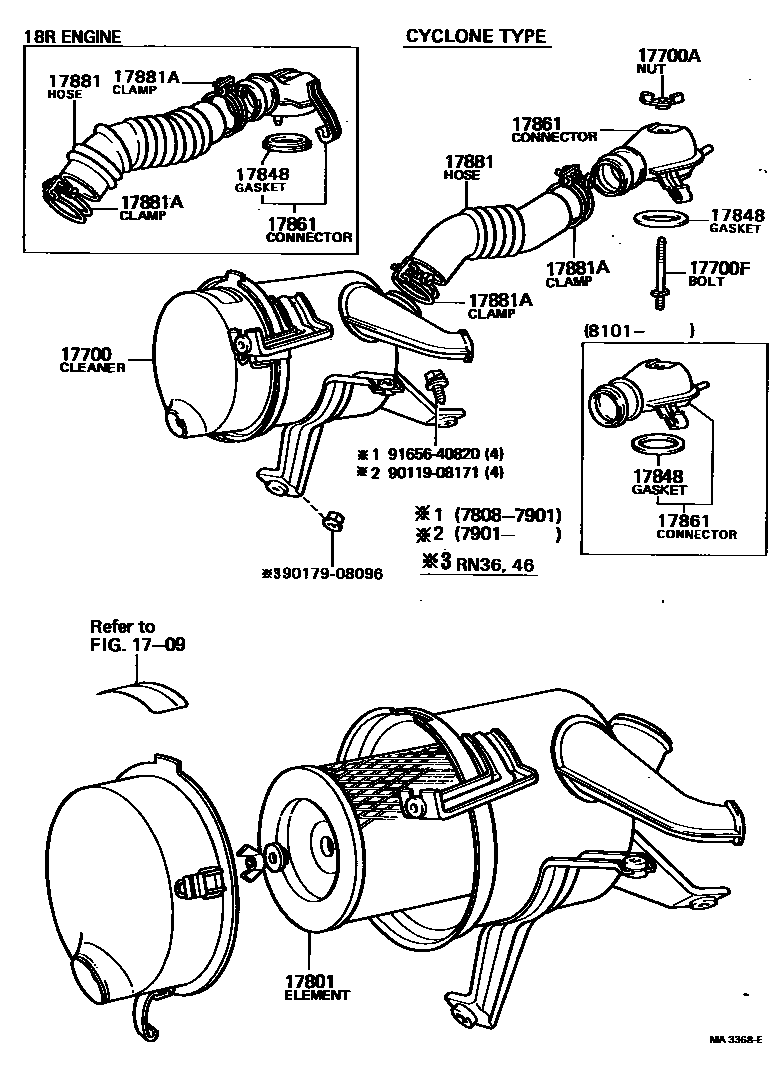

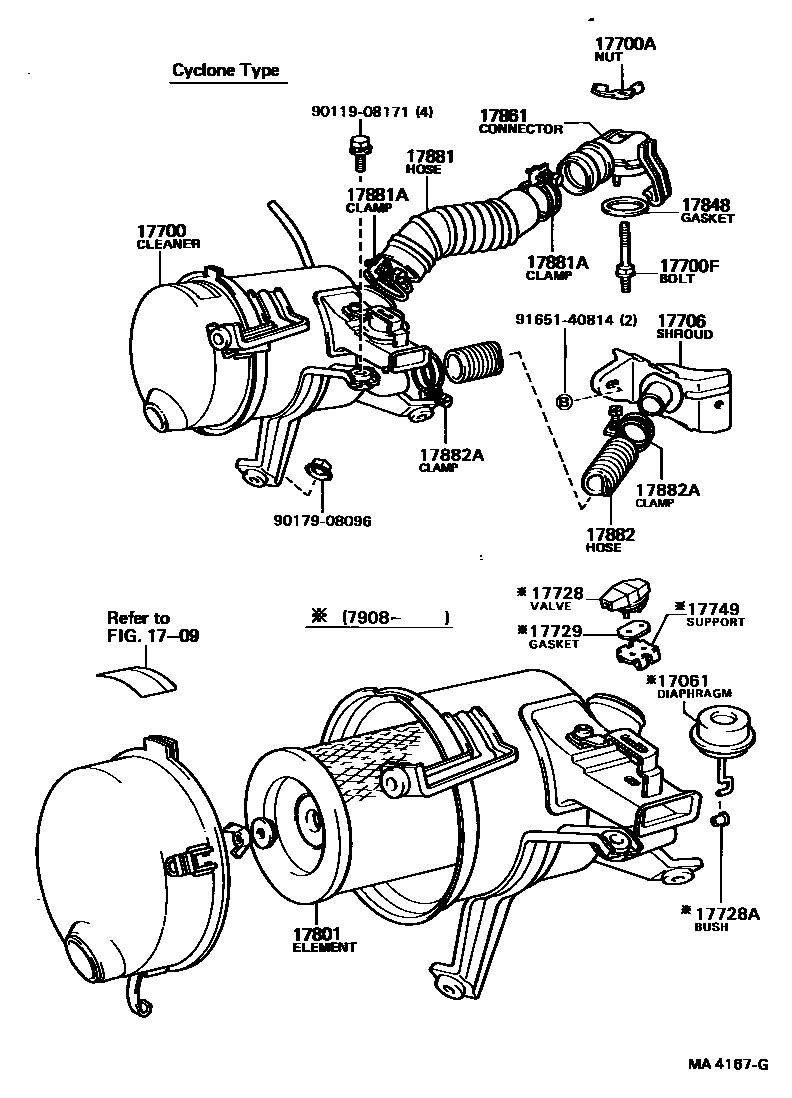

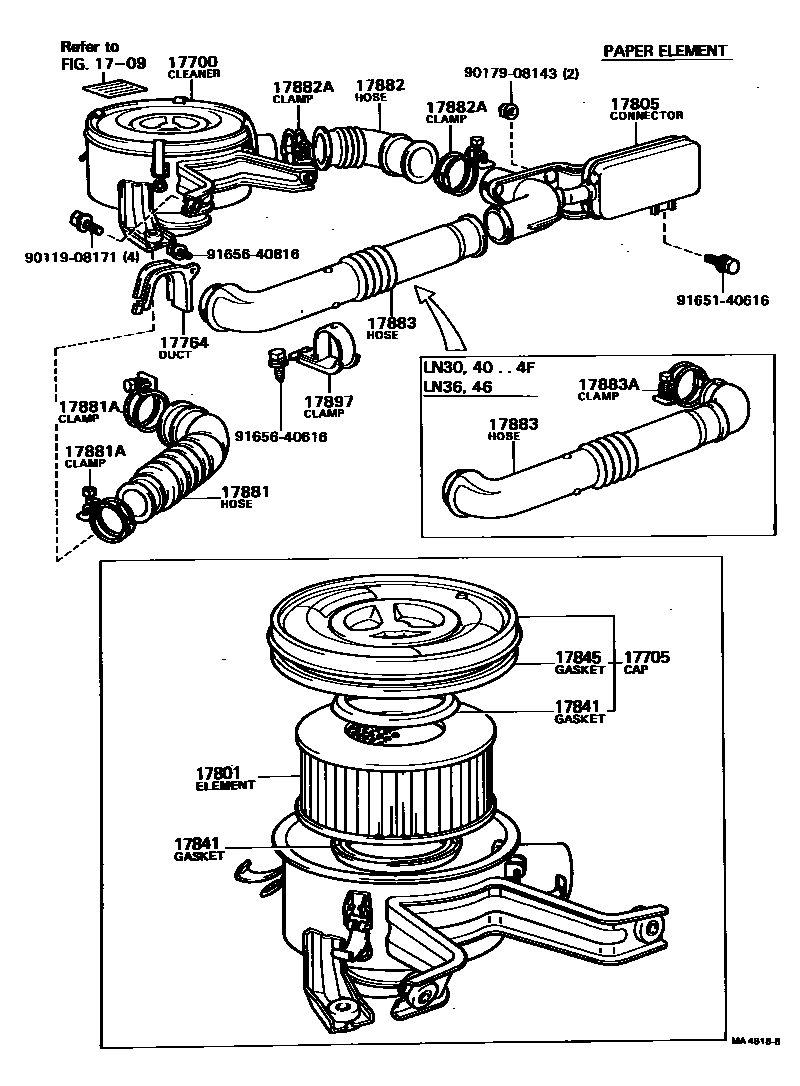

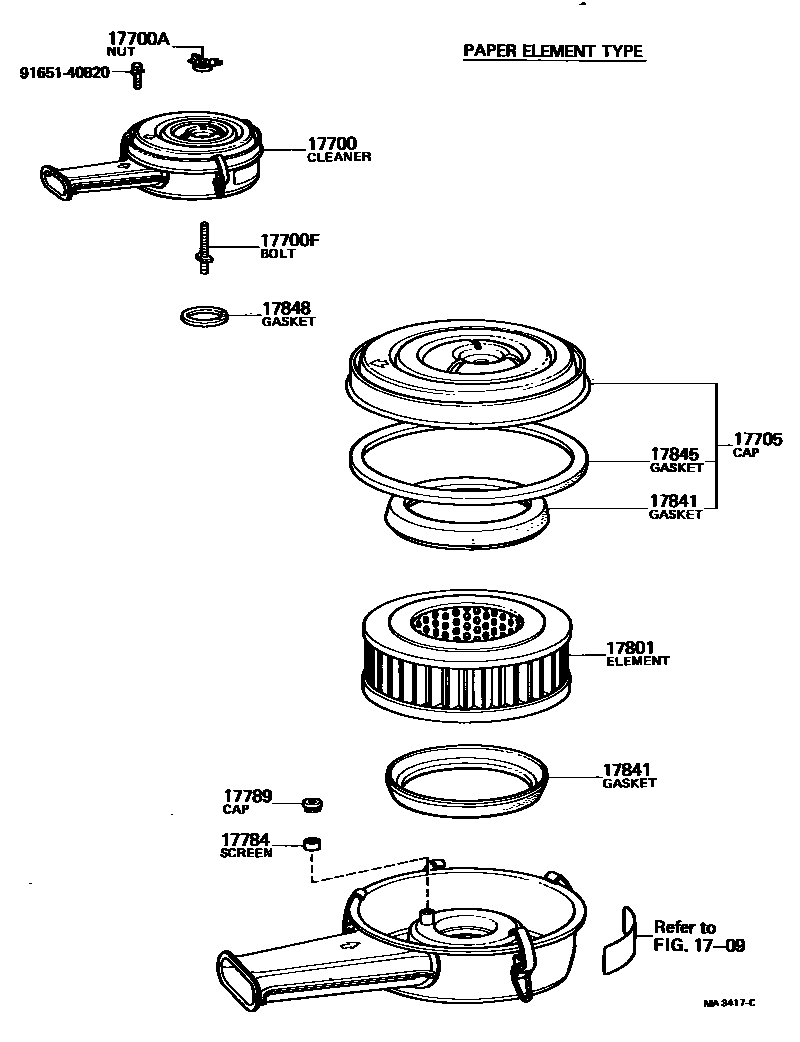

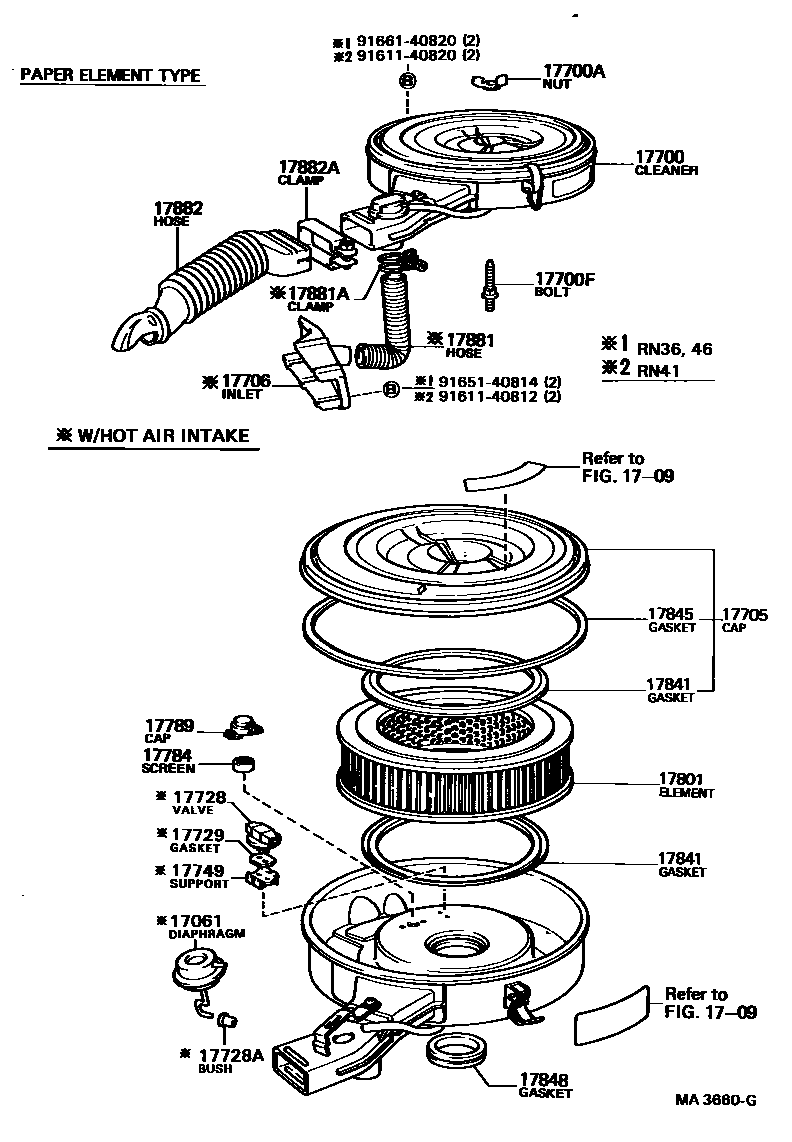

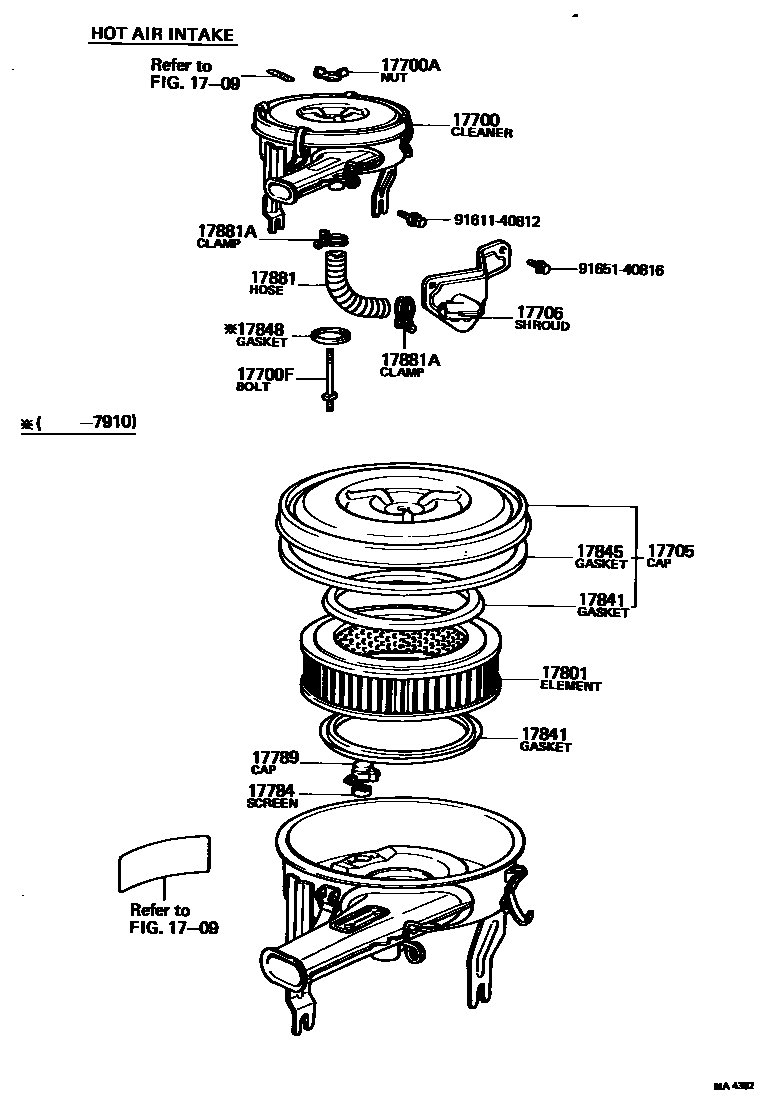

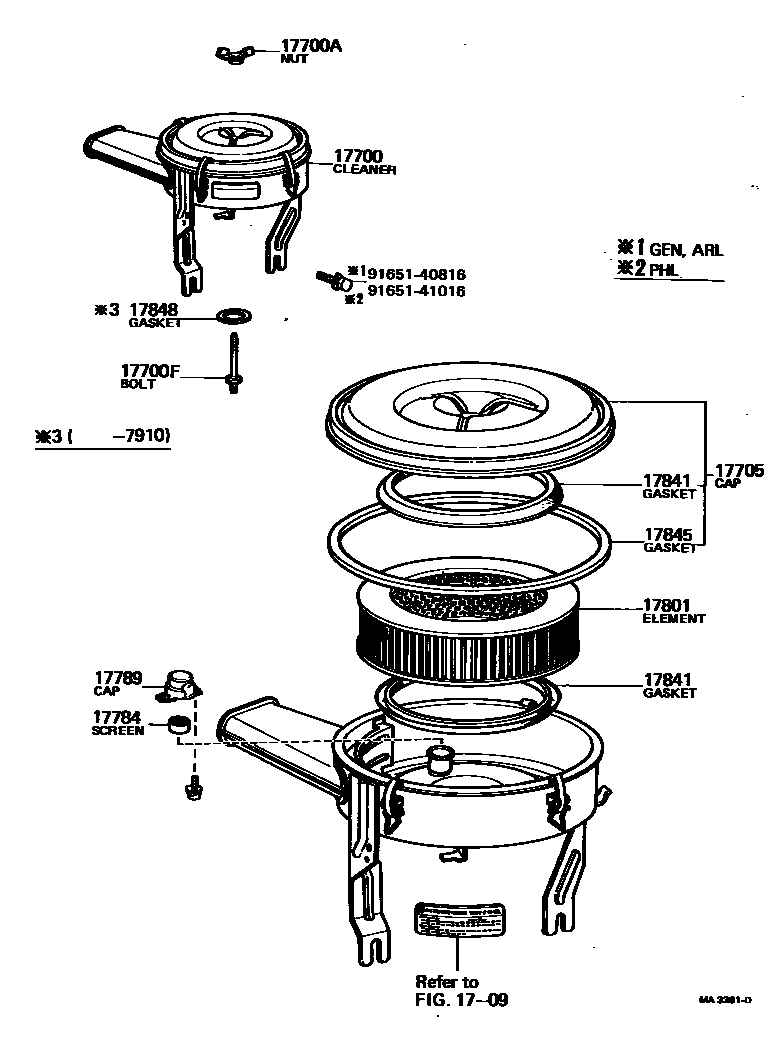

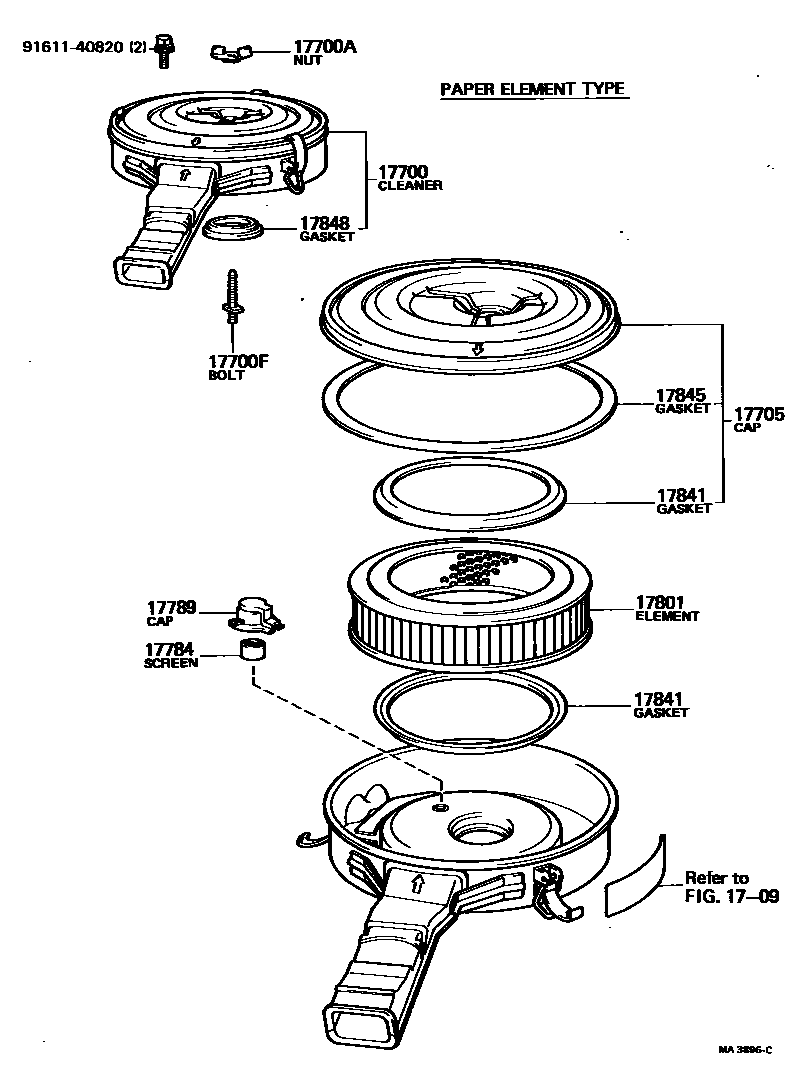

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 10 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-34010 |
| 17700 | air filter assembly | 17700-31262 · 17700-31360 · 17700-31361 · 17700-31371 · 17700-31372 · 17700-31380 · 17700-31381 · 17700-31390 · 17700-34354 · 17700-34355 · 17700-34441 · 17700-34521 · 17700-34522 · 17700-34560 · 17700-34561 · 17700-34570 · 17700-34590 · 17700-34710 · 17700-36153 · 17700-54070 · 17700-54071 · 17700-54080 · 17700-54150 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 |
| 17700F | Stud bolt (for securing air filter) | 90116-06106 · 90116-06143 · 90116-06230 |
| 17705 | Air filter cover sub-assembly | 17705-31032 · 17705-31033 · 17705-34141 · 17705-34142 · 17705-34190 · 17705-34191 · 17705-34230 · 17705-34231 · 17705-54031 · 17705-54032 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17895-31011 · 17895-34050 · 17895-34060 |
| 17728 | thermostat valve | 17728-34010 |
| 17728A | Bushing | 90386-03001 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17764 | air filter duct | 53207-89102 |
| 17784 | air filter partition | 17784-31010 |
| 17789 | Air filter partition cover | 17789-31010 · 17789-31020 |
| 17801 | Air filter element sub-assembly | 17801-25010 · 17801-31050 · 17801-31080 · 17801-34060 · 17801-34070 · 17801-54030 |
| 17805 | Intake connecting pipe sub-assembly | 17805-89101 · 17805-89103 |
| 17841 | filter liner | 17841-31020 · 17841-33011 · 17841-54010 |
| 17845 | air cleaner cover gasket | 17845-25010 · 17845-31020 · 17845-33011 · 17845-34050 · 17845-42010 · 17845-54010 |
| 17848 | Gasket from air cleaner to carburetor | 90430-63001 · 90430-63187 · 90430-72003 · 90430-72114 |
| 17861 | Intake connecting pipe | 17861-31100 · 17861-31101 · 17861-34070 · 17861-34071 · 17861-34080 · 17861-34081 |
| 17881 | No. 1 air cleaner hose | 17881-25012 · 17881-31020 · 17881-34110 · 17881-54060 · 17881-54070 · 17882-34100 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 · 96111-10690 |
| 17882 | No. 2 air cleaner hose | 17881-34150 · 17882-89103 · 17882-89104 · 17882-89106 · 17882-95111 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01003 · 96111-10460 · 96111-10690 |
| 17883 | No. 3 air cleaner hose | 17883-89101 · 17883-89102 · 17883-95110 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 90460-64001 |
| 17897 | Hose clamp (for air cleaner) | 90461-09002 |
| 23262B | No. 1 bimetallic vacuum switch valve | 90925-05025 |
