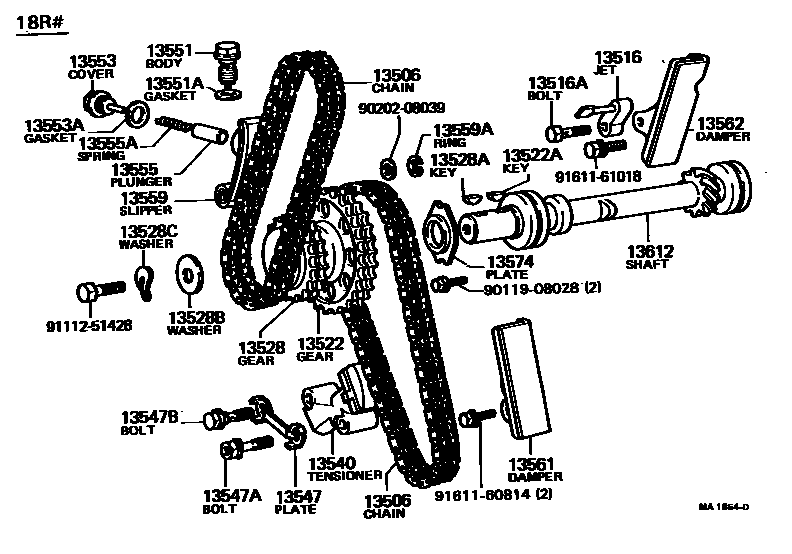

Toyota HILUX 正时链条 — Figure 1303
Toyota HILUX EPC diagram 1303, 正时链条, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13506 | Chain sub-assembly | 13506-33010 |
| 13516 | oil nozzle | 13516-34010 |
| 13516A | Connector bolt (for oil nozzle) | 90401-10002 |
| 13522 | pump drive shaft gear | 13522-33010 |
| 13522A | Half-moon pin (for pump drive shaft gear) | 90280-05010 |
| 13528 | Camshaft driving gear | 13528-33010 |
| 13528A | Half-moon pin (for camshaft drive gear) | 90280-05010 |
| 13528B | Flat Washer (for camshaft drive gear assembly) | 90201-14293 |
| 13528C | Wave Washer (for camshaft drive gear assembly) | 90206-14048 |
| 13540 | No. 1 chain tensioner assembly | 13540-33014 |
| 13547 | No. 1 tensioner bolt locking plate | 13547-33010 |
| 13547A | Bolts (for tensioner lock plate assembly) | 90119-08013 |
| 13547B | Connector bolt (for tensioner locking plate) | 90401-10049 |
| 13551 | No. 2 chain tensioner body | 13551-34010 |
| 13551A | Pad (for chain tensioner body) | 90430-16162 |
| 13553 | Chain tensioner dust cover | 13553-34010 |
| 13553A | Pad (for chain tensioner dust cover) | 90430-16162 |
| 13555 | No. 2 chain tensioning plunger | 13555-34010 · 13555-34011 |
| 13555A | Spring (for chain tensioner plunger) | 90501-09005 |
| 13559 | chain tensioner guide plate | 13559-34020 |
| 13559A | E-ring (for chain tensioner guide) | 96160-00700 |
| 13561 | No. 1 chain shock absorber | 13561-34010 |
| 13562 | No. 2 chain shock absorber | 13562-34020 |
| 13574 | Oil pump drive shaft plate | 13574-33010 |
| 13612 | Fuel injection pump drive shaft | 13612-33011 |
