Toyota HILUX Cylinder Head — Figure 1104

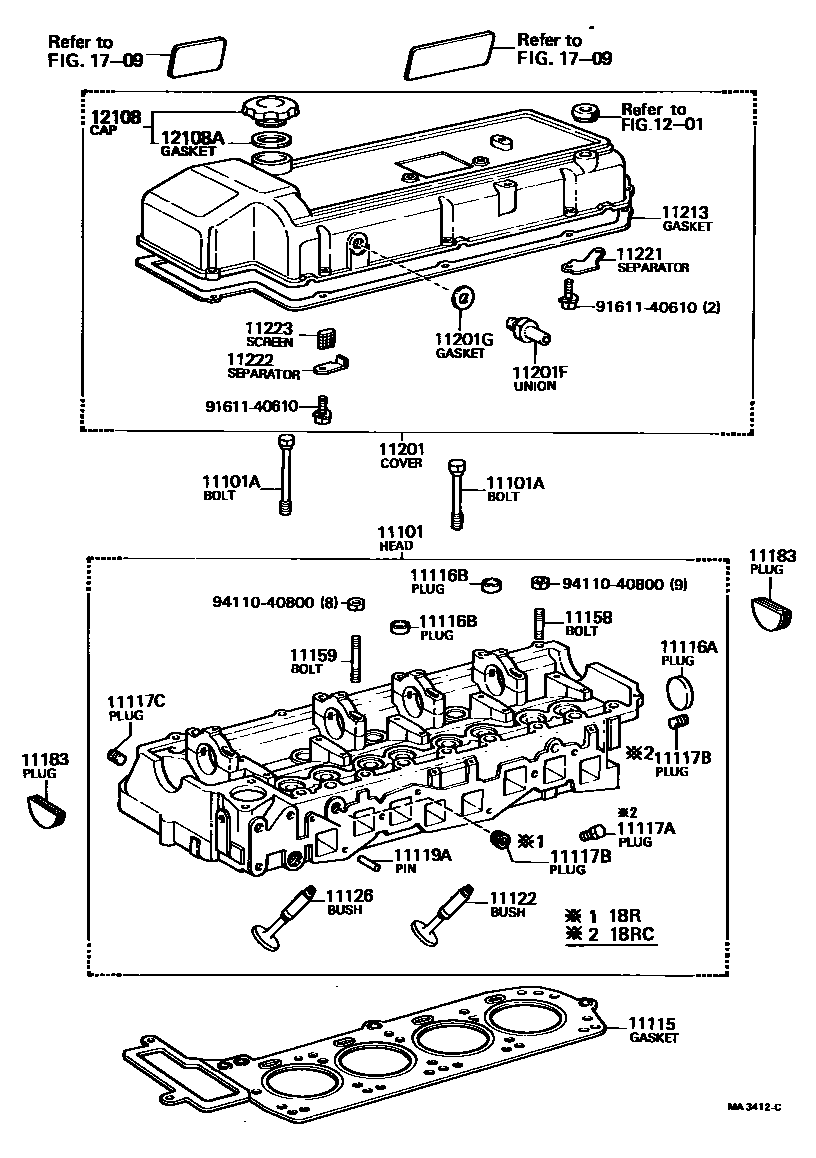

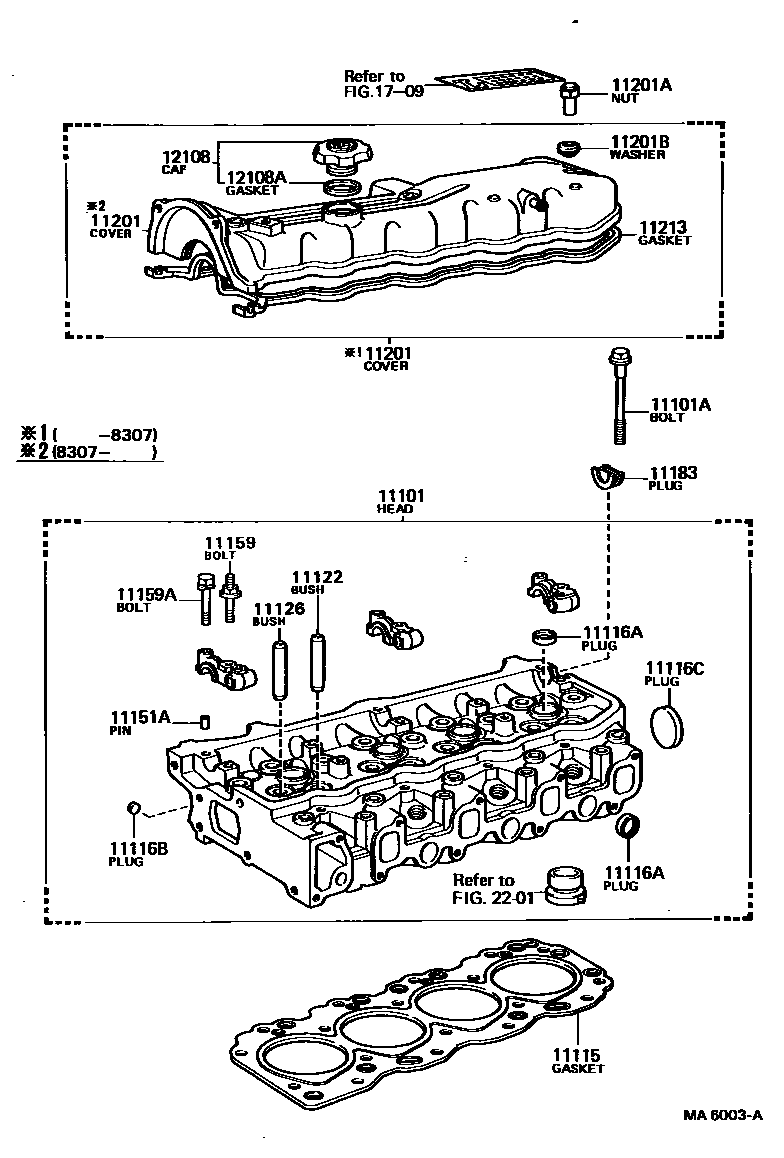

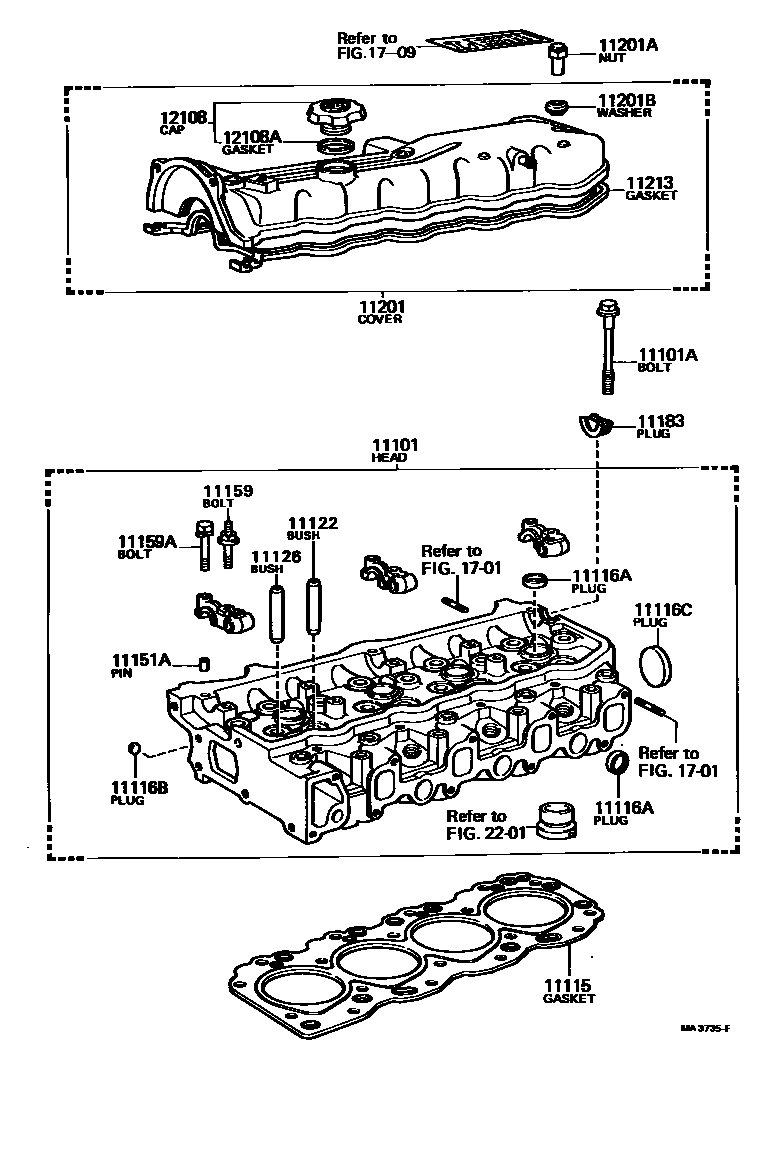

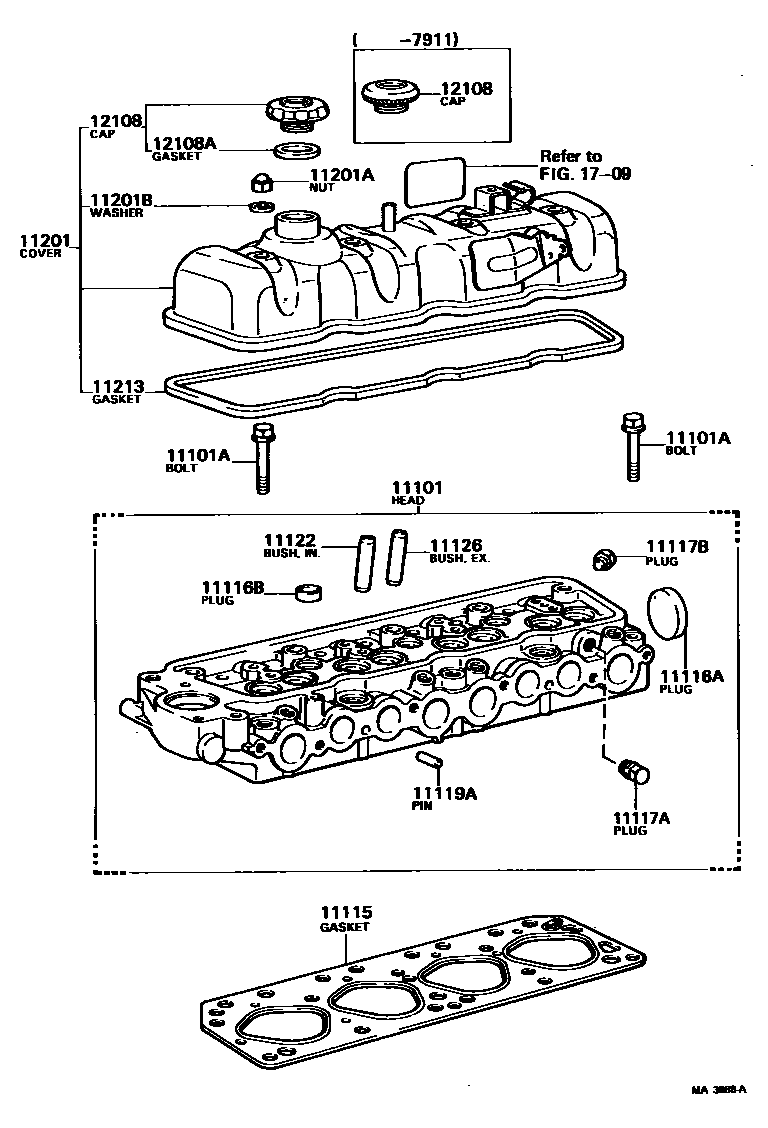

Toyota HILUX EPC diagram 1104, Cylinder Head, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-39177 · 11101-39305 · 11101-39315 · 11101-39326 · 11101-39426 · 11101-39427 · 11101-39436 · 11101-39437 · 11101-54024 · 11101-54040 · 11101-59075 · 11101-59077 · 11101-59078 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02060 · 90910-02061 · 90910-02065 · 90910-02066 |
| 11115 | GASKET, CYLINDER HEAD | 11115-31023 · 11115-36020 · 11115-54010 · 11115-54011 |
| 11116A | No. 1 sealing plug | 96411-42500 · 96411-43500 · 96411-45000 |
| 11116B | No. 2 sealing plug | 96411-41200 · 96411-42000 · 96411-42200 |
| 11116C | No. 3 sealing plug | 96411-45000 |
| 11117A | No. 1 headed tapered thread plug | 90072-34107 · 90344-52003 · 90345-53028 · 90345-53030 |
| 11117B | No. 2 headed tapered thread plug | 90344-53002 · 90344-53008 · 90344-53011 · 90345-51006 · 90345-51025 |
| 11117C | No. 3 headed tapered thread plug | 90344-51001 · 90344-51010 · 90344-51014 |
| 11119A | No. 1 direct sales | 90250-08054 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-23010 · 11122-33011 · 11122-34010 · 11122-54010 · 11122-54011 · 11123-23010 · 11123-33011 · 11123-34010 · 11123-54010 · 11123-54011 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-23010 · 11122-34010 · 11122-54010 · 11122-54011 · 11123-23010 · 11123-34010 · 11123-54010 · 11123-54011 · 11126-33011 · 11127-33011 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-11001 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90116-08084 · 90116-08207 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90116-08054 · 90116-08137 · 90116-08201 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90119-08191 |
| 11183 | PLUG, SEMICIRCULAR | 11183-33010 · 11183-54011 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-39177 · 11201-39178 · 11201-39195 · 11201-39196 · 11201-54050 · 11201-59016 · 11201-59045 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06014 · 90176-08014 |
| 11201B | Gasket (for cylinder head cover) | 90210-10003 · 90210-13001 |
| 11201F | Connector (for positive crankcase ventilation system) | 90404-16108 |
| 11201G | Gasket (for positive crankcase ventilation system) | 90430-16175 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-31020 · 11213-33010 · 11213-34020 · 11213-54010 · 11213-54030 |
| 11221 | No. 1 cylinder head cover separator | 11221-34010 |
| 11222 | No. 2 cylinder head cover separator | 11222-34010 |
| 11223 | Cylinder head cover partition | 11223-33010 |
| 11273 | Cylinder block side cover gasket | 11273-33010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-13010 · 12180-70010 · 12181-12904 · 12181-31020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37140 |
