Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

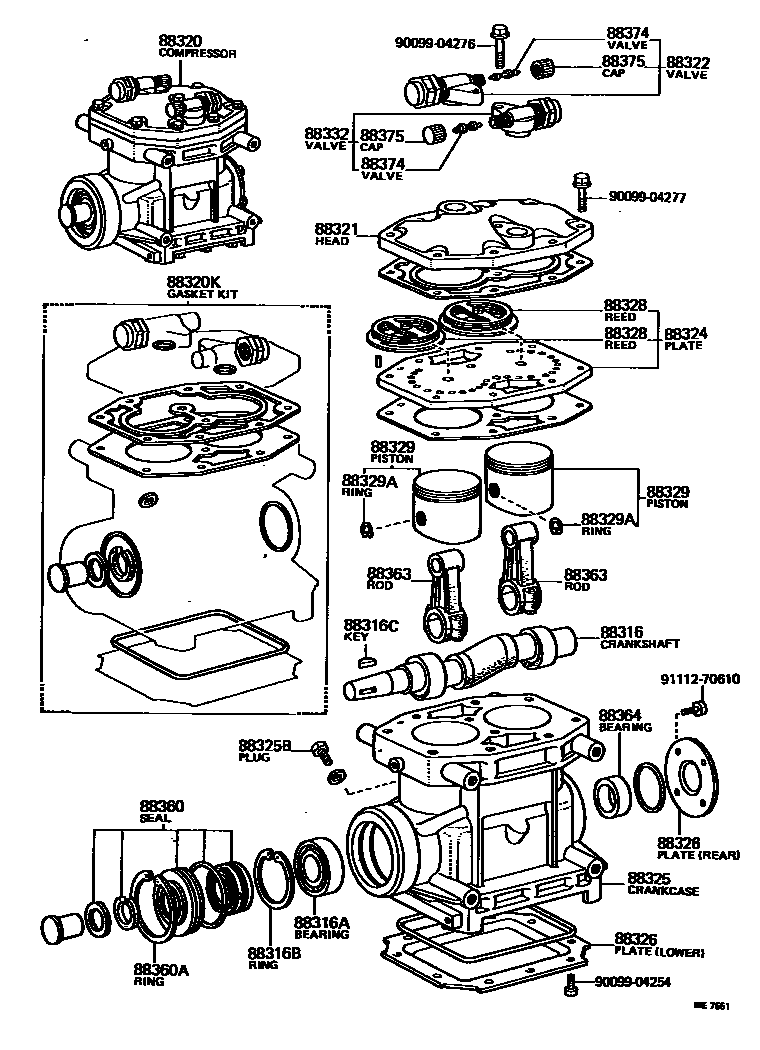

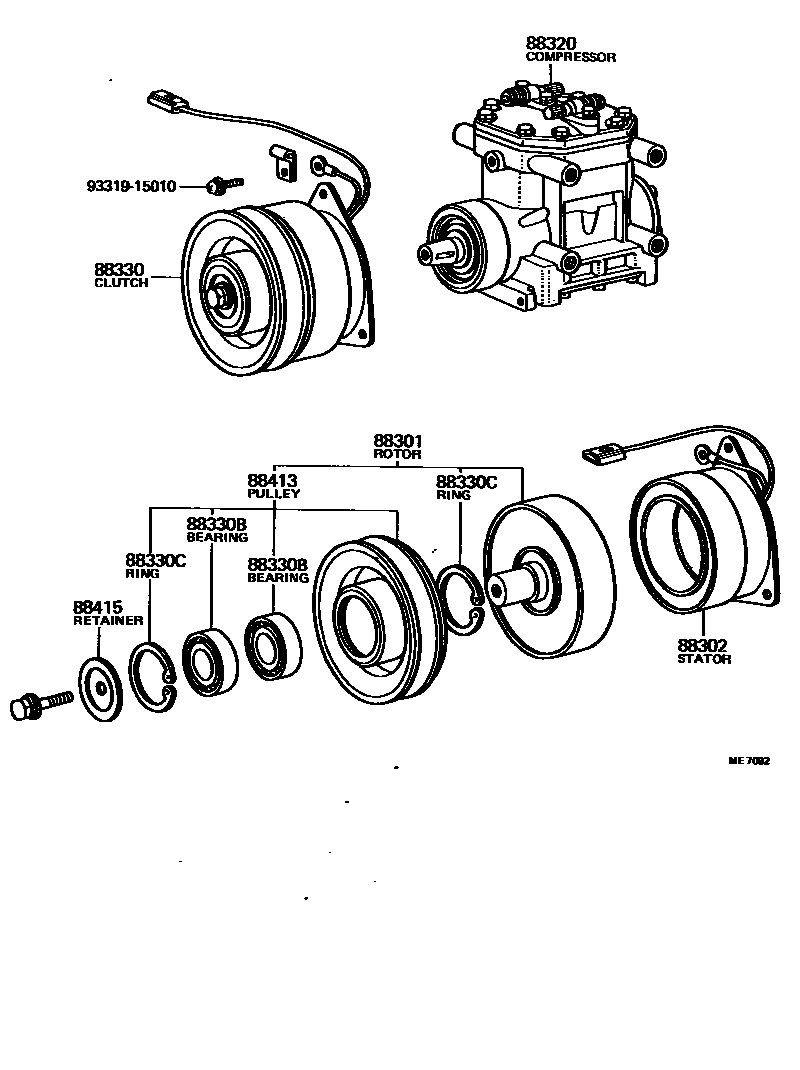

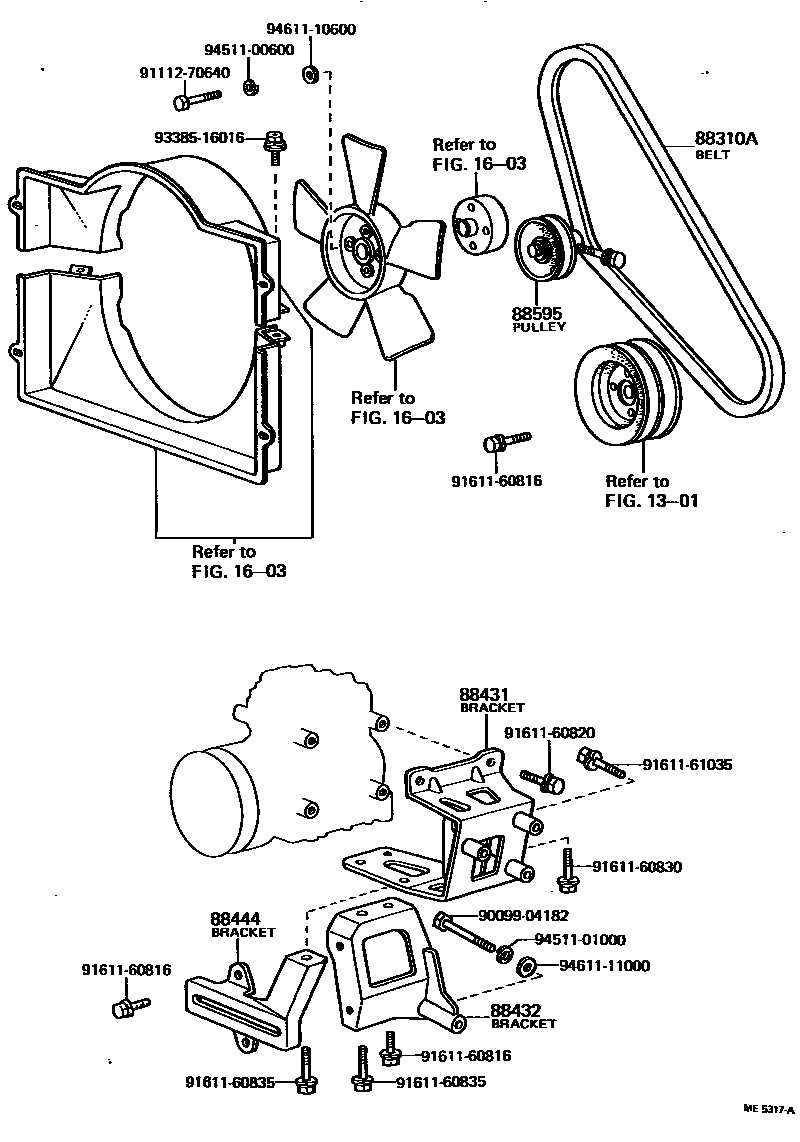

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88401-20060 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-20070 |
| 88316 | Cooler compressor crankshaft | 88316-12050 |
| 88316A | Compressor crankshaft front bearing | 90099-10104 |
| 88316B | Compressor crankshaft rear bearing snap ring | 90096-90004 |
| 88316C | Compressor crankshaft key | 90097-00465 |
| 88320 | Cooler Compressor Assembly | 88320-20170 |
| 88320K | Cooler compressor overhaul gasket assembly | 04881-20022 |
| 88321 | Cooler compressor cylinder head | 88321-12021 |
| 88322 | Cooler compressor suction service valve | 88371-20090 |
| 88324 | Cooler compressor valve sub-assembly | 88305-12021 |
| 88325 | Cooler compressor crankcase | 88325-12040 |
| 88325B | Cylinder oil plug | 88339-12020 |
| 88326 | Cooler compressor base plate | 88326-12020 · 88331-12030 |
| 88328 | Cooler compressor valve reed sub-assembly | 88307-12021 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12030 |
| 88329A | Compressor piston snap ring | 90099-07054 |
| 88330 | Magnetic Clutch Assembly | 88410-20110 |
| 88330B | Electromagnetic clutch bearing | 90099-10083 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-02137 |
| 88332 | Cooler compressor discharge service valve | 88372-20070 |
| 88360 | Cooler compressor shaft seal assembly | 88360-12050 |
| 88360A | Compressor seal ring | 90096-90005 |
| 88363 | Cooler compressor connecting rod sub-assembly | 88302-20040 |
| 88364 | Compressor crankshaft rear bearing | 88367-12020 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-12020 |
| 88413 | Electromagnetic clutch pulley sub-assembly | 88402-30250 |
| 88415 | No. 1 electromagnetic clutch bearing retainer | 88415-12020 |
| 88431 | Compressor No. 1 mounting bracket | 88431-20100 |
| 88432 | Compressor No. 2 mounting bracket | 88432-20070 |
| 88444 | Idler gear bracket | 88444-20120 |
| 88595 | Cooler compressor idler pulley | 88440-30250 |
