Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

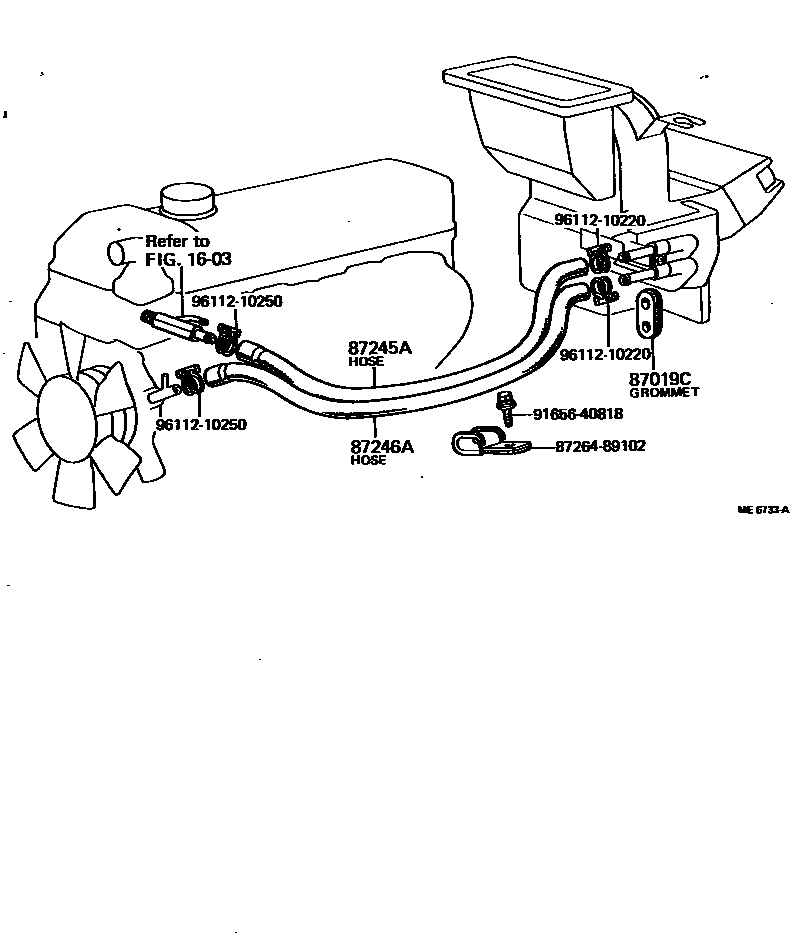

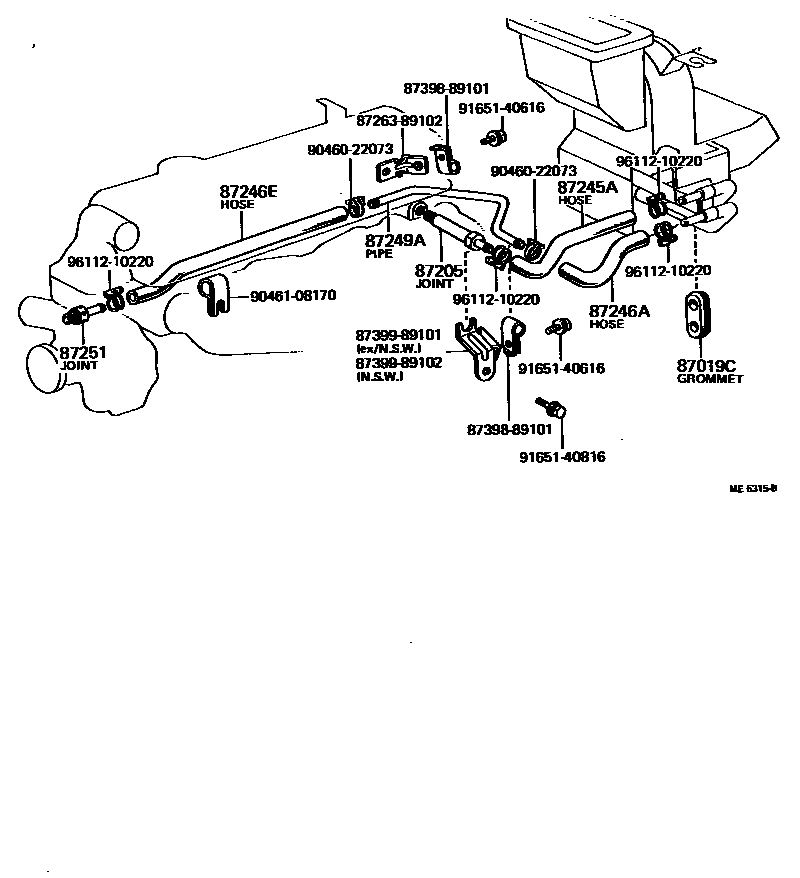

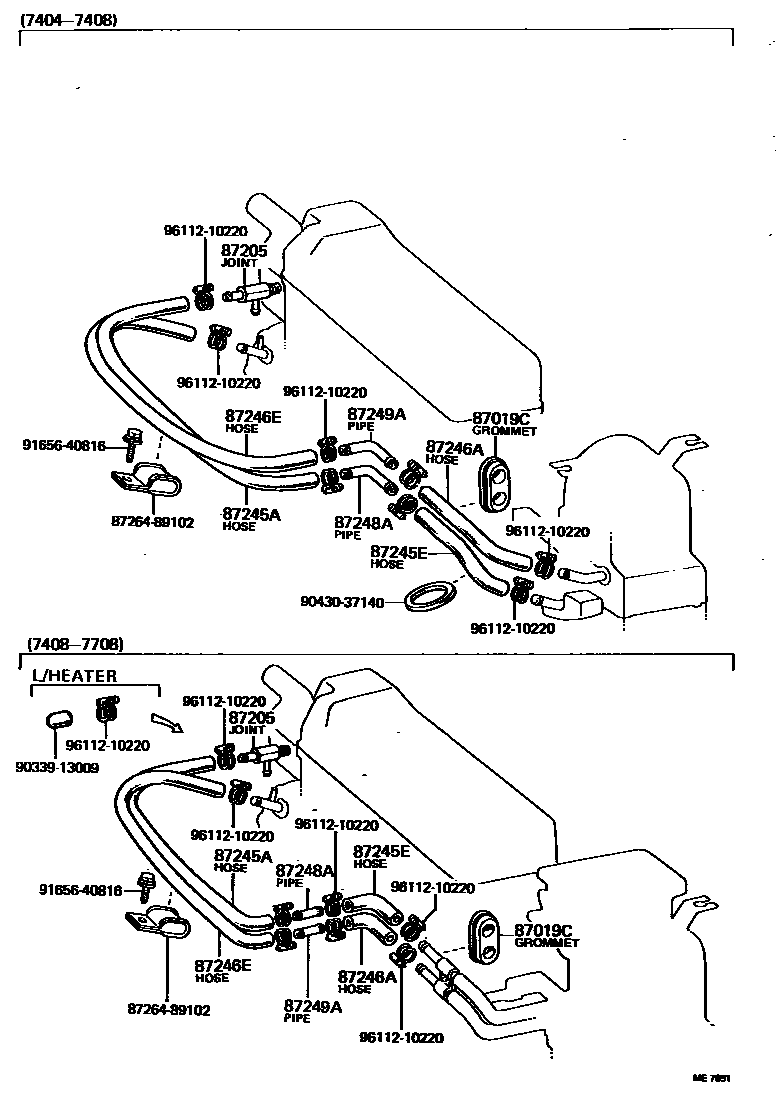

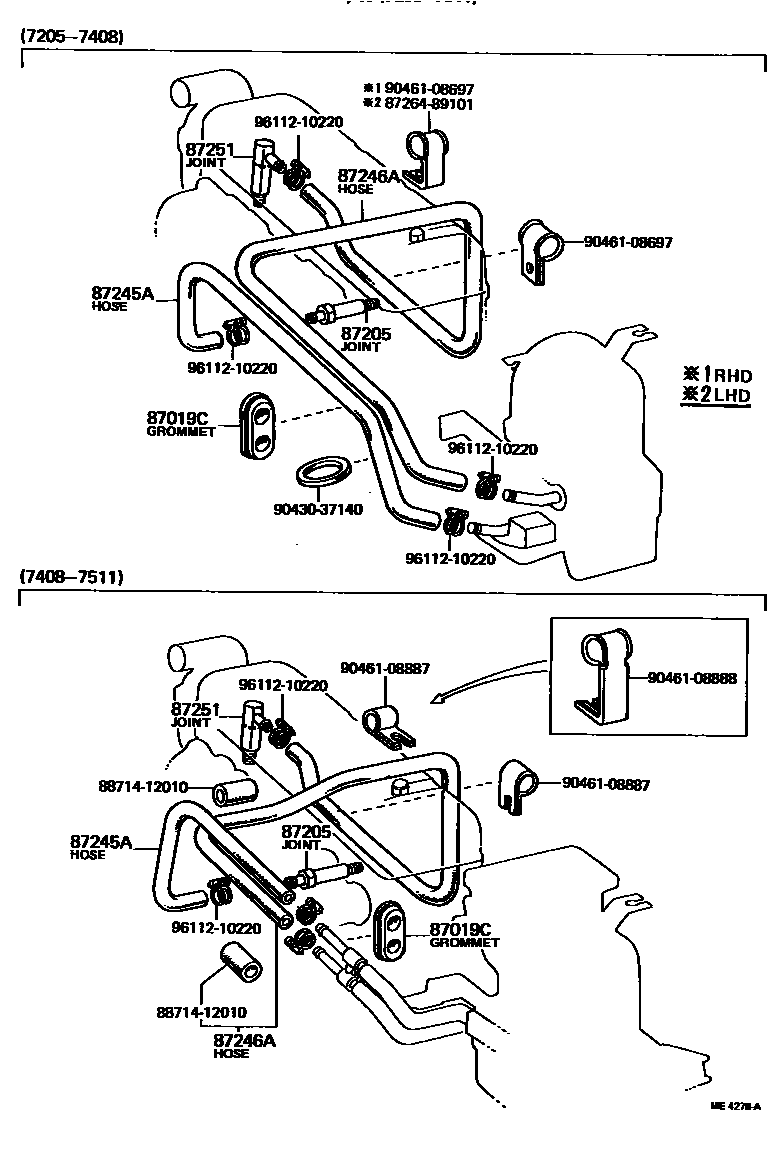

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 87267-89101 · 90480-01011 |
| 87205 | Front heater hose feedthrough connector or water inlet valve connector | 87251-89101 · 87251-89106 · 87252-89102 · 87252-89103 · 87252-89104 |
| 87245A | Heater water inlet hose A | 87245-89107 · 87245-89109 · 87245-89120 · 99552-20700 · 99552-20780 · 99552-20820 |
| 87245E | Heater water inlet hose E | 87245-89112 · 99552-20280 |
| 87246A | Heater outlet hose A | 87245-89108 · 87245-89111 · 87245-89112 · 87245-89114 · 87245-89115 · 87245-89116 · 87245-89118 · 87245-89120 · 99551-21160 · 99551-21280 · 99552-20310 · 99552-21160 · 99552-21280 |
| 87246E | Heater outlet hose E | 99552-20430 · 99552-20740 · 99552-20820 |
| 87248A | Heater water inlet pipe A | 87248-89101 · 87265-60040 |
| 87249A | Heater outlet pipe A | 87248-89101 · 87248-89109 · 87248-89110 · 87265-60040 |
| 87251 | Water hose penetration joint | 87251-20010 · 87251-29020 |
