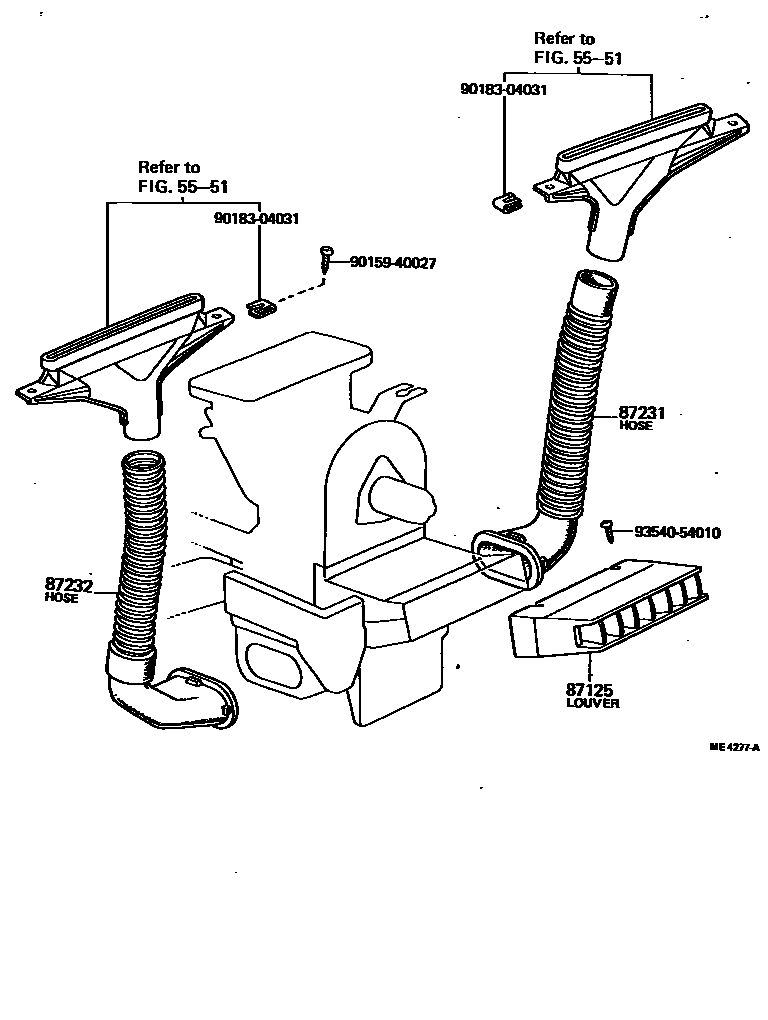

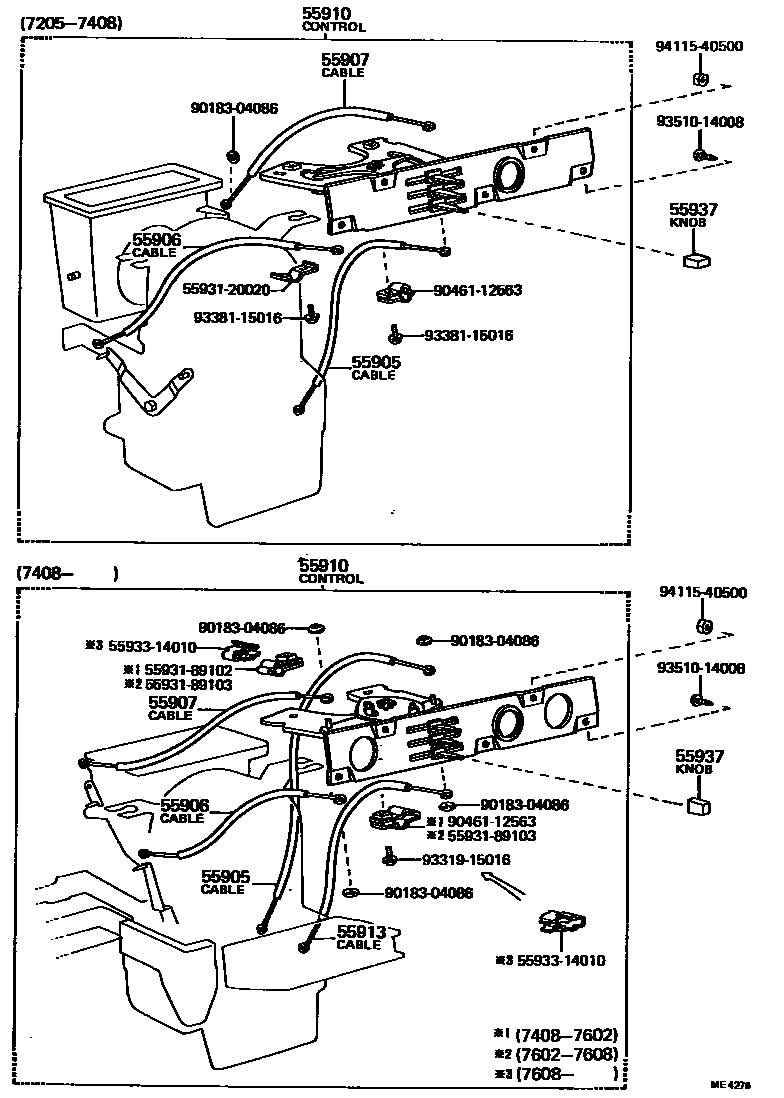

Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905 | Defroster control cable sub-assembly | 55905-89103 · 55905-89104 · 55905-89105 |
| 55906 | Heater control cable sub-assembly | 55906-89101 · 55906-89102 · 55906-89103 |
| 55907 | Heater butterfly intake valve cable sub-assembly | 55907-89104 · 55907-89105 · 55907-89106 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-89106 · 55910-89107 · 55910-89108 |
| 55913 | Auxiliary ventilation device control cable sub-assembly | 55099-89102 · 55099-89103 |
| 55937 | Heater lever button | 55937-22901 |
| 87125 | ventilation grille | 87125-10010 · 87125-89101 |
| 87231 | Heater right side defroster hose | 87231-12031 |
| 87232 | Defroster hose, left side of heater | 87231-12040 · 87232-89104 · 87232-89105 |
