Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714

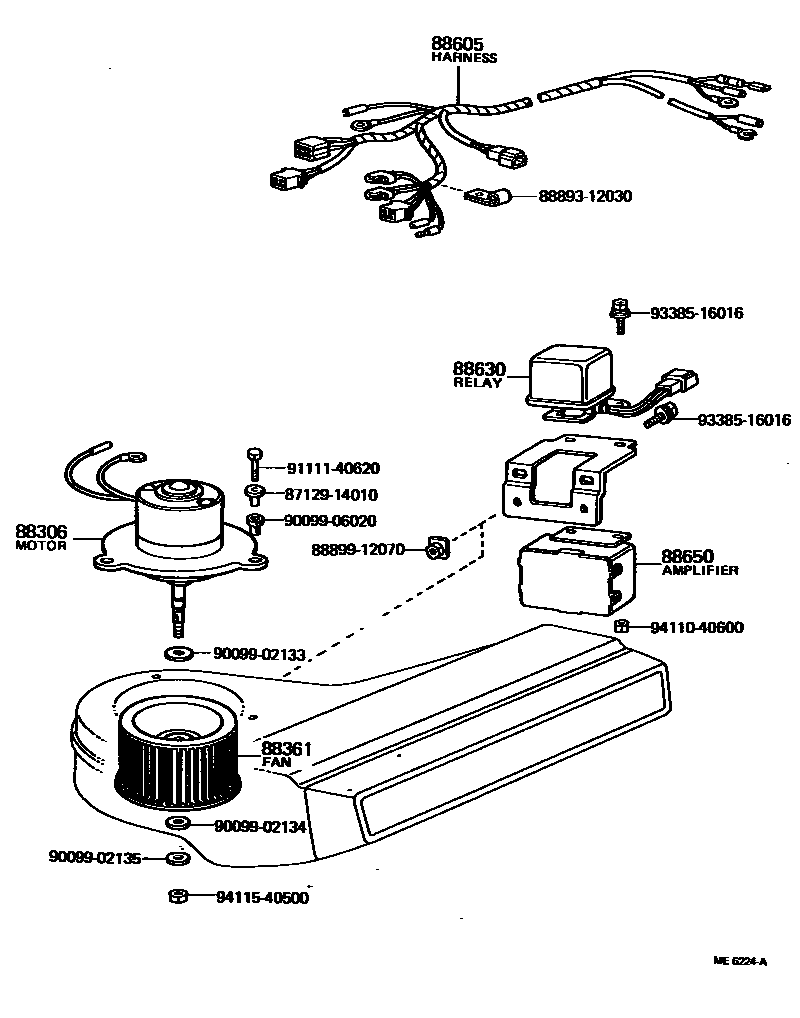

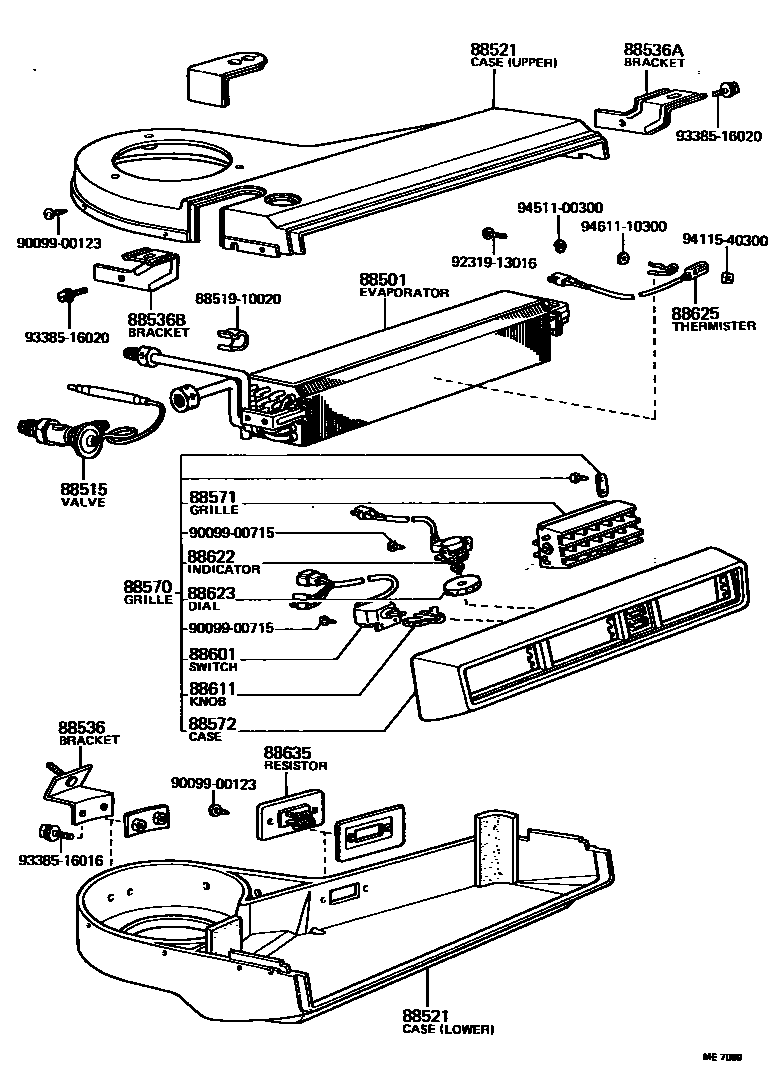

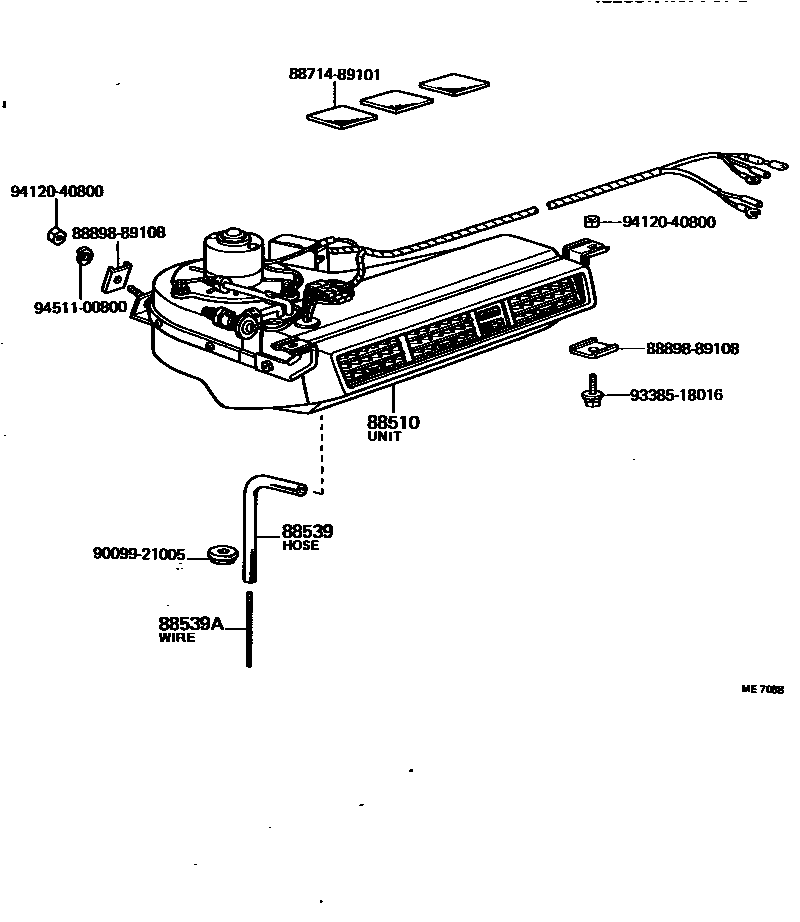

Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88306 | No. 1 cooler blower motor sub-assembly | 88550-12030 · 88550-12040 |
| 88361 | Cooler Blower Fan No. 1 | 87105-22010 · 87105-22020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12030 · 88501-12040 |
| 88510 | Cooler device assembly | 88510-89105 · 88510-89106 · 88510-89108 |
| 88515 | Cooler expansion valve | 88515-10010 |
| 88521 | Cooler unit housing | 88521-12061 · 88521-12081 · 88521-12091 · 88521-12101 |
| 88536 | Cooling device bracket No. 1 | 88536-89112 · 88536-89115 · 88536-89118 |
| 88536A | Cooling device bracket No. 2 | 88536-89113 · 88536-89116 · 88536-89119 |
| 88536B | Cooling device bracket No. 3 | 88536-89114 · 88536-89117 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88894-89102 |
| 88539A | Drain hose harness (for cooler) | 88895-12020 |
| 88570 | Cooler air outlet grille sub-assembly | 88570-12031 · 88570-12041 |
| 88571 | Air outlet grille | 88571-12010 |
| 88572 | Cooler air outlet shell | 88571-10011 · 88573-12011 |
| 88601 | Cooler control switch sub-assembly | 88601-12022 · 88601-12030 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-89106 · 88605-89107 · 88605-89109 |
| 88611 | Cooler control switch button | 88611-12021 |
| 88622 | Cooler control resistor indicator light | 88622-60010 |
| 88623 | Cooler thermostat knob | 88623-12011 · 88623-12021 |
| 88625 | Cooler No. 1 Thermistor | 88625-60010 |
| 88630 | Cooler relay assembly | 88630-12020 |
| 88635 | Cooler unit blower resistor | 88635-12020 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12010 |
