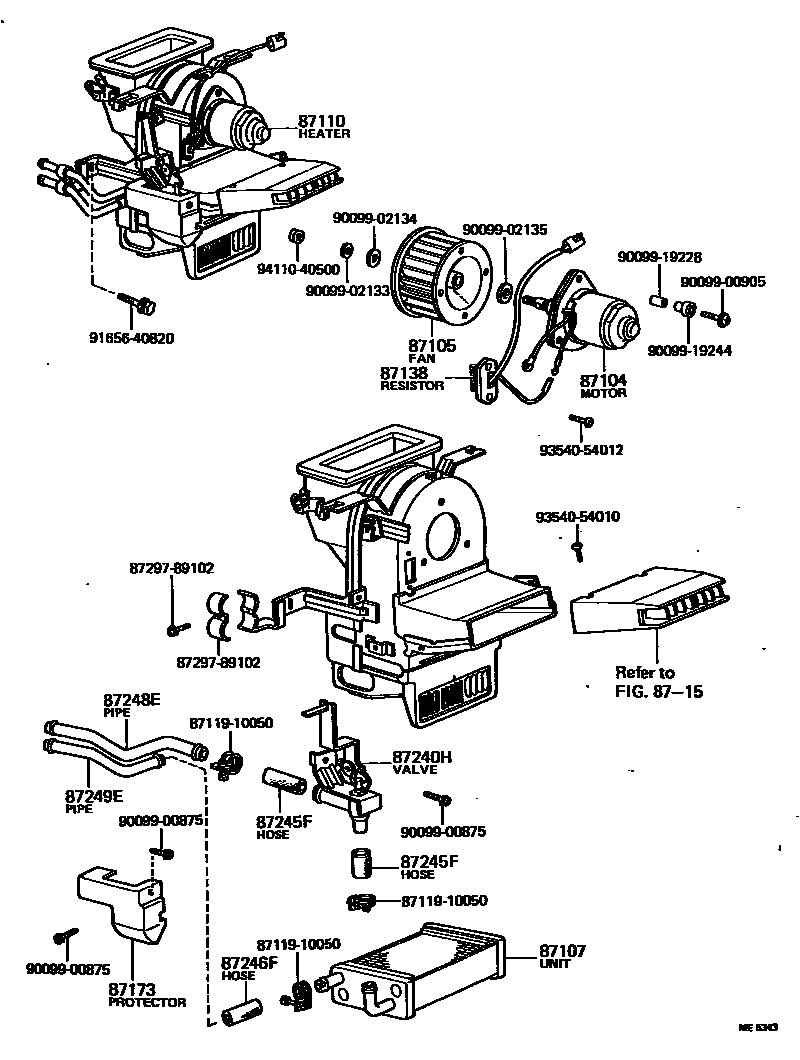

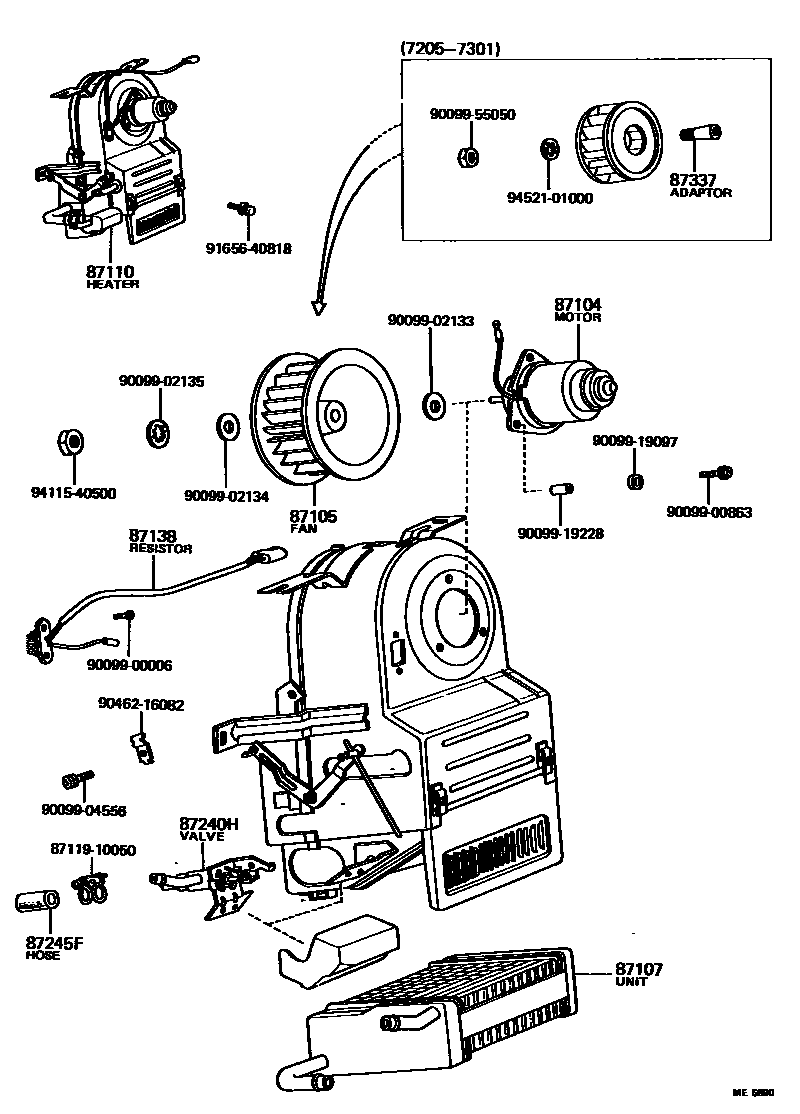

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-10050 · 87104-10051 · 87104-89106 · 87104-89107 · 87104-89108 · 87104-89109 |
| 87105 | Heater blower fan sub-assembly | 87105-10050 · 87105-10051 |
| 87107 | Heater radiator device sub-assembly | 87107-10060 · 87107-89105 |
| 87110 | heater assembly | 87110-89108 · 87110-89109 · 87110-89112 · 87110-89114 · 87110-89115 · 87110-89117 · 87110-89118 · 87110-89120 · 87110-89122 · 87110-89123 · 87110-89125 |
| 87138 | Heater Blower Resistor | 87138-10051 · 87138-89101 · 87138-89102 |
| 87173 | Heater water valve protection device | 87173-89101 |
| 87240H | Water valve device assembly | 87240-10061 · 87240-89103 · 87240-89105 |
| 87245F | Heater water inlet hose F | 99551-20040 · 99552-20040 |
| 87246F | Heater outlet hose F | 99552-20040 |
| 87248E | Heater water inlet pipe E | 87248-89105 · 87248-89107 |
| 87249E | Heater outlet pipe E (for heating device) | 87248-89106 · 87248-89108 |
| 87337 | Heater blower motor adapter | 87337-10010 |
