Toyota HILUX 暖风和空调系统 - 组件 — Figure 8711
Toyota HILUX EPC diagram 8711, 暖风和空调系统 - 组件, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

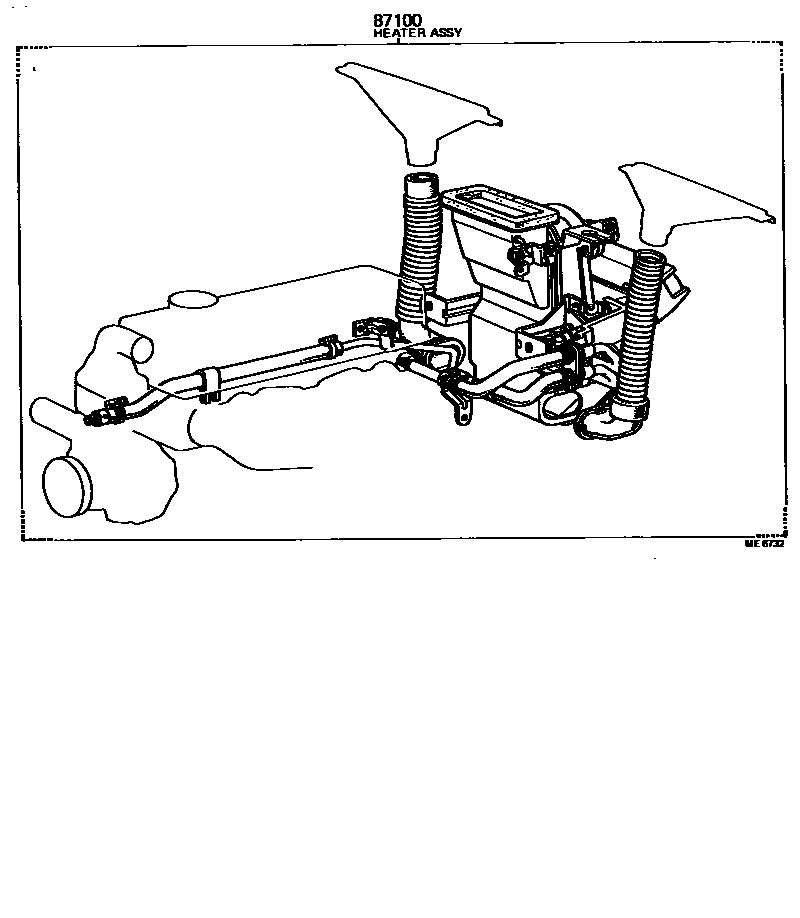

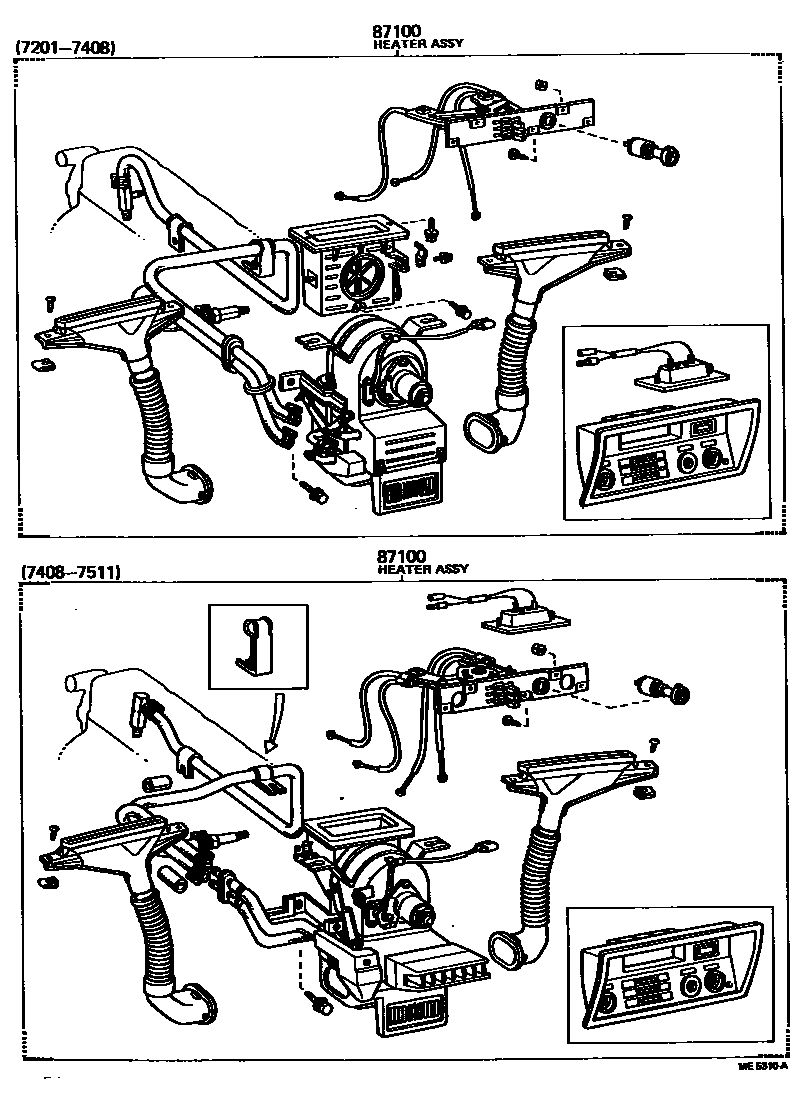

| 87100 | Heater and accessories assembly | 87100-39035 · 87100-39045 · 87100-39075 · 87100-39085 · 87100-89127 · 87100-89128 · 87100-89129 · 87100-89130 · 87100-89131 · 87100-89134 |

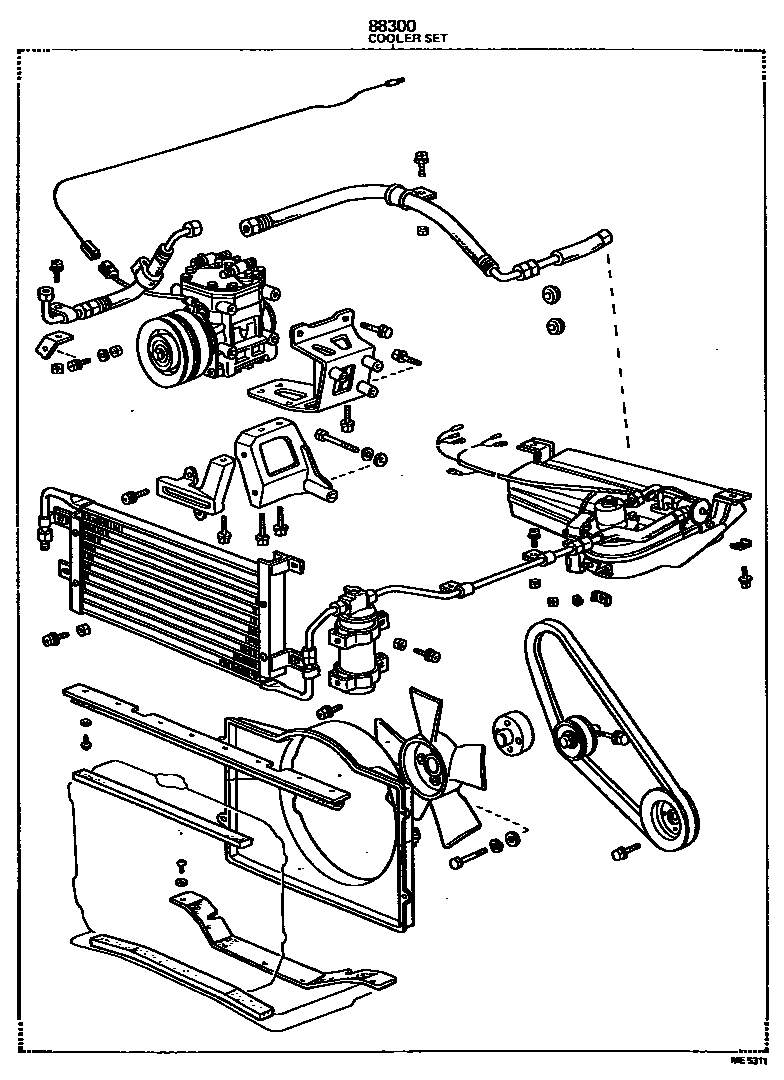

| 88300 | Air conditioning and accessories assembly | 88300-89110 · 88300-89112 · 88300-89115 |
