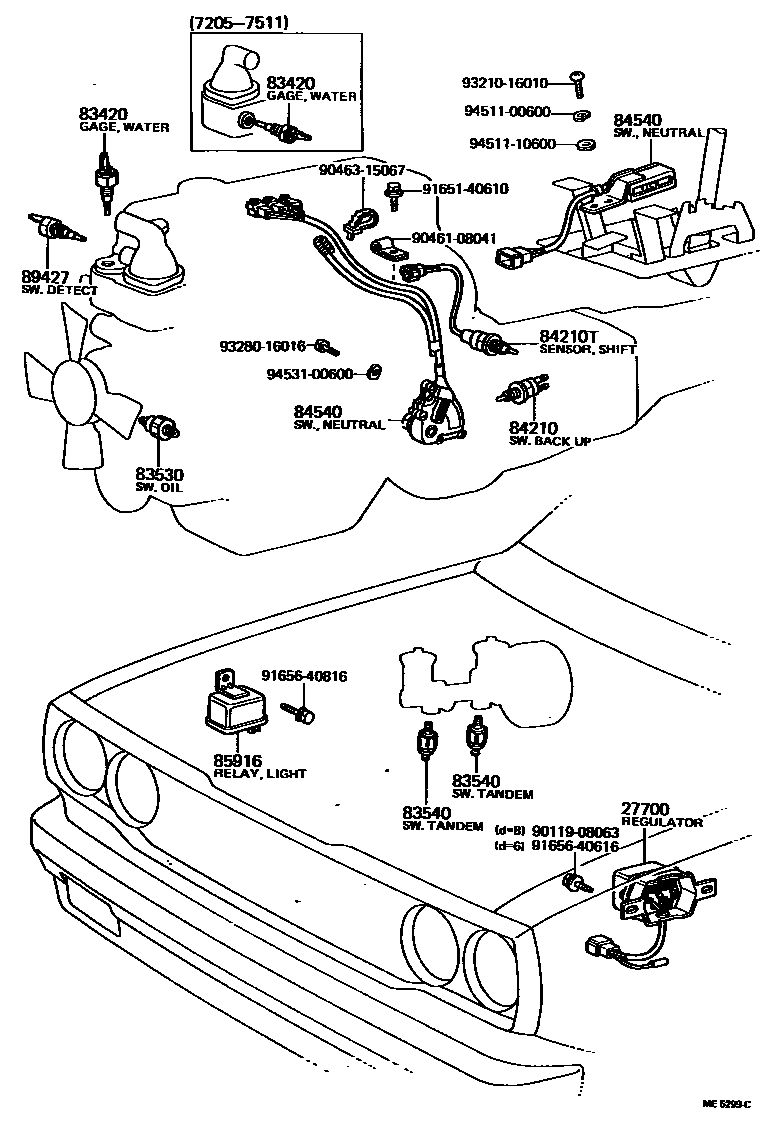

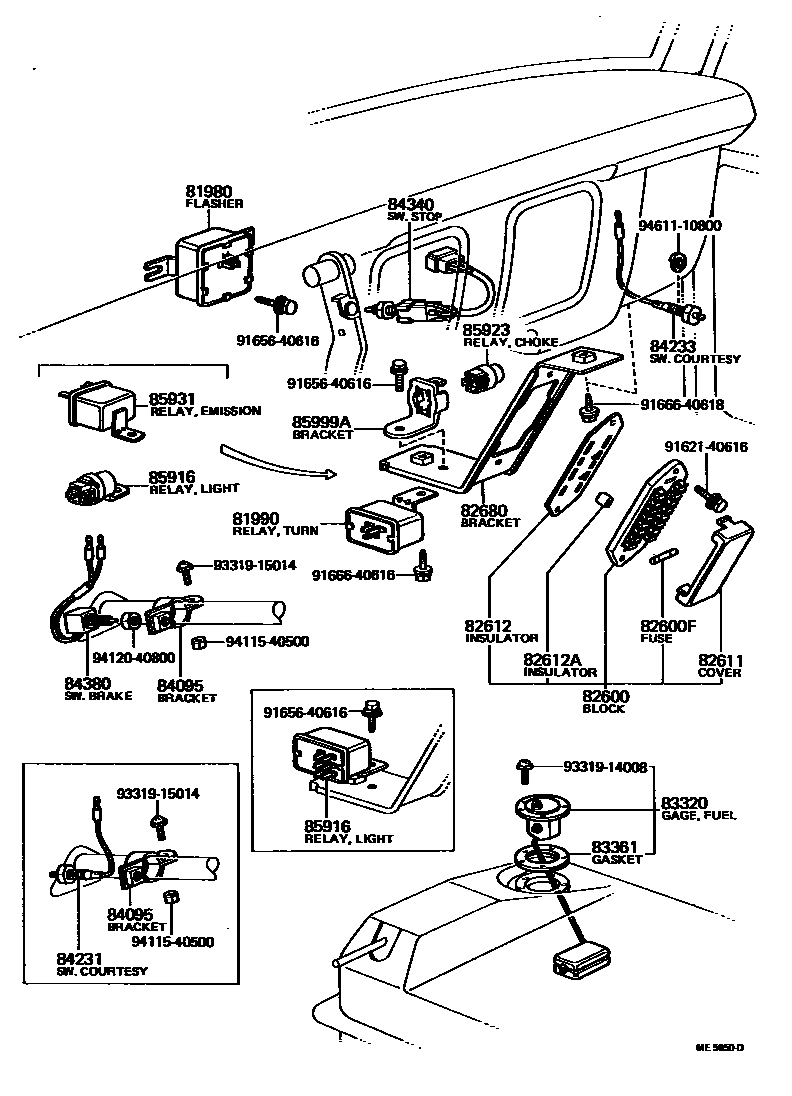

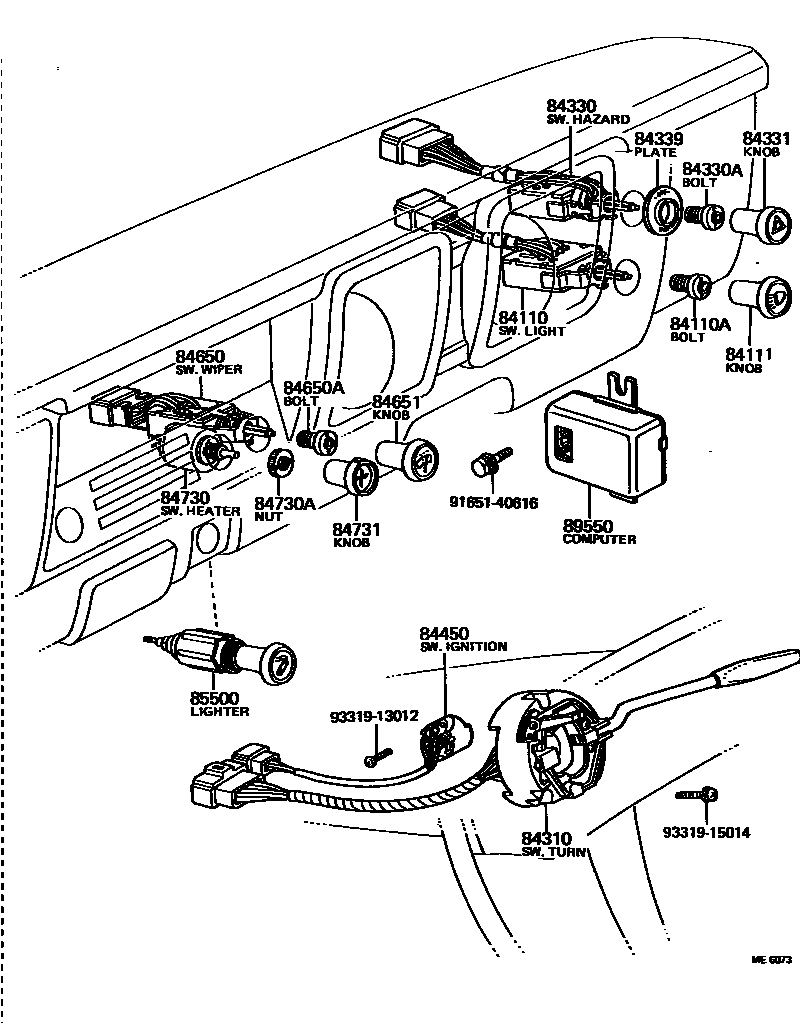

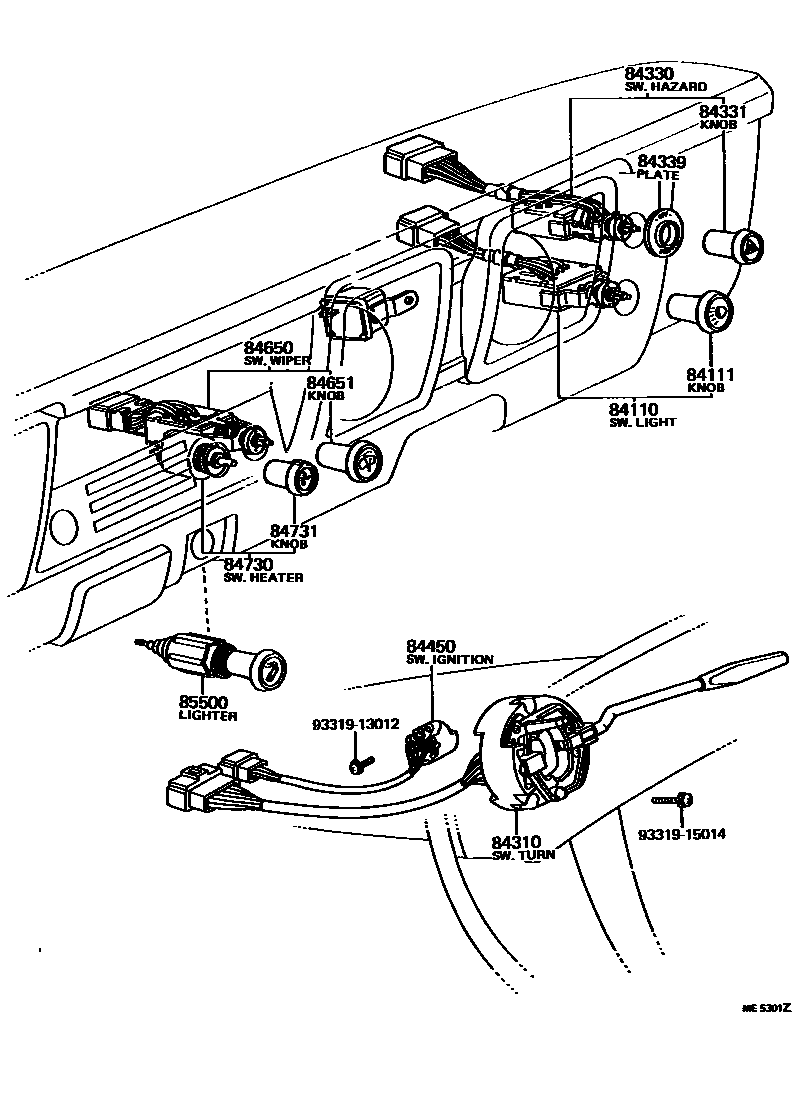

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27700 | Generator voltage regulator assembly | 27700-33010 · 27700-36010 · 27700-36020 |
| 81980 | Turn signal flasher relay assembly | 81980-30030 |
| 81990 | Turn signal light relay assembly | 81991-25010 |
| 82600 | Fuse box assembly | 82600-20903 |
| 82600F | Spare fuse | 99118-62915 · 99118-62920 |
| 82611 | fuse box cover | 82611-20030 |
| 82612 | Fuse box terminal insulation pad | 82612-20020 |
| 82612A | Fuse box terminal insulation pad B | 82612-22020 |
| 82680 | Fuse box bracket assembly | 82681-89101 · 82681-89102 · 82681-89103 |
| 83320 | Fuel gauge sensor assembly | 83320-89801 · 83320-89802 |
| 83361 | fuel gauge sensor gasket | 83361-20030 |
| 83420 | Water temperature sensor assembly | 83420-20011 · 83430-89101 · 83430-89102 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-36011 |
| 83540 | Brake warning switch assembly (for series master cylinder) | 84390-30011 |
| 84095 | Manual brake signal switch bracket sub-assembly | 84956-30011 |
| 84110 | No. 1 light control switch assembly | 84110-89104 · 84112-89104 |
| 84110A | Light switch fixing bolt or nut | 90984-01012 |
| 84111 | Light control button | 84111-89103 |
| 84210 | Reversing light switch assembly | 84210-14010 · 84210-26010 |
| 84210T | Shift point sensor assembly | 84220-35011 · 84220-35020 · 84220-35040 |
| 84231 | Door control light switch assembly (for parking brake) | 84230-20030 |
| 84233 | Door control light switch assembly (for front door) | 84231-20010 |
| 84310 | Turn signal switch assembly | 84310-35070 · 84310-35100 · 84310-89103 · 84310-89104 · 84310-89105 · 84310-89106 · 84310-89109 |
| 84330 | Hazard warning signal switch assembly | 84330-89108 · 84330-89109 · 84332-89113 · 84332-89114 |
| 84330A | Hazard warning signal switch fixing bolt or nut | 90984-01012 · 90984-01014 |
| 84331 | Hazard warning signal switch button | 84331-20012 · 84331-89103 |
| 84339 | Parking light switch warning nameplate | 55472-89102 · 55472-89103 |
| 84340 | brake light switch assembly | 84340-12011 · 84340-12012 · 84340-30012 · 84340-30013 · 84340-30023 · 84340-35010 |
| 84380 | Brake warning test switch assembly | 84380-20010 · 84380-30010 |
| 84450 | Ignition or starter switch assembly | 84450-12020 · 84450-12021 |
| 84540 | Neutral start switch assembly | 84540-22031 · 84540-22140 |
| 84650 | Windshield wiper switch assembly | 84650-12020 · 84652-12010 |
| 84650A | Windshield wiper switch retaining bolt or nut | 90984-01012 |
| 84651 | Windshield wiper switch button | 84651-12020 |
| 84730 | Heater blower switch assembly | 84730-89103 · 84732-10020 |
| 84730A | Heater blower switch nut | 90179-10008 |
| 84731 | Heater blower switch button | 84731-89102 |
| 85500 | Cigarette lighter assembly | 85500-12020 · 85500-89102 |
| 85916 | Light control relay | 85916-12010 · 85916-20010 · 85916-35010 |
| 85923 | Choke control relay | 90987-02001 |
| 85931 | Emission control relay | 85931-25010 |
| 85999A | No. 2 relay bracket | 85999-26010 |
| 89427 | Temperature detection switch | 89428-12030 · 89428-26010 |
| 89550 | Emission control ECU assembly | 89550-26020 · 89550-35120 |
