Toyota HILUX 后组合灯 — Figure 8111

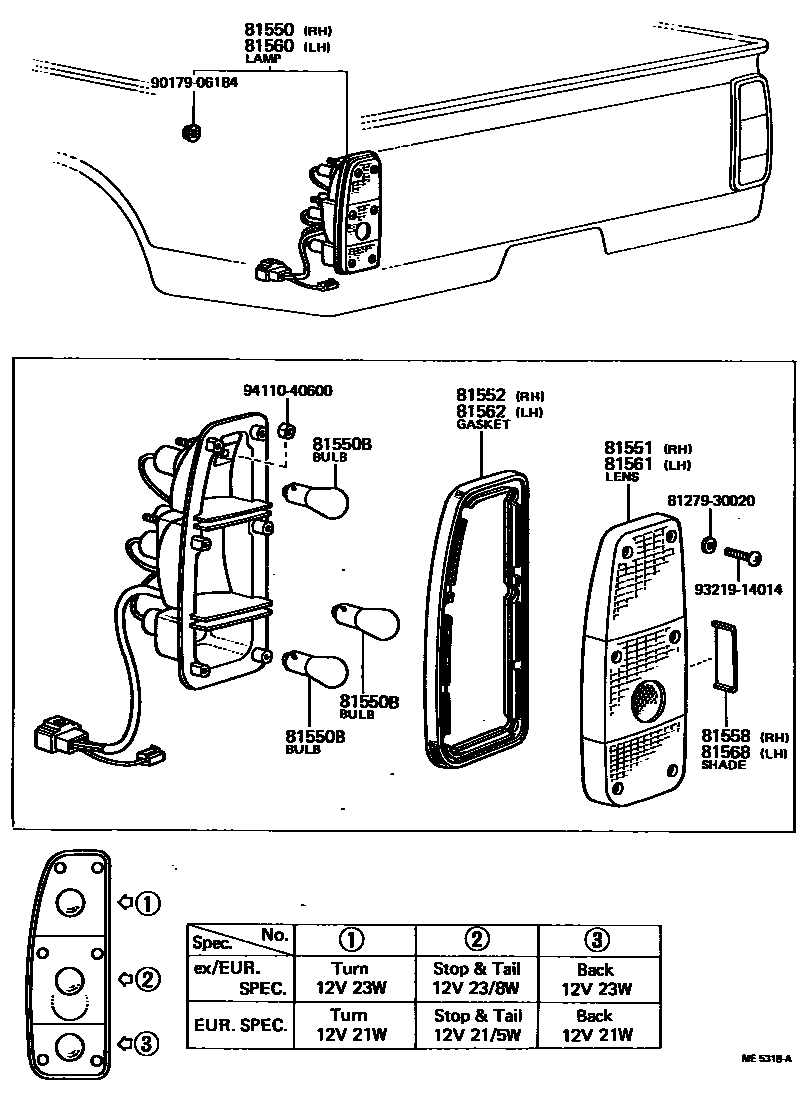

Toyota HILUX EPC diagram 8111, 后组合灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-89803 · 81550-89806 · 81550-89808 · 81550-89810 · 81550-89813 · 81550-89814 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-11230 · 99132-21210 · 99132-21230 |
| 81551 | Right rear combination lamp shade | 81551-89105 · 81551-89106 |
| 81552 | Right rear combination lamp shade gasket | 81552-89104 · 81552-89110 |
| 81558 | No. 1 right rear combination light lampshade | 81557-89110 |
| 81560 | Left rear combination light assembly | 81560-89803 · 81560-89806 · 81560-89808 · 81560-89810 · 81560-89813 · 81560-89814 |
| 81561 | Left rear combination lamp shade | 81561-89105 · 81561-89106 |
| 81562 | Left rear combination lamp shade gasket | 81562-89104 · 81562-89110 |
| 81568 | No. 1 left rear combination light lampshade | 81557-89110 |
