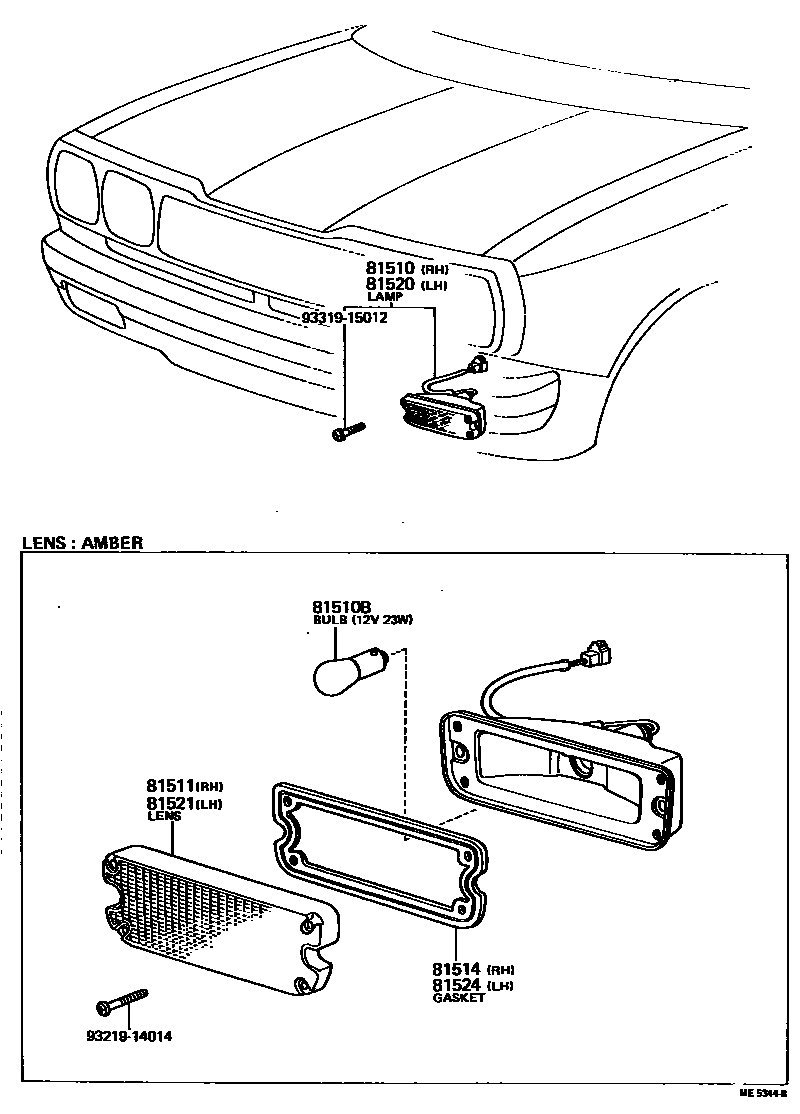

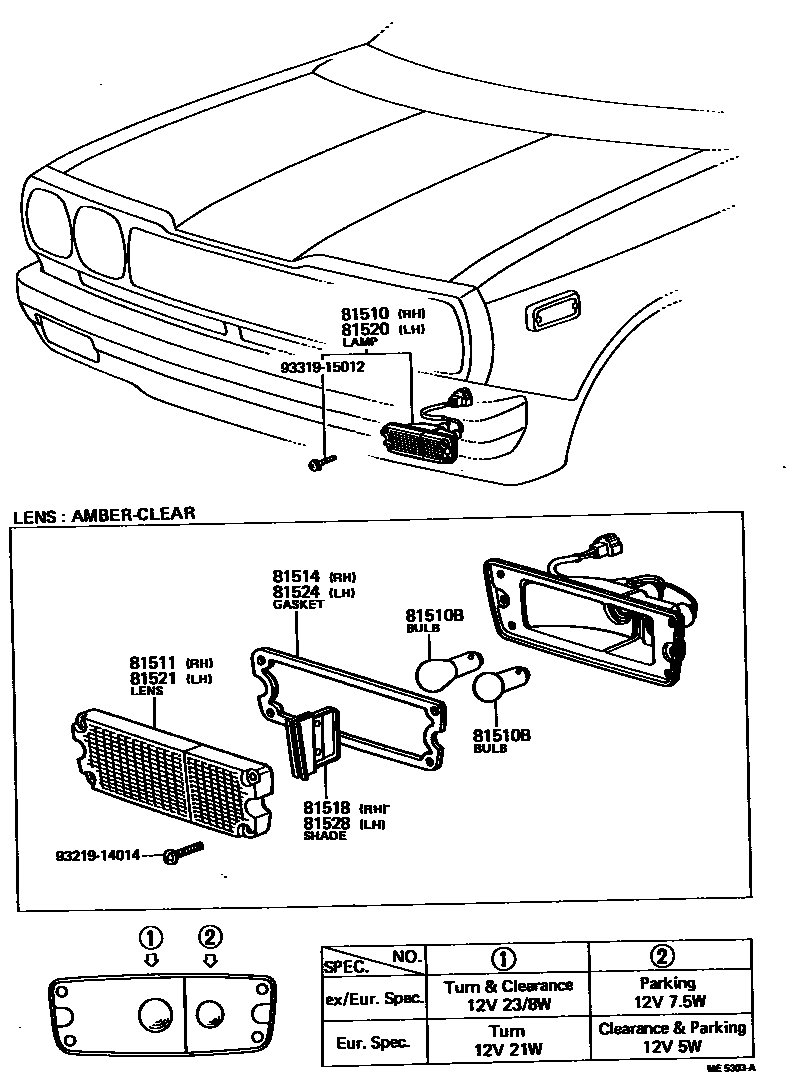

Toyota HILUX 前转向灯 — Figure 8103
Toyota HILUX EPC diagram 8103, 前转向灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-89804 · 81510-89806 · 81510-89808 · 81510-89810 · 81510-89811 · 81510-89813 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11050 · 99132-11075 · 99132-11210 · 99132-11230 · 99132-21230 |
| 81511 | Right front turn signal lamp cover | 81511-89105 · 81511-89106 |
| 81514 | Right front turn signal light body gasket | 81512-89104 · 81512-89105 |
| 81518 | Right front turn signal lamp cover | 81517-89101 |
| 81520 | Left front turn signal lamp assembly | 81520-89804 · 81520-89806 · 81520-89808 · 81520-89810 · 81520-89811 · 81520-89813 |
| 81521 | Left front turn signal lamp cover | 81521-89104 · 81521-89105 |
| 81524 | Left front turn signal light body gasket | 81512-89104 · 81522-89104 |
| 81528 | Left front turn signal lamp cover | 81527-89101 |
