Toyota HILUX Headlamp — Figure 8101

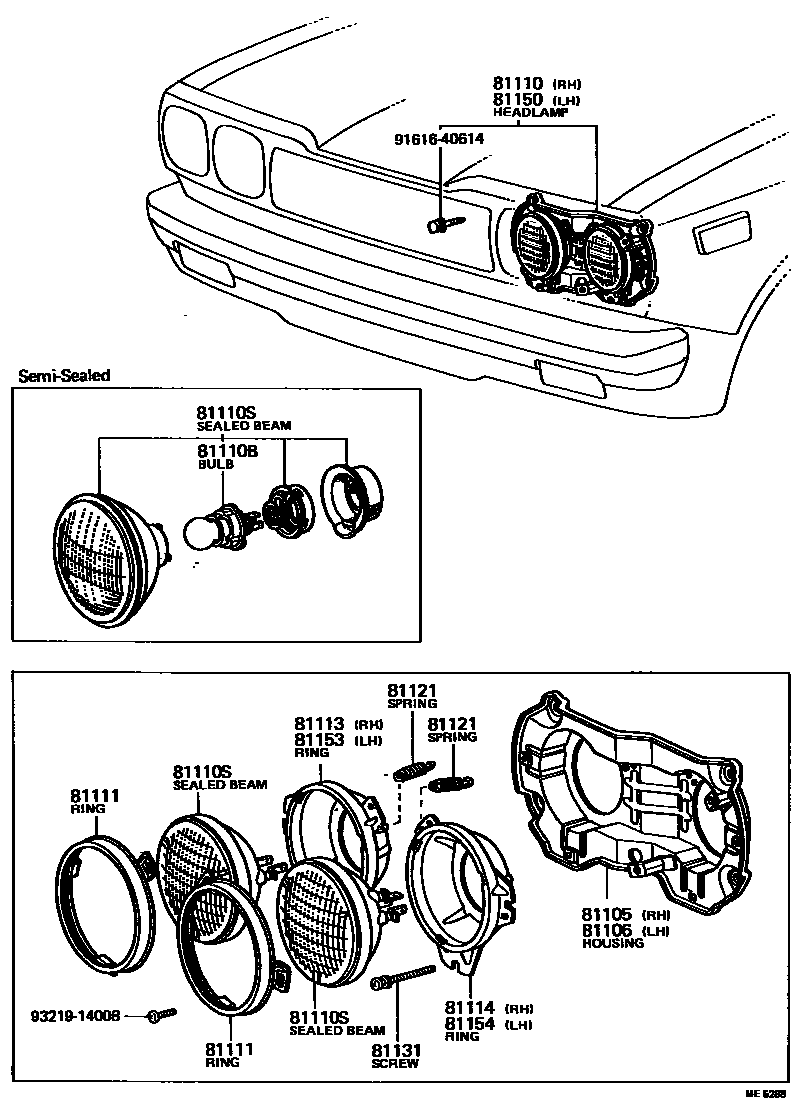

Toyota HILUX EPC diagram 8101, Headlamp, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 81105-89107 · 81105-89108 |
| 81106 | Left headlight housing sub-assembly | 81106-89107 · 81106-89108 |
| 81110 | Right headlight assembly | 81110-89805 · 81110-89806 · 81110-89807 · 81110-89808 · 81110-89809 · 81110-89810 · 81110-89811 · 81110-89812 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13014 |
| 81110S | No. 1 enclosed lamp assembly | 90981-02011 · 90981-02012 · 90981-02013 · 90981-02014 · 90981-02015 · 90981-02016 · 90981-02017 · 90981-02018 · 90981-02019 · 90981-02020 · 90981-02021 |
| 81111 | Closed headlight retaining ring | 81111-20042 · 81111-20170 |
| 81113 | Right No. 1 closed lamp seat | 81113-89107 · 81113-89108 |
| 81114 | Right No. 2 closed lamp seat | 81114-89107 · 81114-89108 |
| 81121 | headlight spring | 81121-22010 |
| 81131 | Headlight adjustment screw | 81131-10031 · 81131-89102 |
| 81150 | Left headlight assembly | 81150-89805 · 81150-89806 · 81150-89807 · 81150-89808 · 81150-89809 · 81150-89810 · 81150-89811 · 81150-89812 |
| 81153 | No. 1 closed lamp seat on the left | 81153-89107 · 81153-89108 |
| 81154 | No. 2 closed lamp seat on the left | 81154-89107 · 81154-89108 |
