Toyota HILUX accelerator pedal connecting rod — Figure 7851

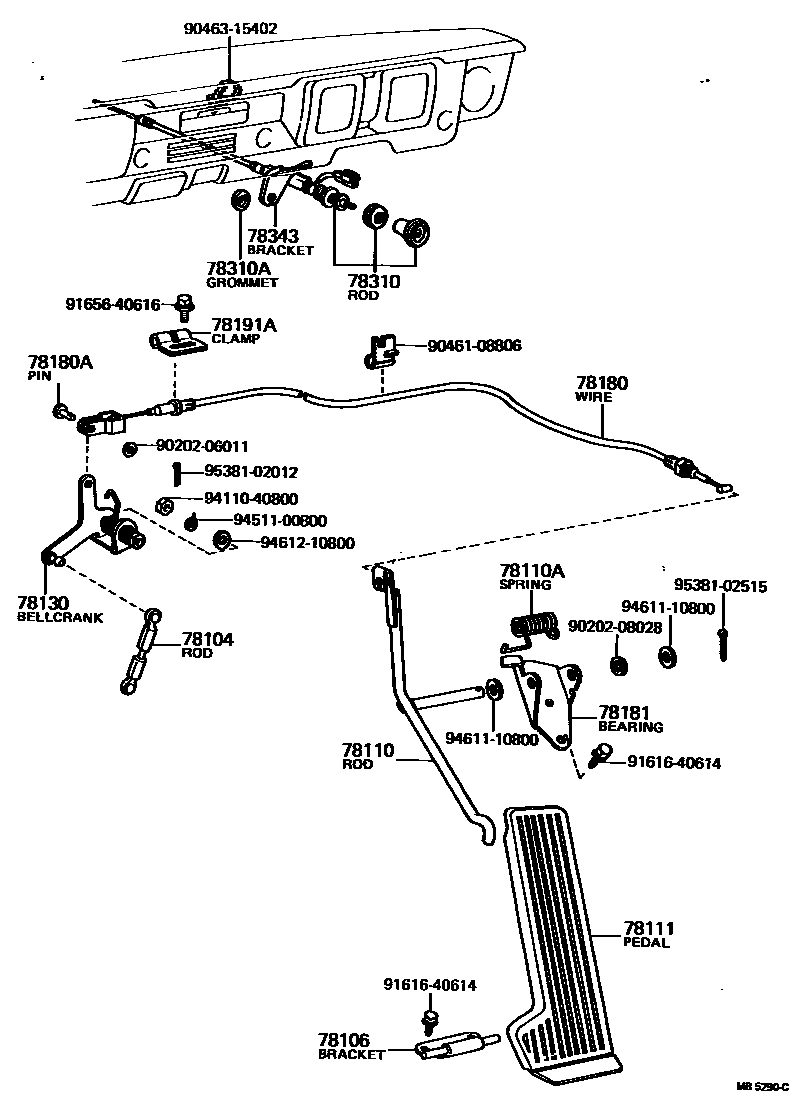

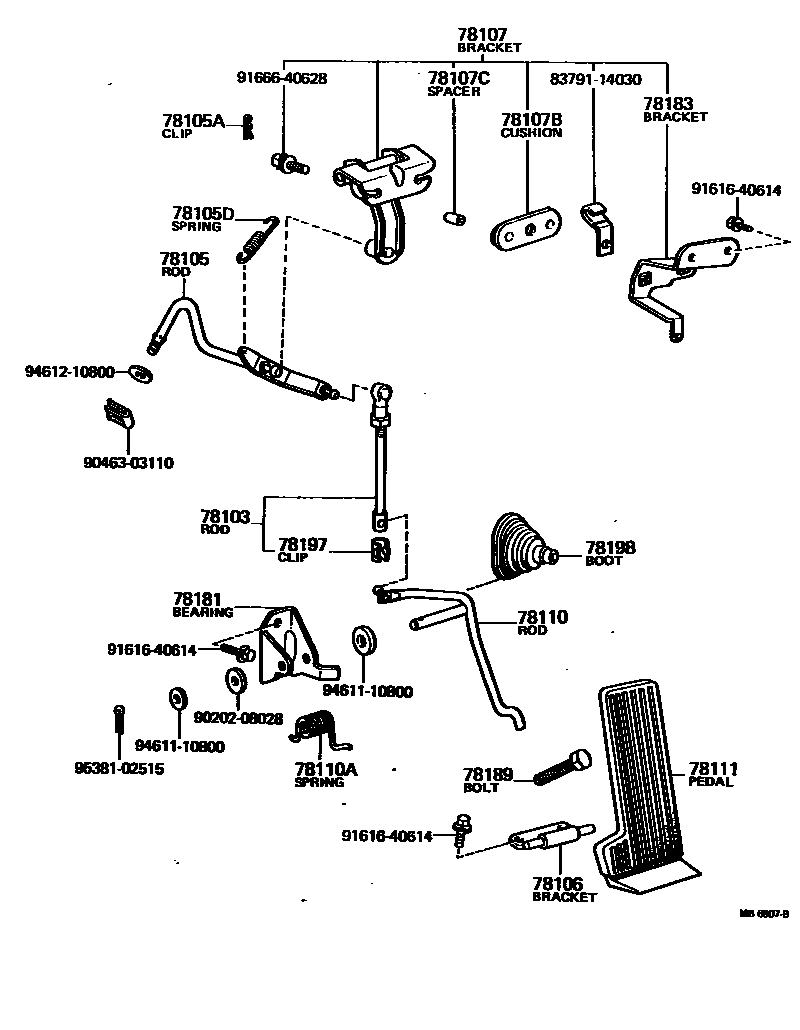

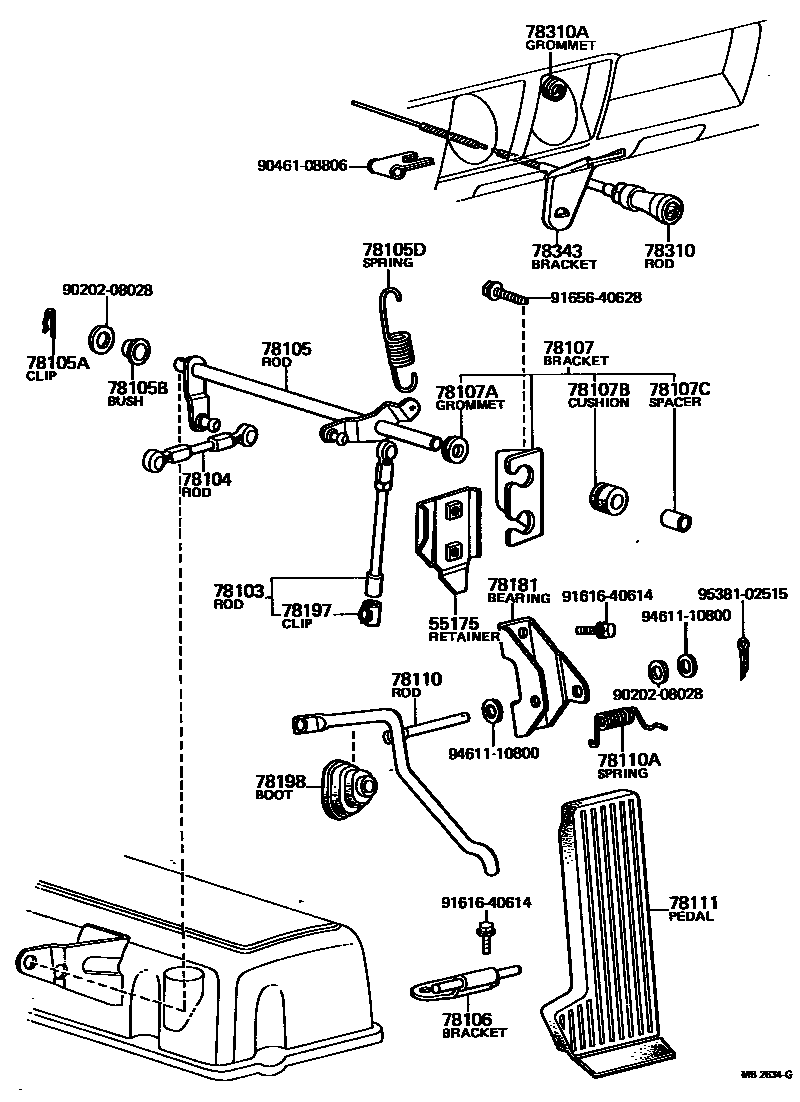

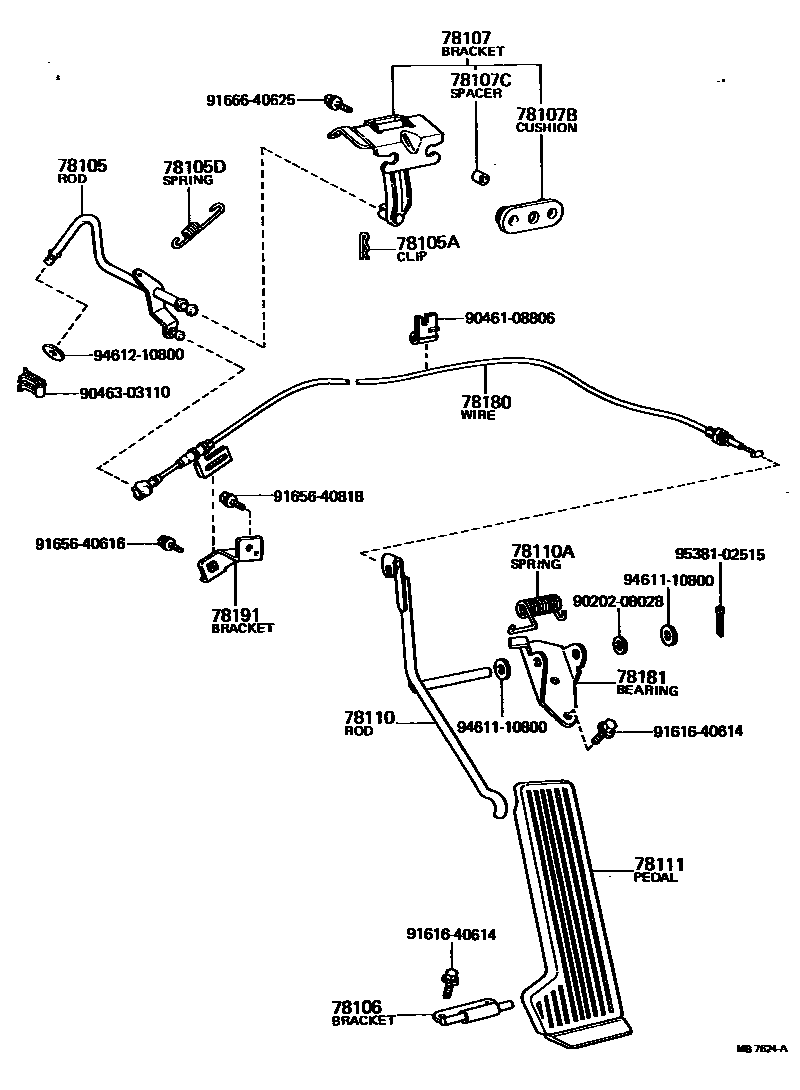

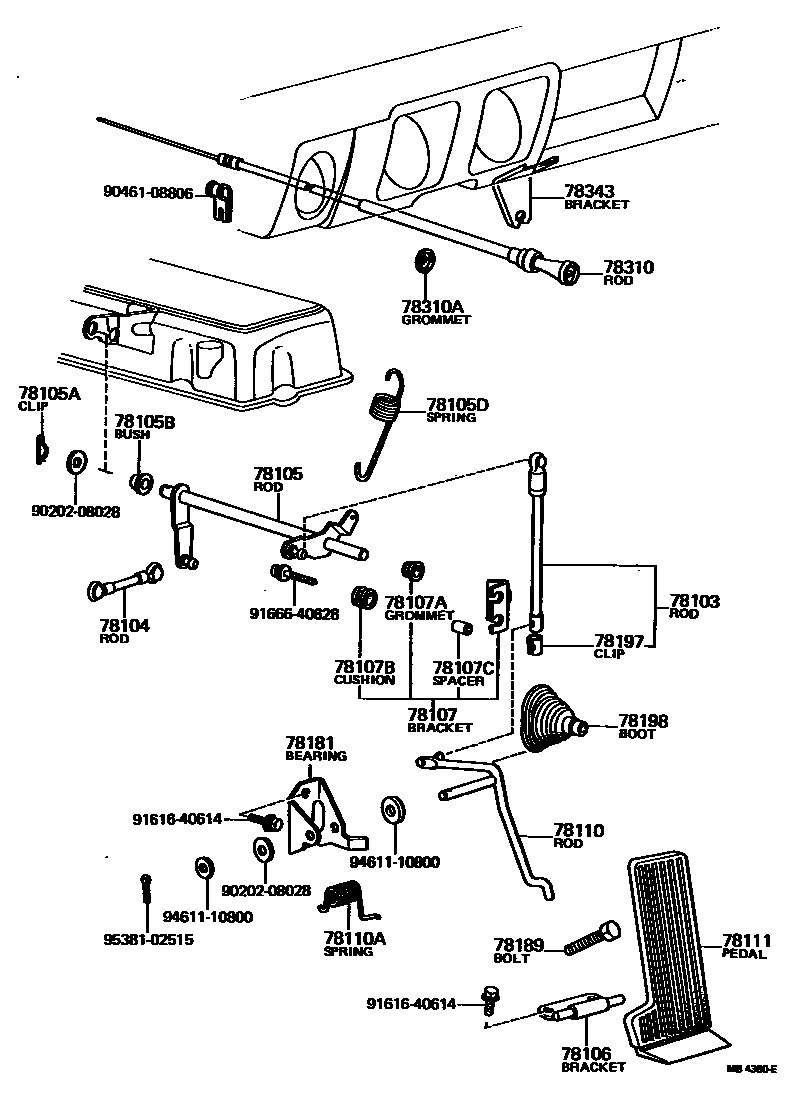

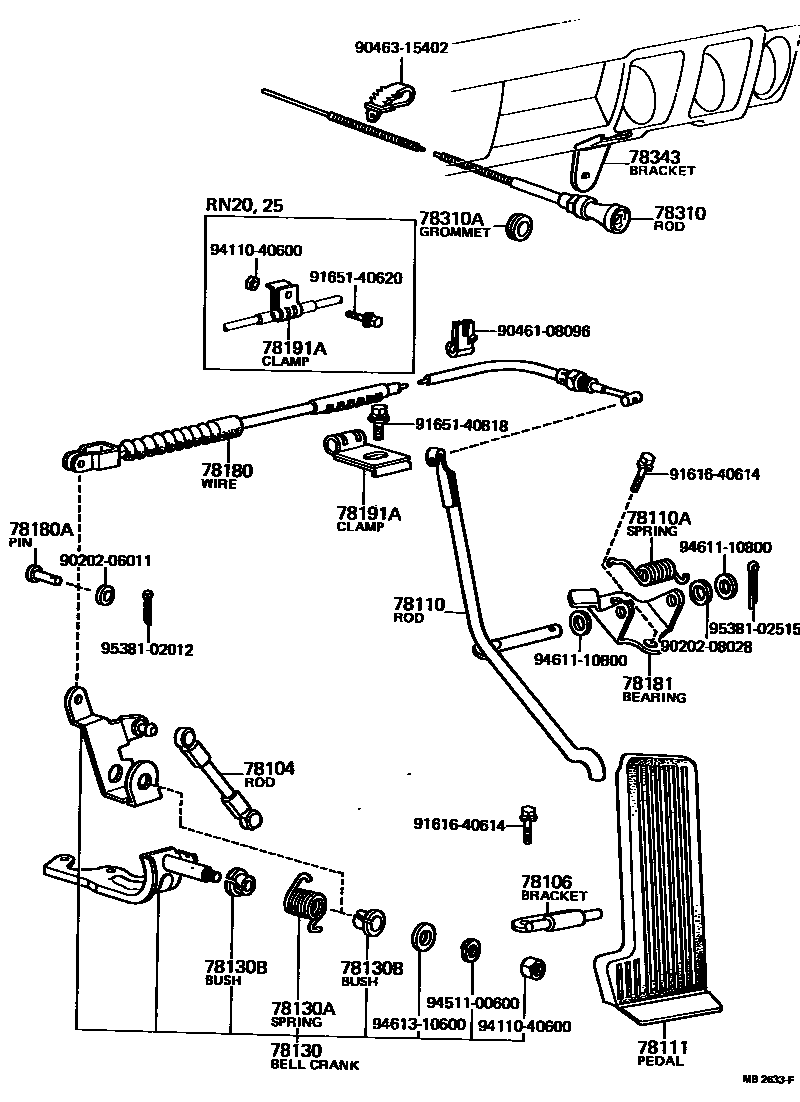

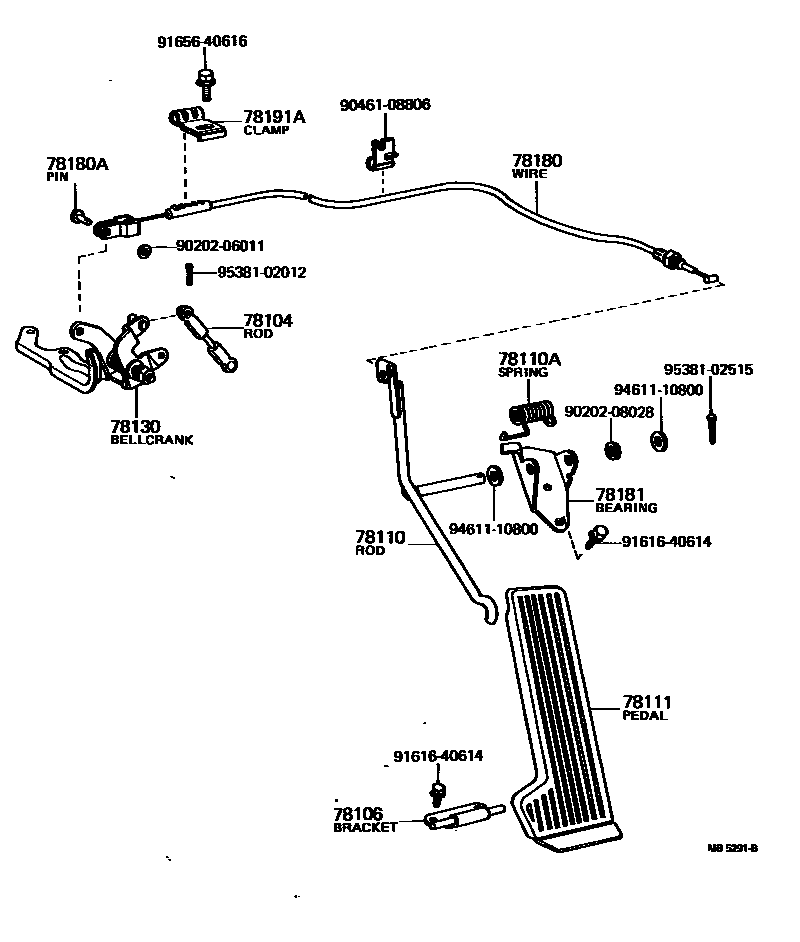

Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 7 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55175 | Accelerator pedal torque lever bracket mount | 55175-89101 |
| 78103 | No. 1 accelerator pedal connecting rod sub-assembly | 78103-89104 · 78103-89106 · 78103-89108 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-20041 · 78104-20051 · 78104-22010 · 78136-20020 |
| 78105 | No. 3 accelerator pedal connecting rod sub-assembly | 78105-89103 · 78105-89105 · 78105-89106 · 78105-89110 |
| 78105A | Catch (for accelerator pedal torque lever) | 90468-16012 |
| 78105B | Bushing (for accelerator pedal torque rod) | 90386-08077 |
| 78105D | Spring (for accelerator pedal torque lever) | 90506-12454 · 90506-14400 |
| 78106 | Accelerator pedal bracket sub-assembly | 78106-89103 |
| 78107 | Accelerator pedal torque rod bracket sub-assembly | 78014-89102 · 78107-89101 · 78107-89106 |
| 78107A | Seal (for accelerator pedal torque lever bracket) | 90480-15227 |
| 78107B | Cushion pad (for accelerator pedal torque lever bracket) | 78143-89102 · 90540-09059 |
| 78107C | Spacer (for accelerator pedal torque lever bracket) | 90560-06006 · 90560-06238 |
| 78110 | Accelerator pedal lever assembly | 78101-89109 · 78101-89110 · 78101-89113 · 78101-89114 · 78101-89115 |
| 78110A | Spring (for accelerator pedal lever) | 90508-20073 · 90508-29397 · 90508-29457 |
| 78111 | accelerator pedal | 78111-89102 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-22030 · 78130-22040 · 78130-89101 · 78130-89103 · 78130-89104 · 78130-89105 · 78130-89106 · 78130-89107 |
| 78130A | Spring (for accelerator pedal lever return) | 90508-16087 · 90508-16215 |
| 78130B | Throttle pedal right angle lever bushing | 90386-08024 |
| 78180 | Throttle cable assembly | 78180-89108 · 78180-89112 · 78180-89114 · 78180-89116 |
| 78180A | Throttle cable fixing pin | 90240-05071 |
| 78181 | Accelerator pedal rod bracket bearing | 78181-89104 · 78181-89105 · 78181-89107 · 78181-89108 |
| 78183 | Accelerator pedal connecting rod bracket | 78195-89101 |
| 78189 | Accelerator pedal limit bolt | 90101-06440 |
| 78191 | Throttle cable bracket | 78186-89102 |
| 78191A | Clip (for throttle cable assembly) | 90461-08148 · 90461-10856 · 90461-12452 |
| 78197 | Accelerator pedal ball joint clip | 78197-10010 |
| 78198 | Accelerator pedal connecting rod dust cover | 78199-89102 · 78199-89103 · 78199-89104 |
| 78310 | Choke door cable assembly | 78310-89105 · 78310-89107 |
| 78310A | Choke cable retaining ring | 90480-15395 |
| 78343 | Choke rod bracket | 78343-89102 · 78343-89103 |
