Toyota HILUX 防护条 — Figure 7552

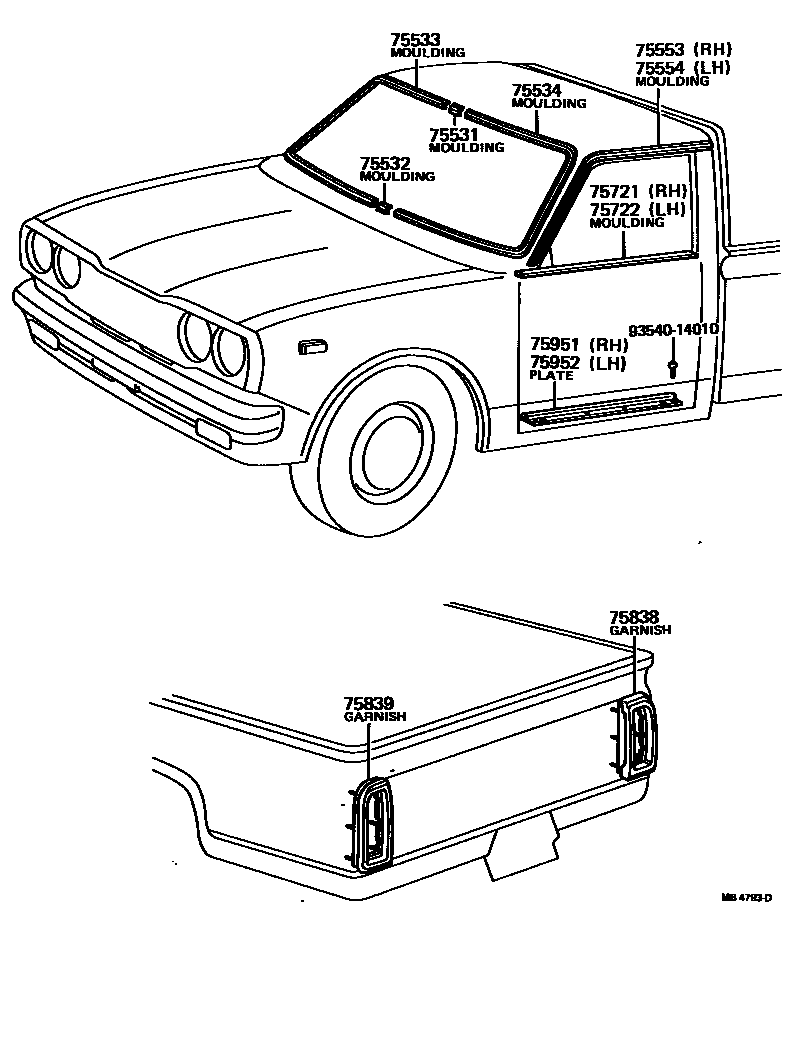

Toyota HILUX EPC diagram 7552, 防护条, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75536-10010 |
| 75532 | Lower windshield protection strip | 75536-10010 |
| 75533 | Windshield right outer protective strip | 75533-89103 |
| 75534 | Windshield left outer protective strip | 75534-89101 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75551-89103 · 75551-89104 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75552-89103 · 75552-89104 |
| 75721 | Right front door waistline protection strip | 75710-89101 |
| 75722 | Left front door waistline protection strip | 75720-89101 |
| 75838 | Right rear combination light decorative panel | 75838-89101 · 75838-89904 |
| 75839 | Left rear combination light decorative panel | 75839-89101 · 75839-89904 |
| 75951 | Right front door outer wear plate | 67911-89103 |
| 75952 | Left front door outer wear plate | 67911-89103 |
