Toyota HILUX battery holder — Figure 7454

Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 3 PNC and OE references.

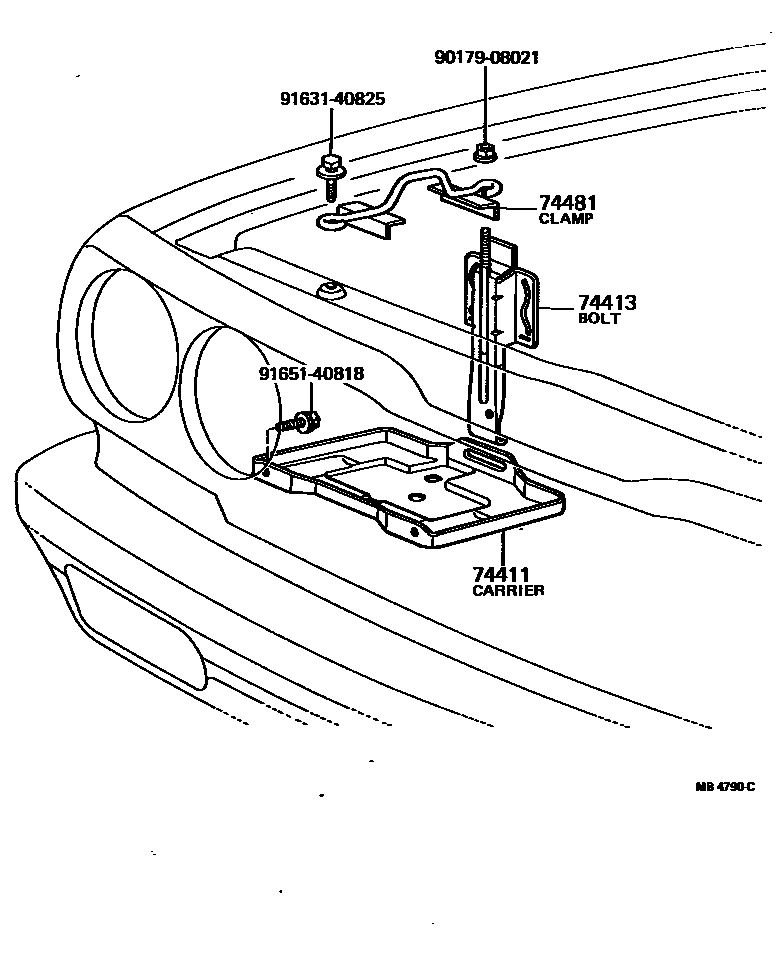

Toyota HILUX battery holder EPC diagram — MB4790C
battery holder — MB4790C (197205 – 197807)

PNC and OE references

PNCPart nameOE numbers
74411battery holder74411-20060 · 74411-20070 · 74411-20080 · 74411-89106 · 74411-89107 · 74411-89108
74413Battery clamp bolt74407-89104
74481Battery fixing clip74404-20010 · 74404-20020 · 74404-20030 · 74404-89101 · 74404-89102 · 74404-89103
