Toyota HILUX seat belt — Figure 7152
Toyota HILUX EPC diagram 7152, seat belt, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

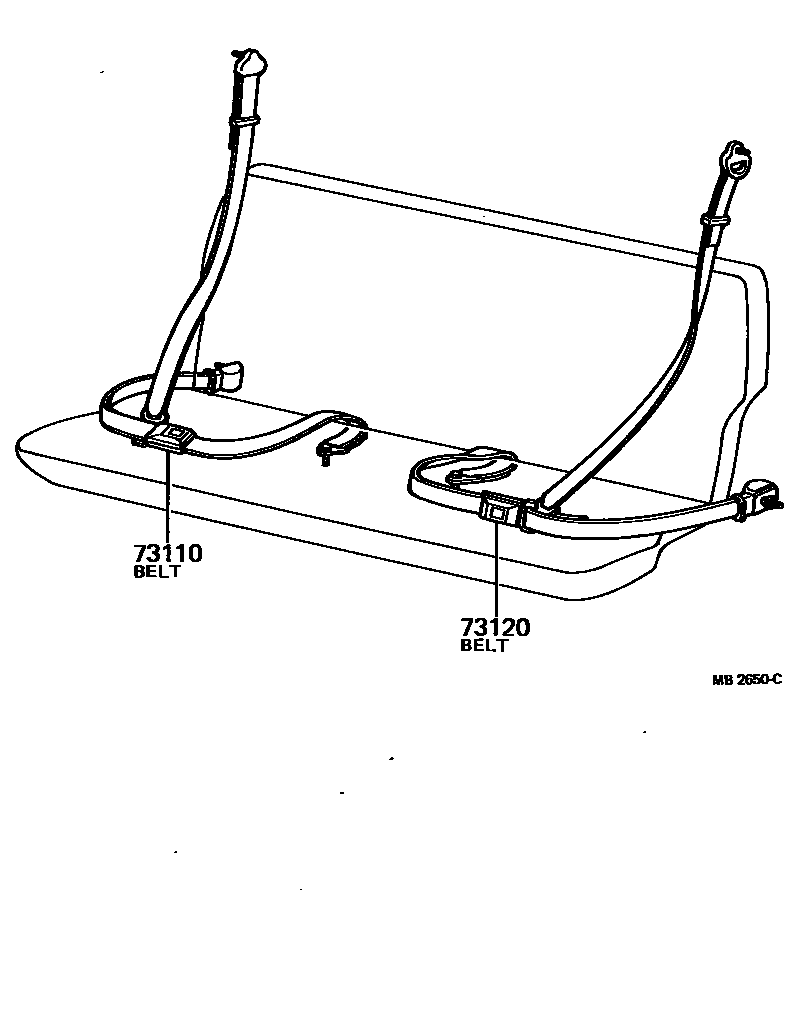

| 73110 | Front right seat three-point seat belt assembly | 71870-89107 · 71870-89109 · 71870-89112 · 71870-89114 · 71870-89115 |
| 73120 | Front left seat three-point safety belt assembly | 71870-89107 · 71870-89109 · 71870-89112 · 71870-89114 · 71870-89115 |
| 73150 | Front center seat waist seat belt assembly | 71903-89101 · 73130-89101 |

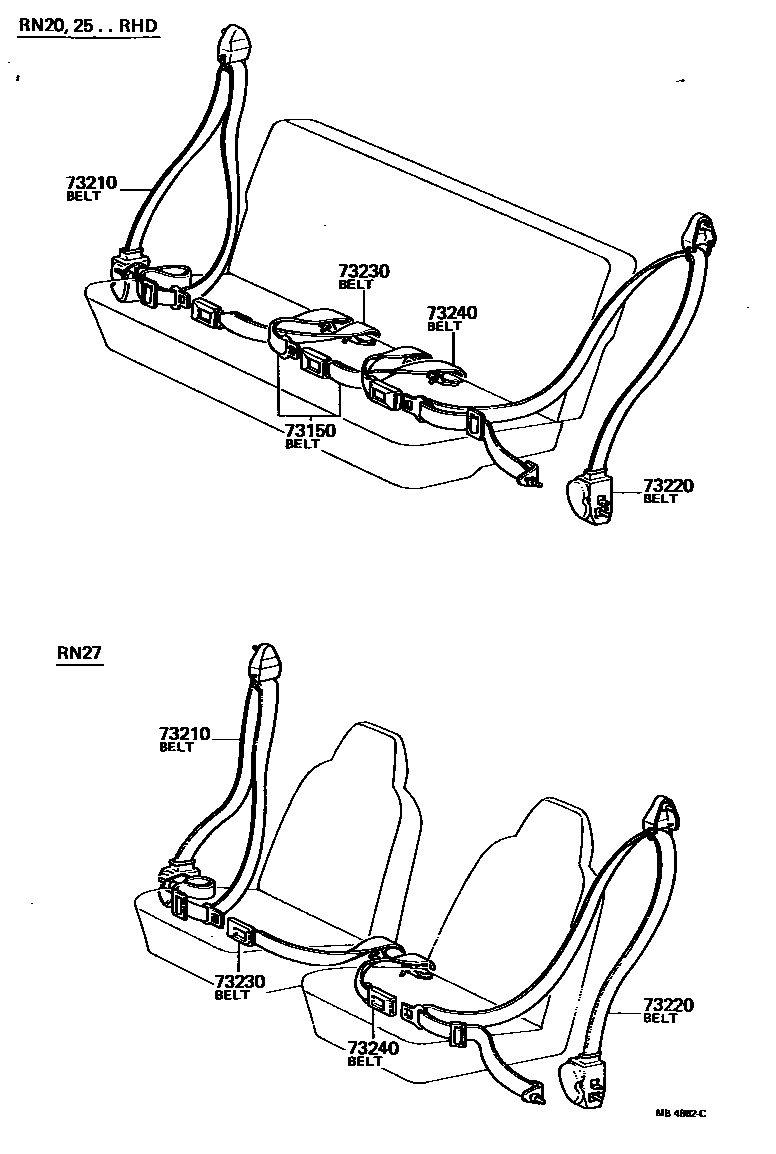

| 73210 | Front right seat outer seat belt assembly | 71910-89102 · 73210-89101 |
| 73220 | Front left seat outer seat belt assembly | 71910-89102 · 73210-89101 |
| 73230 | Front right seat inner seat belt assembly | 72804-89101 · 73230-89101 · 73230-89104 |
| 73240 | Front left seat inner seat belt assembly | 72804-89101 · 73230-89101 · 73240-89103 |
