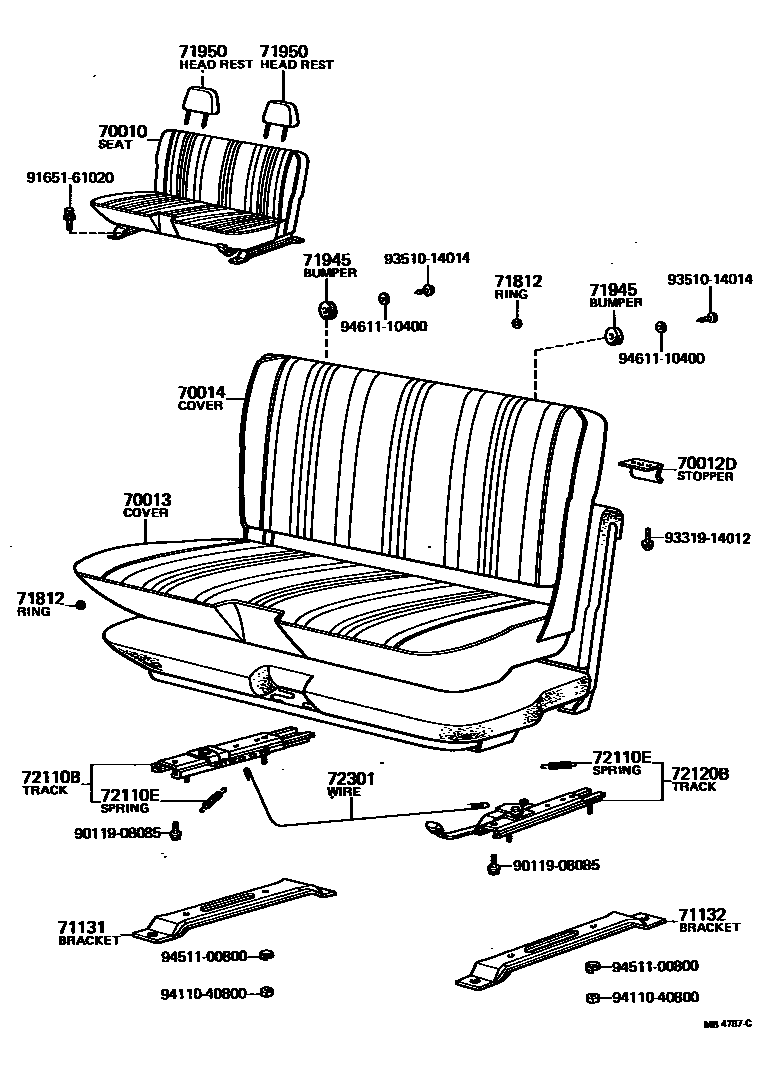

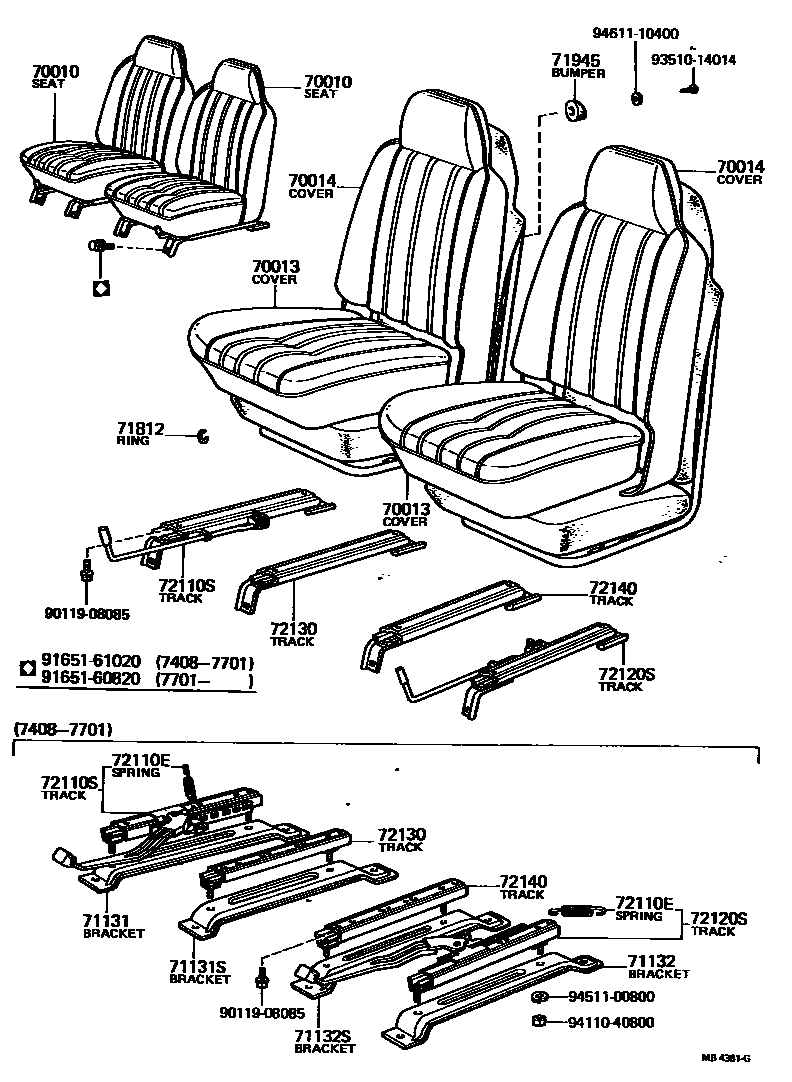

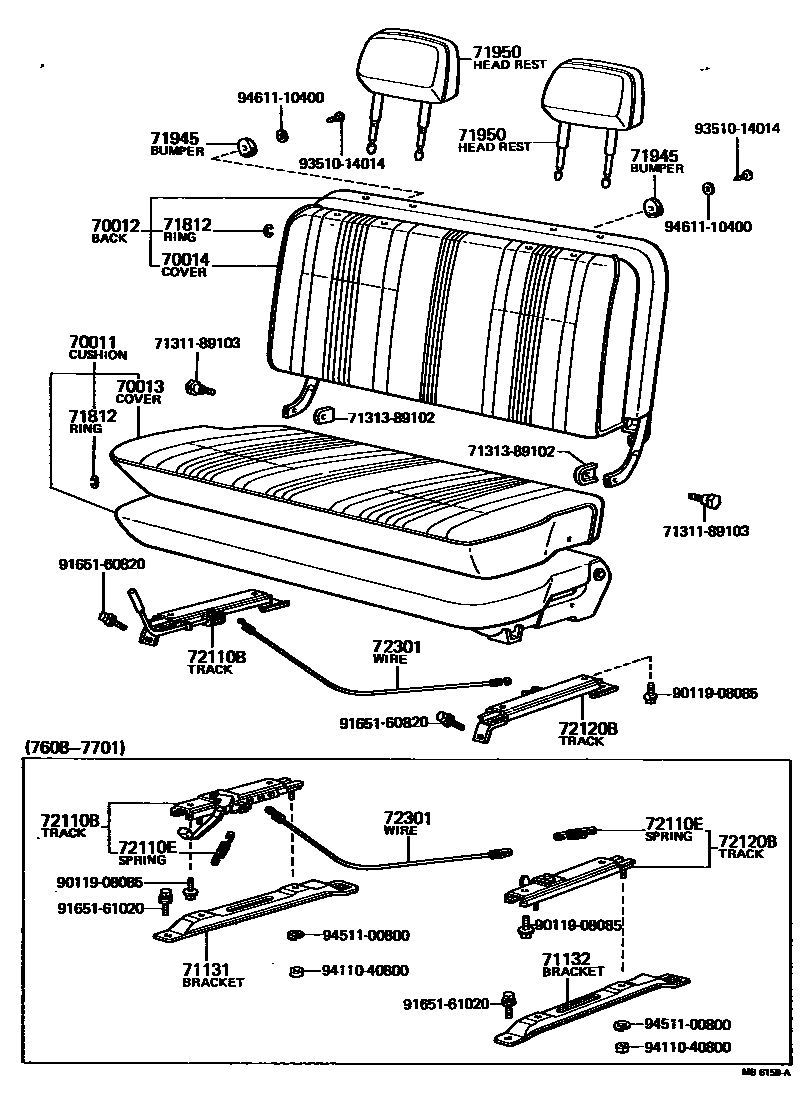

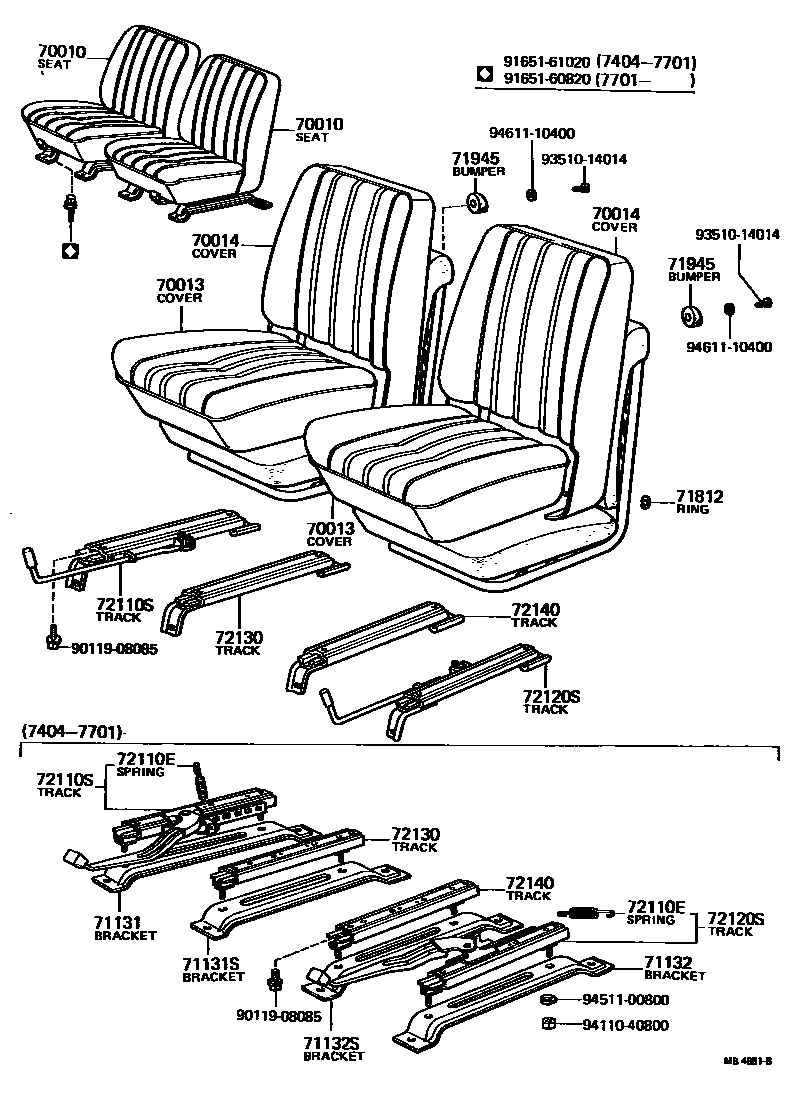

Toyota HILUX 座椅和座椅滑轨 — Figure 7151
Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 70012D | Stop (for seat back) | 71958-89101 |
| 71131 | Front seat right outer fixed bracket | 71131-89102 · 71131-89104 · 71131-89105 · 71131-89110 · 71131-89111 · 71131-89112 |
| 71131S | Front seat right inner fixing bracket | 71131-89106 |
| 71132 | Front seat left outer fixed bracket | 71132-89101 · 71132-89103 · 71132-89107 · 71132-89109 |
| 71132S | Front seat left inner fixing bracket | 71132-89104 · 71132-89108 · 71132-89110 |
| 71812 | Clip (for front seat cushion cover) | 71196-89101 |
| 71945 | Seat back limiter | 71158-89103 |
| 72110B | Right seat outer slide rail assembly (for bench seat) | 72110-89105 · 72110-89106 · 72110-89108 · 72110-89113 · 72110-89114 · 72110-89118 · 72110-89122 · 72110-89123 · 72110-89125 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 72516-89102 |
| 72110S | Right seat outer slide rail assembly (for separate seats) | 72110-89110 · 72110-89118 · 72110-89122 · 72110-89125 |
| 72120B | Left side seat outer slide rail assembly (for bench seat) | 72120-89105 · 72120-89108 · 72120-89109 · 72120-89112 · 72120-89113 · 72120-89116 · 72120-89119 · 72120-89120 · 72120-89122 |
| 72120S | Left side seat outer slide rail assembly (for separate seats) | 72120-89111 · 72120-89115 · 72120-89120 · 72120-89121 |
| 72130 | Right seat inner slide rail assembly | 72110-89111 · 72110-89116 · 72110-89126 · 72110-89128 |
| 72140 | Left seat inner slide rail assembly | 72110-89111 · 72110-89116 · 72110-89126 · 72110-89128 |
| 72301 | Seat slide rail balance harness sub-assembly | 72311-89102 · 72311-89103 · 72311-89105 |
