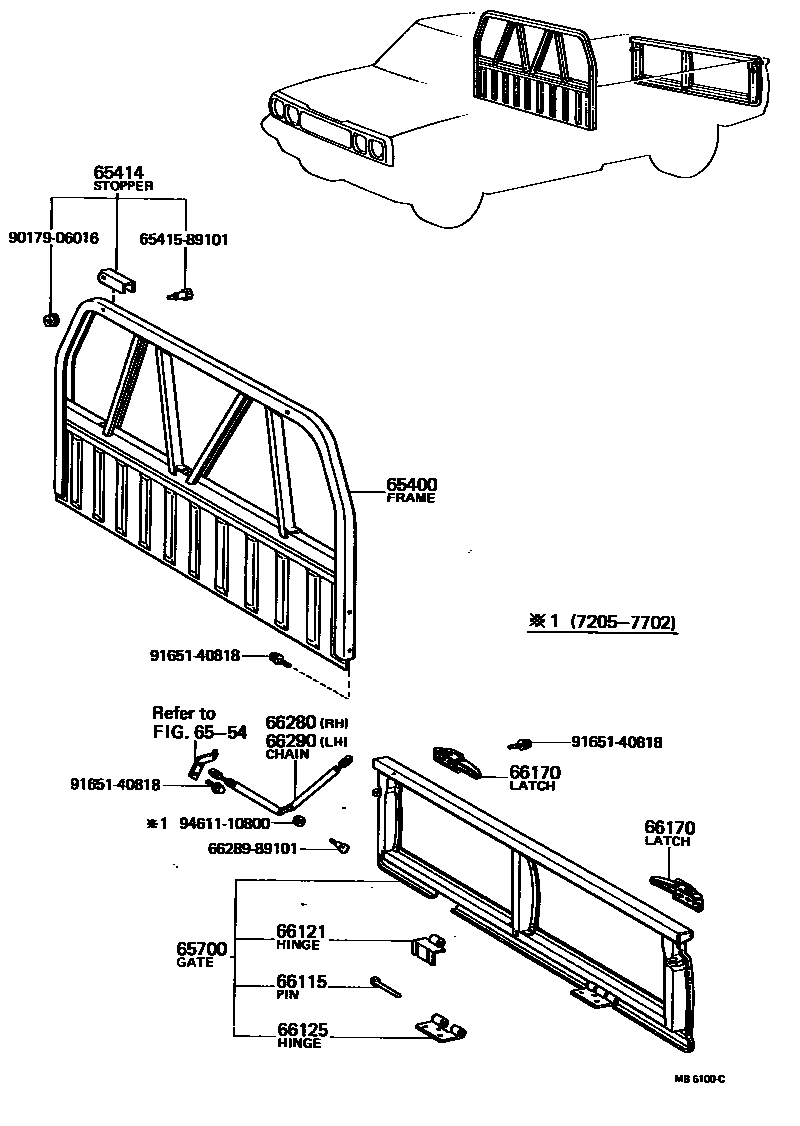

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65400 | Rear body guardrail frame assembly | 65400-89103 |
| 65414 | guardrail frame stop | 65414-89801 |
| 65700 | Rear body back door assembly | 65700-89112 |
| 66121 | Rear door protruding hinge | 66111-89103 |
| 66125 | Recessed hinge for back door | 66112-89102 |
| 66170 | Rear body back door lock bolt assembly | 66170-89103 |
| 66280 | Back door right chain assembly | 90583-05007 |
| 66290 | Back door left chain assembly | 90583-05007 |
