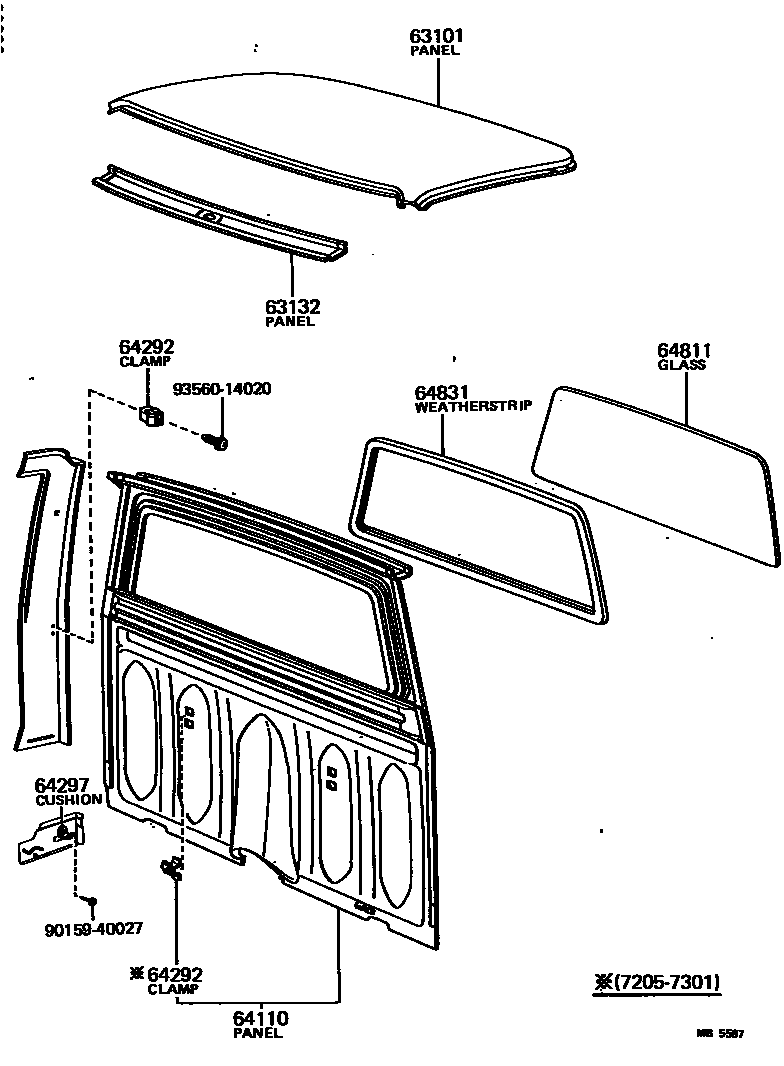

Toyota HILUX 天窗板和背板 — Figure 6153
Toyota HILUX EPC diagram 6153, 天窗板和背板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63101 | Roof panel sub-assembly | 63111-89102 · 63111-89103 |
| 63132 | Windshield inner roof panel | 63132-89102 · 63132-89103 |
| 64110 | Front body back panel assembly | 64101-89105 · 64101-89107 |
| 64292 | Jack handle clip | 58706-89101 · 64292-89102 |
| 64811 | back window glass | 64811-89106 |
| 64831 | Back window glass seal strip | 64831-89106 · 64831-89107 |
