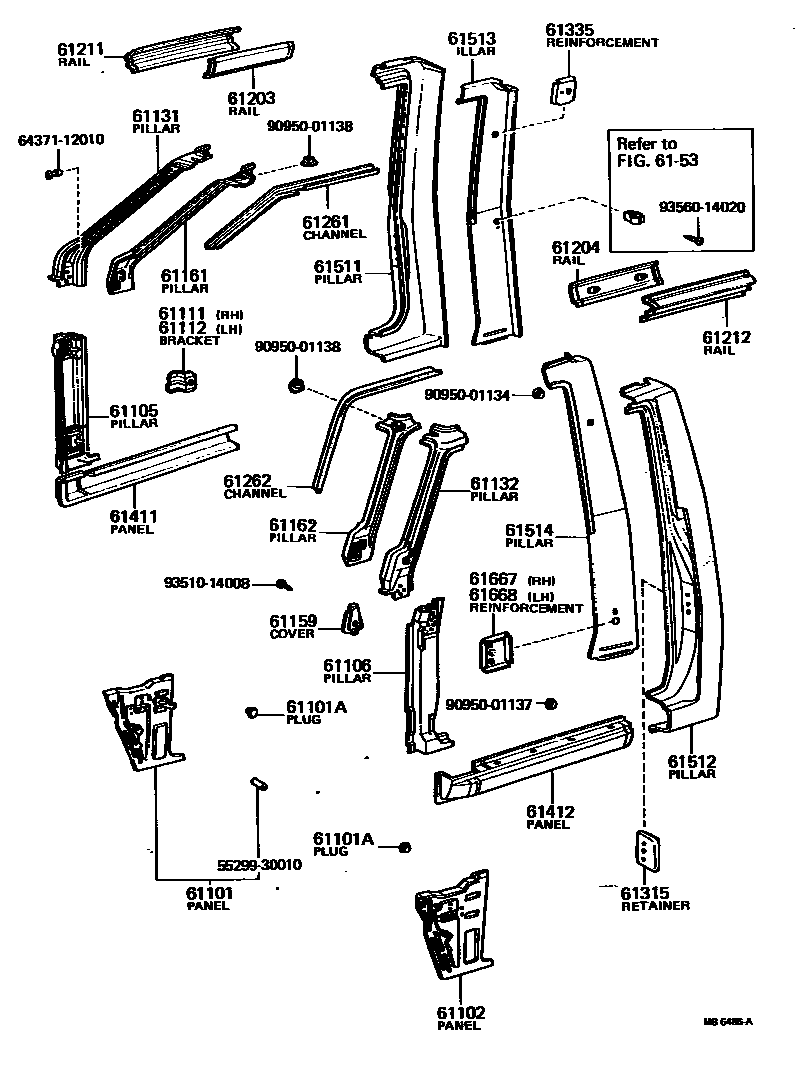

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 1 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61101 | Right front wall side panel sub-assembly | 61101-89113 · 61101-89114 · 61101-89115 |
| 61101A | Hole plug (for cowl side panels) | 90950-01010 |
| 61102 | Left front wall side panel sub-assembly | 61102-89107 · 61102-89108 · 61102-89110 |
| 61105 | Right body outer front lower pillar sub-assembly | 61133-89901 |
| 61106 | Left body outer front lower pillar sub-assembly | 61134-89901 |
| 61111 | Instrument right side bracket sub-assembly | 61125-89102 |
| 61112 | Instrument panel left bracket sub-assembly | 61126-89102 |
| 61131 | Right body outer front upper pillar | 61131-89901 |
| 61132 | Left body outer front upper pillar | 61132-89901 |
| 61159 | Front pillar access hole cover | 67851-89102 · 67852-89103 |
| 61161 | Right upper body inner front pillar | 61161-89103 |
| 61162 | Left side inner front upper pillar | 61162-89103 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61231-89104 · 61231-89105 · 61231-89106 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61232-89104 · 61232-89105 · 61232-89106 |
| 61211 | Roof right outer longitudinal beam | 61211-89102 |
| 61212 | Roof left outer longitudinal beam | 61212-89102 |
| 61261 | Drainage channel on the right side of the roof | 61205-89103 · 61205-89104 |
| 61262 | Drainage channel on the left side of the roof | 61206-89103 · 61206-89104 |
| 61315 | Door latch plate fixing parts | 61309-12020 |
| 61335 | Anchor reinforcements for front seat belts | 61665-89102 · 61665-89104 |
| 61411 | Right door outer sill panel | 61411-89101 · 61411-89102 |
| 61412 | Left door outer sill panel | 61412-89101 · 61412-89102 |
| 61511 | Right side locking post | 61511-89103 · 61511-89104 · 61511-89105 |
| 61512 | Left side locking post | 61512-89104 · 61512-89107 · 61512-89109 |
| 61513 | Right inner locking post | 61531-89102 · 61531-89104 · 61531-89105 · 61531-89106 |
| 61514 | Left inner periphery locking post | 61532-89102 · 61532-89104 · 61532-89105 · 61532-89106 |
| 61667 | Right seat belt anchor reinforcement | 61667-89101 |
| 61668 | Left side seat belt lower anchor reinforcement | 61668-89101 |
