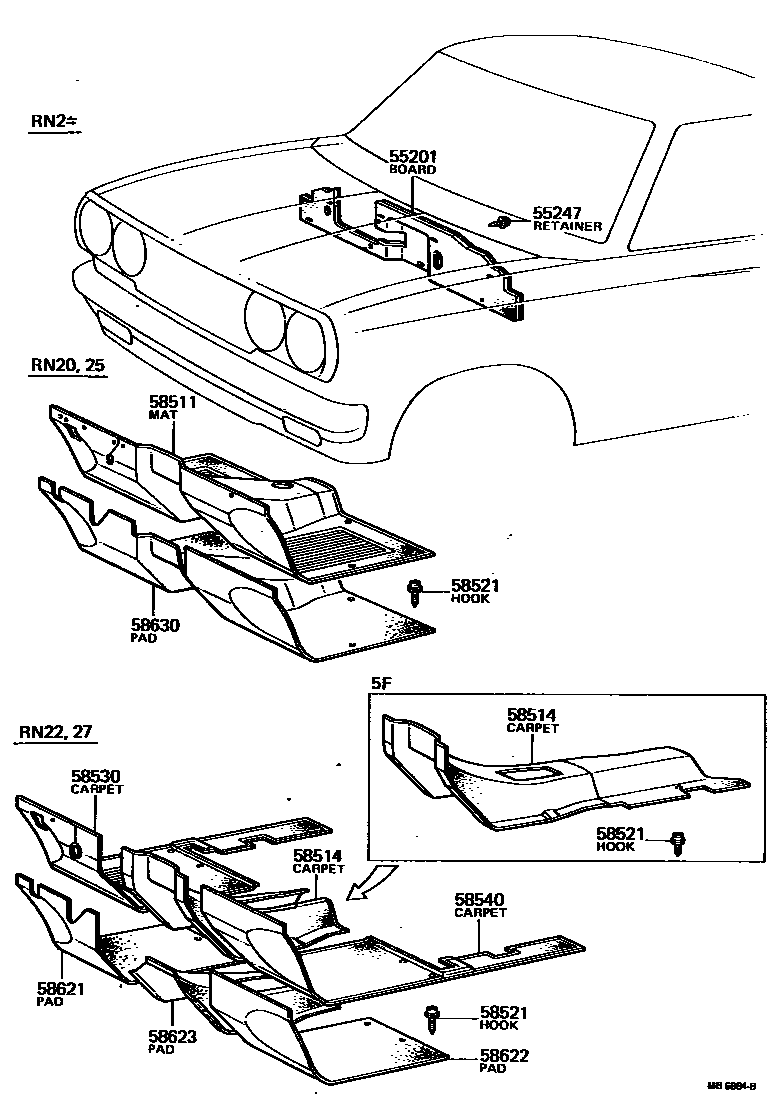

Toyota HILUX 地板垫和消声垫 — Figure 5854
Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55201 | Front apron muffler panel sub-assembly | 55210-89110 · 55210-89111 · 55210-89116 · 55210-89117 · 55210-89119 · 55210-89120 |
| 55247 | Front apron muffler panel fixings | 90467-07099 · 90530-04004 |
| 58521 | No. 1 outer hook | 90530-04004 |
| 58621 | Front floor right muffler pad | 58621-89101 · 58621-89102 · 58621-89103 |
| 58622 | Front floor left muffler pad | 58622-89101 · 58622-89102 · 58622-89103 · 58622-89104 |
| 58623 | Front floor center muffler mat | 58623-89101 · 58623-89102 · 58623-89103 |
| 58630 | Front floor sound absorbing mat | 58631-89104 · 58631-89105 · 58631-89107 · 58631-89108 · 58631-89110 · 58631-89111 · 58631-89112 · 58631-89113 |
