Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

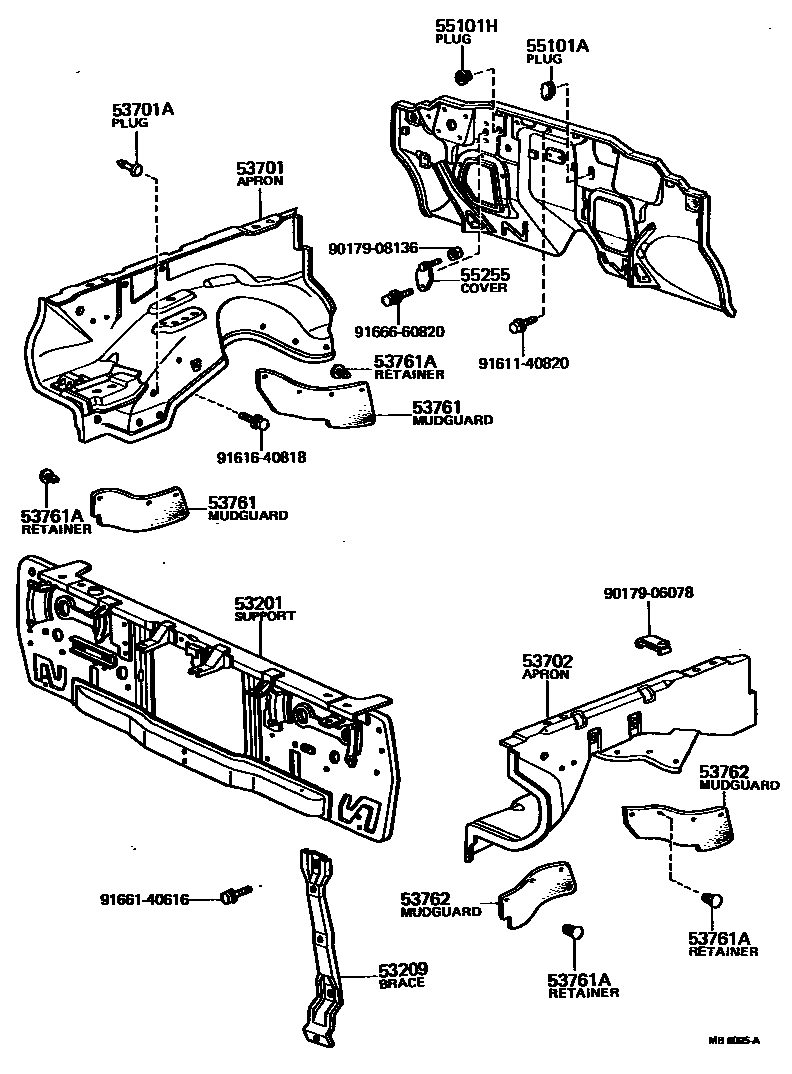

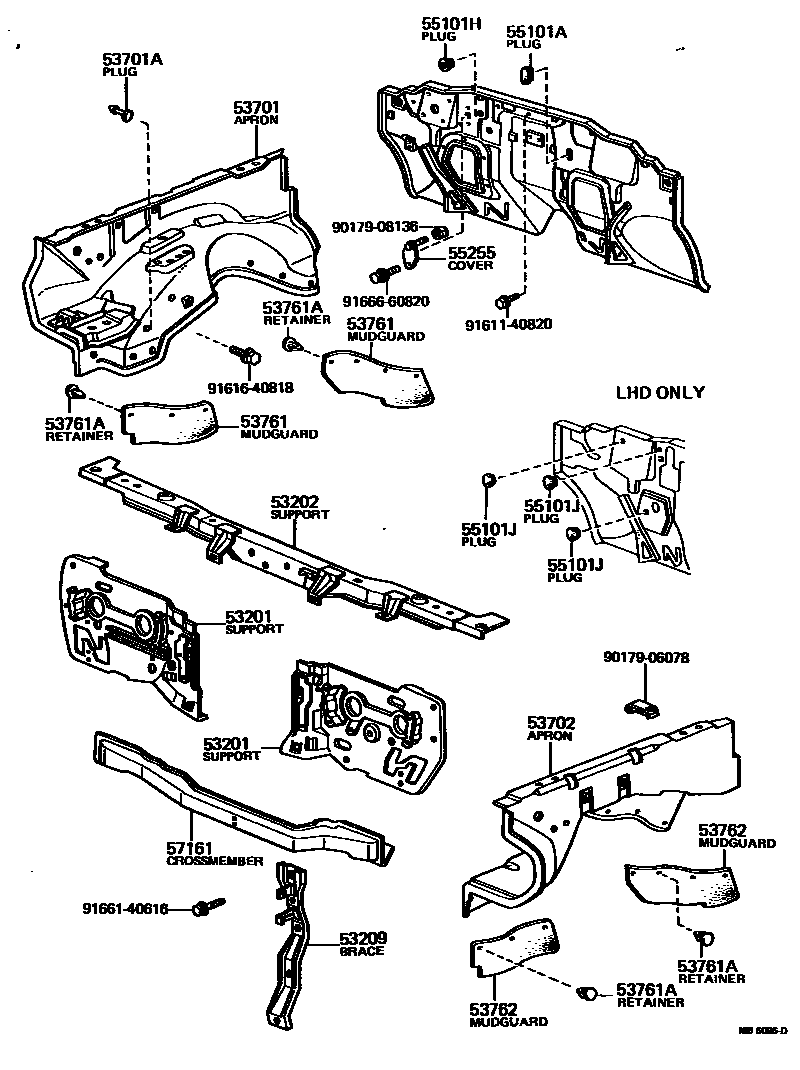

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-89106 · 53201-89108 · 53204-89902 · 53205-89901 |
| 53202 | Radiator right side bracket sub-assembly | 53202-89107 |
| 53209 | Engine cover lock bracket sub-assembly | 53209-89104 · 53209-89105 |
| 53701 | Right front fender fender sub-assembly | 53701-89108 · 53701-89110 · 53701-89112 |
| 53701A | Hole plug (for front fender) | 90333-25001 · 90950-01084 |
| 53702 | Left front fender fender sub-assembly | 53702-89113 · 53702-89114 · 53702-89115 · 53702-89116 · 53702-89118 · 53702-89120 · 53702-89121 · 53702-89122 · 53702-89123 · 53702-89124 · 53702-89126 · 53702-89127 · 53702-89128 · 53702-89129 · 53702-89130 · 53702-89131 |
| 53761 | right fender | 53717-89106 · 53717-89107 · 53717-89108 |
| 53761A | Fixings (for fenders) | 53718-89103 · 90467-10001 |
| 53762 | left fender | 53717-89106 · 53717-89107 · 53717-89108 |
| 55101A | No. 1 hole plug (for cowl) | 58711-89101 |
| 55101H | No. 2 hole plug (for cowl) | 90950-01010 |
| 55101J | No. 3 hole plug (for cowl panel) | 90950-01027 |
| 55255 | Clutch main pump hole cover | 55255-89102 |
